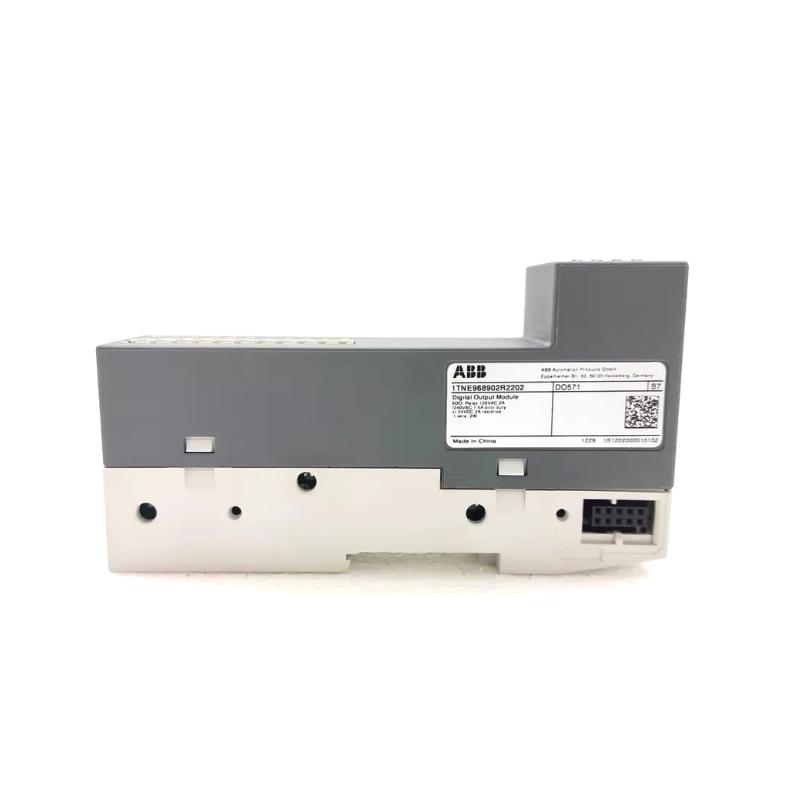

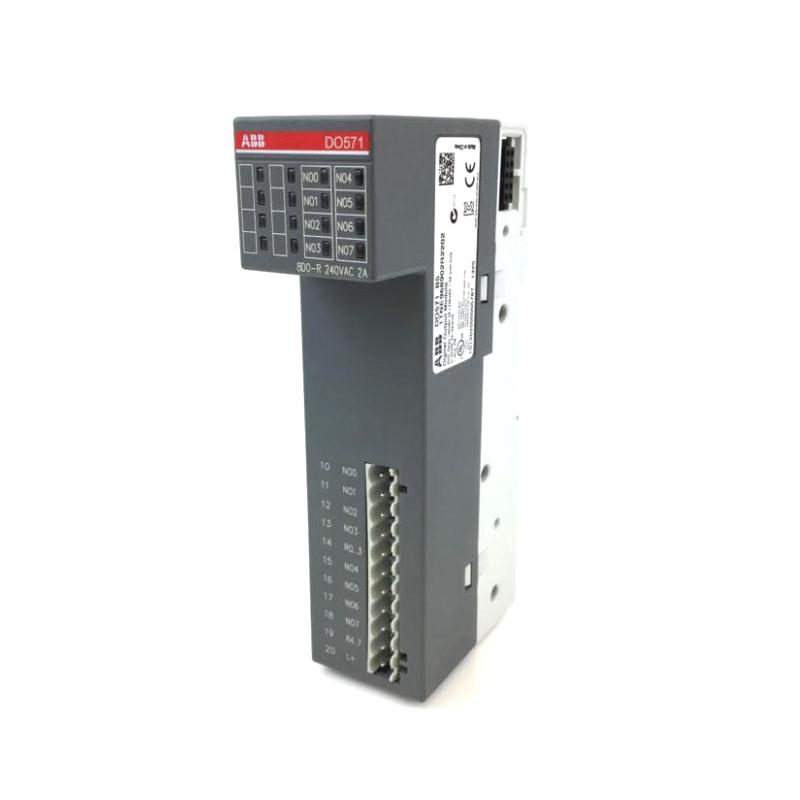

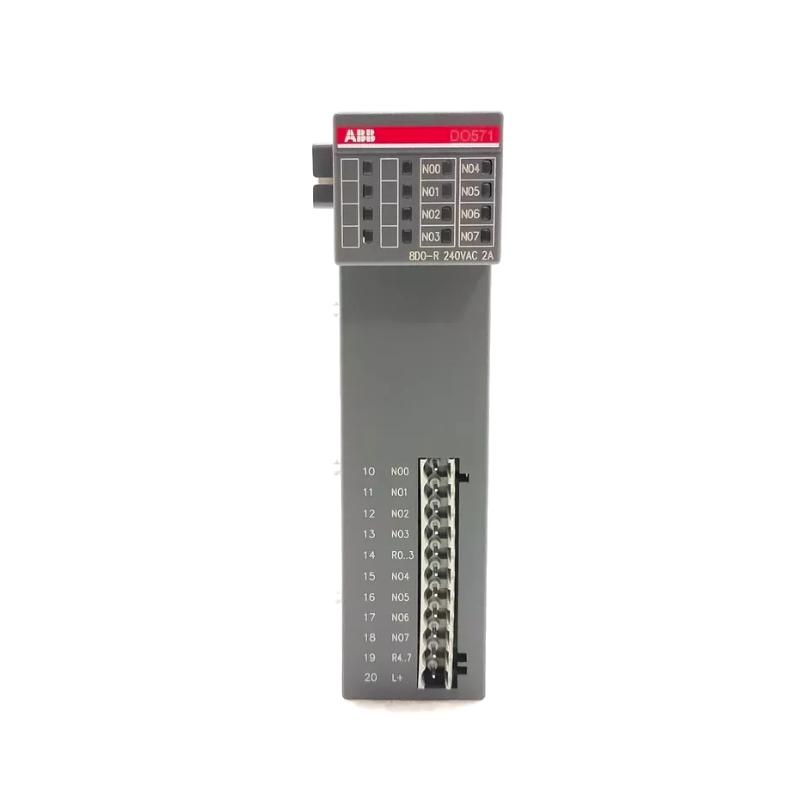

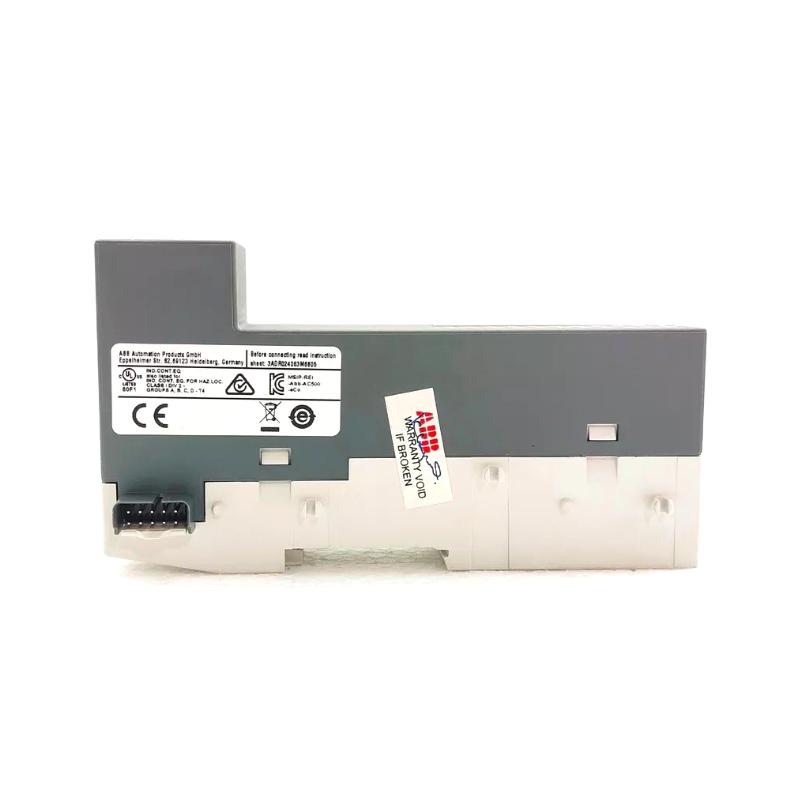

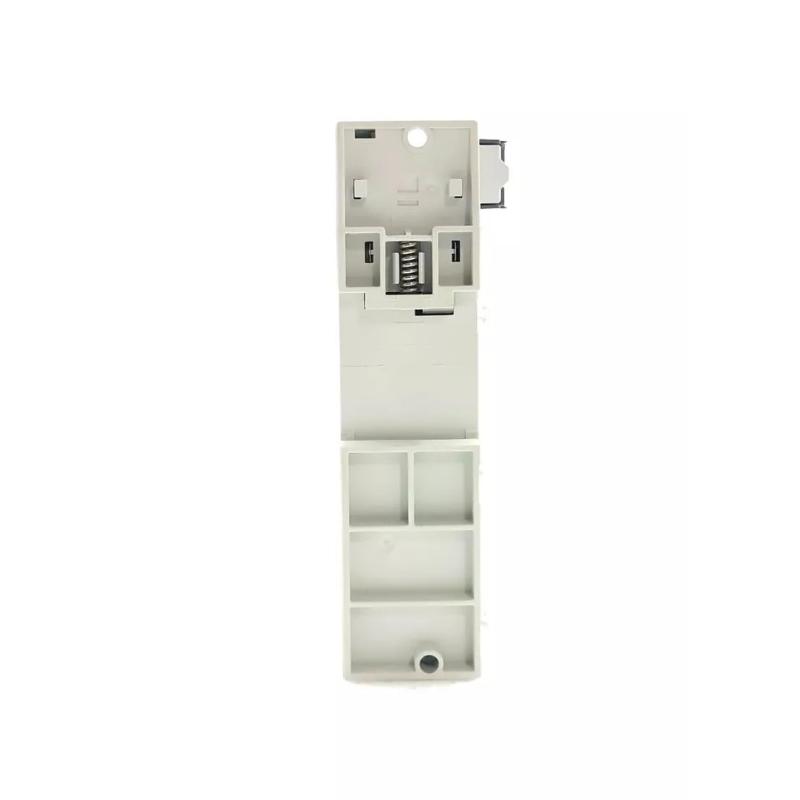

ABB DO571 1TNE968902R2202 | Digital Output Module 12-Month Warranty

Overview
The ABB DO571 1TNE968902R2202 is a high-performance digital output module designed for integration into ABB’s industrial automation systems. It is responsible for providing digital output signals to control field devices such as relays, solenoids, and other on/off actuators. The DO571 module ensures reliable and rapid switching, making it ideal for applications that require precise, real-time control and efficient digital output. It is a key component for systems demanding accurate and dependable digital signal handling.

General Information

• Part Number: 1TNE968902R2202

• Manufacturer: ABB

• Series: DO (Digital Output)

• Type: Digital Output Module

• Mounting: DIN rail or rack-mounted installation

• Technology: Digital signal output, real-time control, system integration

• Brand / Country of Origin: ABB / Sweden

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: ≤ 10 W

• Input: Powered from the system backplane

• Protection: Surge protection, reverse-polarity protection

• Indicators: LED indicators for power, output status, and system health

Communication & Interface

• Communication Ports: Integrated with the system backplane for communication with the central processing unit

• Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

• Output Features: Multiple digital outputs for controlling field devices such as relays, solenoids, and other on/off devices

Environmental

• Operating Temperature: −20 to +60 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 135 × 74 × 34 mm

• Weight: 0.242 kg
