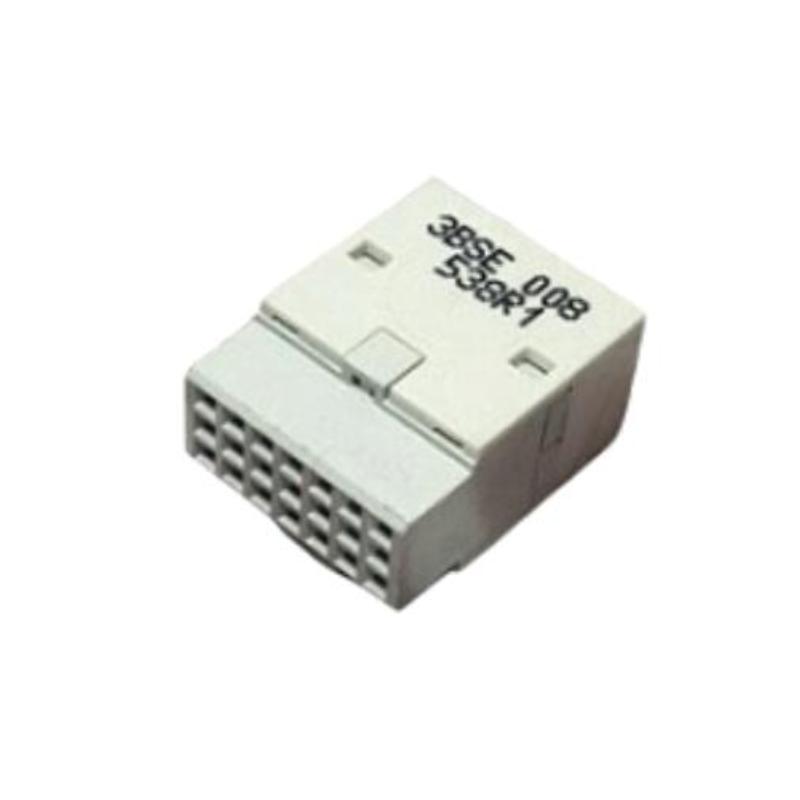

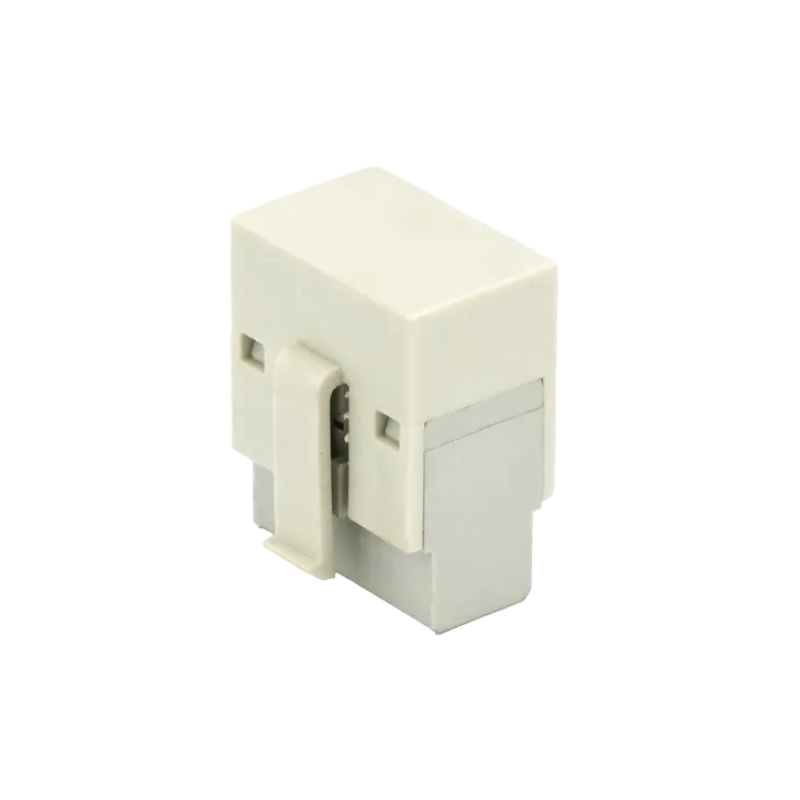

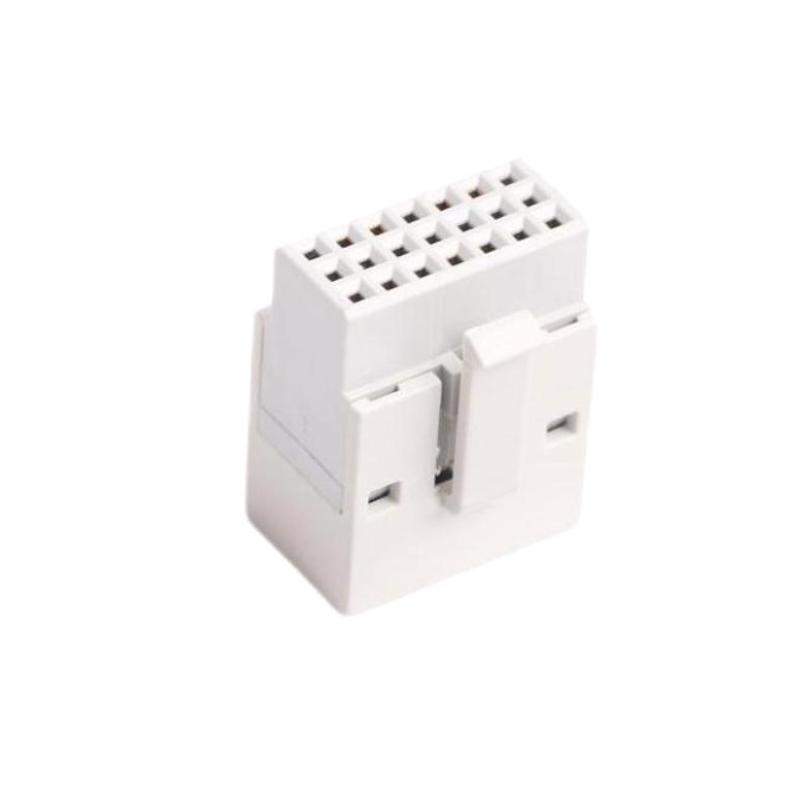

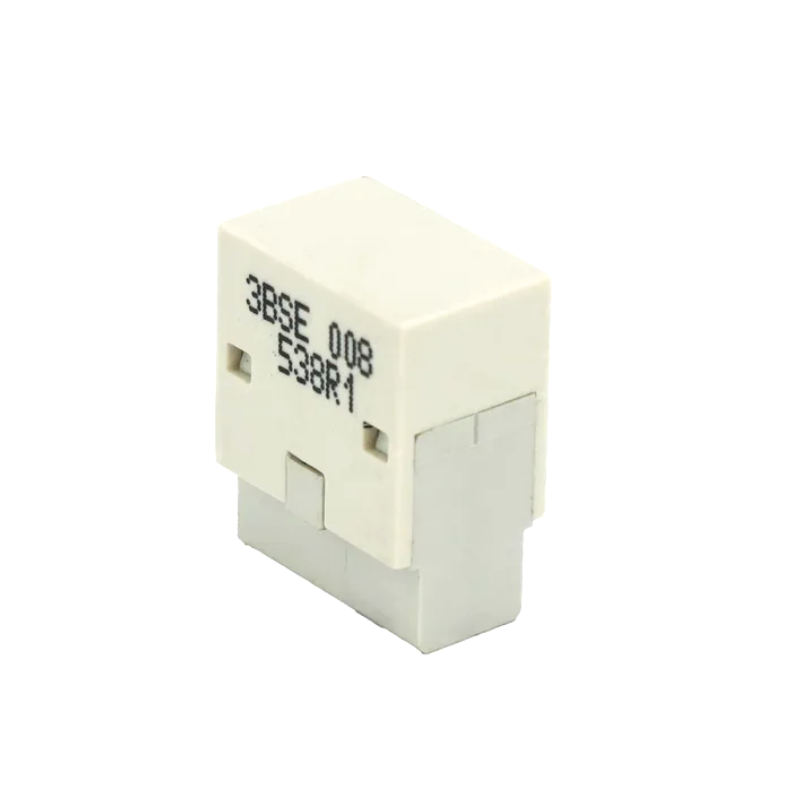

ABB TB807 3BSE008538R1 | Terminal Base Module Quality Assurance

Overview

The ABB TB807 3BSE008538R1 is a terminal base module designed for integration into ABB’s industrial automation systems. It serves as an essential component for the installation and connection of I/O modules in control systems. The TB807 module ensures reliable electrical connections between the field devices and the control system, facilitating seamless communication and data transmission. Its design supports robust signal routing, offering durability and precision for industrial applications.

General Information

Part Number: 3BSE008538R1

Manufacturer: ABB

Series: TB (Terminal Base)

Type: Terminal Base Module

Mounting: DIN rail or rack-mounted installation

Technology: Terminal base for I/O module connection, signal routing, system integration

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power and system status

Communication & Interface

Communication Ports: Integrated with the system backplane for communication with the central control unit

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Output Features: Provides connection for I/O modules and field devices

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 13 × 19 × 17 mm

Weight: 0.01 kg
