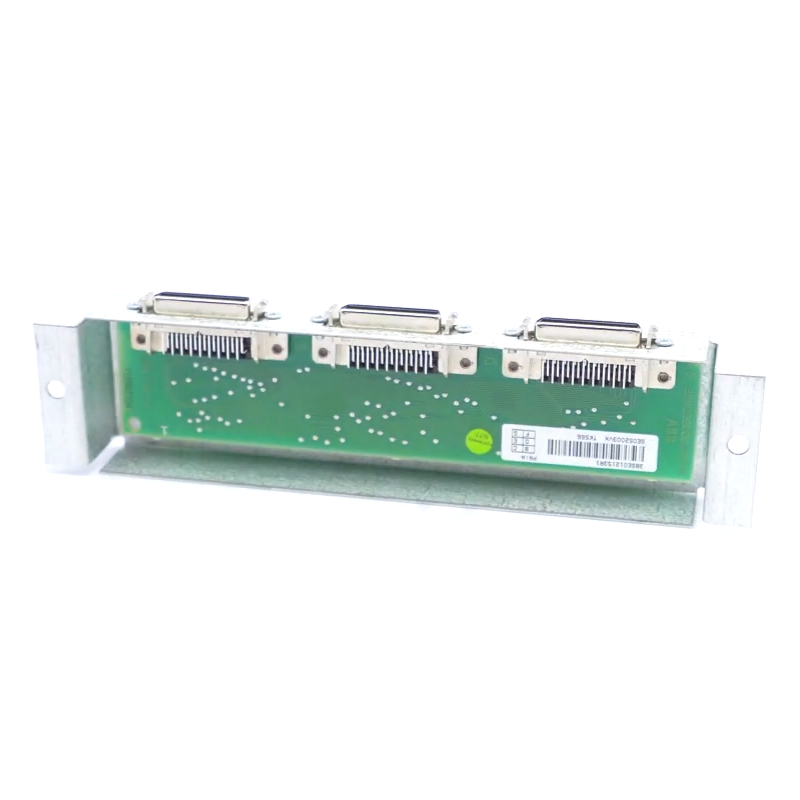

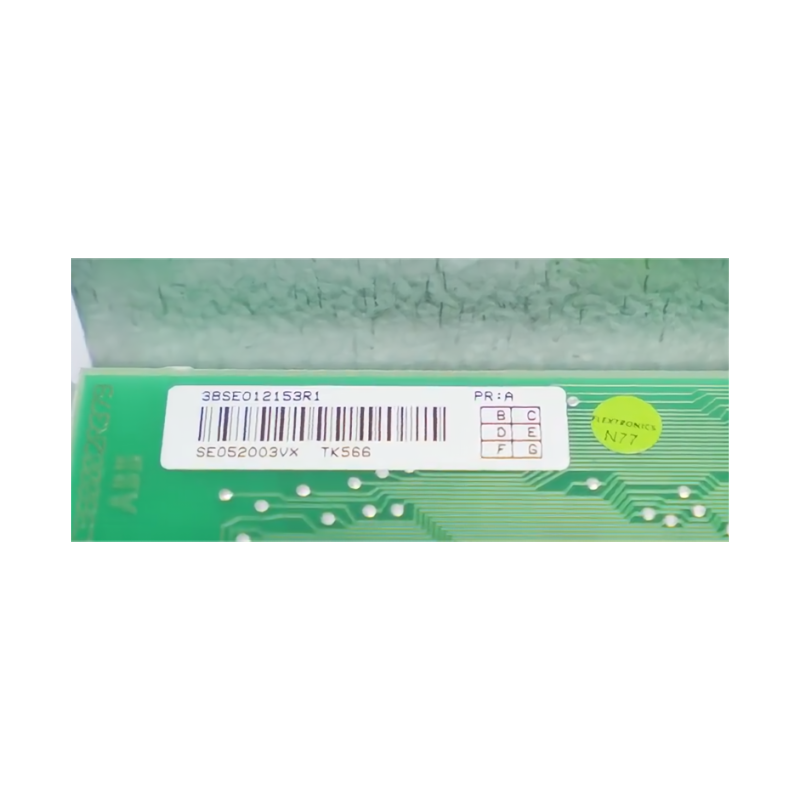

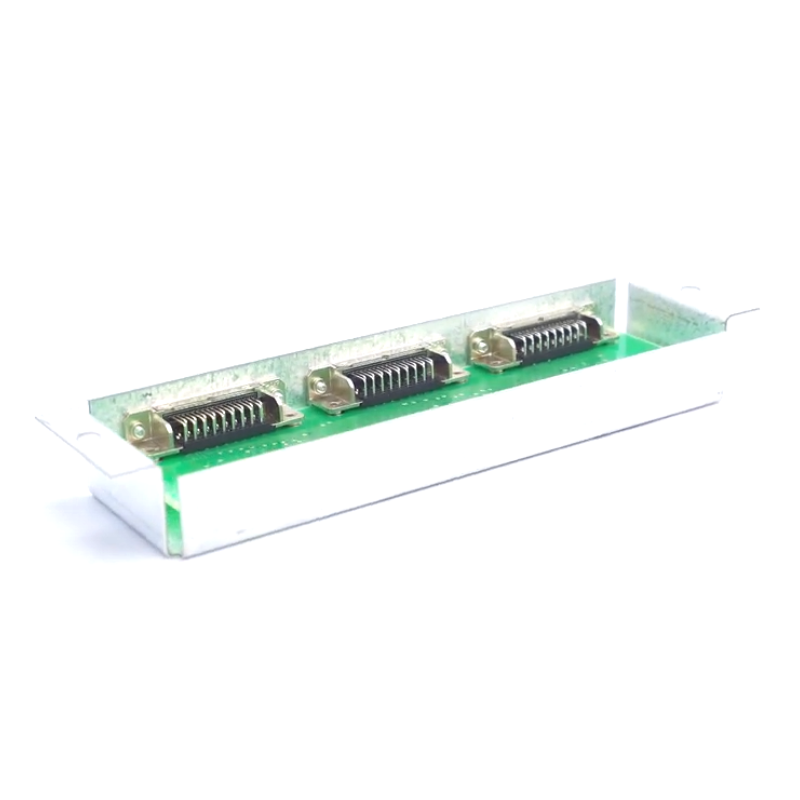

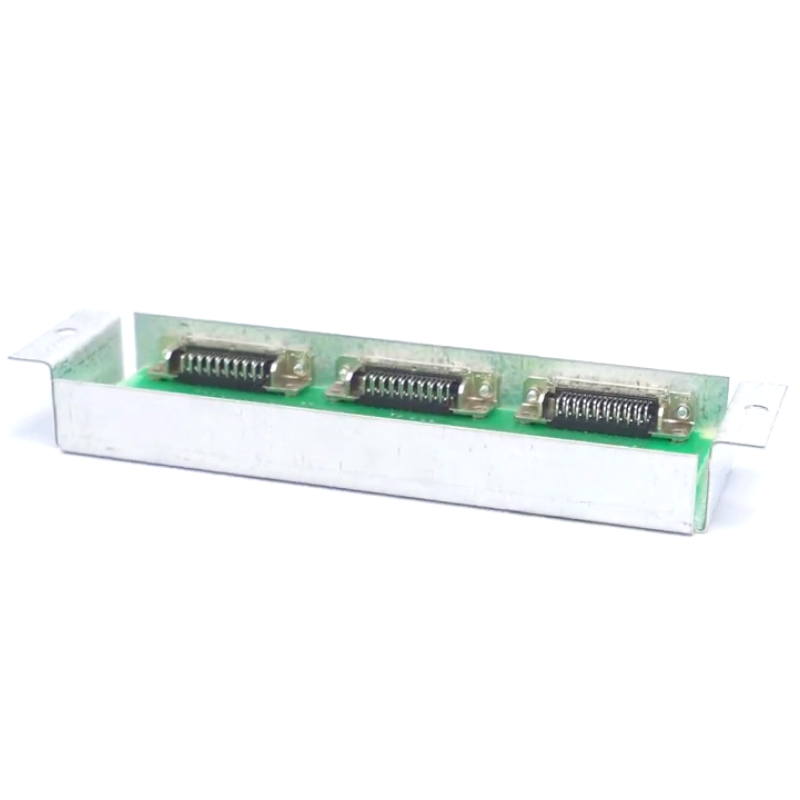

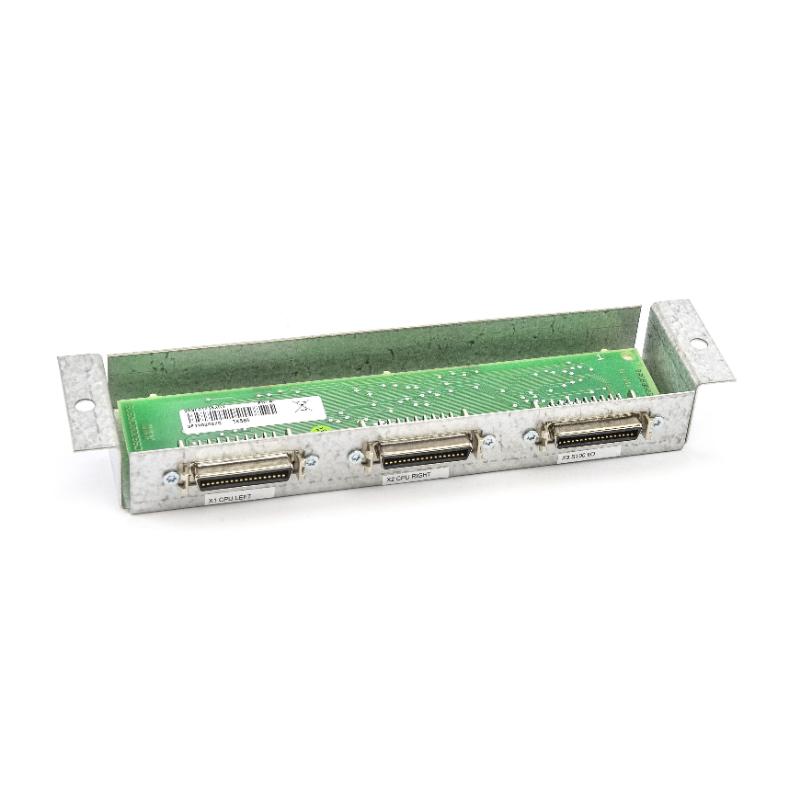

ABB TK566 3BSE012153R1 | Interconnector

Overview
The ABB TK566 3BSE012153R1 is an Interconnector module designed to provide seamless communication between various modules and devices within ABB's industrial automation systems. This module facilitates data transfer and ensures reliable connectivity, allowing different parts of the system to function together efficiently. The TK566 is ideal for applications that require robust inter-device communication, ensuring real-time data exchange and system synchronization across a variety of industrial environments.

General Information
Part Number: 3BSE012153R1
Manufacturer: ABB
Series: TK (Interconnector)
Type: Interconnector Module
Mounting: DIN rail or rack-mounted installation
Technology: Data transfer, system integration, network connectivity
Brand / Country of Origin: ABB / Sweden

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: Powered from the system backplane
Protection: Surge protection, reverse-polarity protection
Indicators: LED indicators for power, communication status, and fault

Communication & Interface
Communication Ports: Integrated with system backplane for inter-device communication
Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring
Output Features: Reliable data transfer and connectivity between system components

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight
Dimensions (L × W × H): 234 × 31.5 × 103.5 mm
Weight: 0.18 kg
