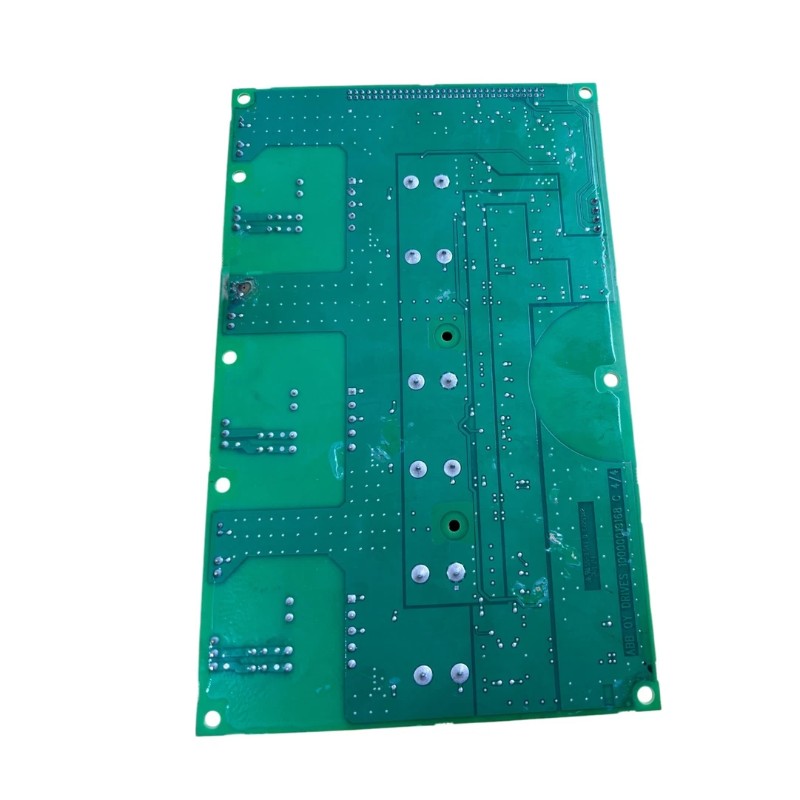

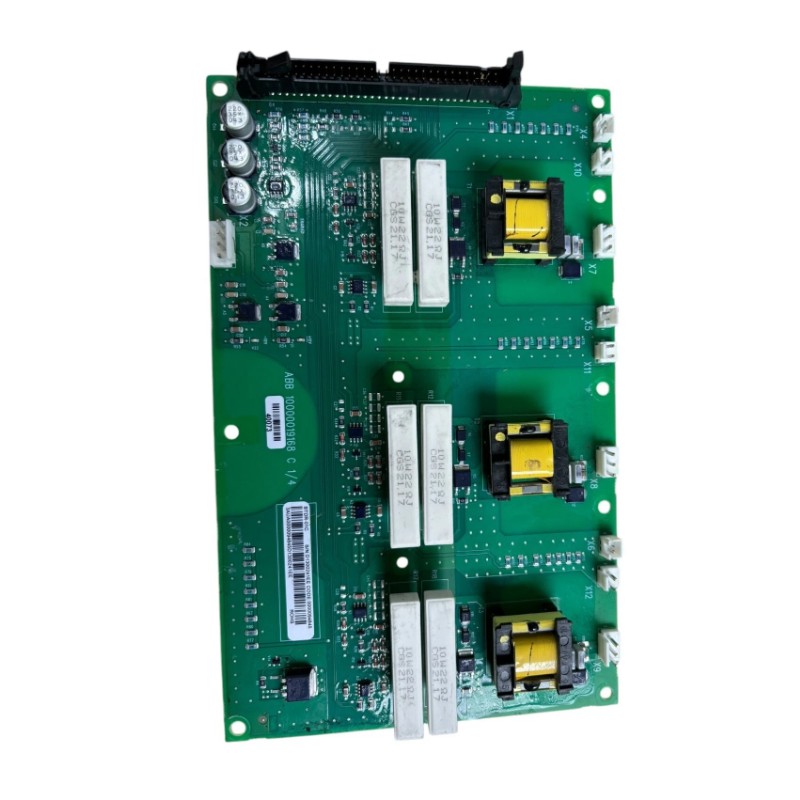

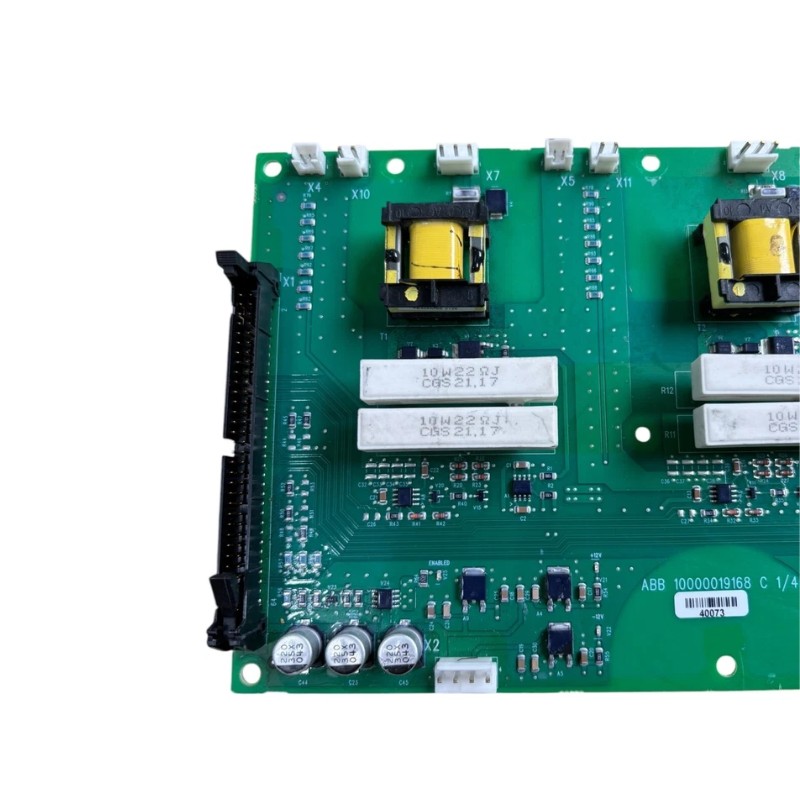

ABB BTDR-01C 3AUA0000094845 | Control Board Price Advantage

Overview
The ABB BTDR-01C is a Control Board designed for managing and regulating control systems in industrial automation. It provides reliable and precise control over various processes by integrating different system functions, ensuring seamless operation and high performance. The unit plays a critical role in maintaining system stability and optimizing control operations in complex industrial setups.

General Information
Part Number: 3AUA0000094845
Manufacturer: ABB
Country of Origin: Sweden
Series: BTDR (Control Board)
Type: Control Unit
Mounting: Designed for installation in control cabinets or system racks
Technology: Advanced control processing and system integration

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: Supports communication interfaces for integration with other control systems
Bus Coupler Role: Facilitates data exchange between the control board and connected devices
Diagnostics: Continuous monitoring with diagnostic LEDs for fault detection
Operator Interface: LED indicators and configuration switches for easy setup
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 200 × 50 × 130 mm
Weight: ~ 0.45 kg

Tested and verified before shipment.
