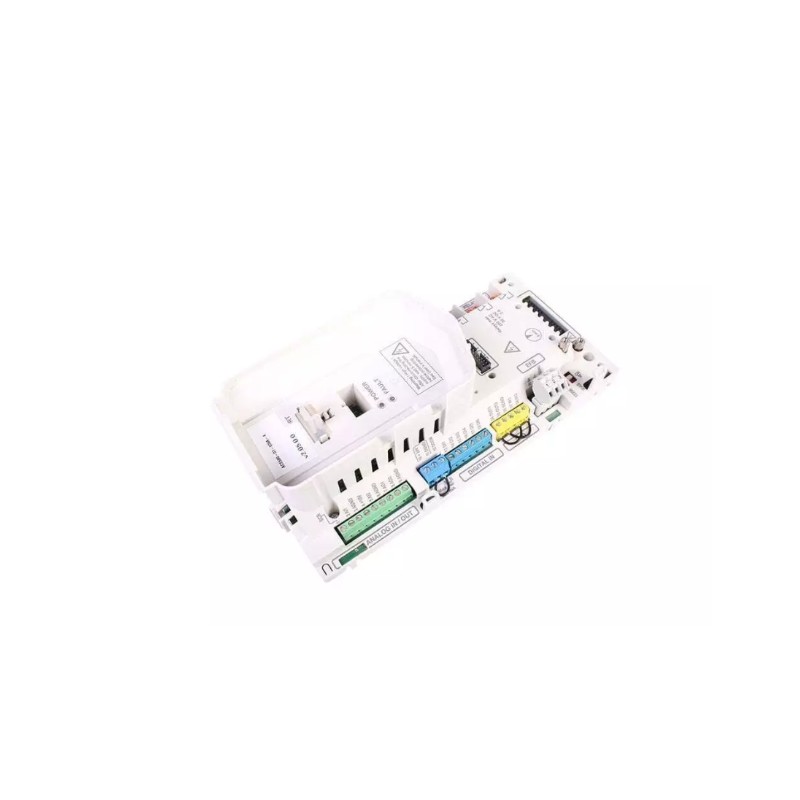

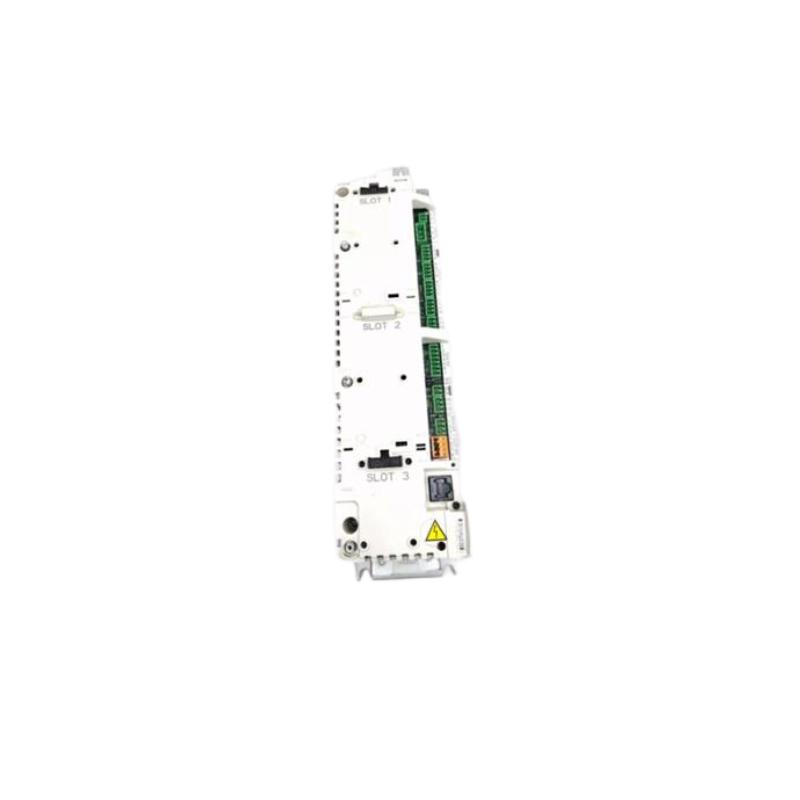

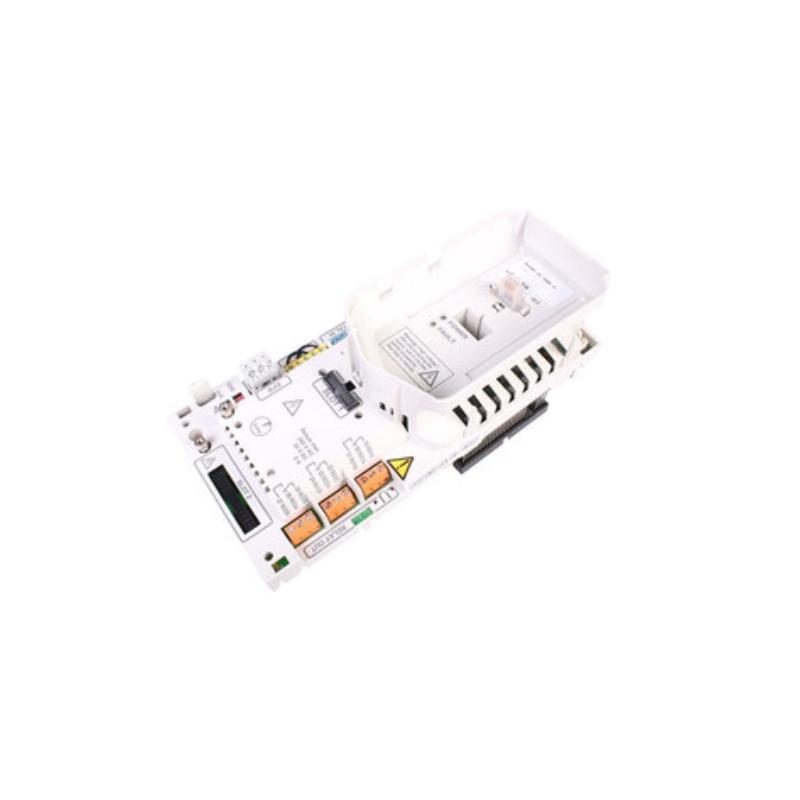

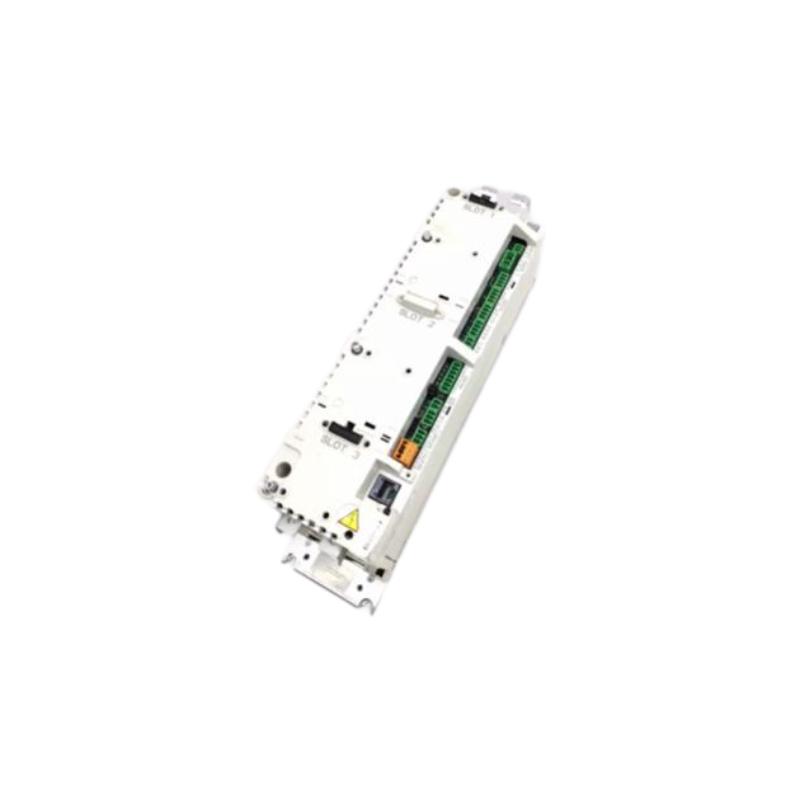

ABB CCU-23-S 3AXD50000034658 | Frequency Converter Drive Board 30-Day Returns

Overview
The ABB CCU-23-S is a Frequency Converter Drive Board designed for controlling and managing variable-speed drives in industrial automation systems. It optimizes motor speed and torque control, enabling efficient operation of machinery and equipment. The unit provides precise frequency conversion, ensuring reliable and stable performance in demanding industrial environments.

General Information
Part Number: 3AXD50000034658
Manufacturer: ABB
Country of Origin: Sweden
Series: CCU (Frequency Converter Drive Board)
Type: Drive Control Unit
Mounting: Suitable for installation in control cabinets or system racks
Technology: Frequency conversion, motor control, drive integration

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, drive status, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: Supports communication for drive control and integration with field devices
Bus Coupler Role: Facilitates data exchange between control systems and drive units
Diagnostics: Built-in diagnostics with LEDs for fault detection and system status reporting
Operator Interface: LED indicators and configuration switches for setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 230 × 50 × 120 mm
Weight: ~ 0.45 kg

Tested and verified before shipment.
