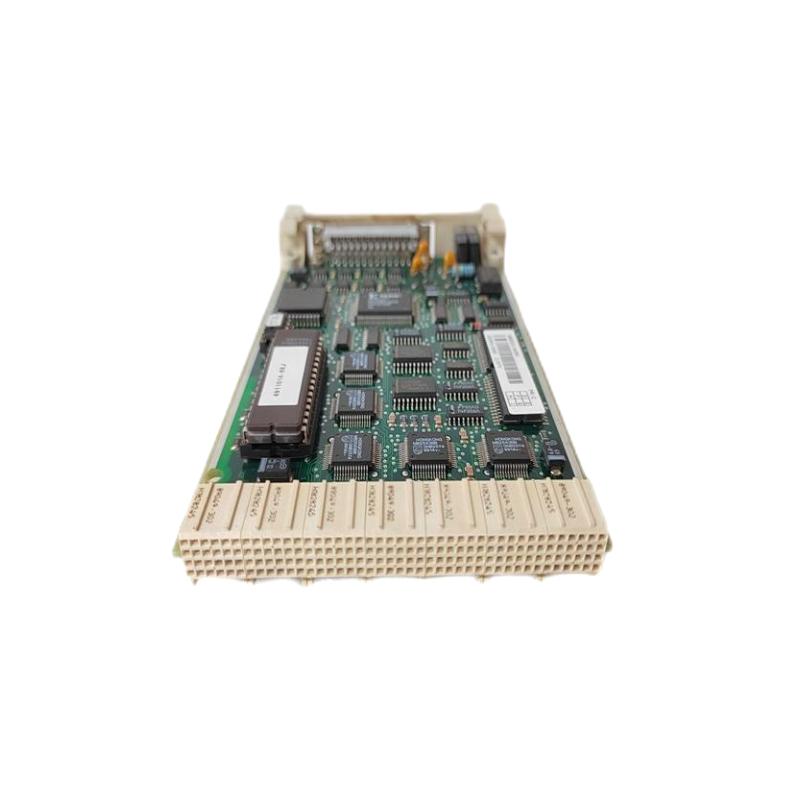

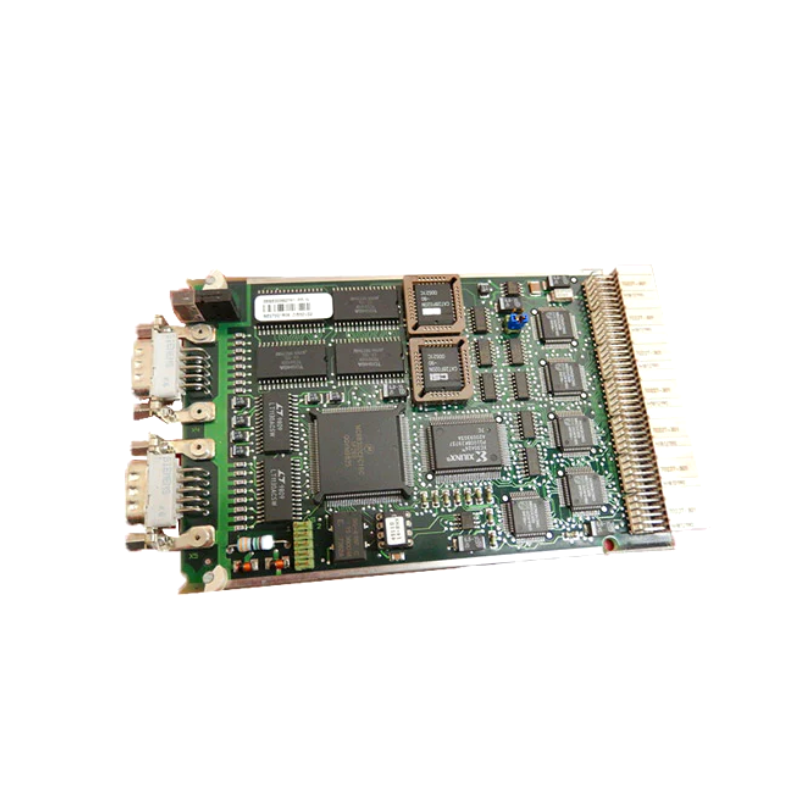

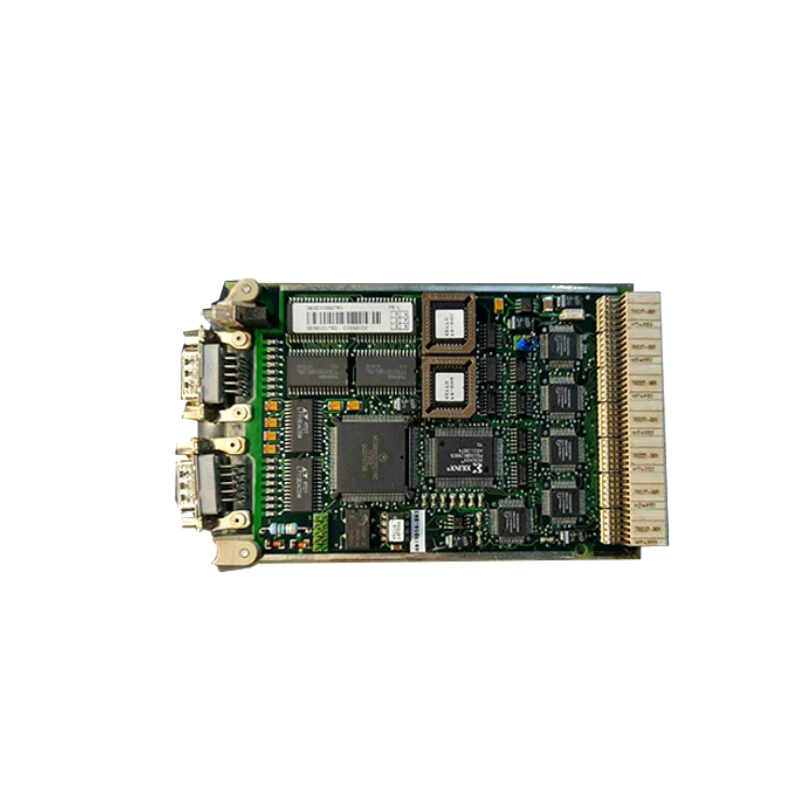

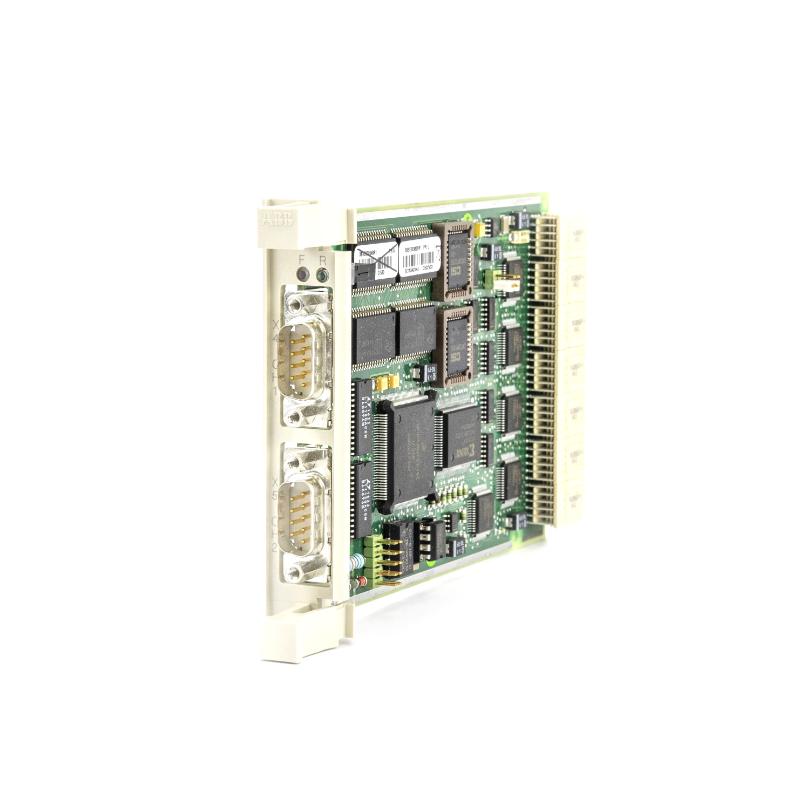

ABB CI532V03 3BSE003828R1 | Communication Interface Module Quality Assurance

Overview
The ABB CI532V03 is a high-performance Communication Interface Module designed to enable seamless communication between control systems and field devices within industrial automation networks. It ensures reliable, high-speed data exchange, facilitating efficient integration and optimized system performance. The CI532V03 module supports multiple communication protocols, making it adaptable to various industrial applications and enhancing real-time control and monitoring.

General Information
Part Number: 3BSE003828R1
Manufacturer: ABB
Country of Origin: Sweden
Series: CI (Communication Interface)
Type: Communication Interface Module
Mounting: Designed for installation in control cabinets or system racks
Technology: Multi-protocol communication, system integration

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input: Powered via system backplane
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface
Ethernet / Fieldbus Port: Supports multiple communication protocols for system integration
Bus Coupler Role: Facilitates data exchange between control systems and field devices
Diagnostics: Built-in diagnostics with LEDs for fault detection and system status reporting
Operator Interface: LED indicators and configuration switches for easy setup and monitoring
Reset Features: Supports both soft and hardware reset functions

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 265 × 25 × 120 mm
Weight: ~ 0.155 kg
