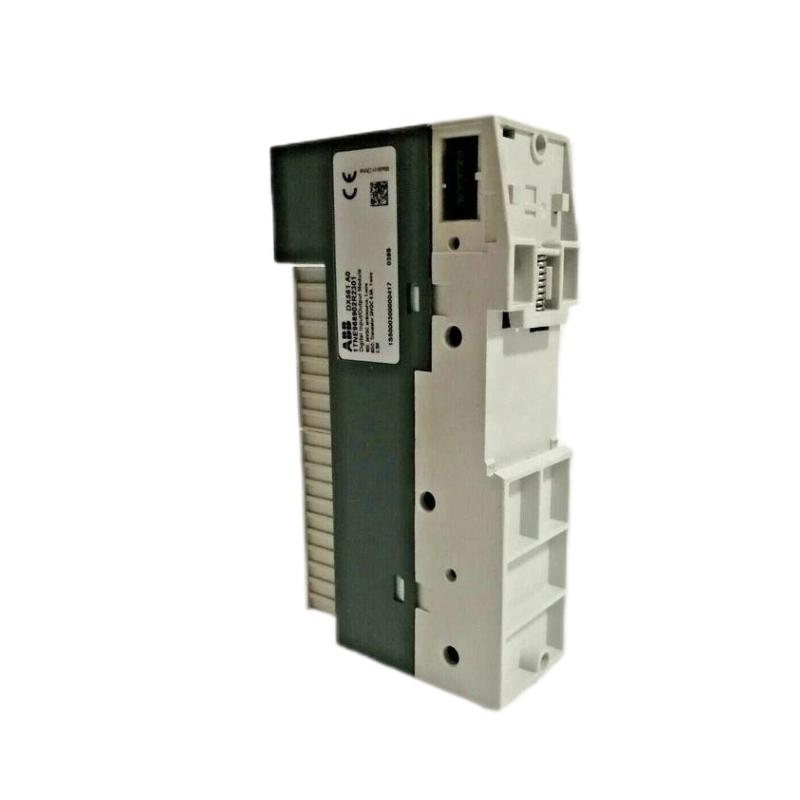

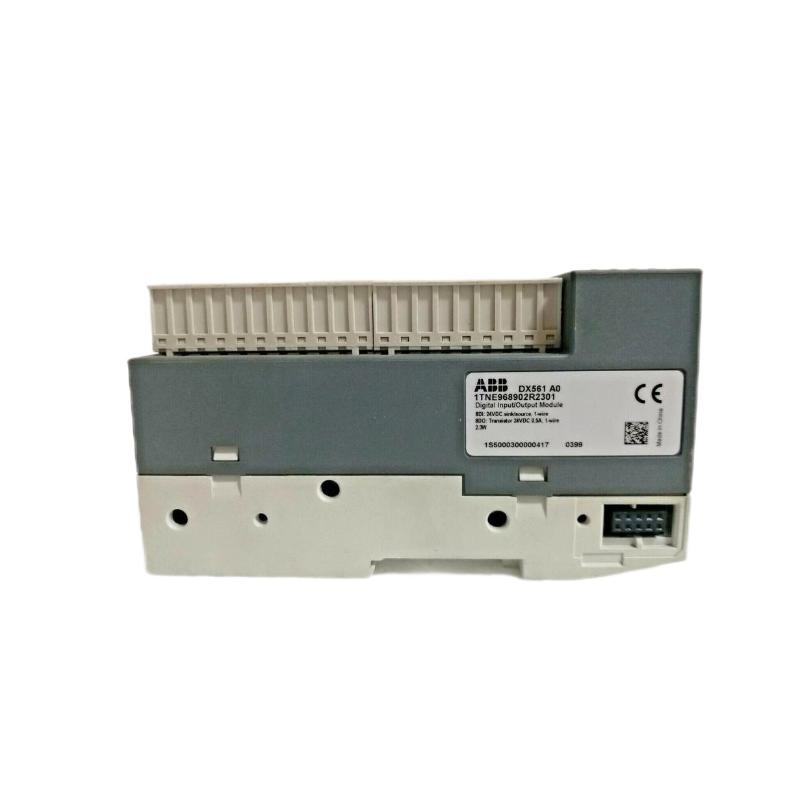

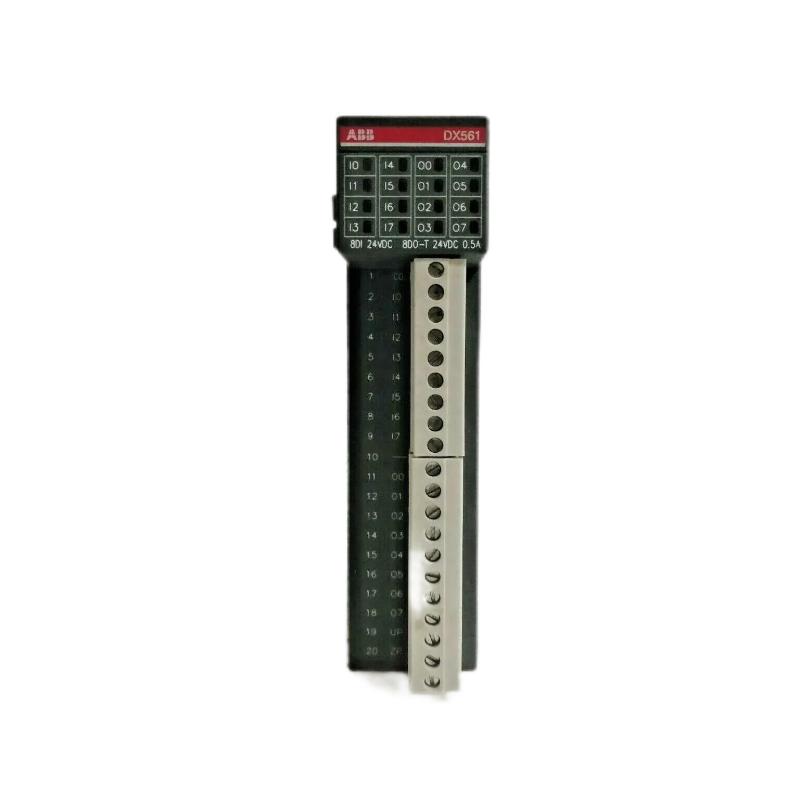

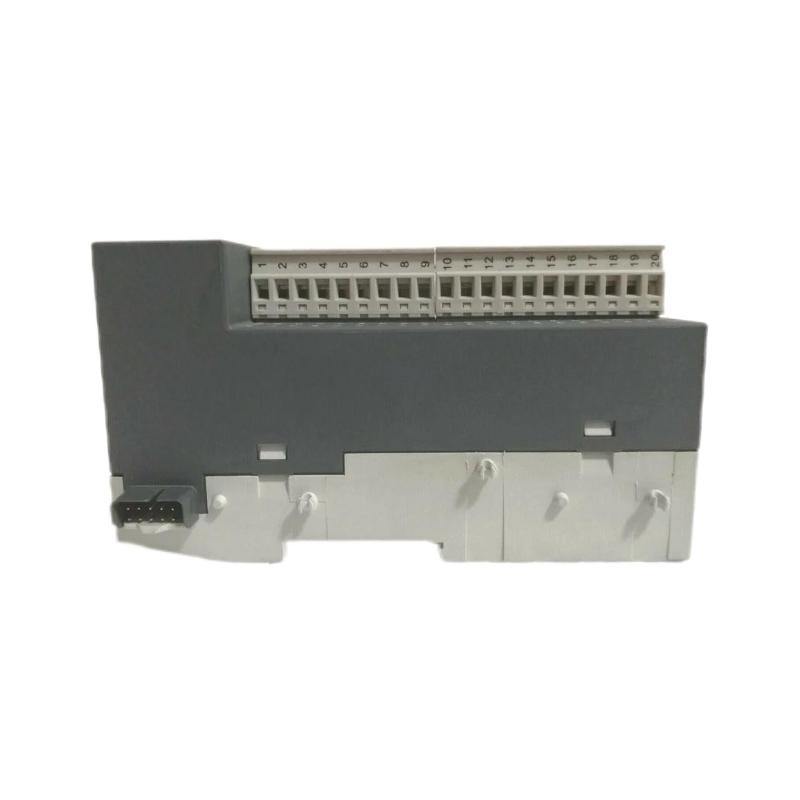

ABB DX561 1TNE968902R2301 | I/O Module Price Advantage

Overview
The ABB DX561 is a high-performance I/O Module designed for seamless integration within industrial automation and control systems. This module facilitates the exchange of input and output signals between the control system and field devices, ensuring smooth operation and communication in real-time processes. The DX561 module is ideal for use in industries such as manufacturing, power generation, and chemical processing, where reliable signal transmission and I/O management are critical to system performance and efficiency.

General Information
Part Number: 1TNE968902R2301

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: DX (I/O Module)

Type: I/O Module

Mounting: Suitable for installation in control panels, automation racks, or distribution boards

Technology: Digital and analog signal processing, system integration

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the system backplane or external power supply

Protection: Over-voltage, over-current, and short-circuit protection

Indicators: LEDs for power and operational status

Communication & Interface
Interface Type: Supports various industrial communication protocols

Signal Handling: I/O signal processing, data acquisition, and system feedback

System Role: Provides critical signal input/output functions within the control system

Diagnostics: Built-in diagnostics for signal integrity and fault detection

Reset Features: Supports system-level reset functions for recovery

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 135 × 74 × 34 mm

Weight: ~ 0.12 kg

Authentic parts with full manufacturer warranty.
