Overview

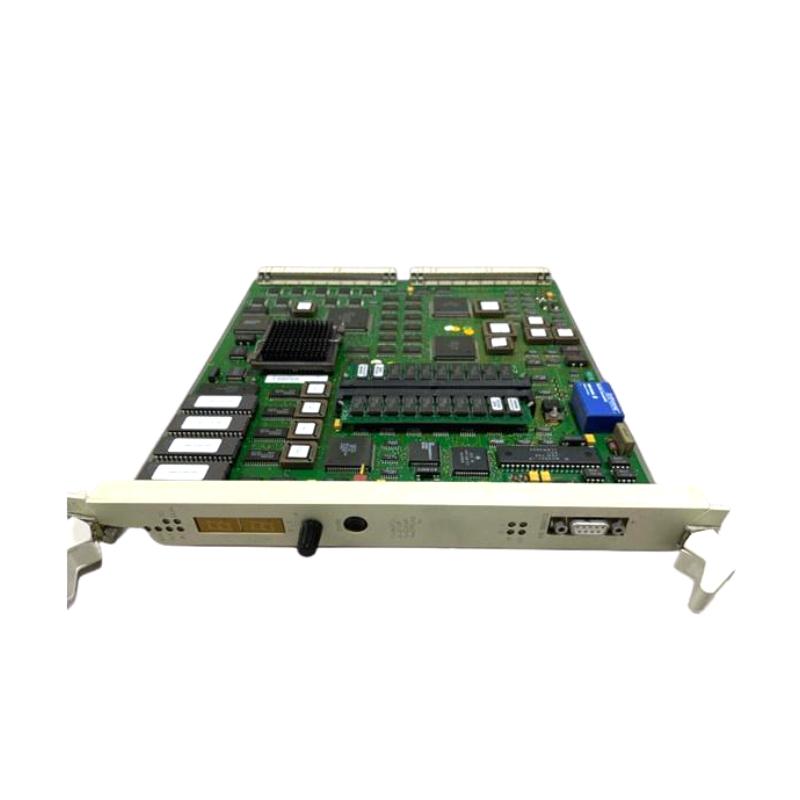

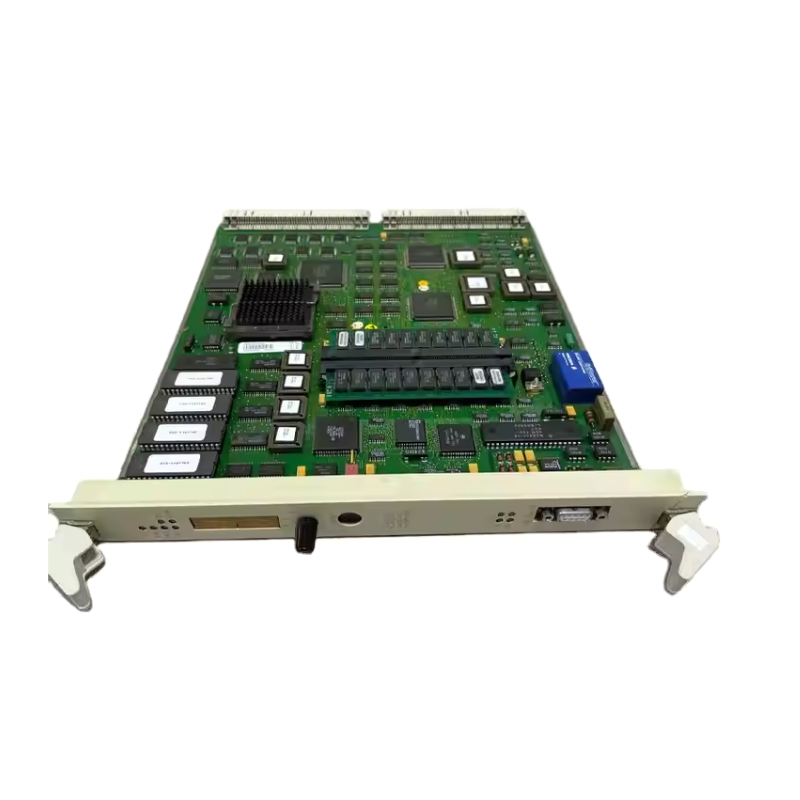

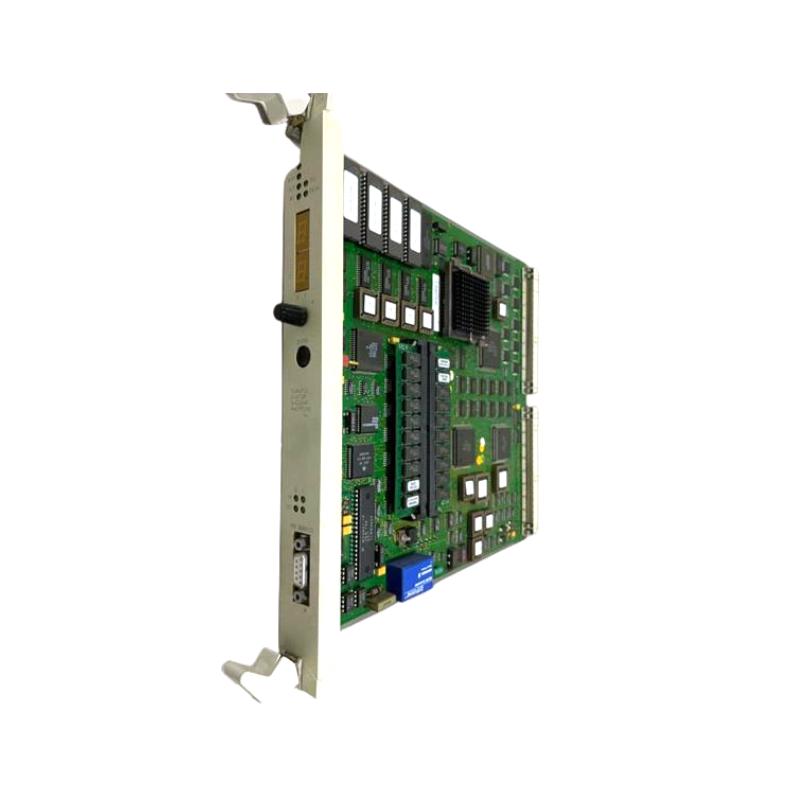

The ABB PM510 is a high-performance Processor Module designed to provide advanced control, monitoring, and processing capabilities for industrial automation systems. It acts as the central processing unit, executing control logic, managing data communication, and ensuring reliable system performance. The PM510 is ideal for complex applications in process control, energy management, and manufacturing automation, delivering precision and stability even in the most demanding environments.
General Information
Part Number: 3BSE000270R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: PM (Processor Module)
Type: Processor Module
Mounting: Designed for installation in control panels, automation racks, or system enclosures
Technology: Industrial-grade processor for real-time control, data processing, and communication
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: Powered from the system backplane or external DC supply
Indicators: LEDs for power, operational status, and communication
Protection: Over-voltage, over-current, and short-circuit protection
Communication & Interface
Interface Type: Backplane and industrial communication protocols
System Role: Executes control programs, coordinates communication between modules, and processes signals
Signal Handling: Real-time processing of digital and analog I/O signals
Diagnostics: Built-in diagnostics for system health, status, and fault detection
Reset Features: Supports system and processor-level reset functions
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial control environments
Dimensions & Weight
Dimensions (L × W × H): 120 × 90 × 60 mm
Weight: ~ 0.5 kg
Authentic parts with full manufacturer warranty.
