Overview

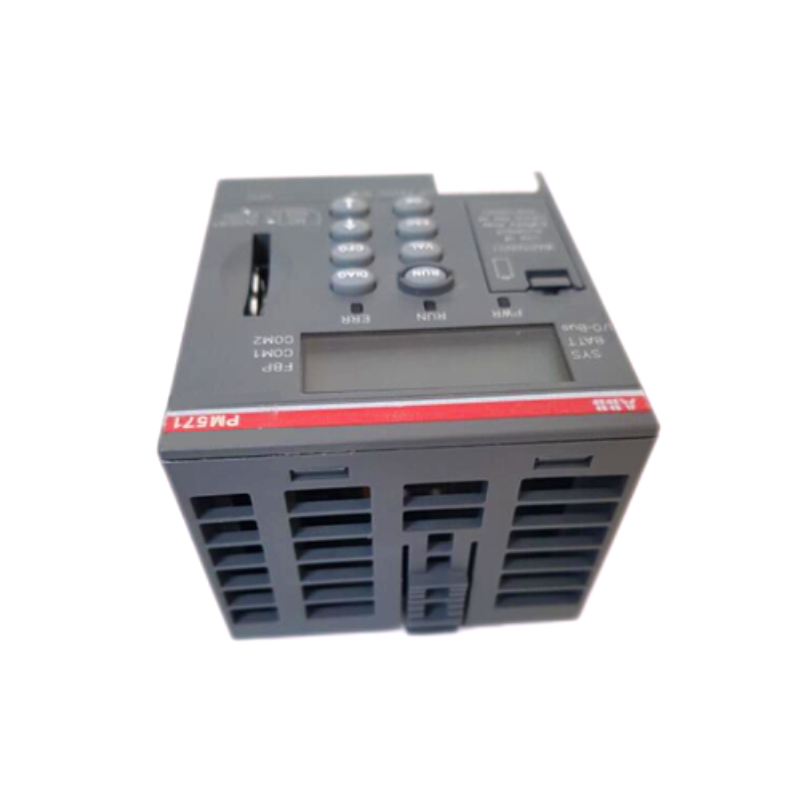

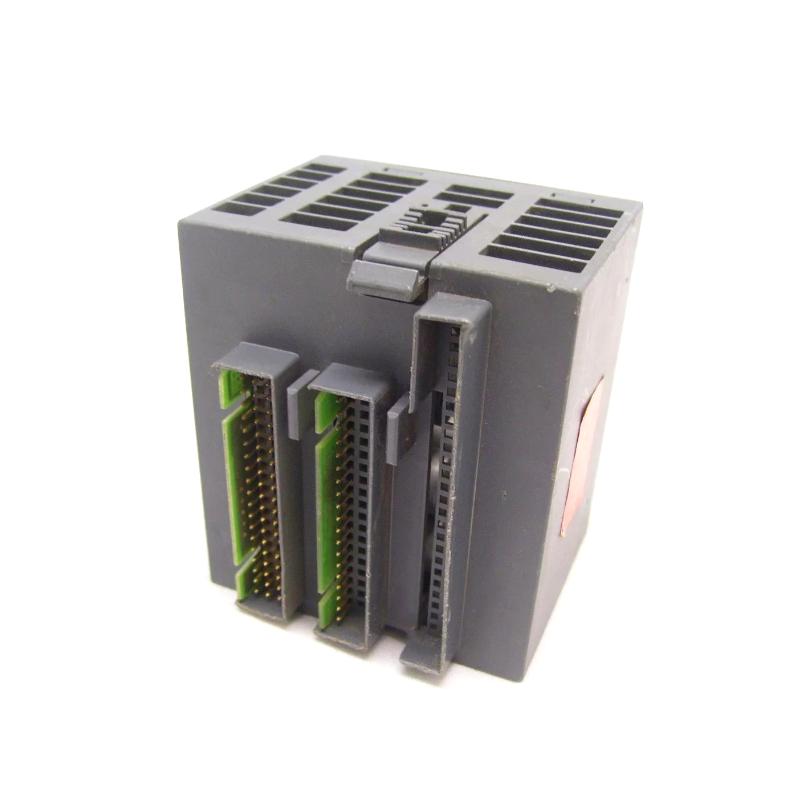

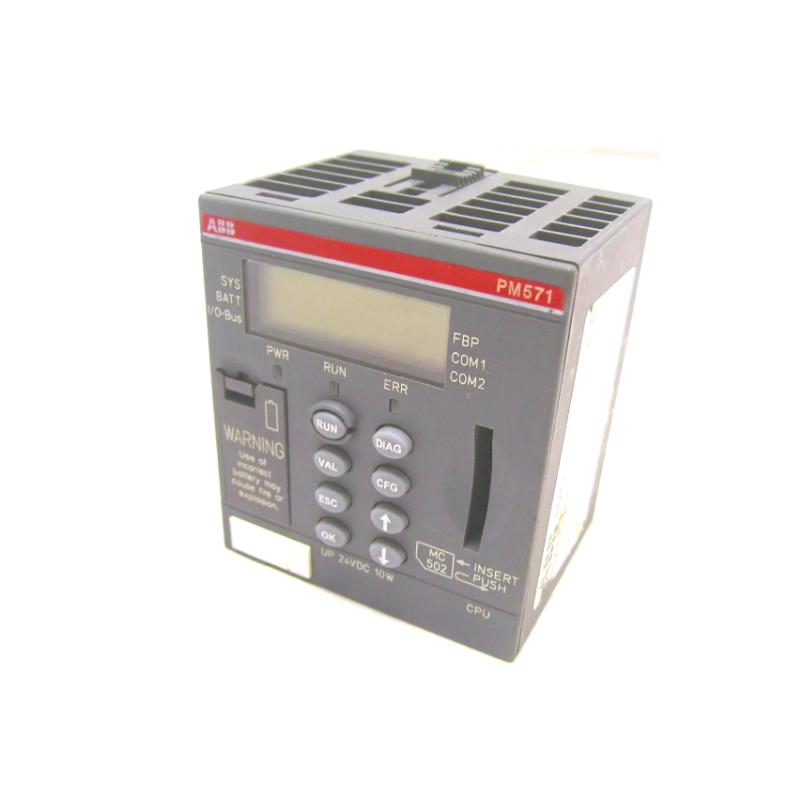

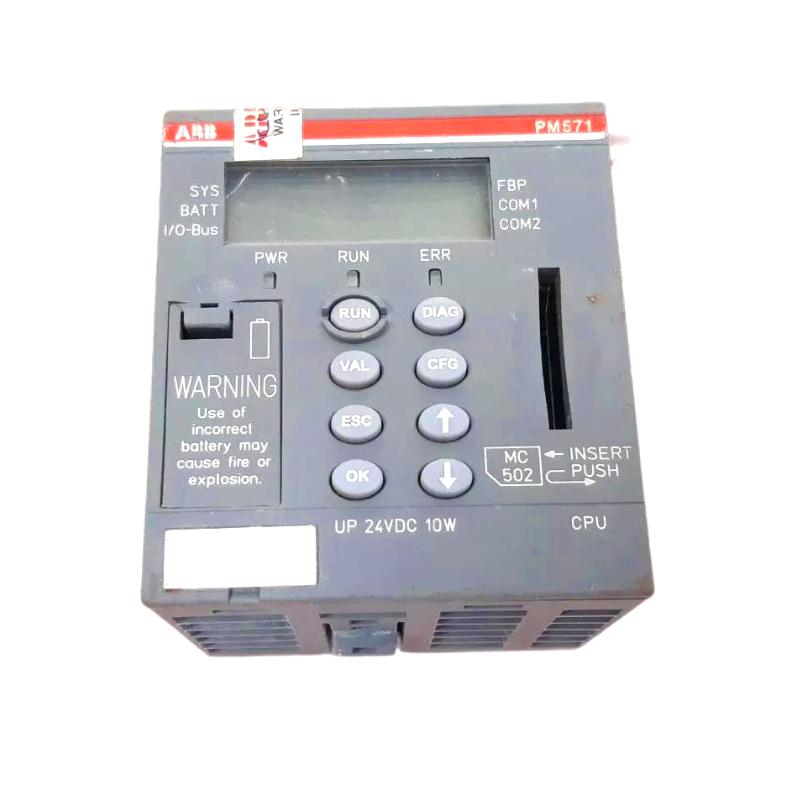

The ABB PM571 is a high-performance CPU Module designed to provide efficient processing and control within industrial automation systems. It acts as the central processing unit, executing control logic, managing communication, and coordinating signals between connected modules. The PM571 is ideal for a variety of industrial applications, such as process control, energy management, and automated manufacturing, ensuring reliable operation and seamless integration into automation systems.
General Information

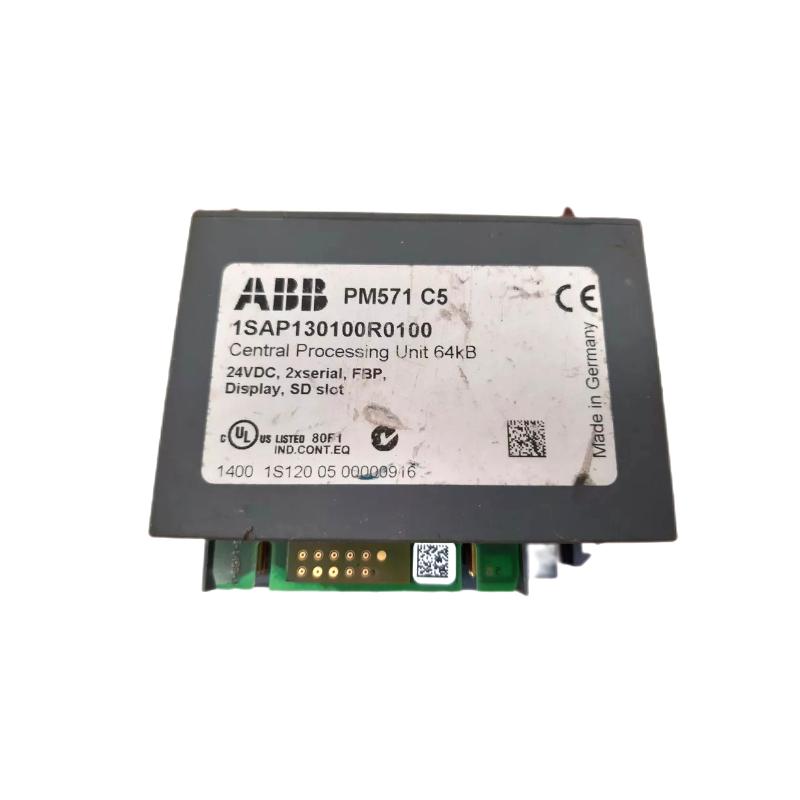

Part Number: 1SAP130100R0100
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: PM (CPU Module)
Type: CPU Module
Mounting: Suitable for installation in control panels, automation racks, or system enclosures
Technology: Industrial-grade CPU for real-time control, processing, and communication
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input: Powered from system backplane or external DC supply
Indicators: LEDs for power, operational status, and communication
Protection: Over-voltage, over-current, and short-circuit protection
Communication & Interface
Interface Type: Backplane and industrial communication protocols
System Role: Executes control programs and handles data exchange between modules
Signal Handling: Real-time processing of digital and analog I/O signals
Diagnostics: Built-in diagnostics for operational status and fault detection
Reset Features: Supports module and system-level reset functions
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments
Dimensions & Weight
Dimensions (L × W × H): 62 × 135 × 28 mm
Weight: ~ 0.12 kg
Authentic parts with full manufacturer warranty.
