Overview

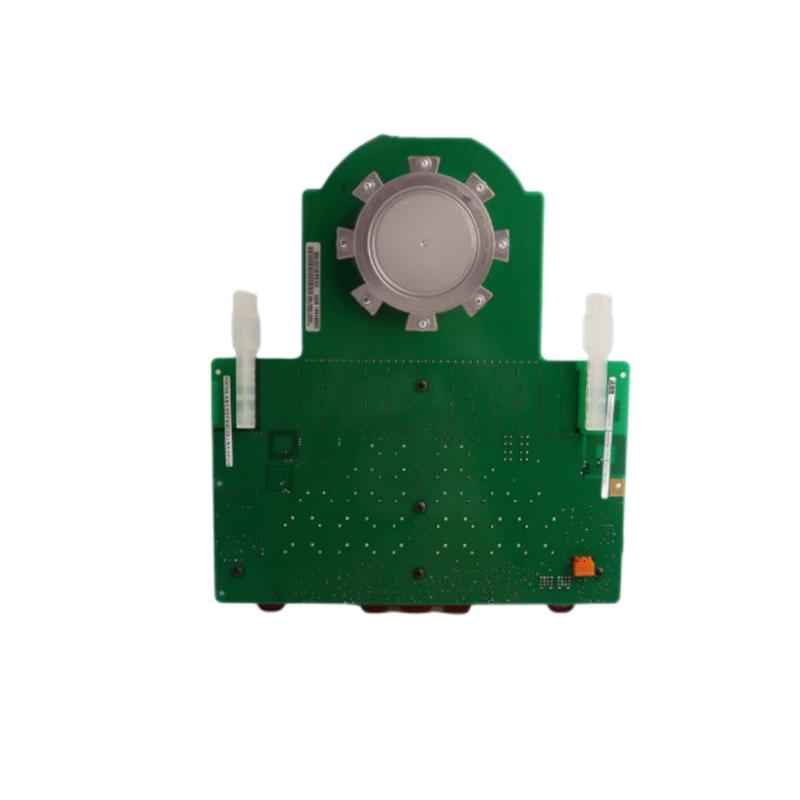

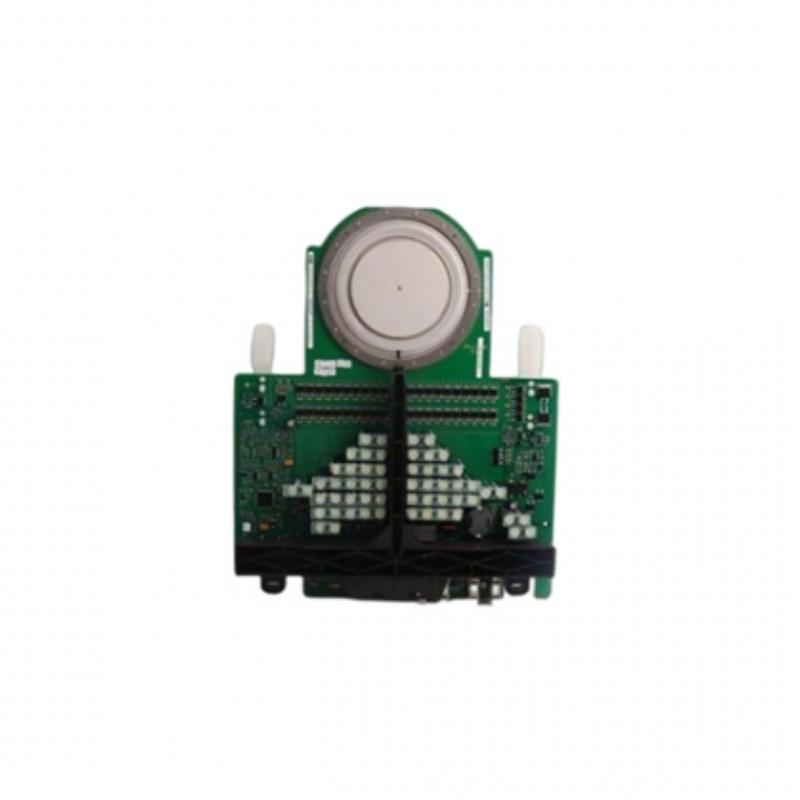

The ABB 5SGY3545L0014 is an Intelligent Gate Commutated Thyristor (IGCT) module designed for advanced power control applications. This module is integral to systems that require high-speed switching and efficient power regulation, particularly in medium- and high-voltage environments. The IGCT module is ideal for industrial automation, energy management, and process control applications, offering robust performance and precision in switching. With its advanced technology, it ensures smooth operation and enhanced efficiency in demanding power control environments.

General Information
Part Number: 3BHB006485R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: 5SGY (IGCT Module)

Type: IGCT Module

Mounting: Designed for installation in control panels, automation racks, or power control systems

Technology: High-performance IGCT for power control and switching

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered from system backplane or external DC supply

Indicators: LEDs for power, operational status, and communication

Protection: Over-voltage, over-current, and short-circuit protection

Communication & Interface
Interface Type: Industrial communication protocols (e.g., Fieldbus, Profibus, Ethernet)

System Role: Controls the switching of power transistors and thyristors in high-voltage applications

Signal Handling: Manages real-time switching signals for power control

Diagnostics: Built-in diagnostics for monitoring performance, operational status, and fault detection

Reset Features: Supports system and module-level reset functions

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial and power control environments

Dimensions & Weight
Dimensions (L × W × H): 127 × 32 × 127 mm

Weight: ~ 0.4 kg
