Overview

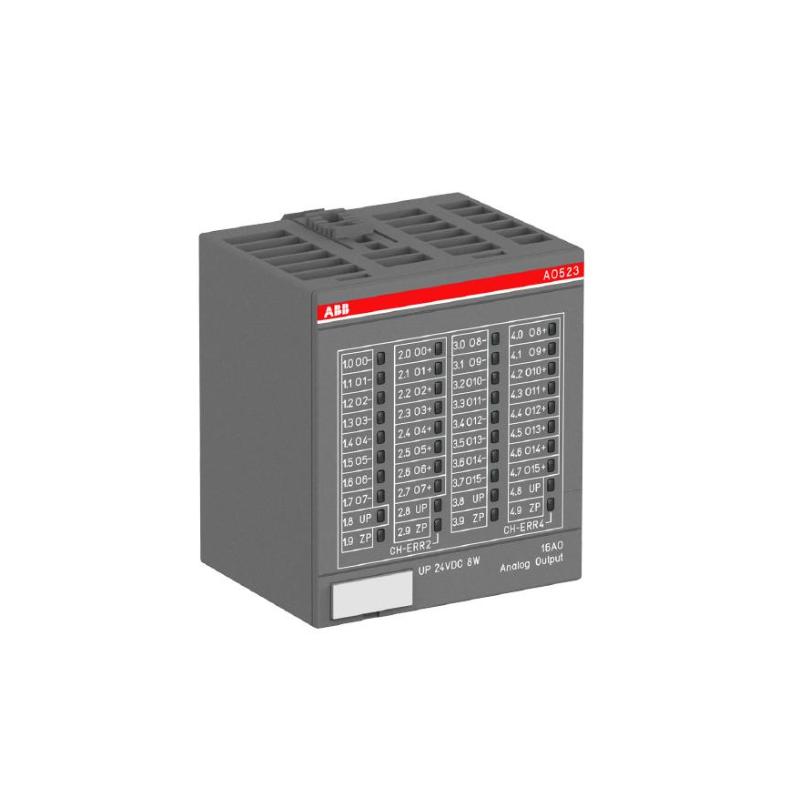

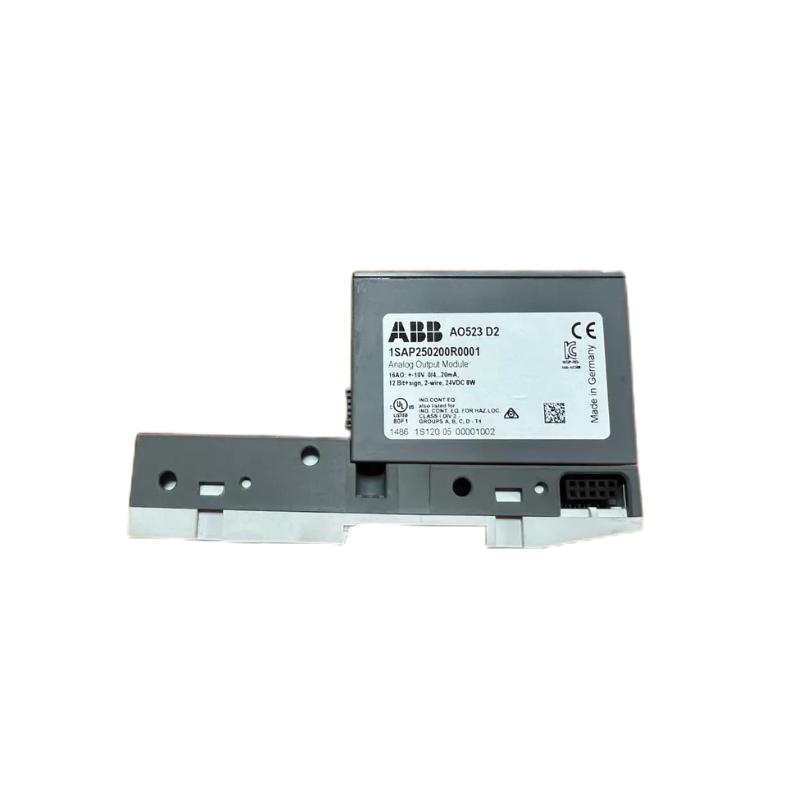

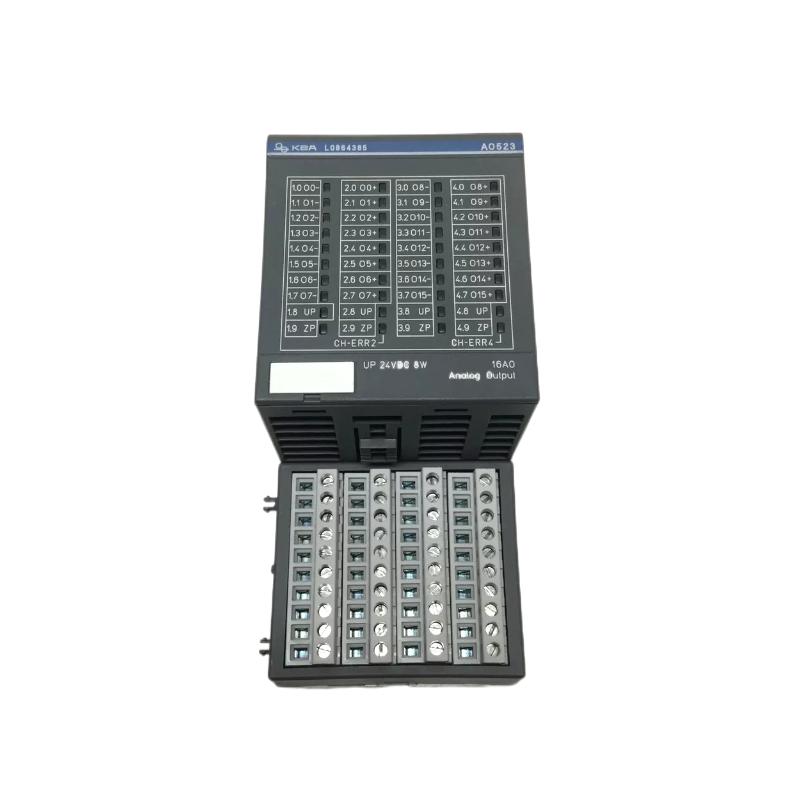

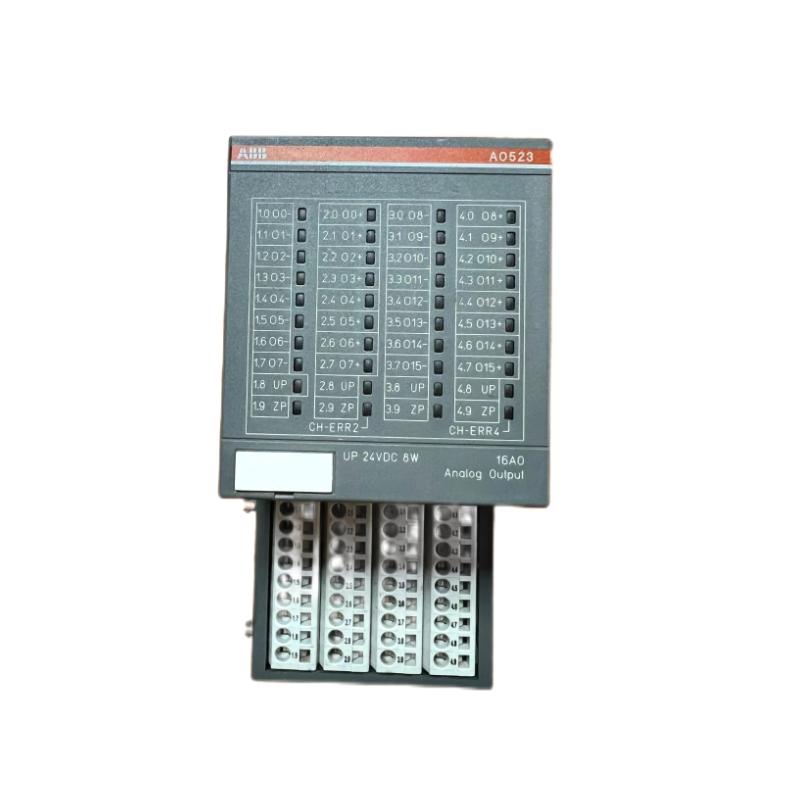

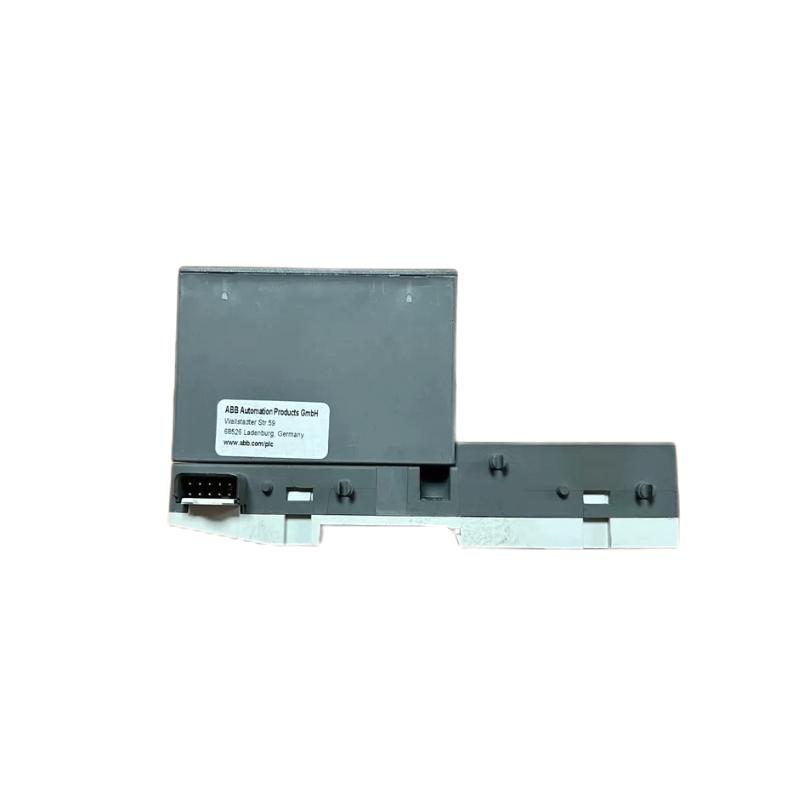

The ABB AO523 is a high-performance Analog Output Module designed for industrial automation systems. It converts digital signals from the control system into analog signals that can be sent to field devices for real-world control applications. The AO523 is suitable for a wide range of industrial applications, including process control, energy management, and automated manufacturing. With precise signal conversion and high reliability, it ensures smooth integration into control systems, providing accurate analog output for field operations.
General Information
Part Number: 1SAP250200R0001
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: AO (Analog Output)
Type: Analog Output Module
Mounting: Designed for installation in control panels, automation racks, or system enclosures
Technology: Digital-to-analog signal conversion for industrial control
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 7 W
Input: Powered from the system backplane or external DC supply
Indicators: LEDs for power, output status, and fault indication
Protection: Over-voltage, over-current, and short-circuit protection
Communication & Interface
Interface Type: Backplane and industrial communication protocols
Signal Handling: Converts digital control signals into corresponding analog output signals
Diagnostics: Built-in diagnostics for output status, signal integrity, and fault detection
Reset Features: Supports module and system-level reset functions
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments
Dimensions & Weight
Dimensions (L × W × H): 62 × 76 × 67.5 mm
Weight: ~ 0.3 kg
Authentic parts with full manufacturer warranty.
