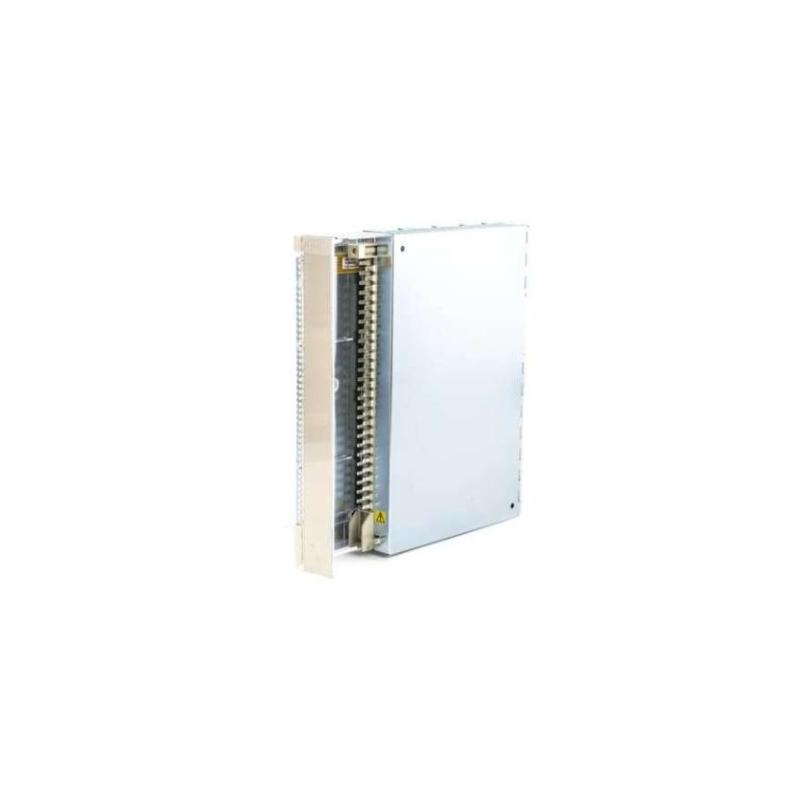

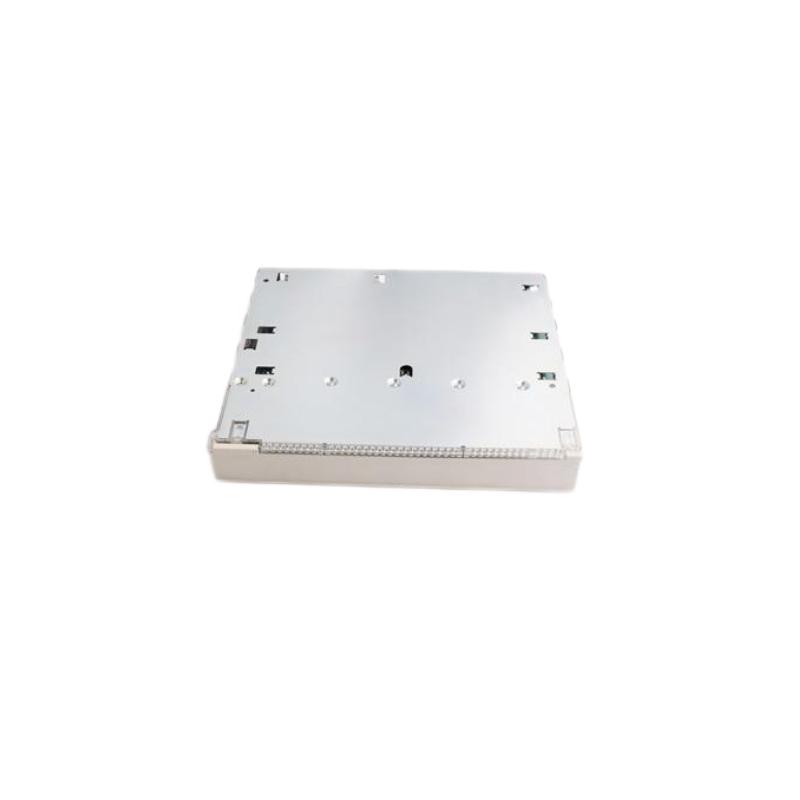

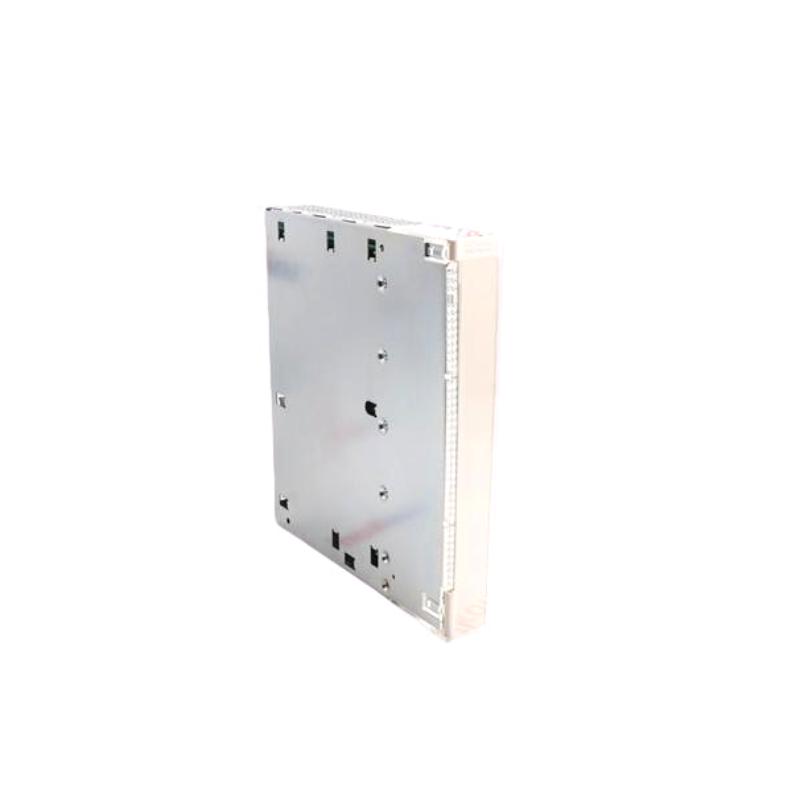

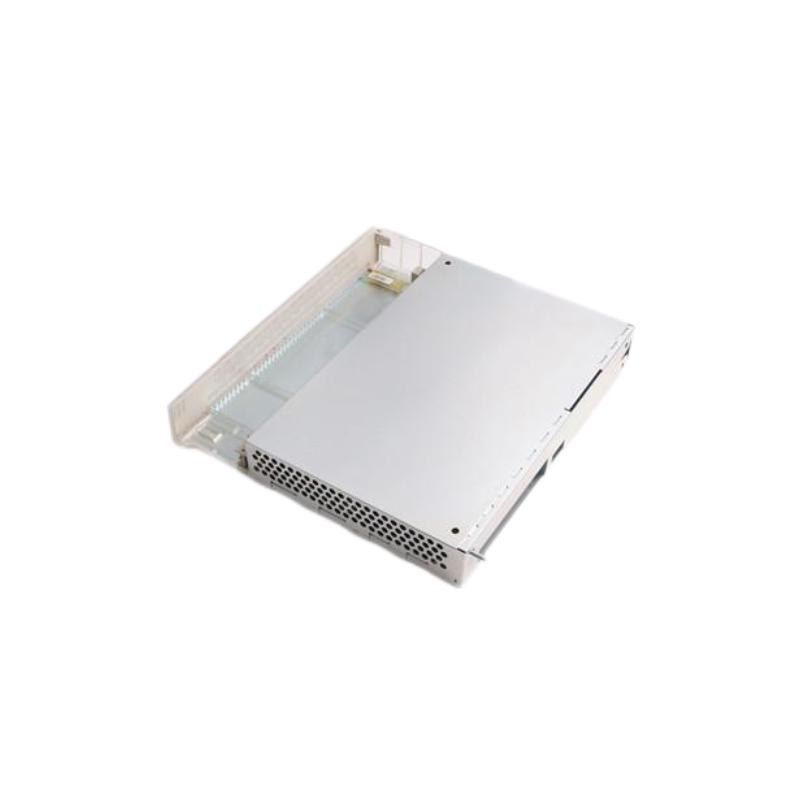

ABB AO610 3BHT300008R1 | Analog Output Module Quality Assurance

Overview
The ABB AO610 is an advanced Analog Output Module designed for use in industrial automation systems. It converts digital control signals from the processor or controller into precise analog output signals, enabling control of field devices like actuators, valves, and other industrial equipment. The AO610 is ideal for applications where high accuracy and reliability in analog signal generation are critical, such as in process control, energy management, and automated manufacturing systems.

General Information
Part Number: 3BHT300008R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: AO (Analog Output)

Type: Analog Output Module

Mounting: Designed for installation in control panels, automation racks, or system enclosures

Technology: Digital-to-analog signal conversion for precise control

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from system backplane or external DC supply

Indicators: LEDs for power, output status, and fault indication

Protection: Over-voltage, over-current, and short-circuit protection

Communication & Interface
Interface Type: Backplane and industrial communication protocols

Signal Handling: Converts digital control signals into corresponding analog output signals

Diagnostics: Built-in diagnostics for operational status, signal integrity, and fault detection

Reset Features: Supports module and system-level reset functions

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 120 × 90 × 60 mm

Weight: ~ 0.3 kg

Authentic parts with full manufacturer warranty.
