Overview

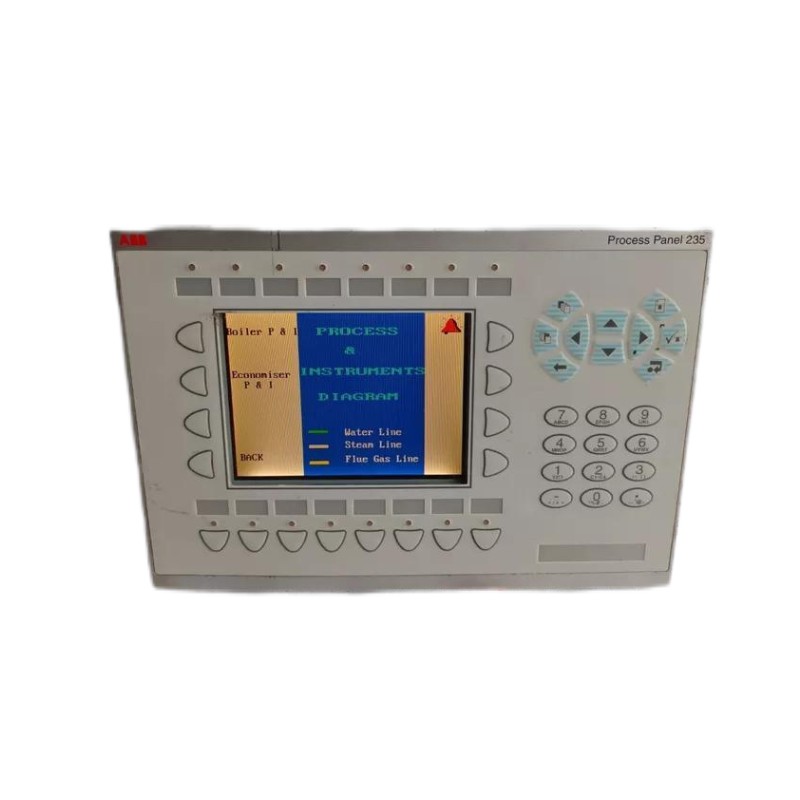

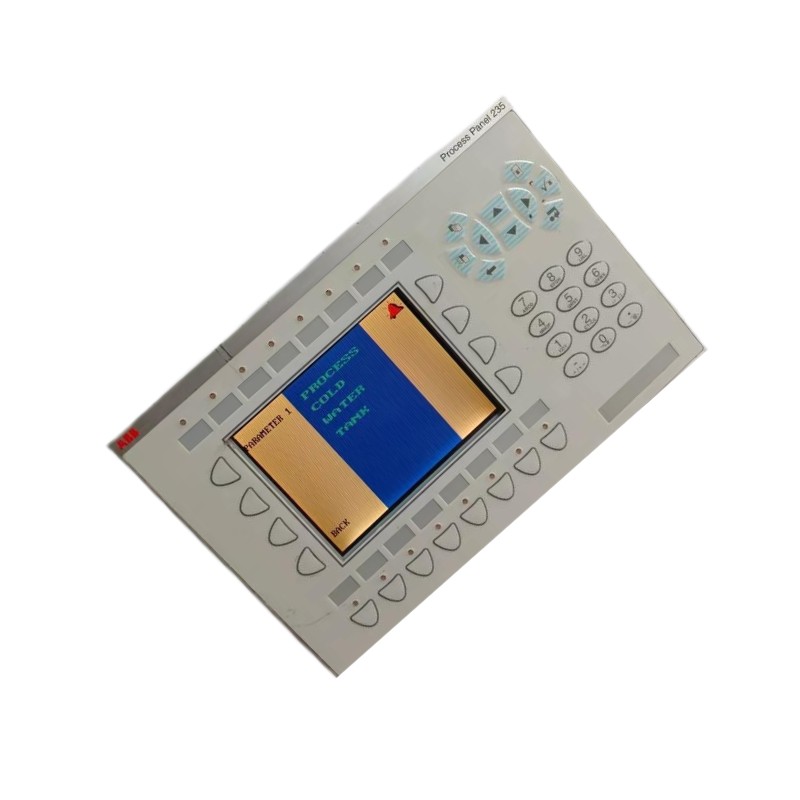

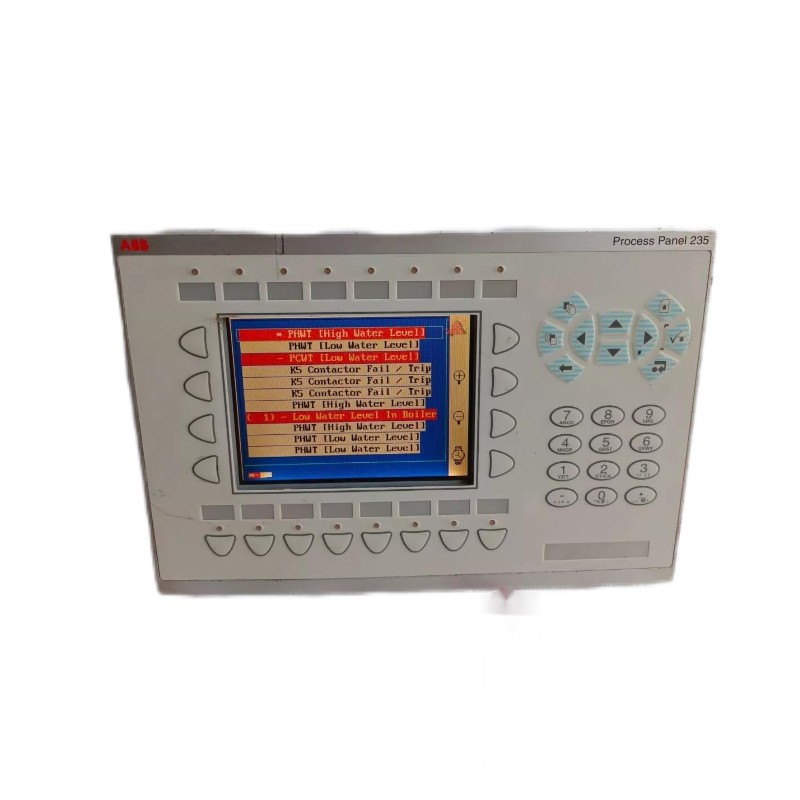

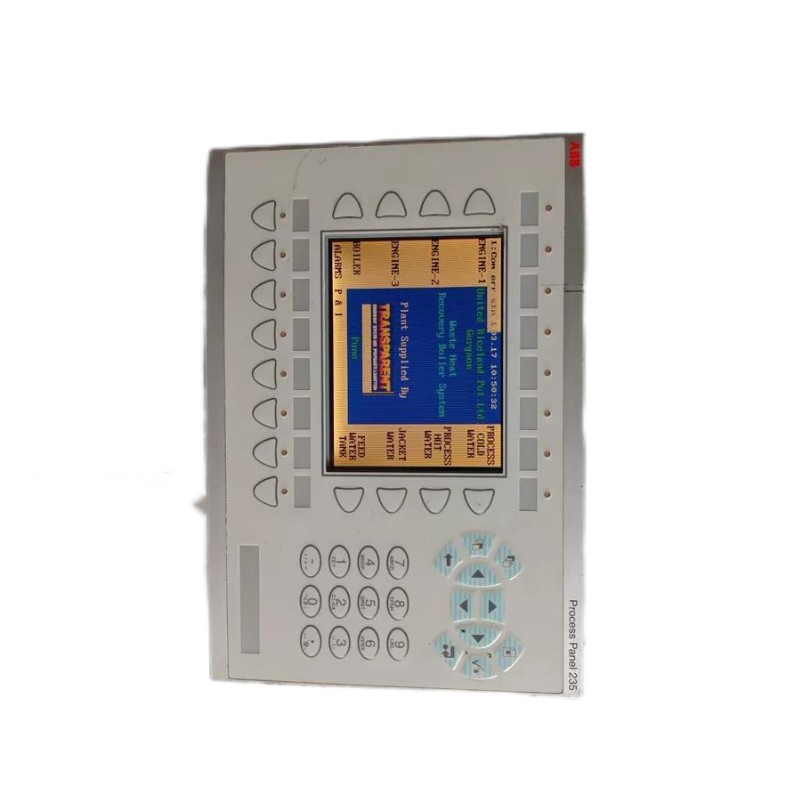

The ABB PP235 is a high-performance process panel designed for industrial automation and control systems. It offers efficient process control and monitoring capabilities, enabling operators to manage complex processes with ease. The PP235 integrates seamlessly into ABB’s automation systems, providing precise control over process parameters such as temperature, pressure, and flow. With its reliable performance and user-friendly interface, the PP235 is ideal for industries where continuous process monitoring and optimization are essential, including manufacturing, energy, and chemical processes.
General Information
Part Number: 3BSC690102R2
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: PP (Process Panel)
Type: Process Panel
Mounting: Designed for panel or rack installation in control rooms or industrial environments
Technology: Advanced process control and monitoring technology
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 100 W
Input: Powered from external AC or DC supply
Indicators: LEDs for power status, operational status, and communication
Protection: Over-voltage, over-current, and short-circuit protection
Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus, Ethernet)
System Role: Manages and monitors process control in industrial systems
Signal Handling: Provides real-time monitoring and adjustment of process parameters
Diagnostics: Built-in diagnostics for system health and fault detection
Reset Features: Supports reset functions for fault recovery
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial and process control environments
Dimensions & Weight
Dimensions (L × W × H): 20 × 187 × 10 mm
Weight: ~ 1.5 kg
