Overview

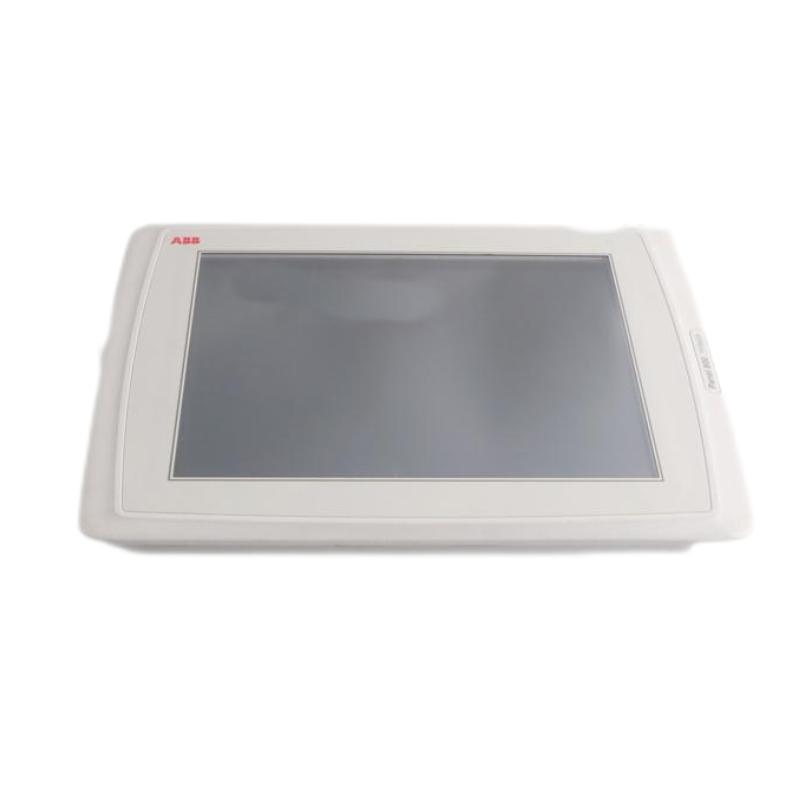

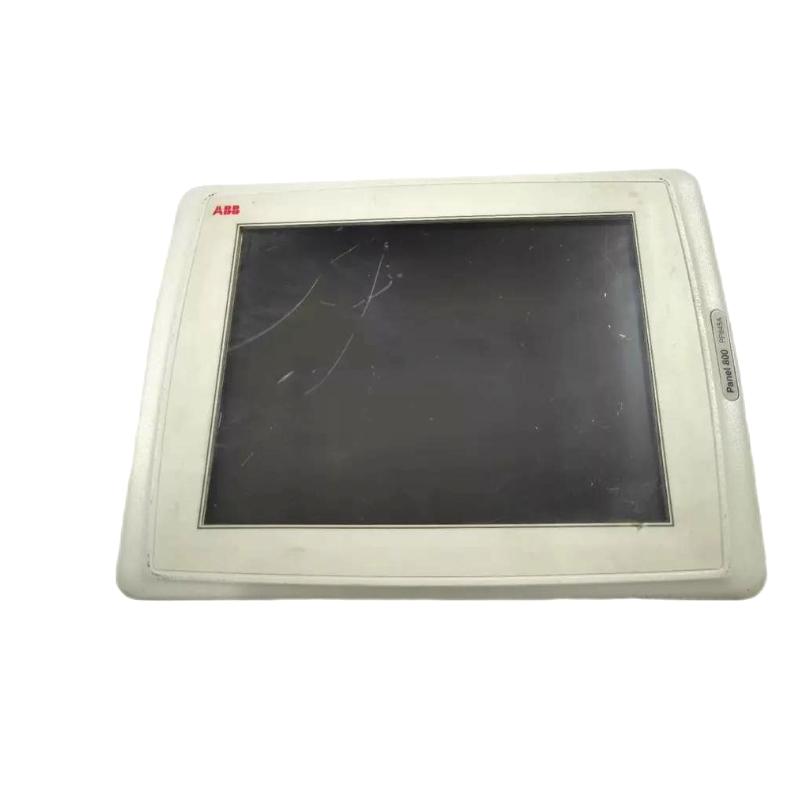

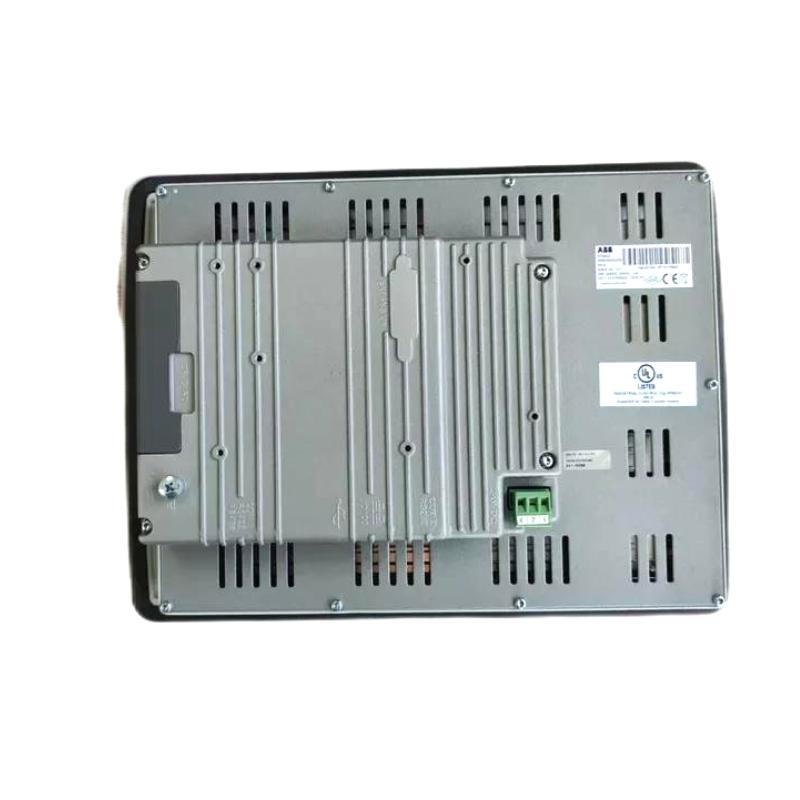

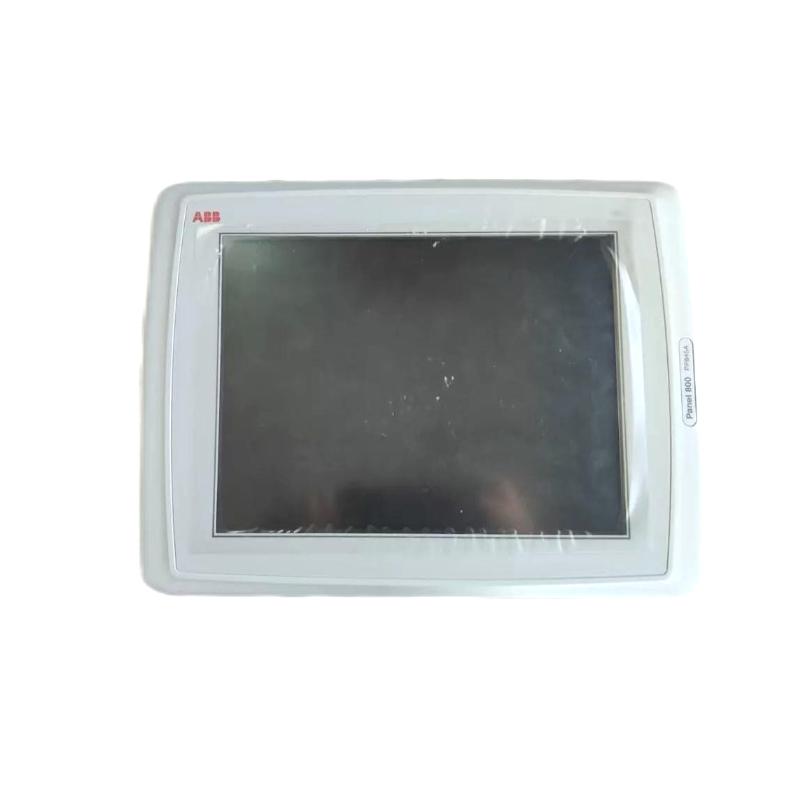

The ABB PP845 is a high-performance operator panel designed for seamless interaction and control in industrial automation systems. With a user-friendly touch screen interface and programmable function keys, the PP845 allows operators to efficiently monitor and manage complex industrial processes in real-time. The panel’s customizable features ensure it can be tailored to the specific needs of various industries, including manufacturing, energy, and chemical processing. The PP845 improves operational efficiency, reduces human error, and enhances system control through intuitive design and advanced communication capabilities.
General Information
Part Number: 3BSE042235R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: PP (Operator Panel)
Type: Operator Panel
Mounting: Designed for panel or rack installation within industrial automation systems
Technology: Capacitive touch screen technology with programmable function keys for flexible control
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 100 W
Input: Powered from external AC or DC supply
Indicators: LEDs for power status, operational status, and error alerts
Protection: Over-voltage, over-current, and short-circuit protection
Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus, Ethernet)
System Role: Provides real-time monitoring, control, and data entry via the operator panel
Signal Handling: Configurable touch screen interface for process control, monitoring, and input management
Diagnostics: Built-in diagnostics for system status, fault detection, and performance analysis
Reset Features: Supports reset functions for recovery from faults or errors
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments
Dimensions & Weight
Dimensions (L × W × H): 124 × 124 × 119 mm
Weight: ~ 1.2 kg
