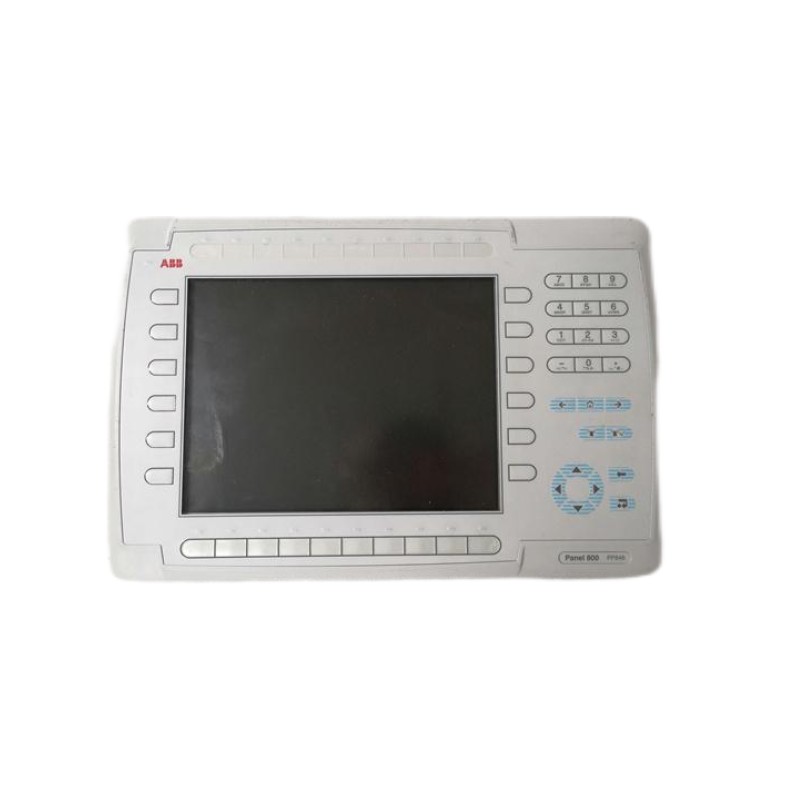

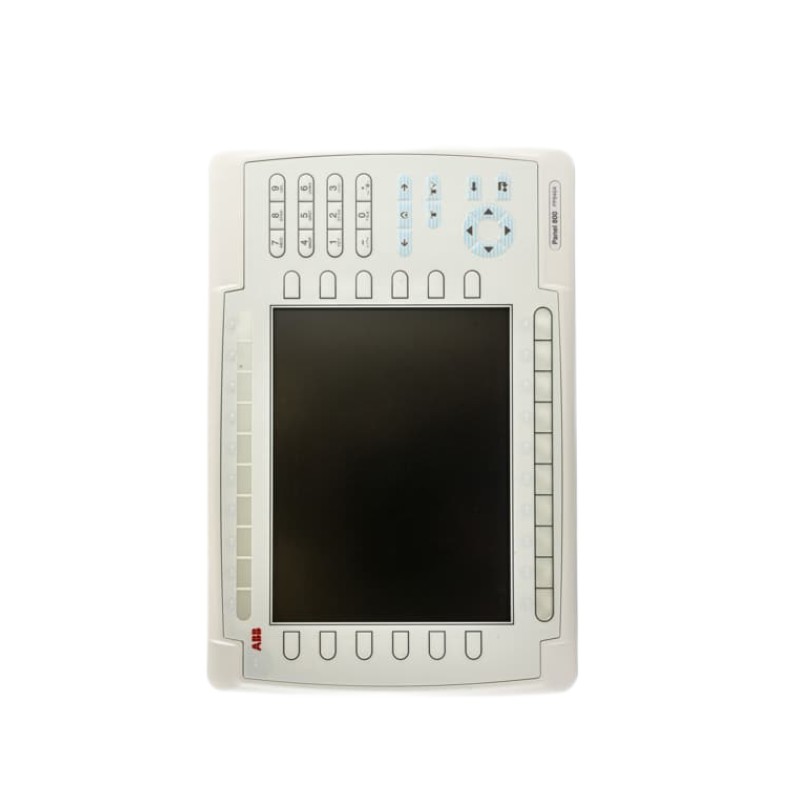

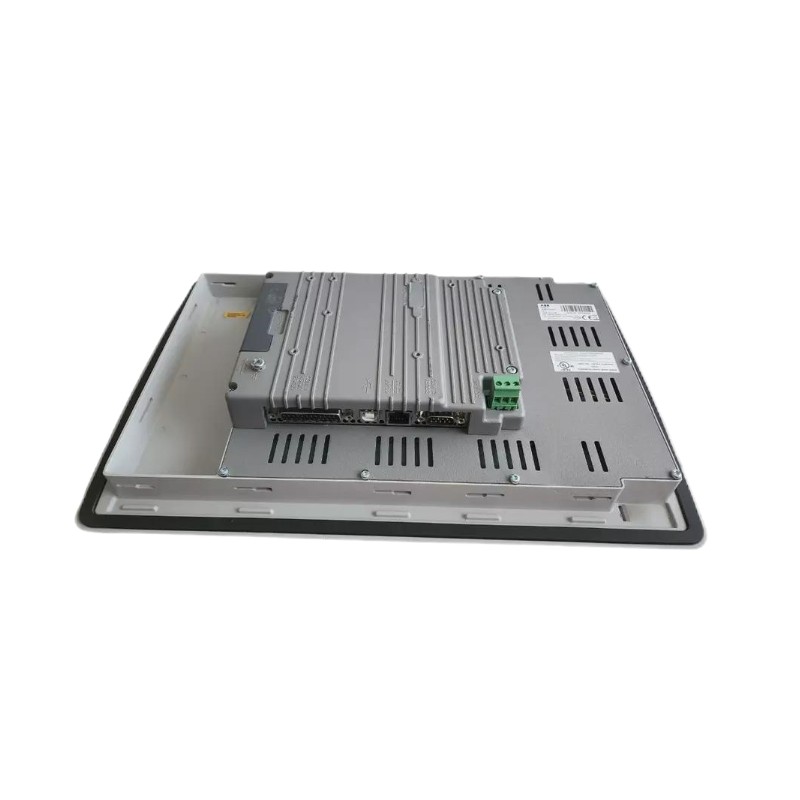

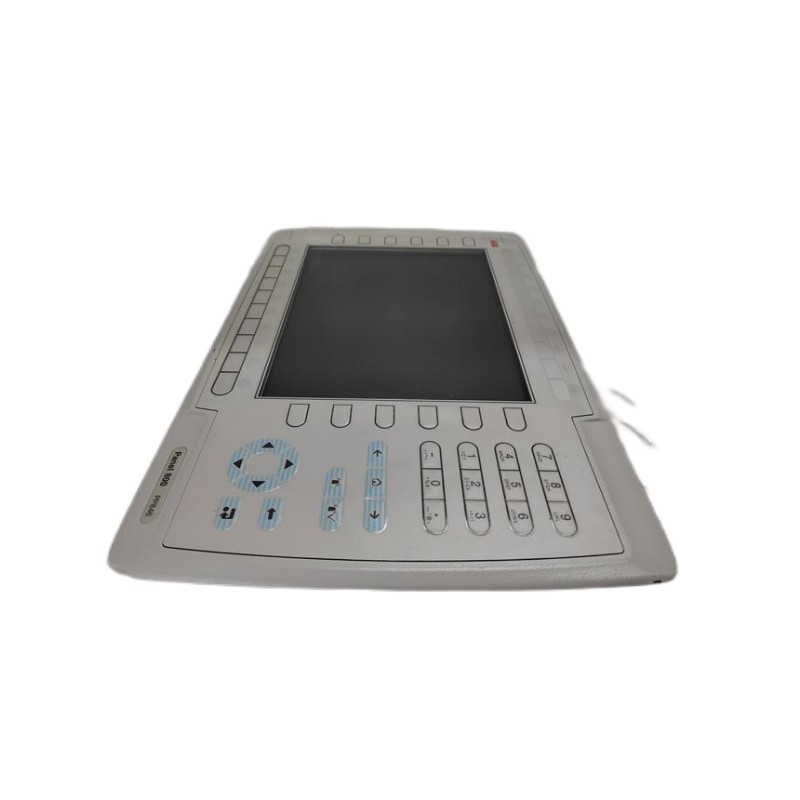

ABB PP846 3BSE042238R1 | Operator Panel 12-Month Warranty

Overview
The ABB PP846 is a high-performance operator panel designed to provide seamless control and monitoring of industrial processes. Featuring an intuitive touch screen interface and programmable function keys, this operator panel allows operators to manage and oversee complex systems efficiently. The PP846 is ideal for use in a variety of industrial applications, including manufacturing, energy, and chemical processing. It enhances system control, reduces human error, and improves overall operational efficiency by offering real-time data, customizable displays, and advanced communication capabilities.

General Information
Part Number: 3BSE042238R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PP (Operator Panel)

Type: Operator Panel

Mounting: Designed for panel or rack installation within industrial control systems

Technology: Capacitive touch screen with customizable function keys and dynamic display options

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 100 W

Input: Powered from external AC or DC supply

Indicators: LEDs for power status, operational status, and error alerts

Protection: Over-voltage, over-current, and short-circuit protection

Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus, Ethernet)

System Role: Provides real-time control and monitoring through an intuitive touch screen interface

Signal Handling: Configurable touch screen for process control, data input, and monitoring

Diagnostics: Built-in diagnostics for fault detection, system health, and performance tracking

Reset Features: Supports reset functions for fault recovery and error correction

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 290 × 230 × 55 mm

Weight: ~ 2.3 kg
