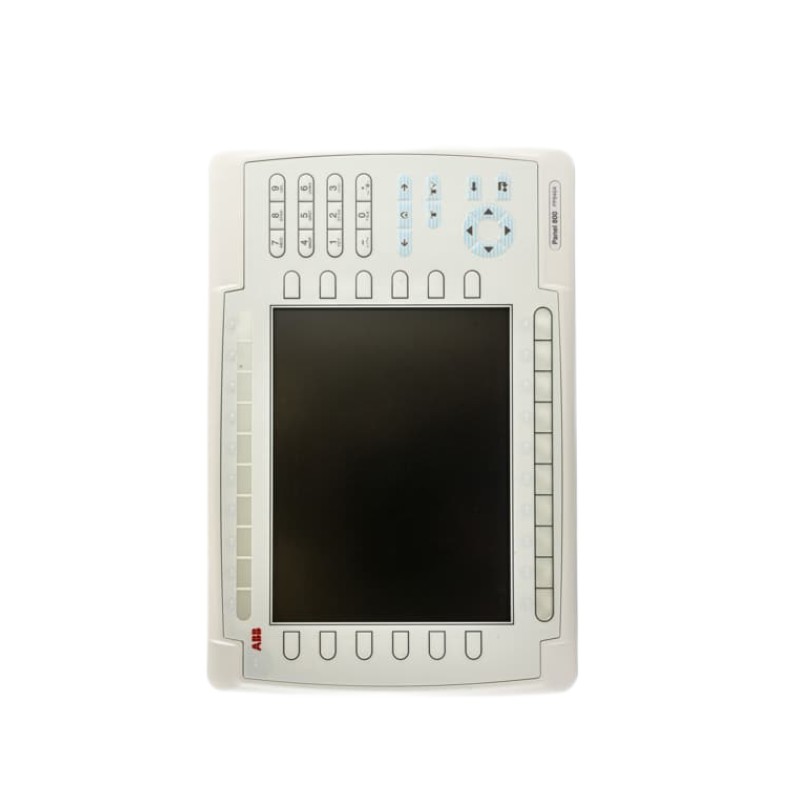

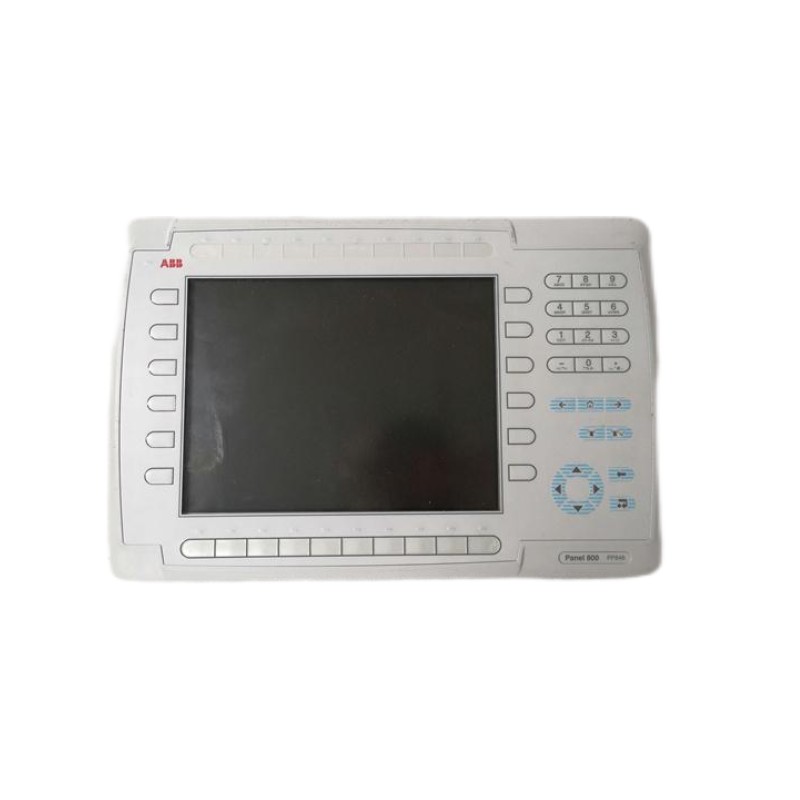

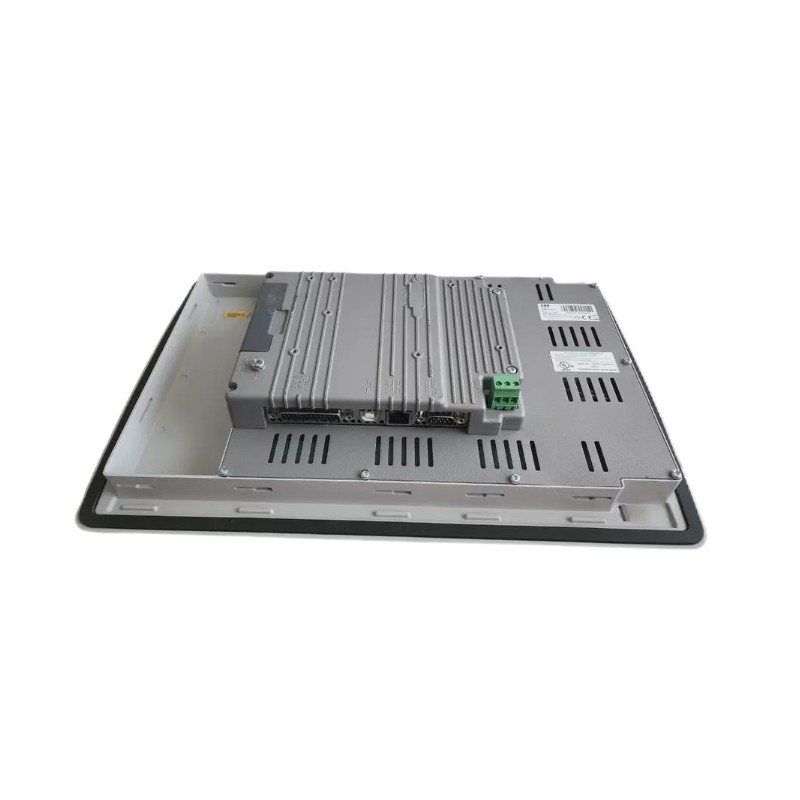

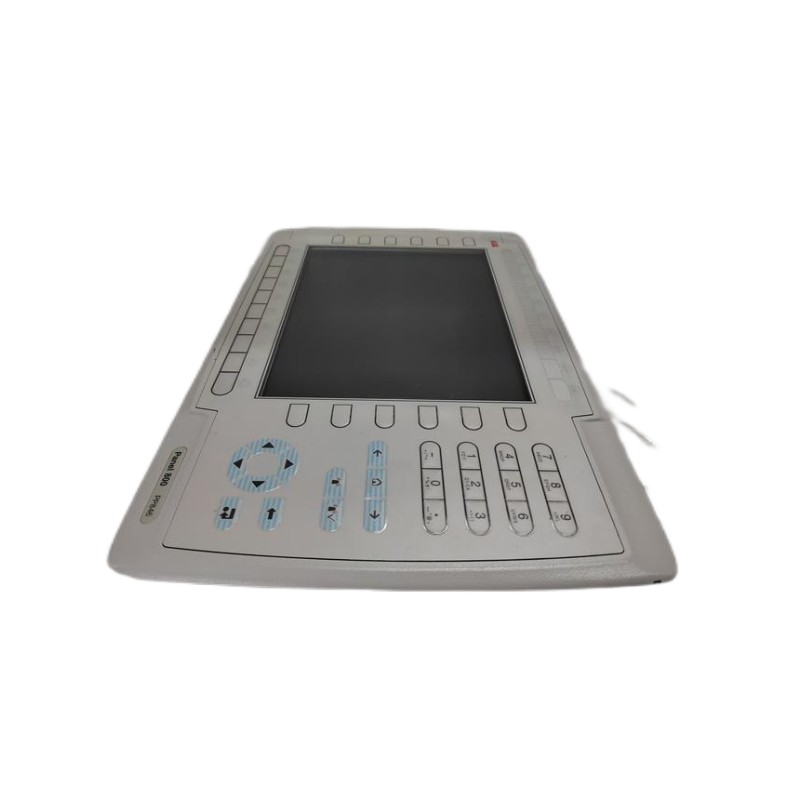

ABB PP846A 3BSE042238R2 | Operator Panel Quality Assurance

Overview
The ABB PP846A is an advanced operator panel designed to optimize the control and monitoring of industrial systems. This high-performance panel features a responsive touch screen interface and programmable function keys, providing operators with an intuitive and efficient way to interact with complex processes. Suitable for a wide range of industrial applications, including manufacturing, energy, and chemical processing, the PP846A enhances system efficiency, reduces human error, and ensures real-time monitoring and control. With its robust design and customizable features, it is ideal for improving operational performance and reducing downtime in industrial environments.

General Information
Part Number: 3BSE042238R2

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PP (Operator Panel)

Type: Operator Panel

Mounting: Designed for panel or rack installation in industrial automation systems

Technology: Capacitive touch screen with programmable function keys and customizable interface for versatile control

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 100 W

Input: Powered from external AC or DC supply

Indicators: LEDs for power status, operational status, and error alerts

Protection: Over-voltage, over-current, and short-circuit protection

Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus, Ethernet)

System Role: Provides real-time control and monitoring through the user-friendly touch screen interface

Signal Handling: Configurable touch screen for process control, data input, and status updates

Diagnostics: Built-in diagnostics for system health, error detection, and fault reporting

Reset Features: Supports reset functions for fault recovery and error handling

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 290 × 230 × 55 mm

Weight: ~ 2.3 kg
