Overview

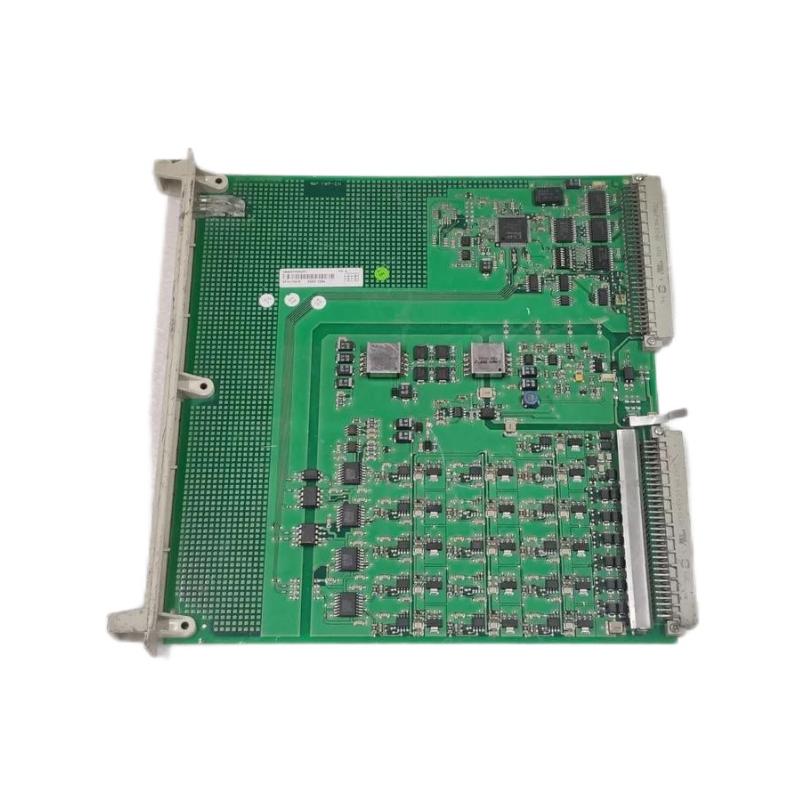

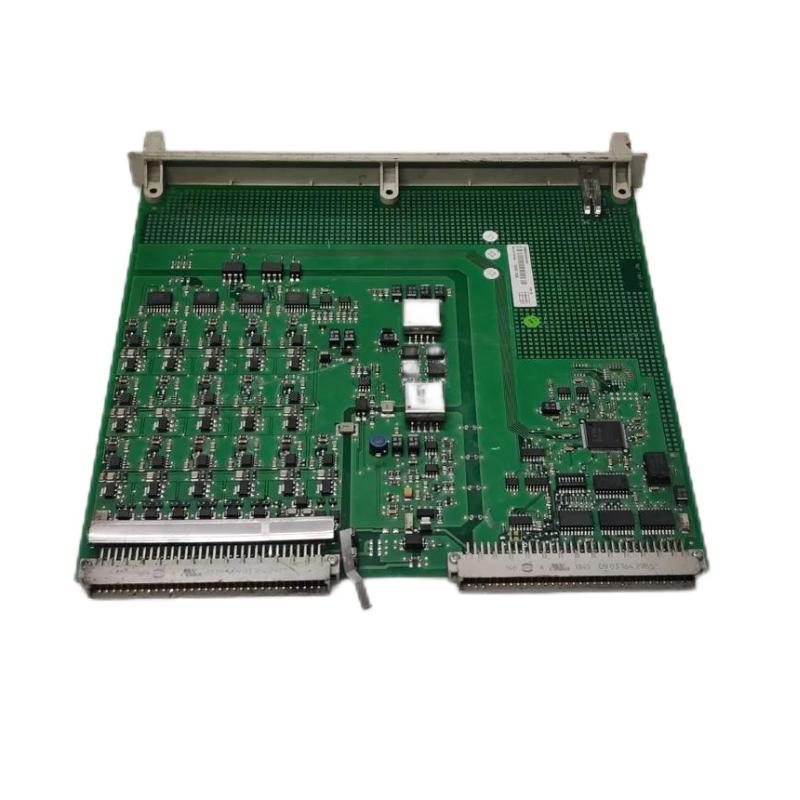

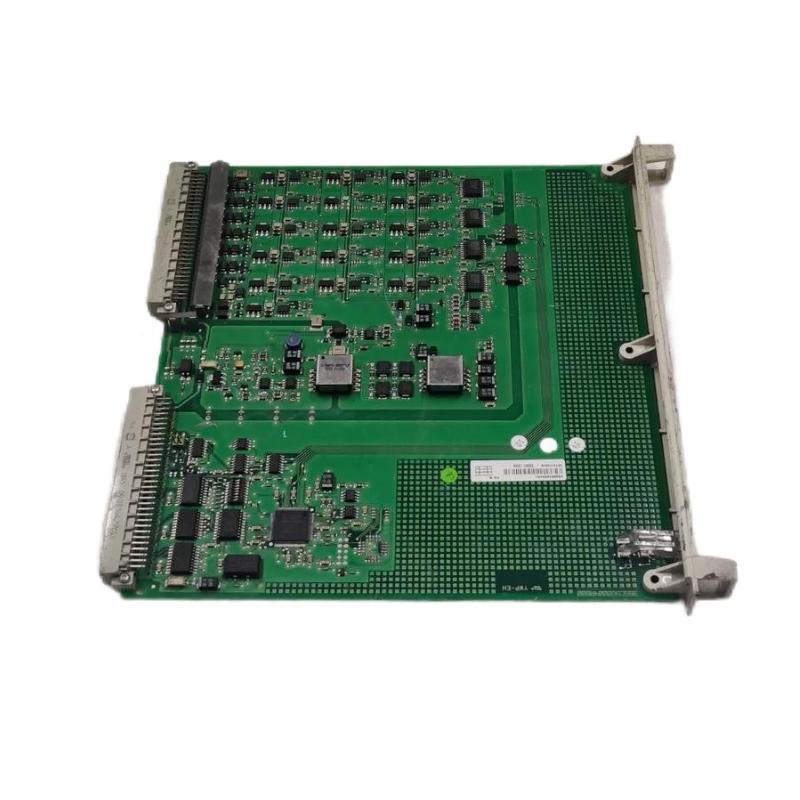

The ABB DSAO 130A is an Analog Output Module designed to provide precise analog output control in industrial automation systems. It is part of the ABB Advant and 800xA control systems, enabling high-performance signal processing and output to control external devices such as actuators, motors, and valves. This module is ideal for applications requiring accurate analog control and seamless integration with the rest of the system, ensuring high reliability and operational efficiency in various industrial environments.
General Information
Part Number: 3BSE018294R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: DSAO (Analog Output Module)
Type: Analog Output Module
Mounting: Suitable for installation in control panels, automation racks, or system enclosures
Technology: Industrial-grade module for analog signal generation and control
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: Powered from the system backplane or external DC supply
Indicators: LEDs for power, operational status, and communication
Protection: Surge and reverse-polarity protection
Communication & Interface
Interface Type: Industrial communication protocols (e.g., Profibus, Modbus)
System Role: Generates analog output signals to control external devices
Signal Handling: Provides high-precision analog signals for process control applications
Diagnostics: Built-in diagnostics for fault detection, signal monitoring, and operational status
Reset Features: Soft reset and hardware reset support
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, suitable for industrial environments
Dimensions & Weight
Dimensions (L × W × H): 257 × 15 × 363 mm
Weight: ~ 0.138 kg
Authentic parts with full manufacturer warranty.
