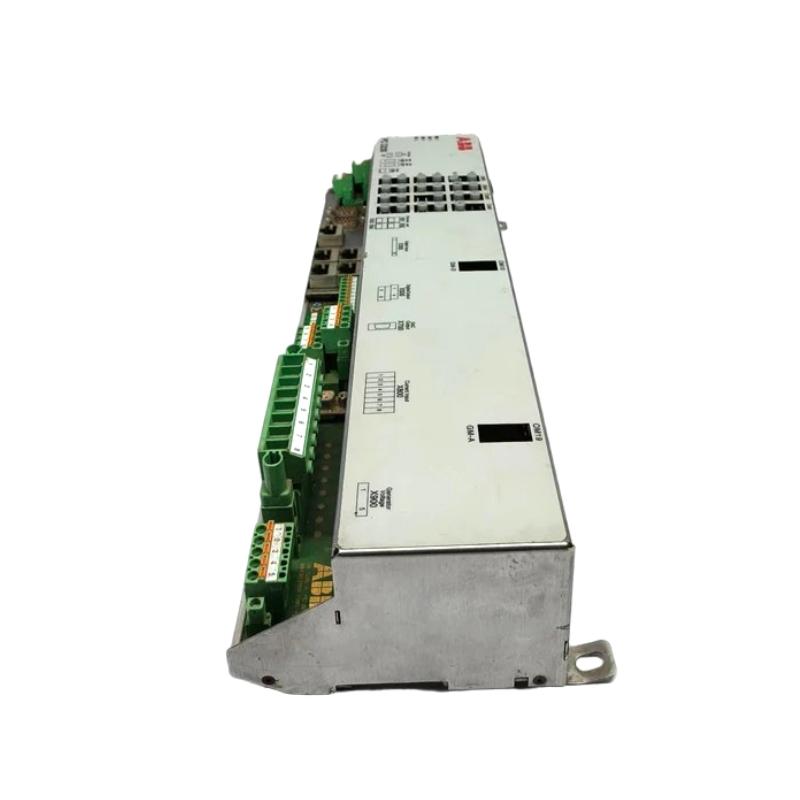

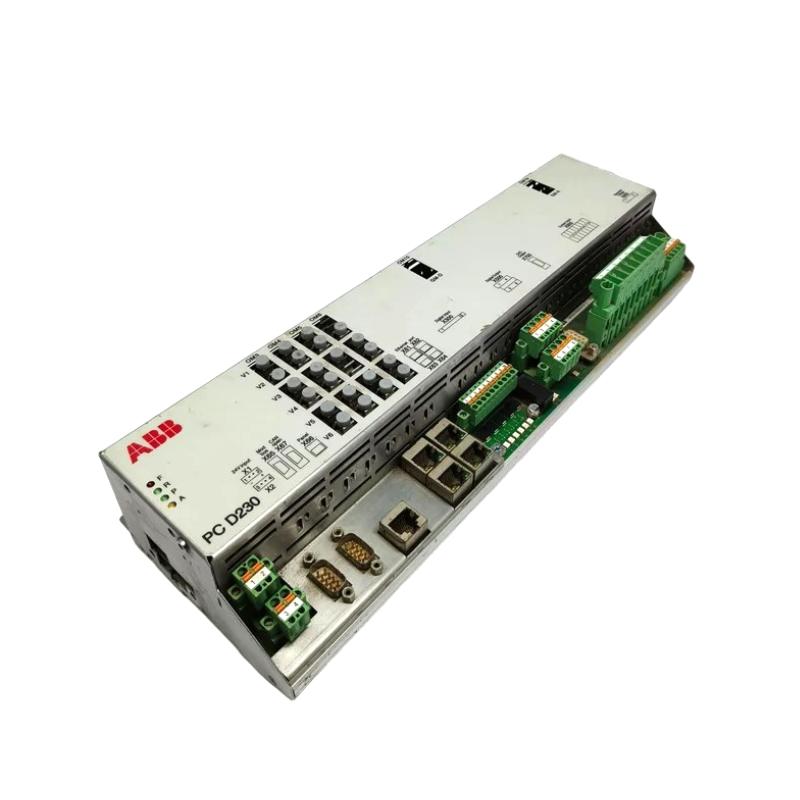

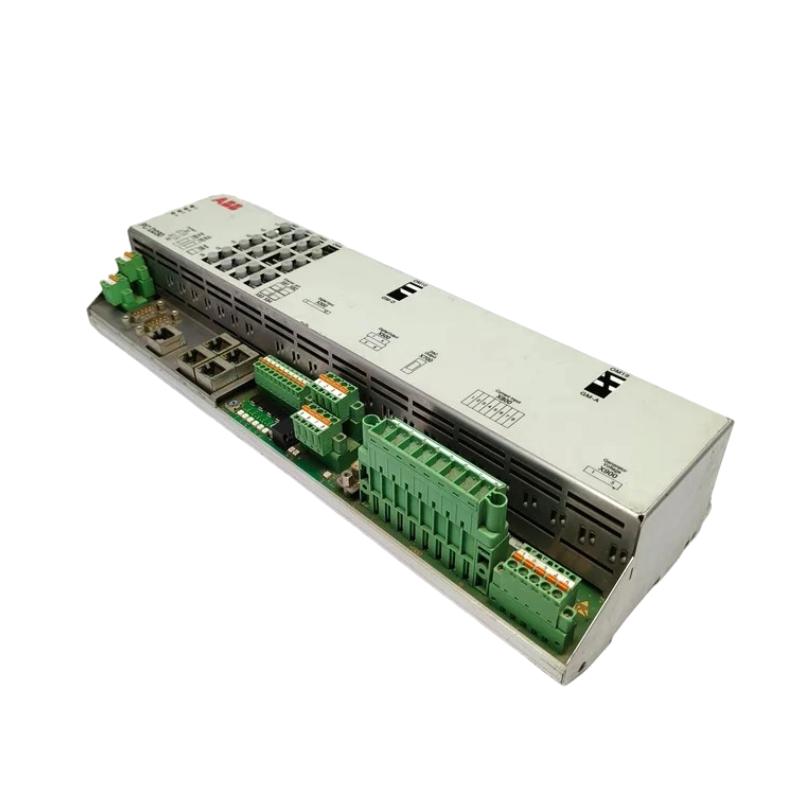

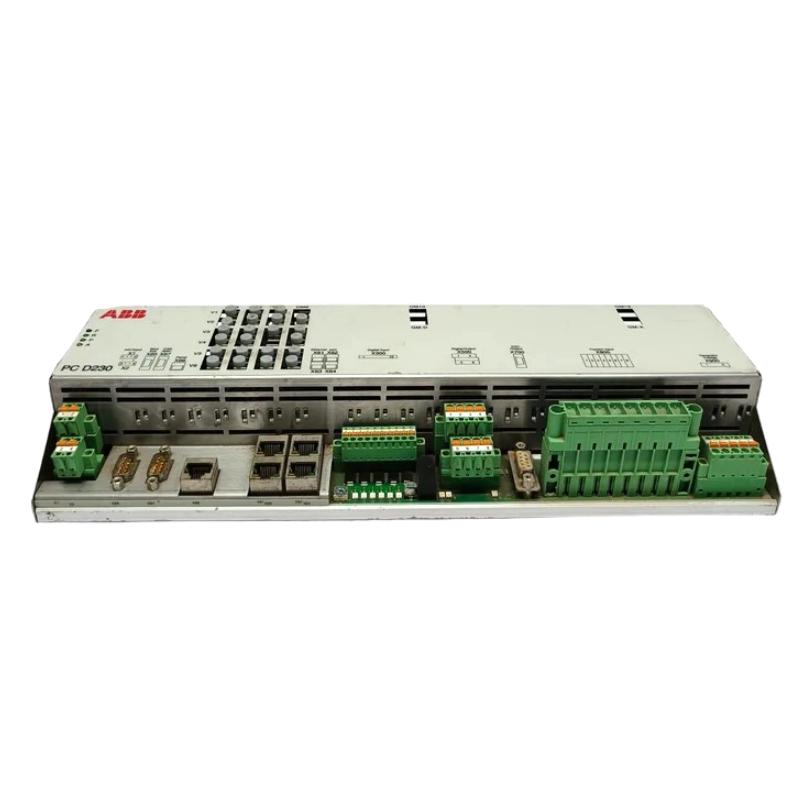

The ABB PCD230B101 (3BHE022291R0101) is a programmable control and interface module used in ABB industrial automation systems. It provides stable communication, precise process control, and seamless integration between controllers and field devices, ensuring reliable operation in complex industrial environments.
General Information
Manufacturer: ABB
Country of Origin: Switzerland
Part Number: 3BHE022291R0101
Product Name: PCD230B101
Series: PCD Series
Product Type: Programmable Control / Interface Module
Mounting: Rack or chassis installation
Application: Process automation, drive control, and industrial monitoring systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Power Source: Backplane supply
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, communication, and fault status
Communication & Interface
Communication Type: System bus communication
Interface: ABB proprietary high-speed control bus
Function: Real-time data transfer and control between controllers and field modules
Diagnostics: Integrated fault detection and status monitoring
Configuration: Front-panel LEDs and setup interface
Reset: Supports hardware and system reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Class: IP20 (for installation inside control cabinets)
Dimensions & Weight
Dimensions: 148 × 370 × 80 mm
Weight: Approx. 0.36 kg
