Overview

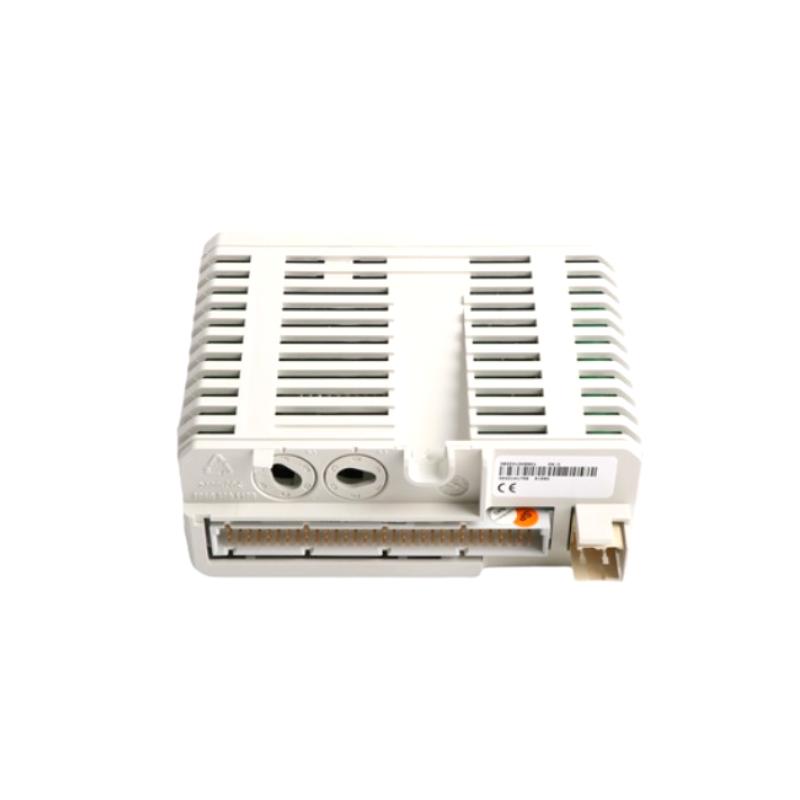

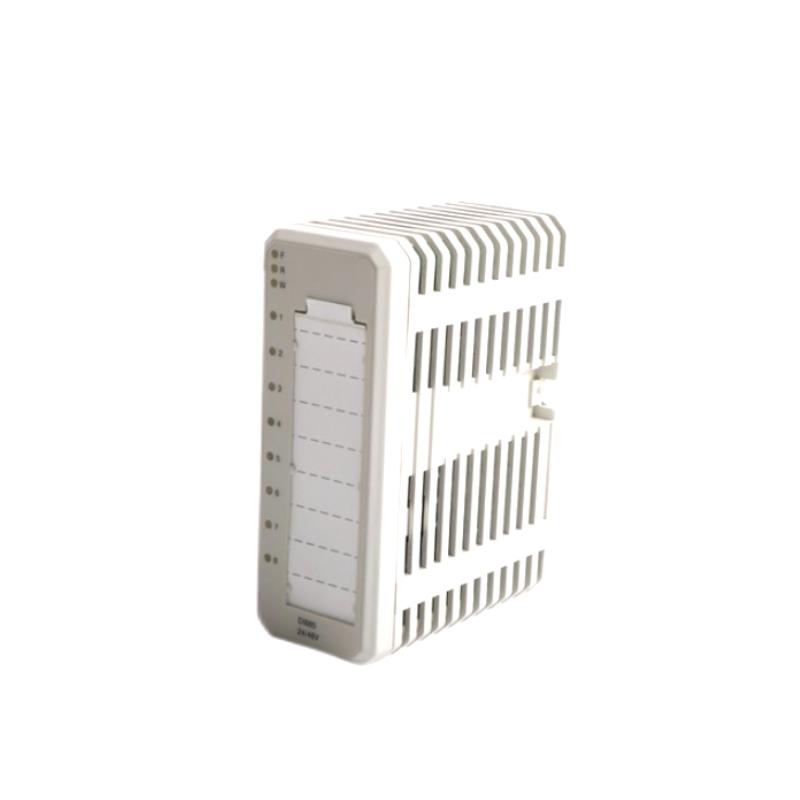

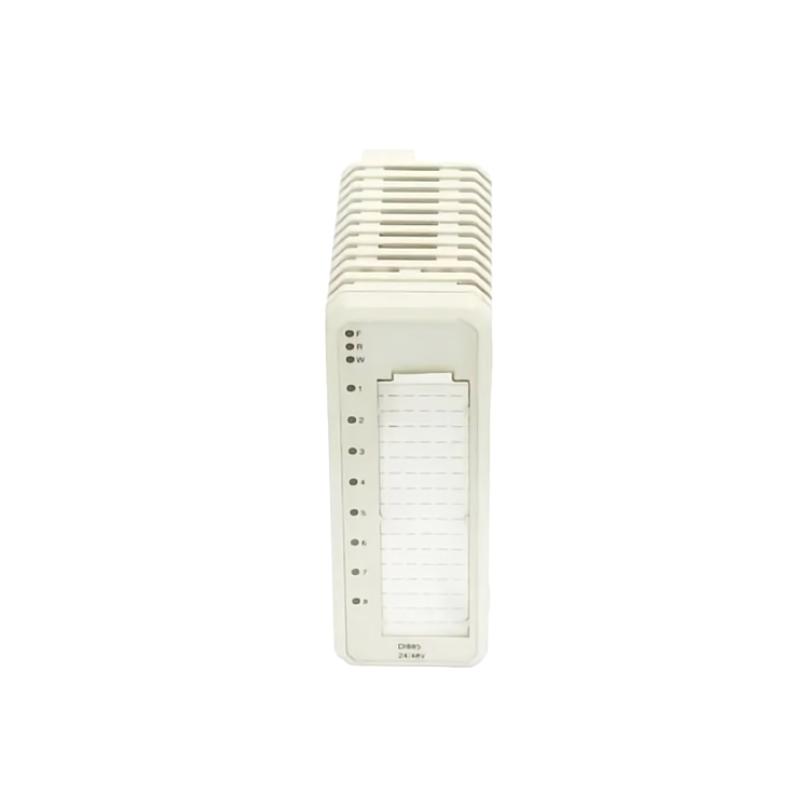

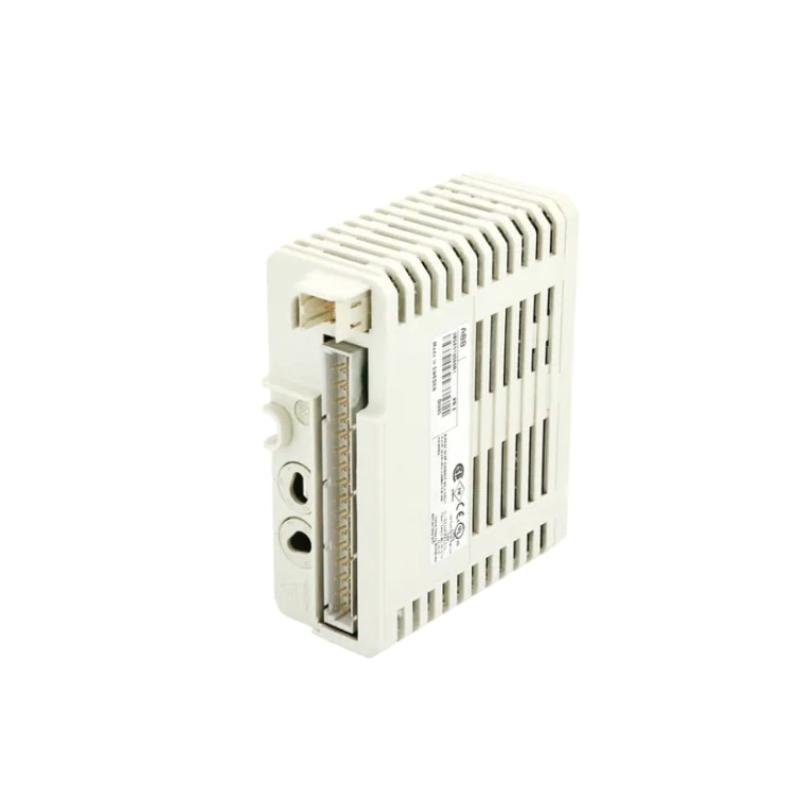

The ABB DI885 3BSE013088R1 is a digital input module used in the ABB S800 I/O system. Manufactured by ABB, Switzerland, it provides reliable and fast 24 V / 48 V DC signal acquisition with Sequence of Events (SOE) capability for precise event logging in industrial automation systems.
General Information
Manufacturer: ABB
Country of Origin: Switzerland
Part Number: 3BSE013088R1
Product Name: DI885 Digital Input Module
Series: S800 I/O
Product Type: Digital Input Module (SOE)
Channels: 8 channels
Input Voltage: 24 V / 48 V DC
Mounting: S800 I/O rack installation
Power Specifications
Supply Voltage: 24 V / 48 V DC
Input Current: 1.6 mA at 24 V DC, 3.2 mA at 48 V DC
Power Consumption: Approx. 1 W
Communication & Interface
Interface Type: S800 I/O communication bus
Function: Receives and logs digital input signals with SOE support
Compatible Termination Units: TU810, TU812, TU814, TU830
Environmental
Operating Temperature: −20 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Relative Humidity: 5% to 95% RH, non-condensing
Protection Class: IP20
Dimensions & Weight
Dimensions: 45 x 102 x 119 mm
Weight: 0.3 kg
