Overview

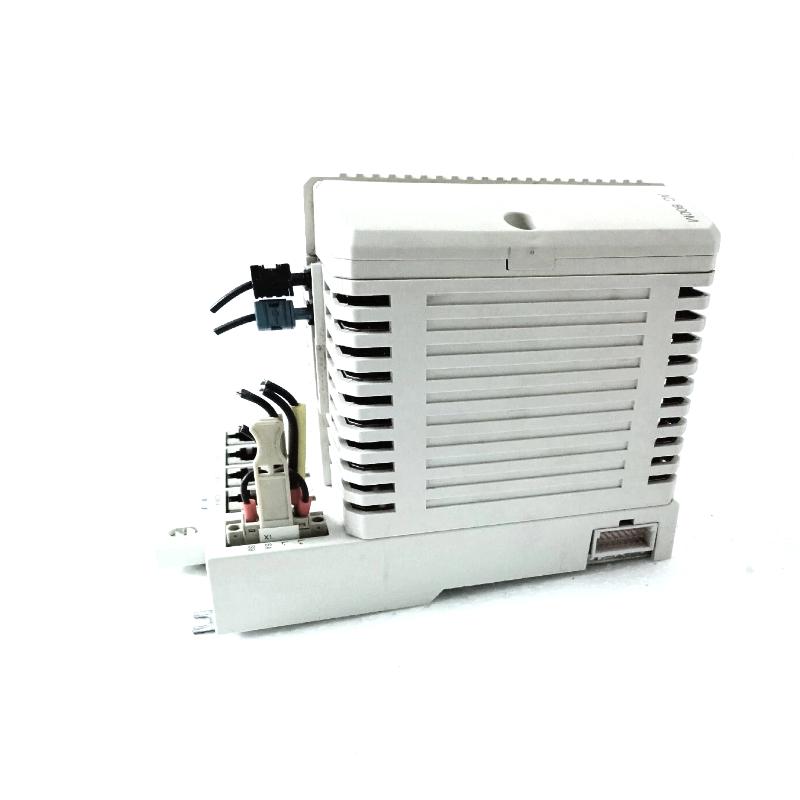

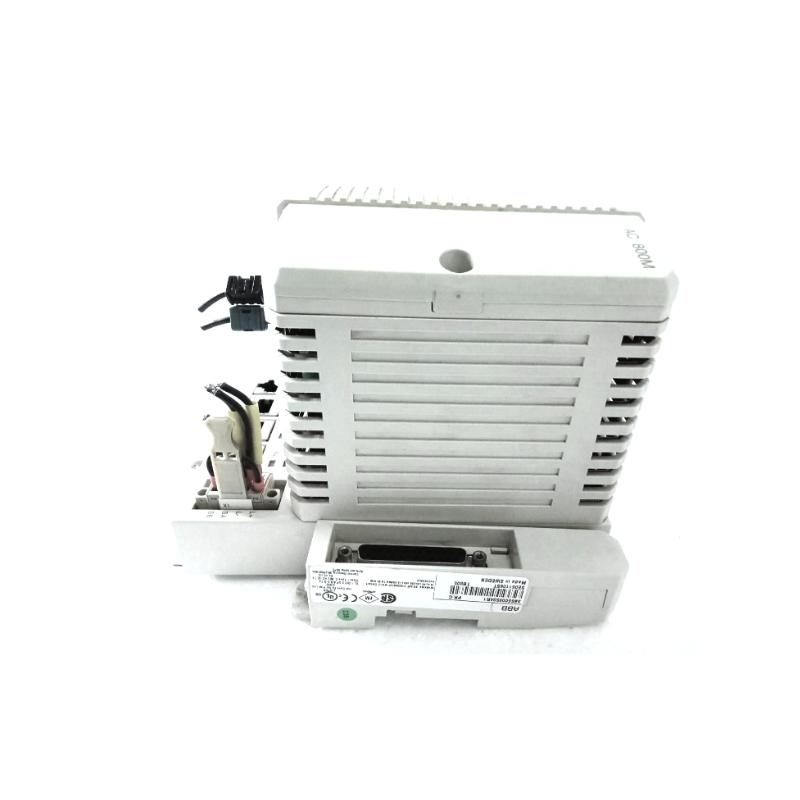

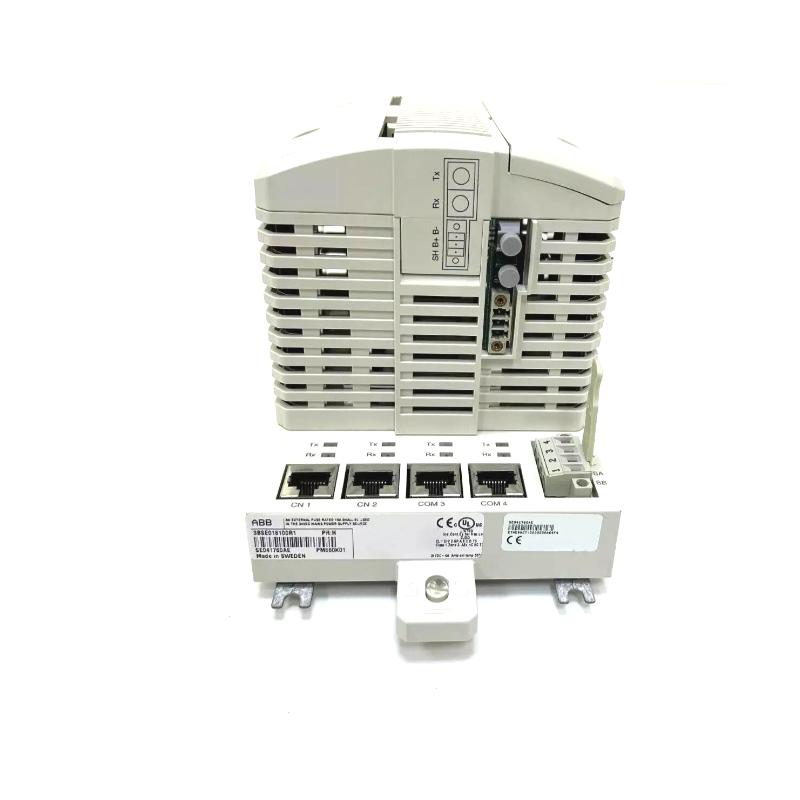

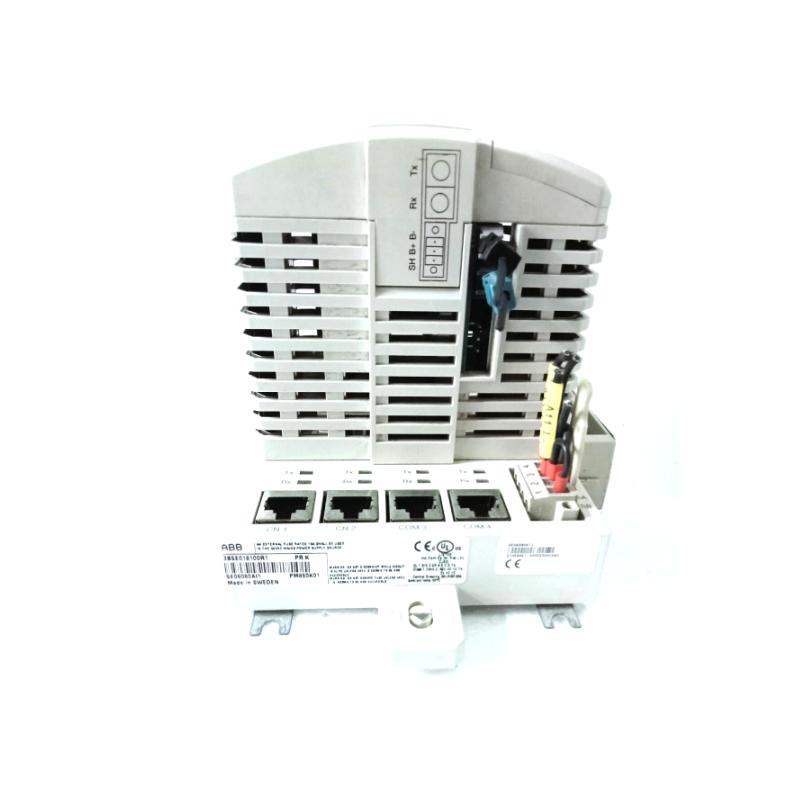

The ABB PM860 (3BSE018110R1) is a high-performance processor module in the AC 800M series. It serves as the central processing unit in ABB industrial control systems, managing control logic, communication, and coordination of I/O modules for reliable automation performance.
General Information
Part Number: 3BSE018110R1
Manufacturer: ABB Ltd.
Brand Origin: Sweden
Series: AC 800M
Type: Processor / CPU Module
Mounting: Slot or baseplate installation
Application: Core controller for distributed control and PLC systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 4.5 W
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, status, and communication
Communication & Interface
Ethernet Ports: 2 × 10/100 Mbps
Serial Ports: RS-232 for configuration and service
Expansion Bus: ModuleBus for I/O modules
Diagnostics: System health monitoring, error logging, and event reporting
Redundancy: Supported for high-availability configurations
Environmental
Operating Temperature: −20 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Class: IP20
Dimensions & Weight
Dimensions: 119 x 186 x 135 mm
Weight: 1.1 kg
