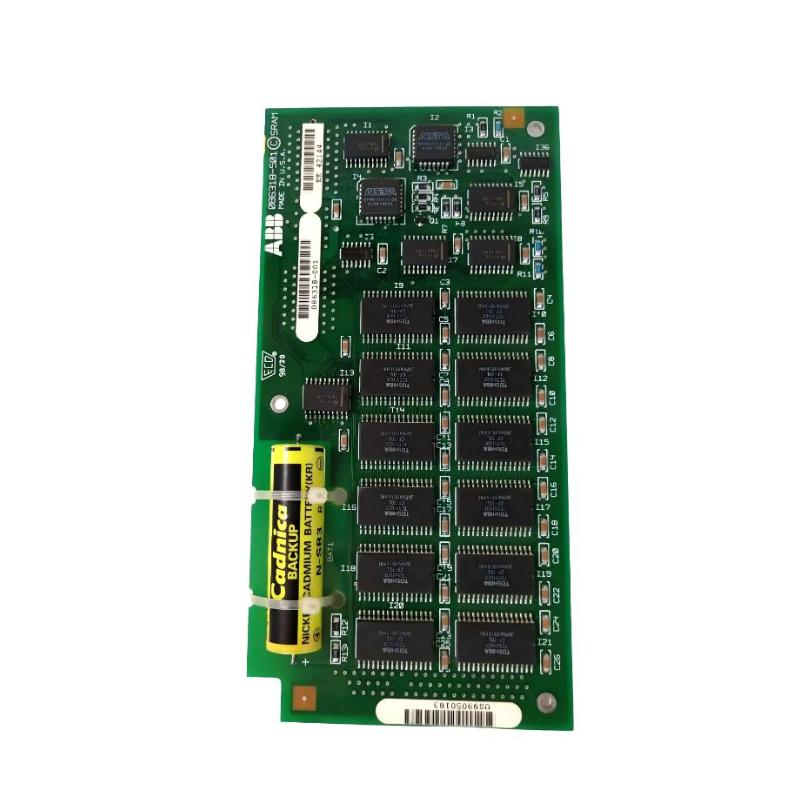

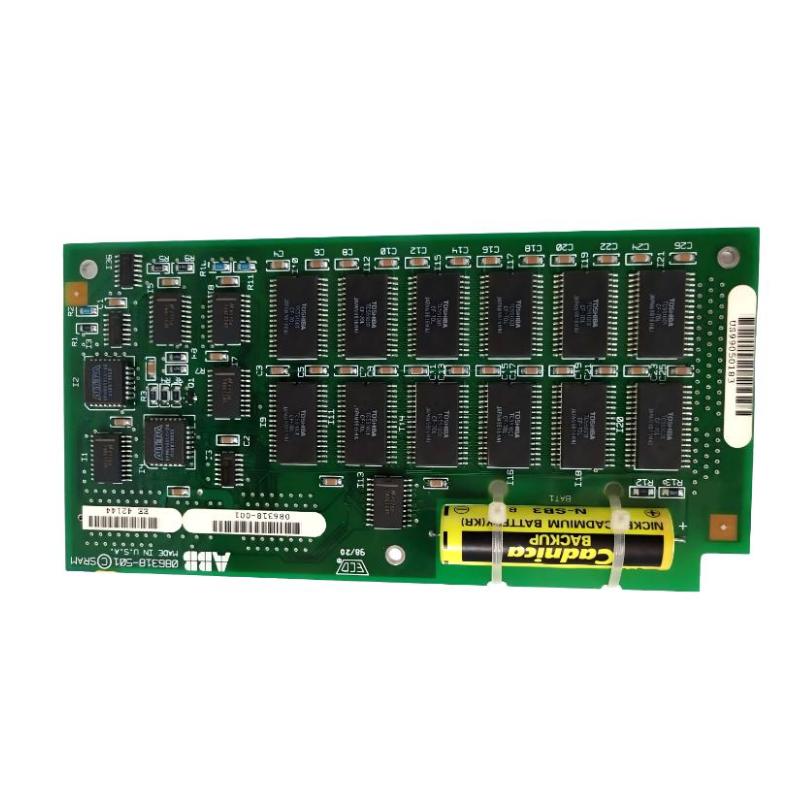

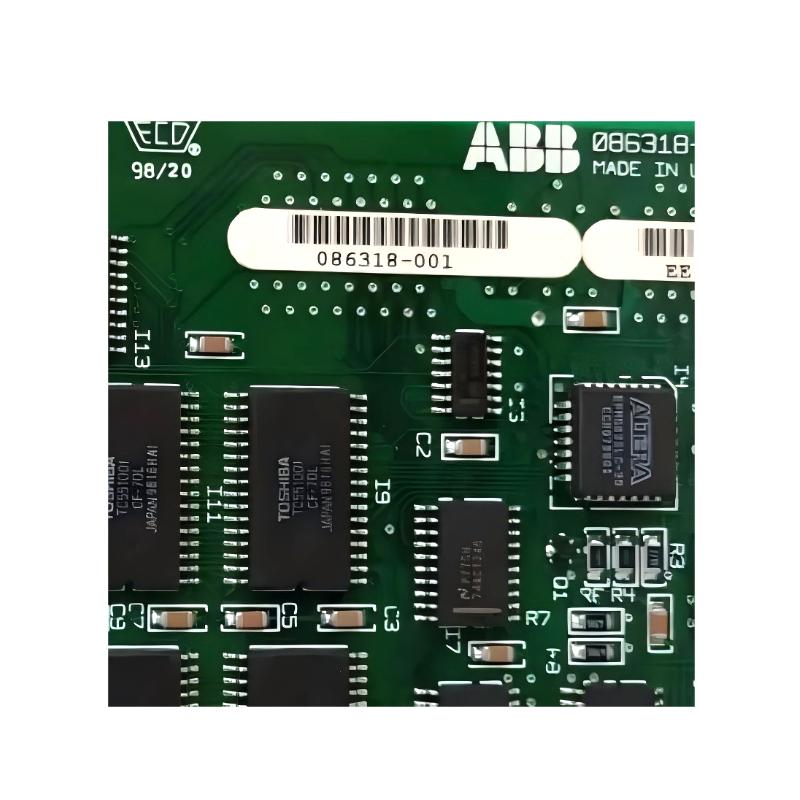

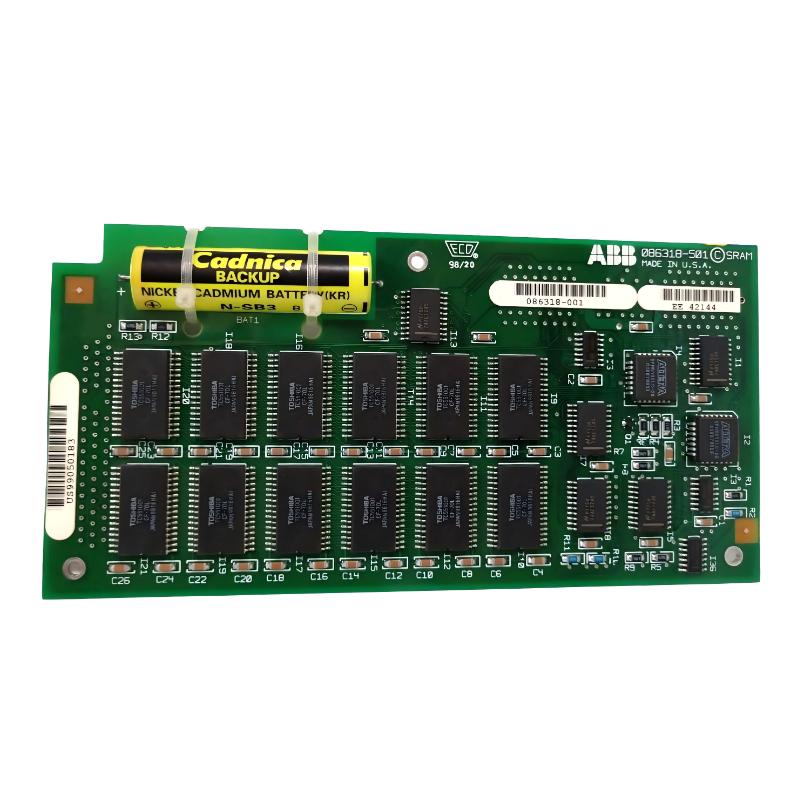

ABB 086318-001 Memory Daughterboard

Overview

The ABB 086318-001 is a memory daughterboard designed to enhance the functionality of ABB’s automation systems. It provides additional memory capacity and seamless integration into the system for improved data processing and operational efficiency.

General Information

• Part Number: 086318-001

• Manufacturer: ABB

• Series: Memory Daughterboard

• Type: Expansion Module

• Mounting: Installed onto the main system board

• Technology: Supports memory expansion, designed for industrial automation systems

Power Specifications

• Supply Voltage: 5 V DC

• Power Consumption: ≤ 5 W

• Input: Powered from the system's main power supply

• Protection: Surge and reverse-polarity protection

• Indicators: None (relies on system diagnostics for status)

Communication & Interface

• Interface: Direct connection to system board

• Bus Coupler Role: Expands memory for processing tasks

• Diagnostics: System diagnostics for memory integrity

• Operator Interface: No direct interface (requires compatible system for operation)

• Reset Features: Soft reset through system reboot

Environmental

• Operating Temperature: −20 to +60 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (standard industrial environment)

Dimensions & Weight

• Dimensions (L × W × H): 208 × 15 × 120 mm

• Weight: 0.13 kg

Brand: ABB
Country of Origin: Switzerland
