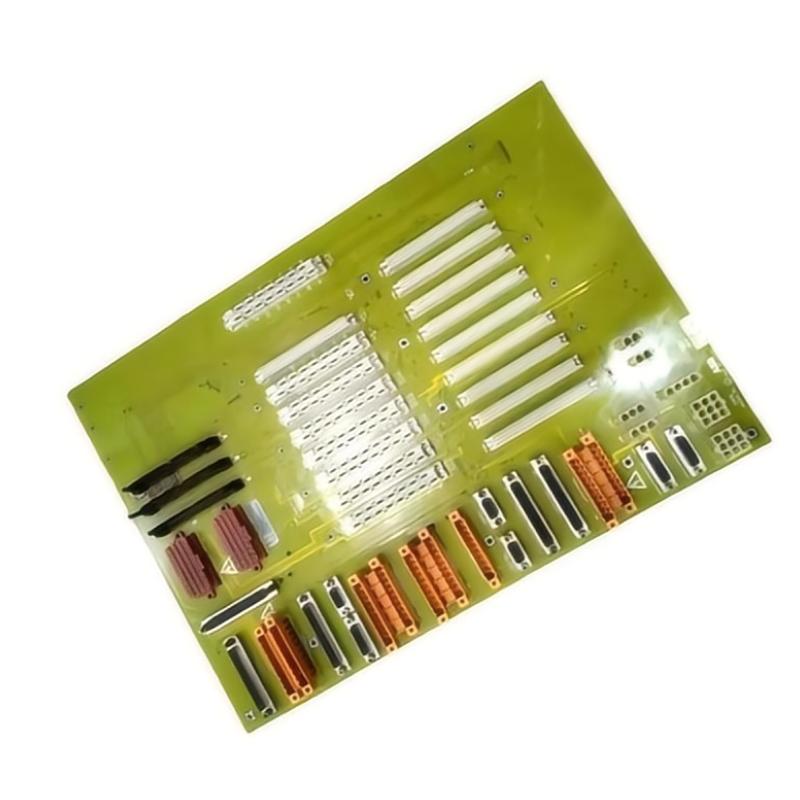

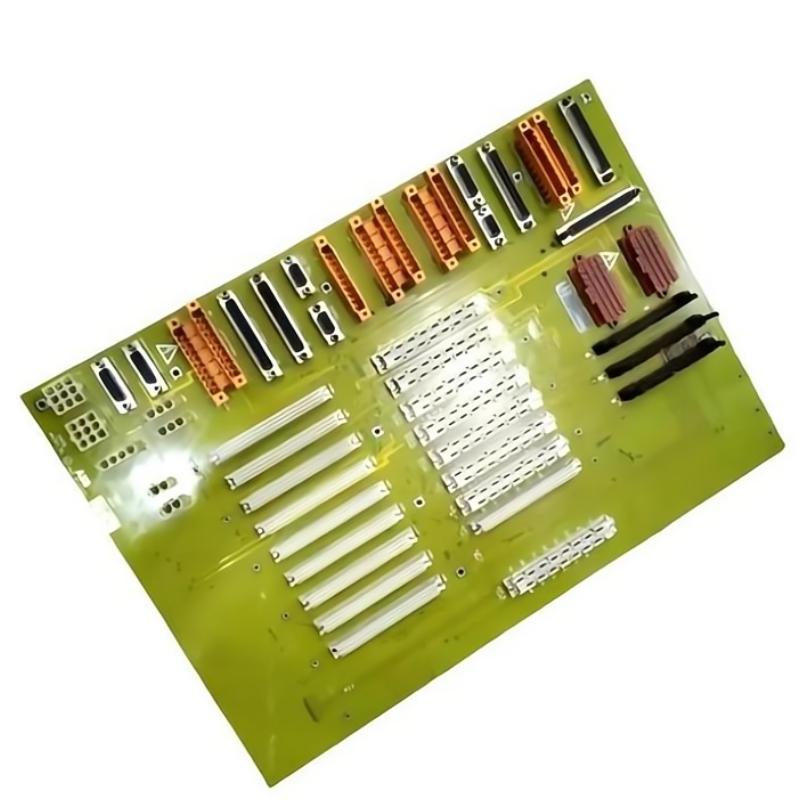

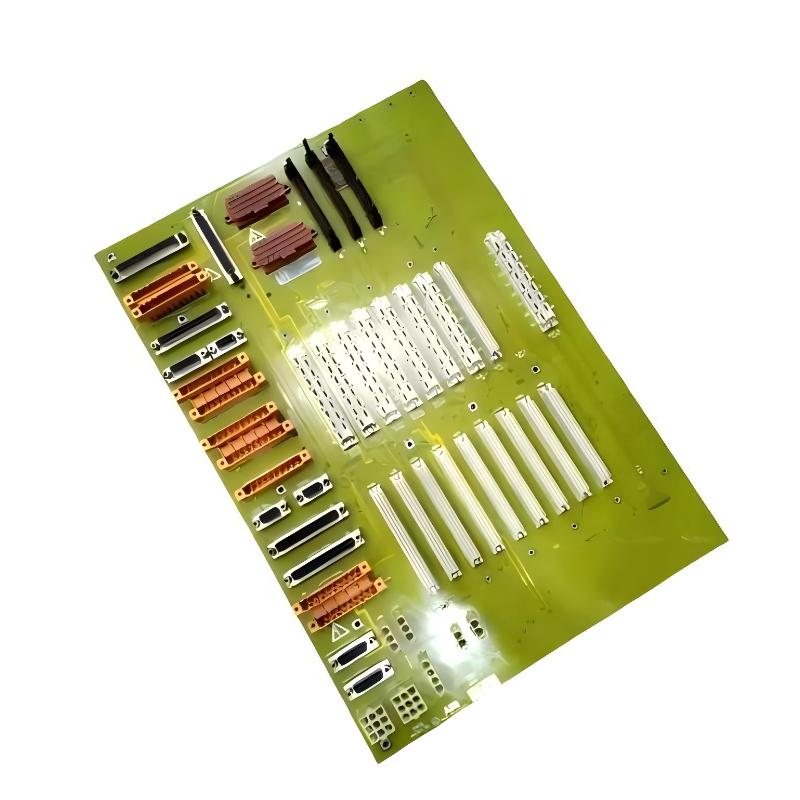

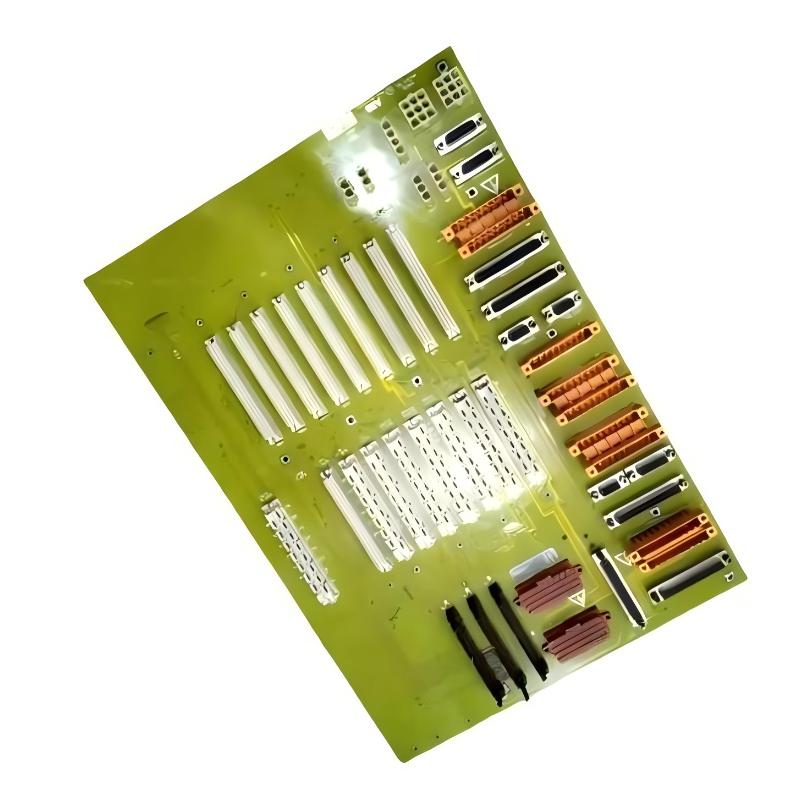

The ABB 086345-001 Standard Signal Interconnect Board is a versatile component designed for signal routing and interfacing in automation systems. It supports stable communication between different devices, ensuring reliable data transfer and signal integrity in industrial environments.
General Information
Part Number: 086345-001
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Product Type: Signal Interconnect Board
Application: Automation systems, signal routing, and interfacing
Mounting: Panel or rack installation
Series: ABB Control System Components
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 8 W
Power Supply Method: Powered by external 24 V DC source
Protection: Overload and reverse polarity protection
Status Indicators: LED indicators for power and operational status
Communication & Interface
System Interface: Internal control bus connection
Signal Handling: Signal routing and processing
Diagnostics: Built-in diagnostic monitoring for fault detection
Configuration: Software configurable via ABB control platform
Reset Function: Supports system reset and initialization
Environmental
Operating Temperature: −20 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation)
Dimensions & Weight
Dimensions (L × W × H): 150 × 100 × 25 mm
Weight: 0.3 kg
