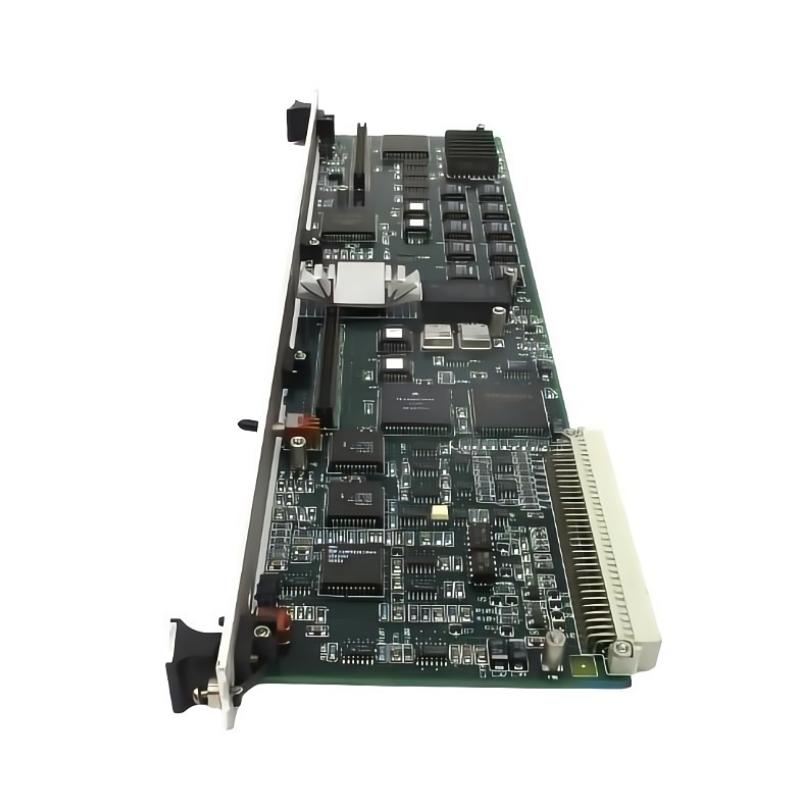

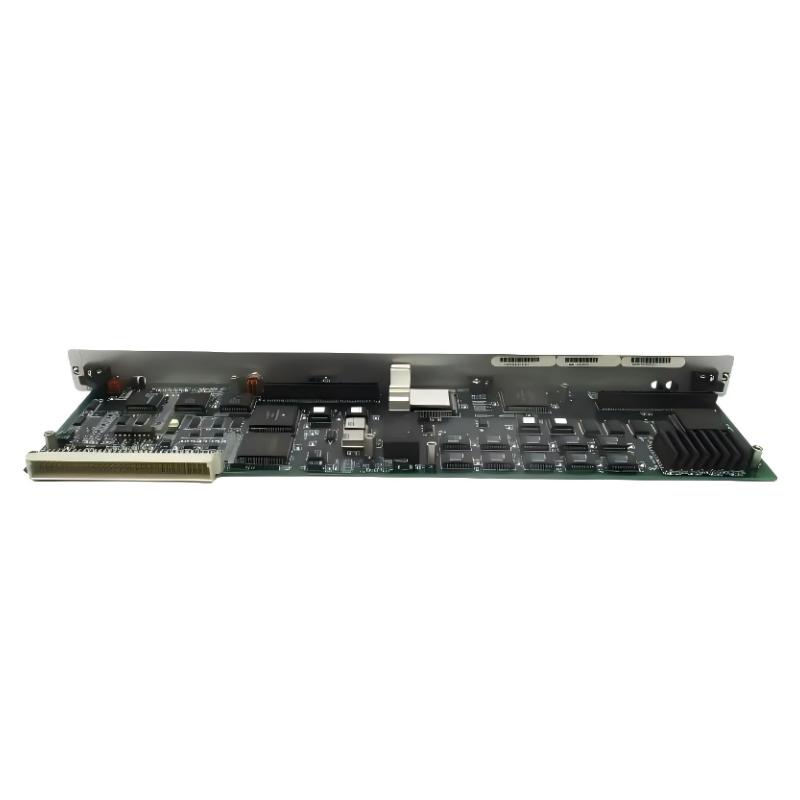

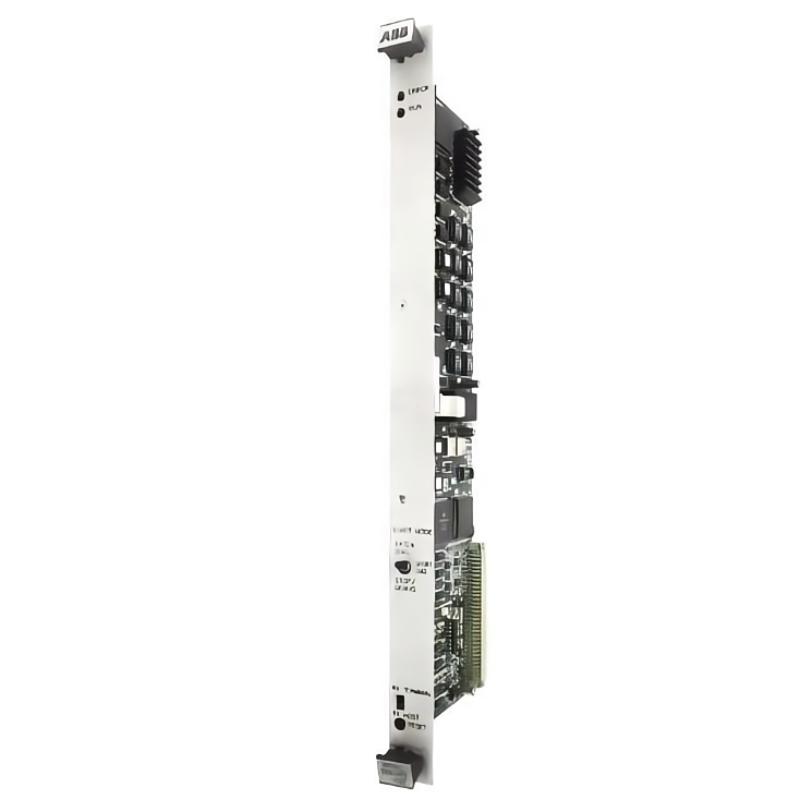

The ABB 086349-002 PCB Circuit Board is designed for use in ABB automation and control systems. It provides critical support for signal processing and communication, ensuring seamless integration and reliable operation in various industrial applications.
General Information

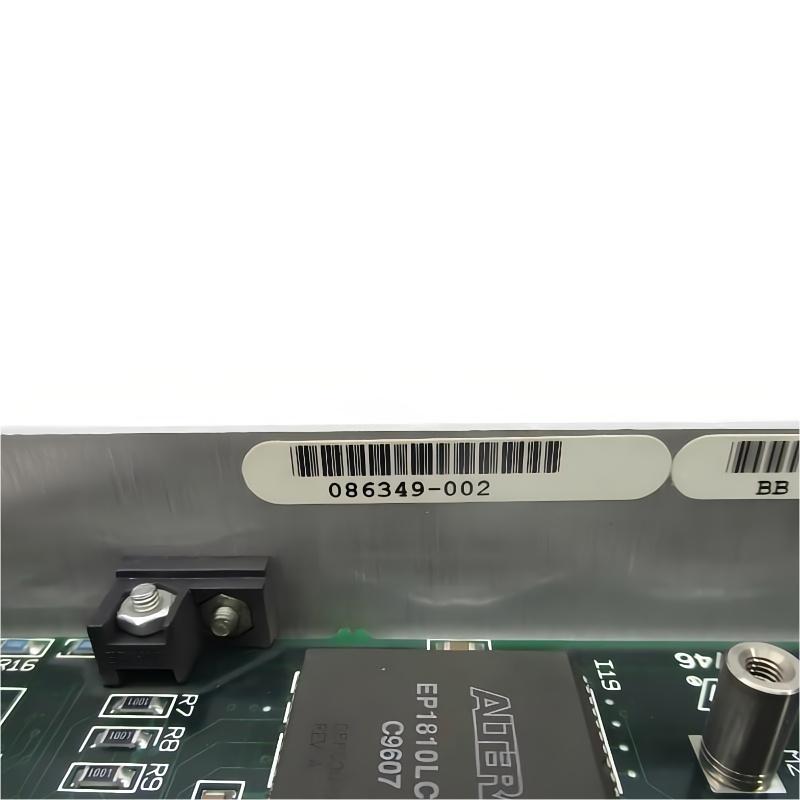

Part Number: 086349-002
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Product Type: PCB Circuit Board
Application: Automation systems, control systems, and industrial electronics
Mounting: Panel or rack installation
Series: ABB Control System Components
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Power Supply Method: Powered via external 24 V DC source
Protection: Overcurrent and reverse polarity protection
Status Indicators: LED indicators for power and fault status
Communication & Interface
System Interface: Internal control bus connection
Signal Handling: Signal processing and routing for control systems
Diagnostics: Self-diagnostic features for fault detection
Configuration: Configurable via ABB control software
Reset Function: Supports system reset and initialization
Environmental
Operating Temperature: −20 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation)
Dimensions & Weight
Dimensions (L × W × H): 462 × 80 × 273 mm
Weight: 0.45 kg
