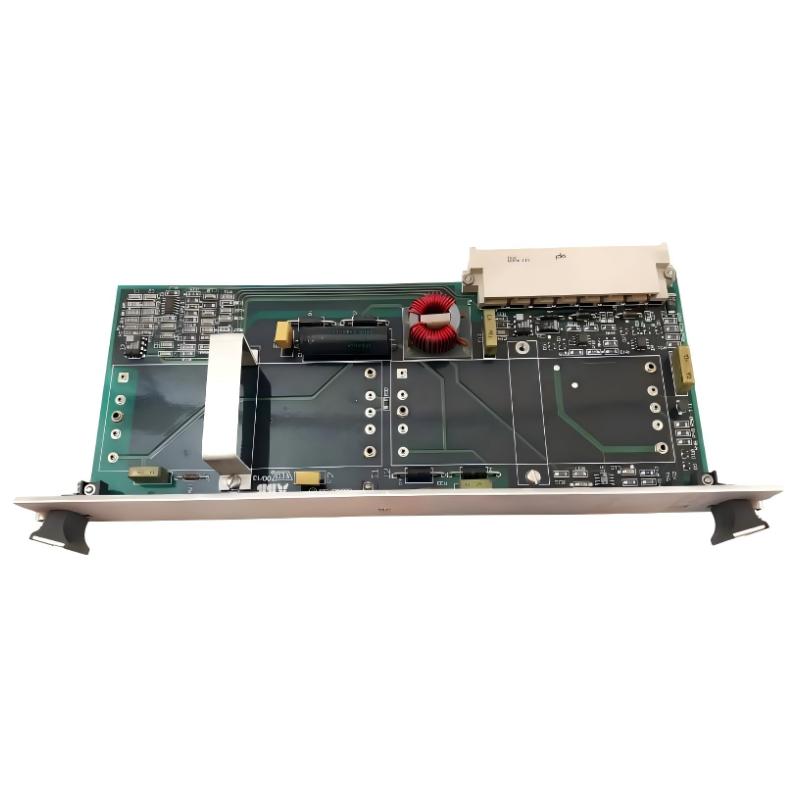

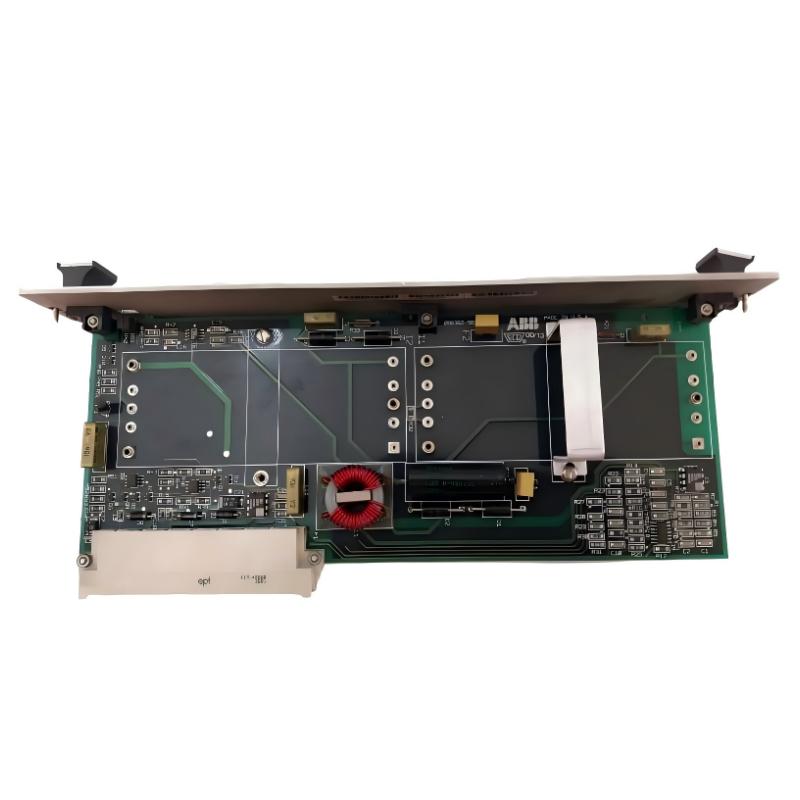

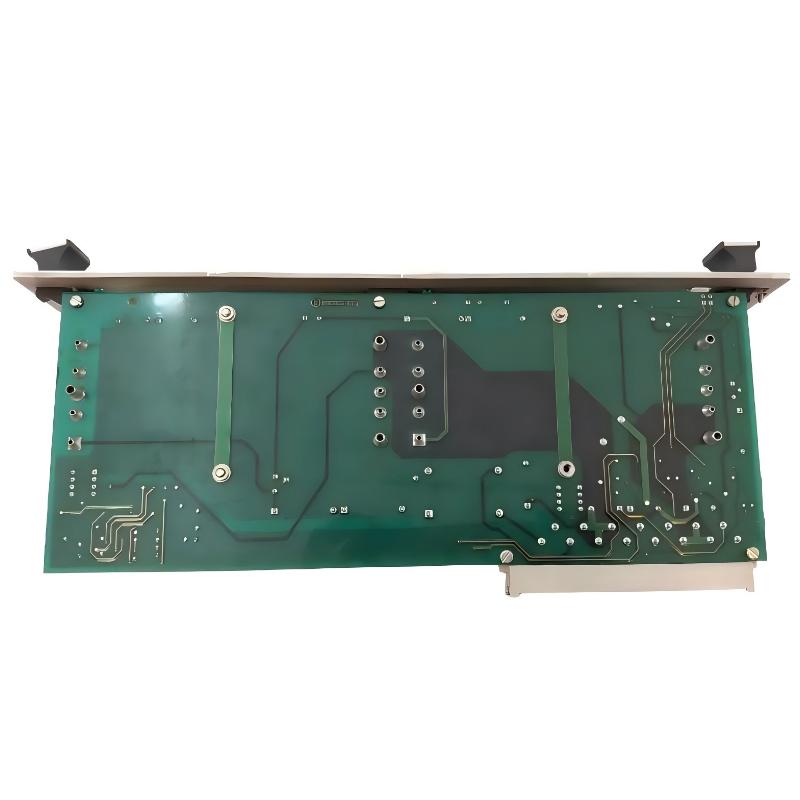

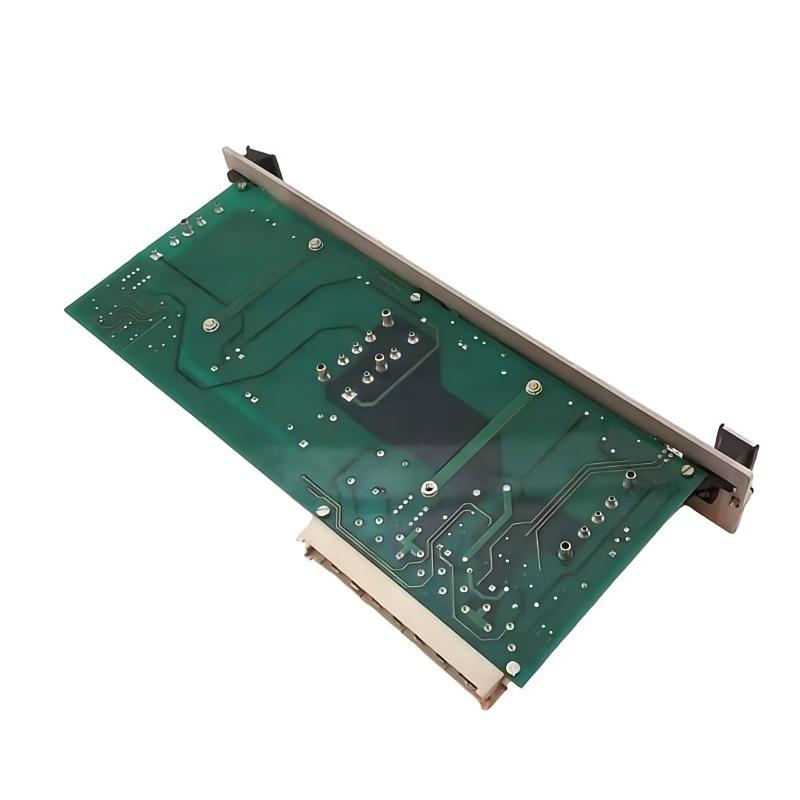

The ABB 086362-001 Circuit Board is an integral component used in ABB’s industrial automation and control systems. It is engineered for signal processing, system connectivity, and ensuring optimal performance in various industrial environments. This circuit board is designed for reliability and high-quality functionality.
General Information
Part Number: 086362-001
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Product Type: Circuit Board
Application: Industrial automation systems, control equipment
Mounting: Panel or rack installation
Series: ABB Control System Components
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Power Supply Method: Powered by external 24 V DC
Protection: Overload and reverse polarity protection
Status Indicators: LED indicators for power and operational status
Communication & Interface
System Interface: Internal control bus connection
Signal Handling: Advanced signal processing and routing
Diagnostics: Built-in self-diagnostic monitoring
Configuration: Configurable via ABB control platform
Reset Function: Supports system reset and initialization
Environmental
Operating Temperature: −20 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation)
Dimensions & Weight
Dimensions (L × W × H): 462 × 80 × 273 mm
Weight: 0.9 kg
