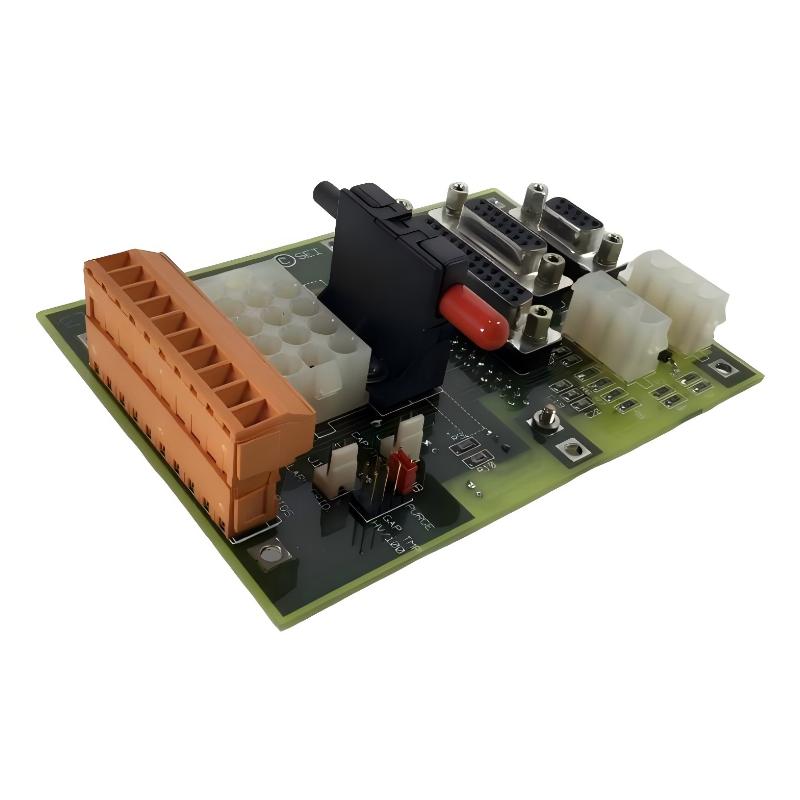

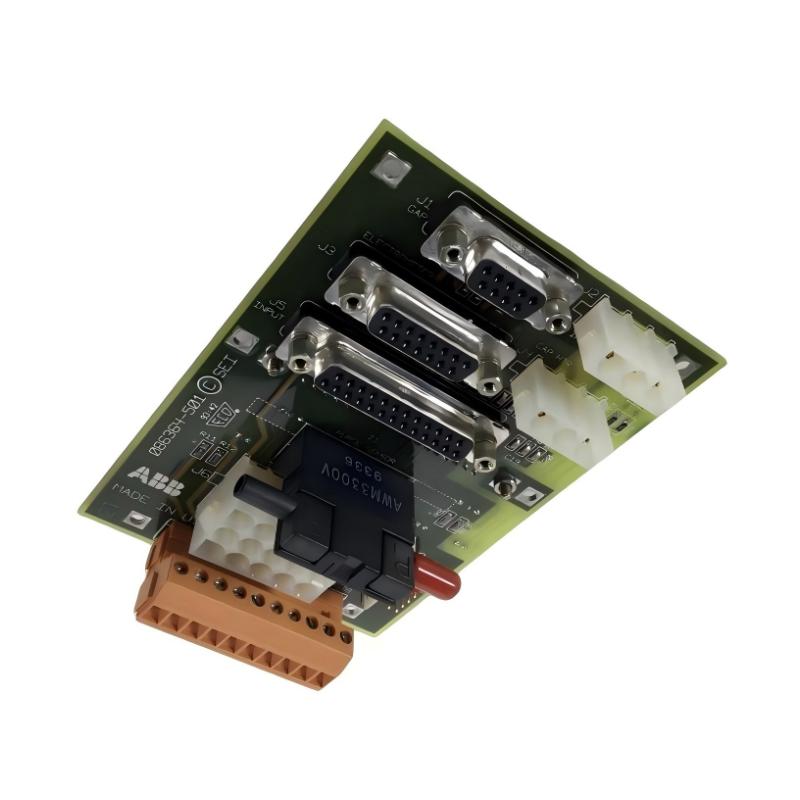

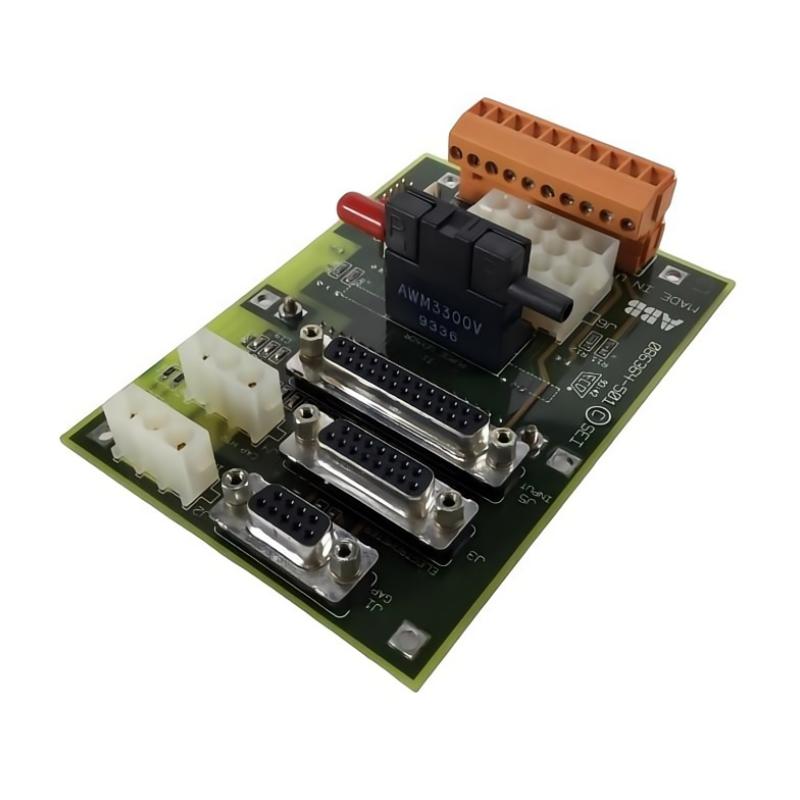

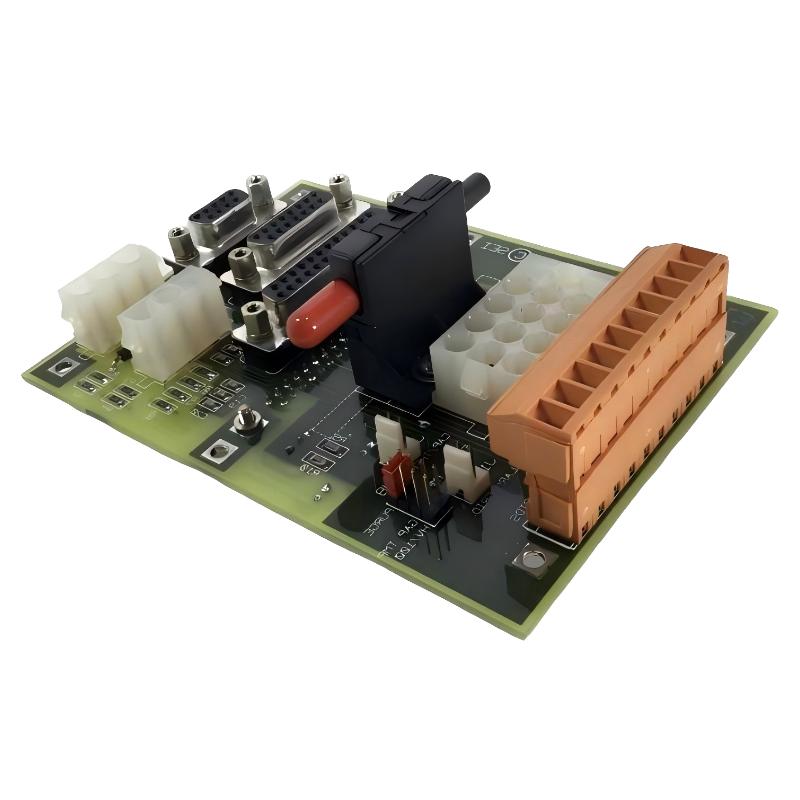

The ABB 086364-001 Internal Electrical Sensors are designed for use in industrial automation systems to monitor and detect electrical signals. These sensors play a critical role in ensuring the safe and efficient operation of electrical systems, providing precise data for system diagnostics and control.
General Information
Part Number: 086364-001
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Product Type: Internal Electrical Sensors
Application: Industrial automation, electrical signal monitoring, and system diagnostics
Mounting: Panel or rack installation
Series: ABB Control System Components
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Power Supply Method: Powered via external 24 V DC source
Protection: Overload and reverse polarity protection
Status Indicators: LED indicators for power and operational status
Communication & Interface
System Interface: Internal control bus connection
Signal Handling: Electrical signal detection and processing
Diagnostics: Self-diagnostic monitoring for fault detection
Configuration: Configurable via ABB control software
Reset Function: Supports system reset and initialization
Environmental
Operating Temperature: −20 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation)
Dimensions & Weight
Dimensions (L × W × H): 248 × 147 × 25 mm
Weight: 0.24 kg
