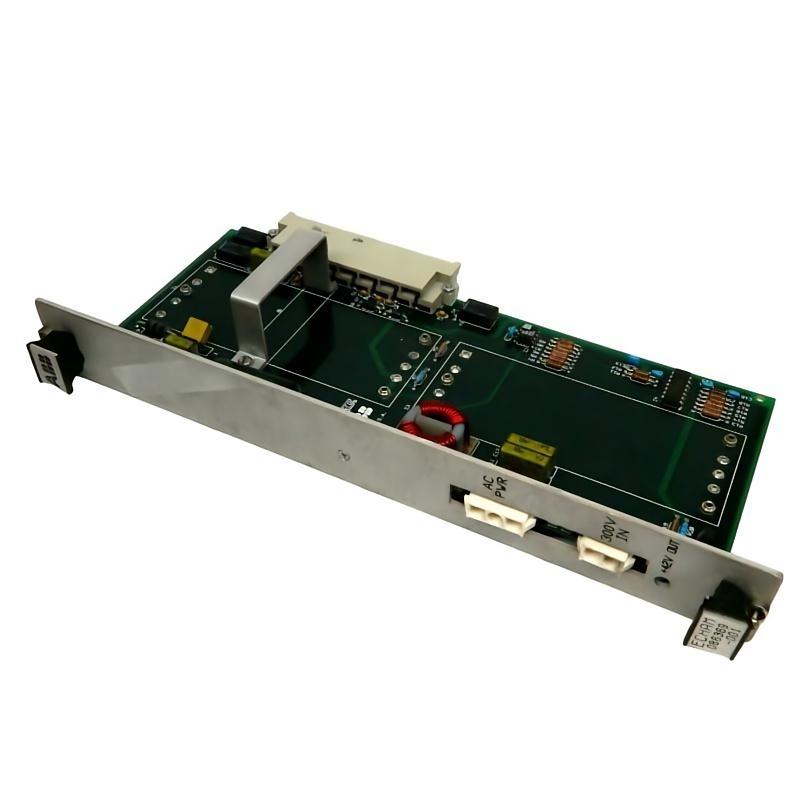

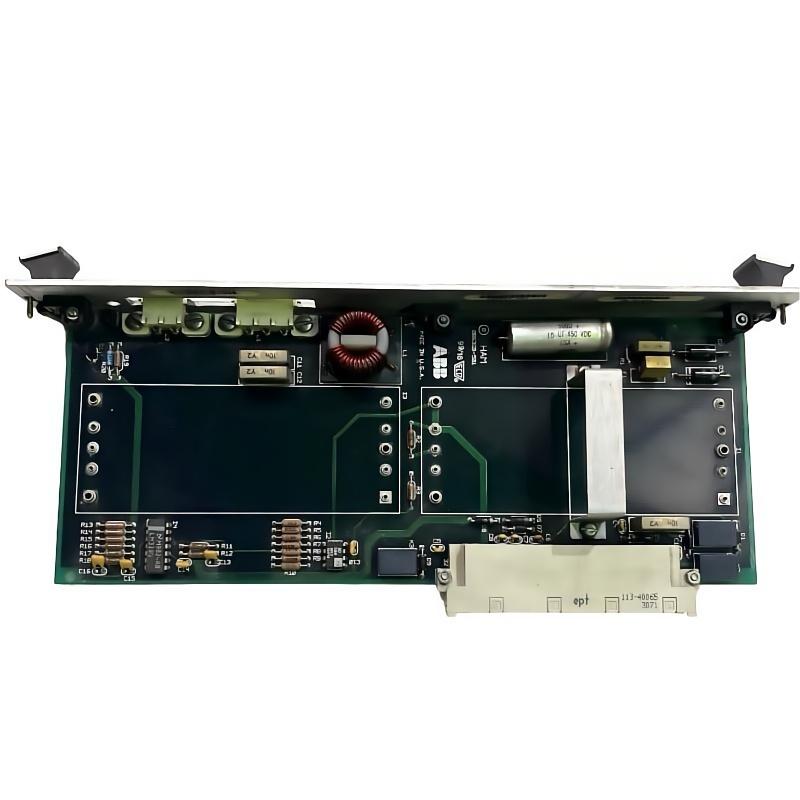

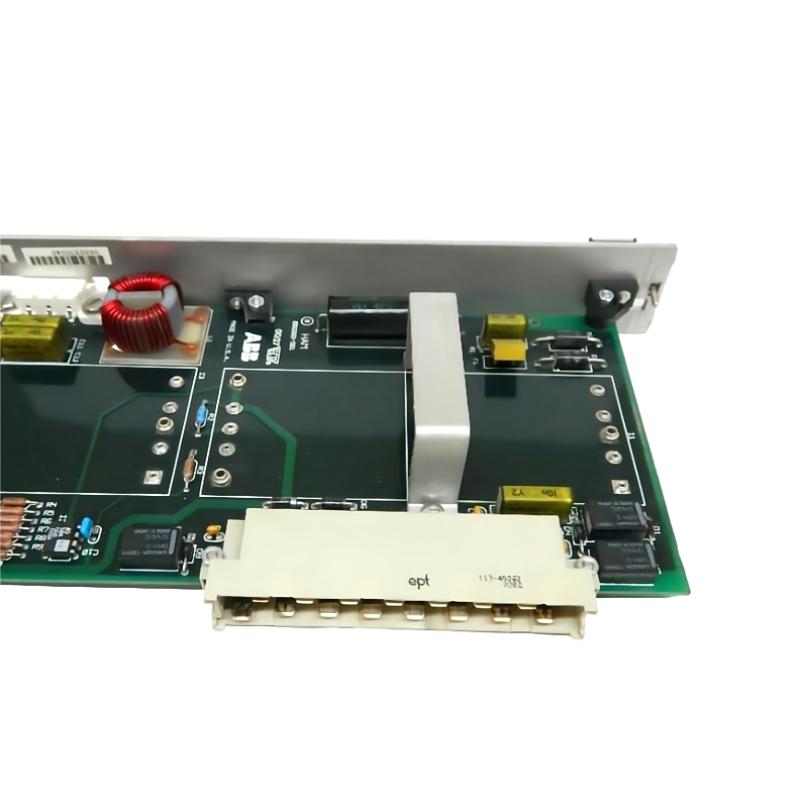

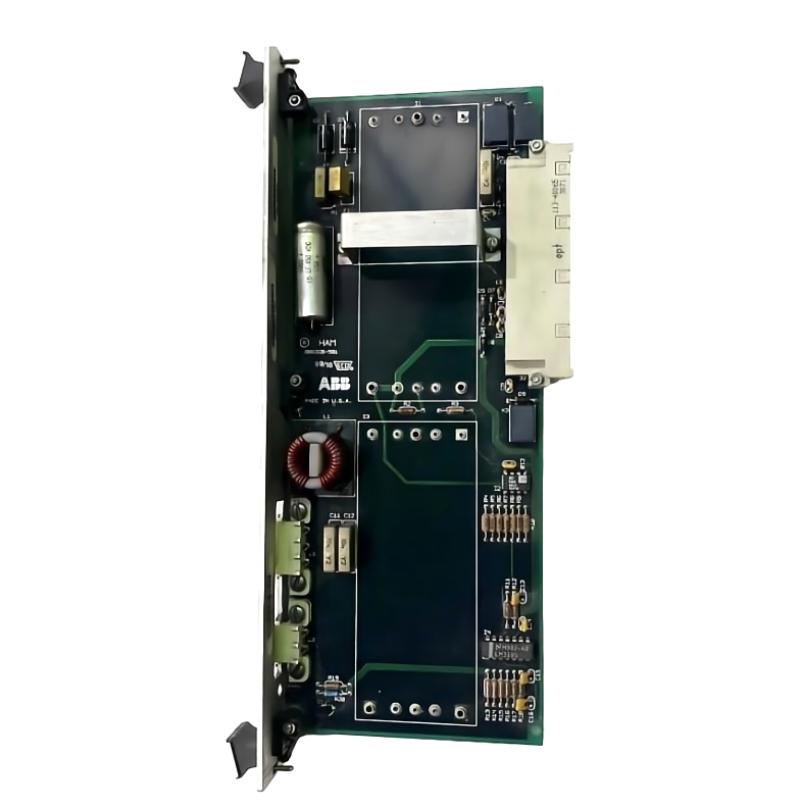

ABB 086369-001 Harmonic Detection Module

Overview
The ABB 086369-001 Harmonic Detection Module is designed to provide accurate monitoring and analysis of harmonic distortion in electrical systems. It enables precise detection of harmonic content in power systems, ensuring optimal performance and preventing equipment damage due to power quality issues.

General Information

• Part Number: 086369-001

• Manufacturer: ABB

• Series: Harmonic Detection Module

• Type: Power Quality Monitoring

• Mounting: Rack or panel installation

• Technology: Real-time harmonic analysis, advanced filtering, and monitoring capabilities

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: ≤ 15 W

• Input: Powered through control system or panel power

• Protection: Surge protection, reverse-polarity protection

• Indicators: LEDs for status, communication, and faults

Communication & Interface

• Interface: Modbus TCP/IP

• Communication Protocol: Modbus RTU, Ethernet

• Integration: Easily integrates into existing ABB power control systems

• Diagnostics: Real-time data reporting, fault detection, and trend monitoring

• Operator Interface: LED indicators, configuration switches

Environmental

• Operating Temperature: −20 to +60 °C

• Humidity: 5% to 95%, non-condensing

• Protection Rating: IP20 (indoor use)

Dimensions & Weight

• Dimensions (L × W × H): 462 × 80 × 273 mm

• Weight: 0.25 kg
