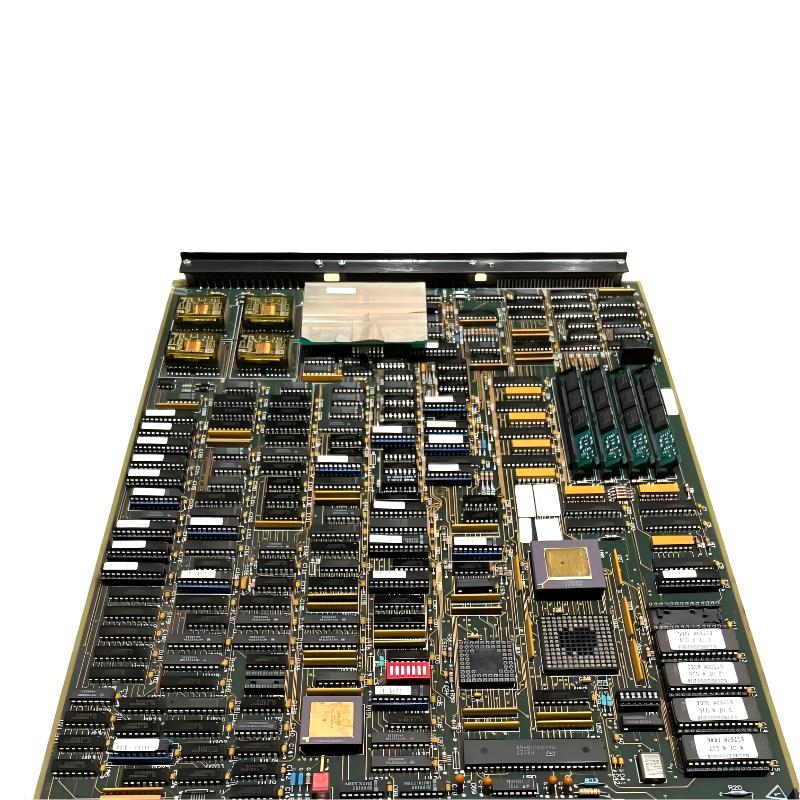

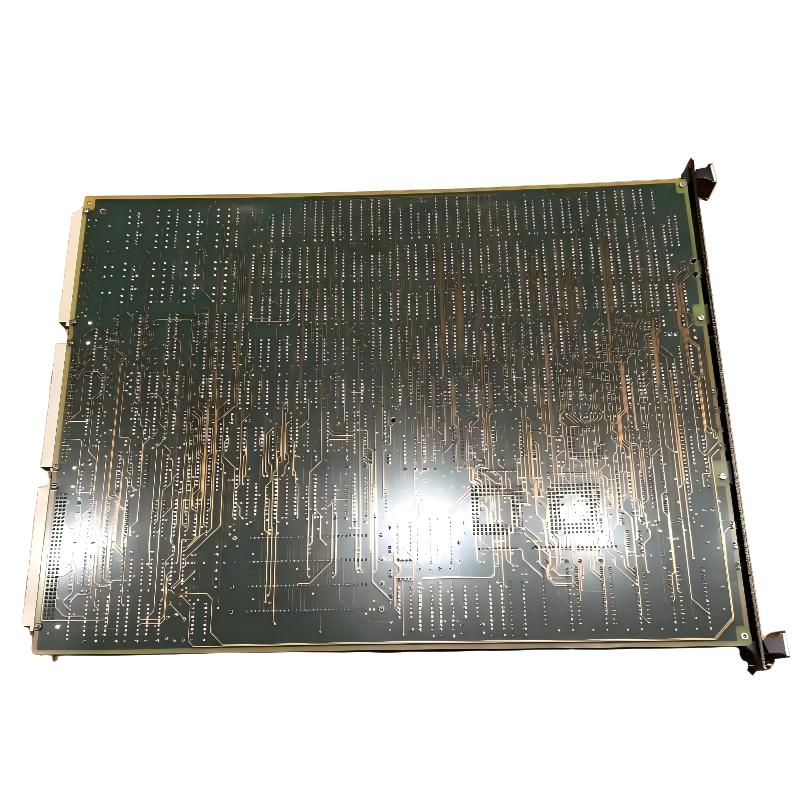

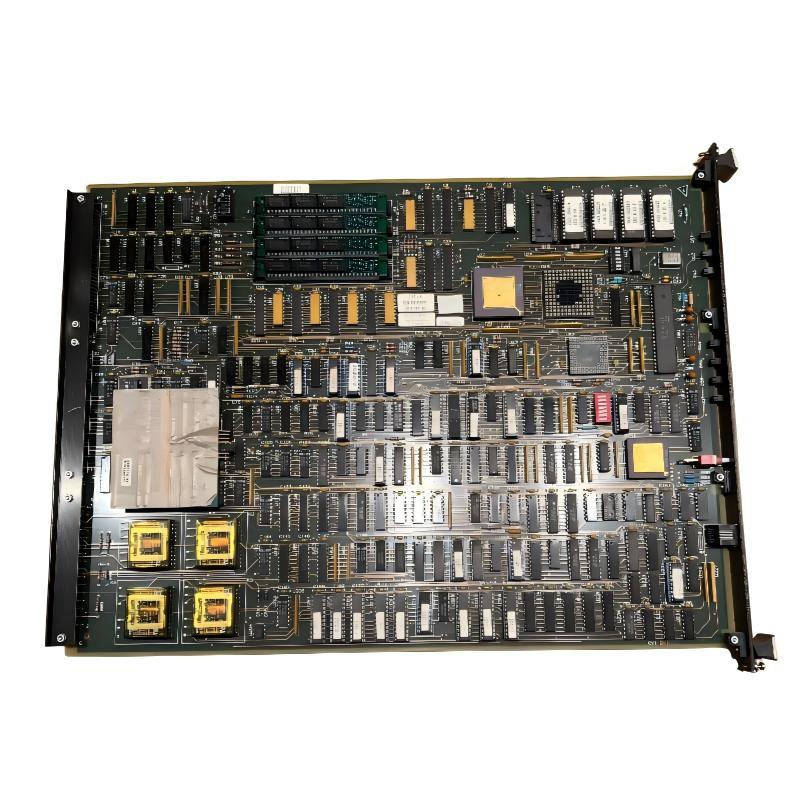

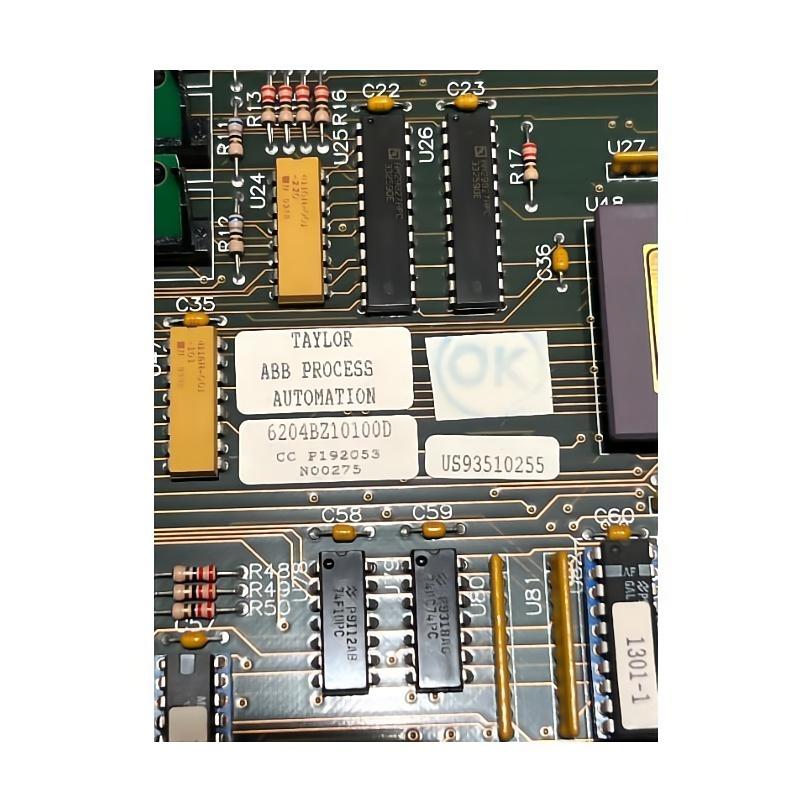

ABB 6204BZ10100D CPU Module

Overview

The ABB 6204BZ10100D is a high-performance CPU module designed for ABB industrial automation systems. It provides fast and reliable processing of control logic, enabling seamless operation of complex automation tasks. Built for durability, the module performs consistently in demanding industrial environments.

General Information

Part Number: 6204BZ10100D

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: 6204

Type: CPU Module

Mounting: Rack or panel installation within automation cabinets

Technology: High-speed processing, real-time data handling, fault diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input Source: Backplane or dedicated power terminal

Protection: Overvoltage and reverse polarity protection

Indicators: LEDs for power, CPU status, and fault detection

Communication & Interface

Bus Interface: Compatible with ABB control systems (Advant / AC500 / Freelance series)

Communication Ports: Supports fieldbus and Ethernet interfaces for system connectivity

Diagnostics: CPU performance monitoring, error detection, and system status reporting

Operator Interface: LED indicators, system reset, and diagnostic outputs

Reset Features: Supports both software and hardware reset for maintenance

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 standard

Vibration & Shock: Compliant with industrial automation standards

Dimensions & Weight

Dimensions (L × W × H): 380 × 220 × 50 mm

Weight: 0.907 kg
