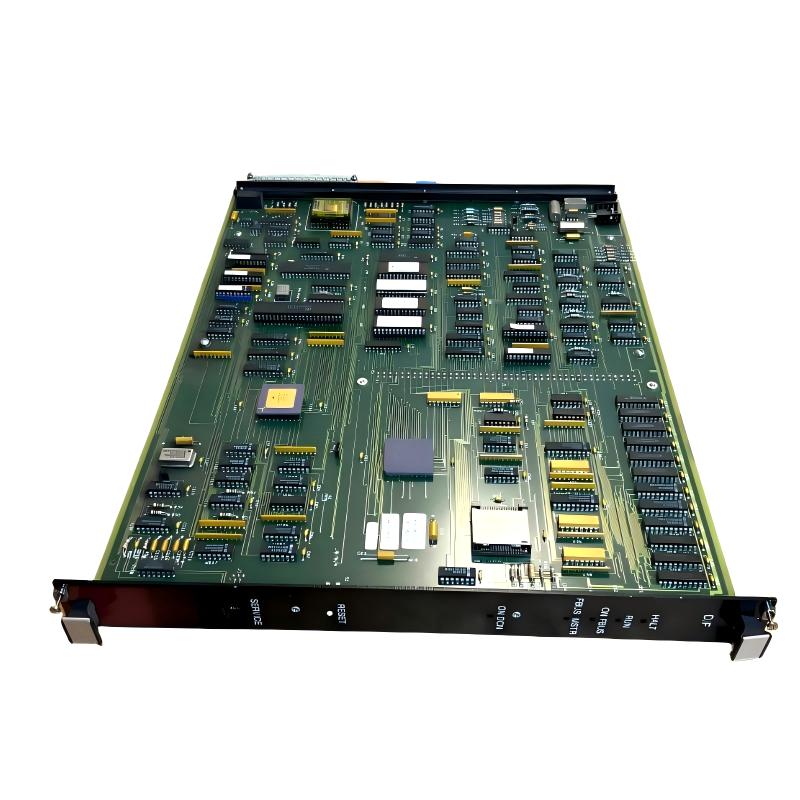

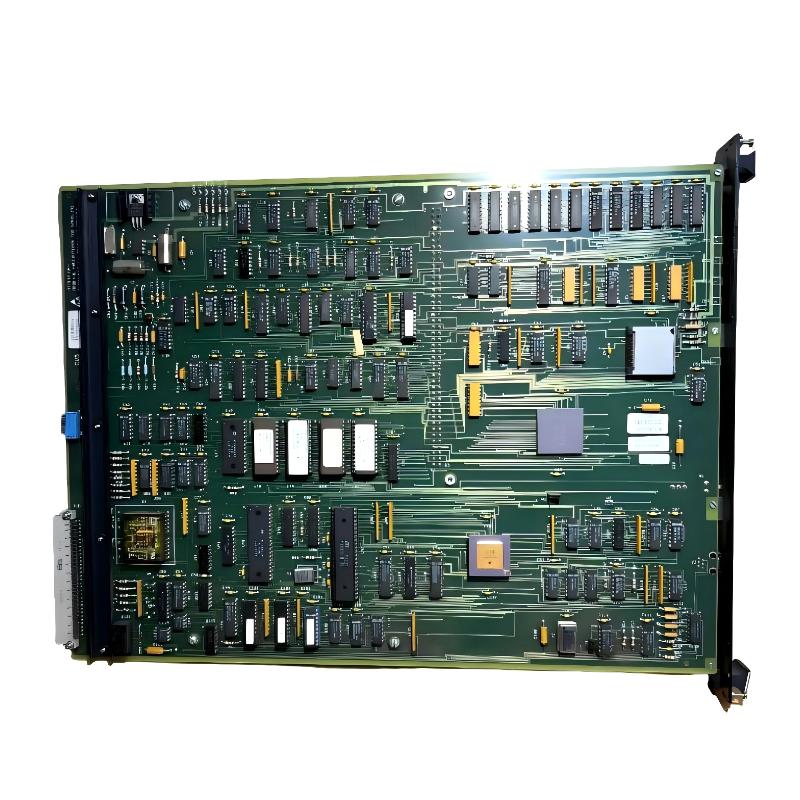

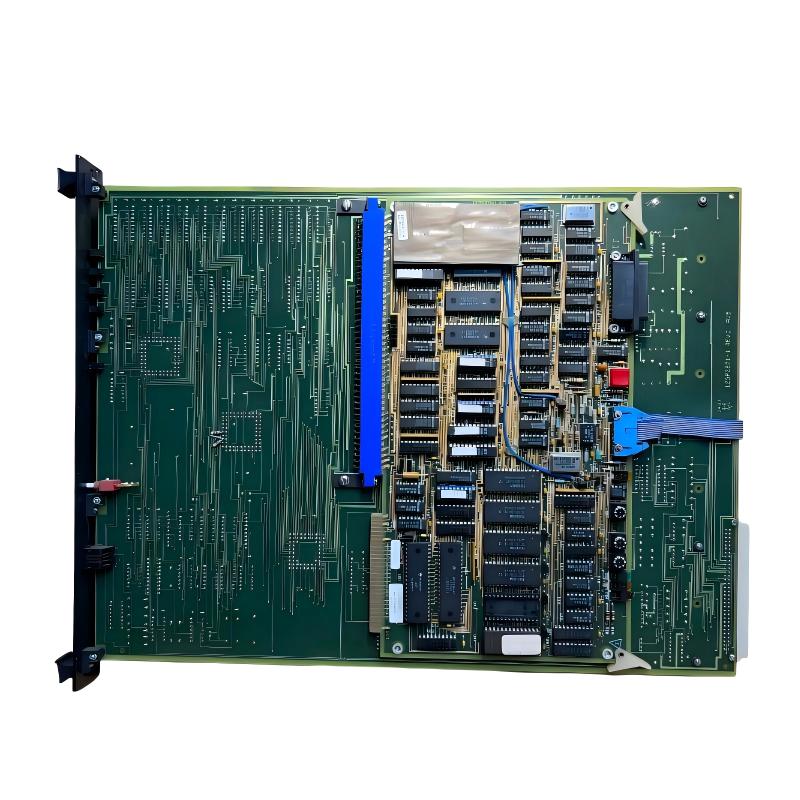

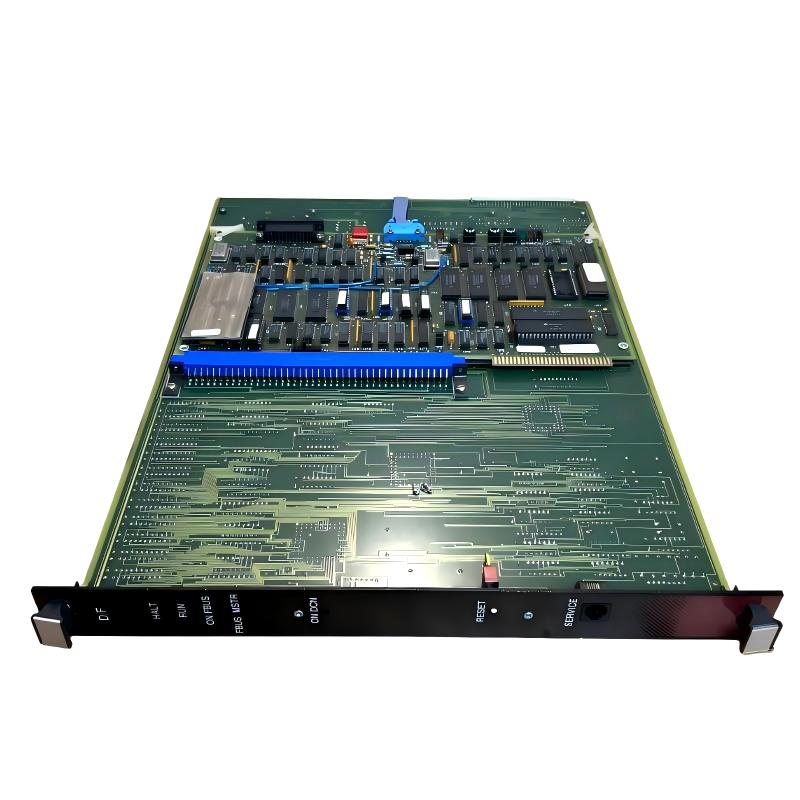

ABB 6205BZ10000G Numeric Input Module

Overview

The ABB 6205BZ10000G is a precision numeric input module designed for ABB industrial automation systems. It reliably captures numeric signals from field devices and interfaces directly with the control system for accurate monitoring and processing. Engineered for performance and durability, it operates consistently in demanding industrial environments.

General Information

Part Number: 6205BZ10000G

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: 6205

Type: Numeric Input Module

Mounting: Rack or panel installation within automation cabinets

Technology: Digital signal acquisition, diagnostic logic, hot-swappable design

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input Source: Backplane or dedicated power terminal

Protection: Overvoltage and reverse polarity protection

Indicators: LEDs for power, input activity, and fault status

Communication & Interface

Bus Interface: Compatible with ABB control systems (Advant / AC500 / Freelance series)

Input Channels: Multi-channel numeric signal inputs for precise data acquisition

Diagnostics: Input supervision, error detection, and module status reporting

Operator Interface: LED indicators, diagnostic outputs for each channel

Reset Features: Supports software and hardware reset for maintenance

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 standard

Vibration & Shock: Compliant with industrial automation standards

Dimensions & Weight

Dimensions (L × W × H): 380 × 220 × 50 mm

Weight: 0.3 kg
