Overview

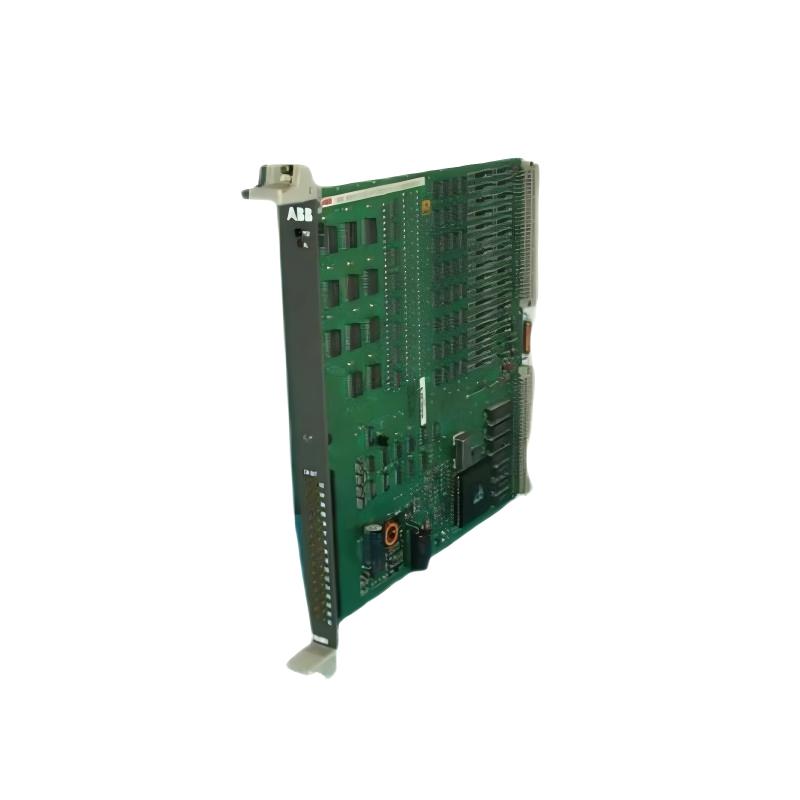

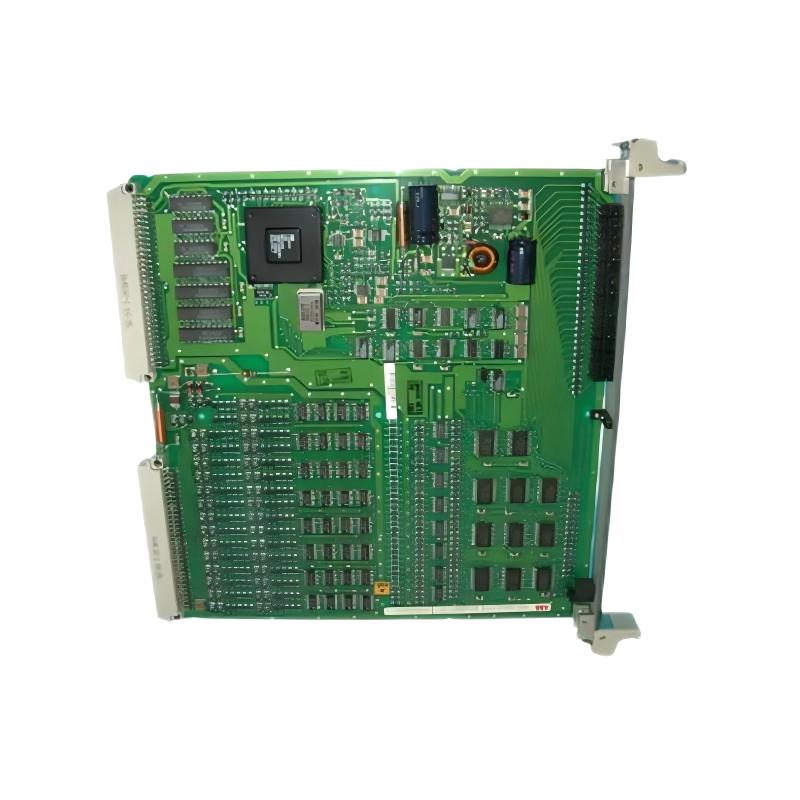

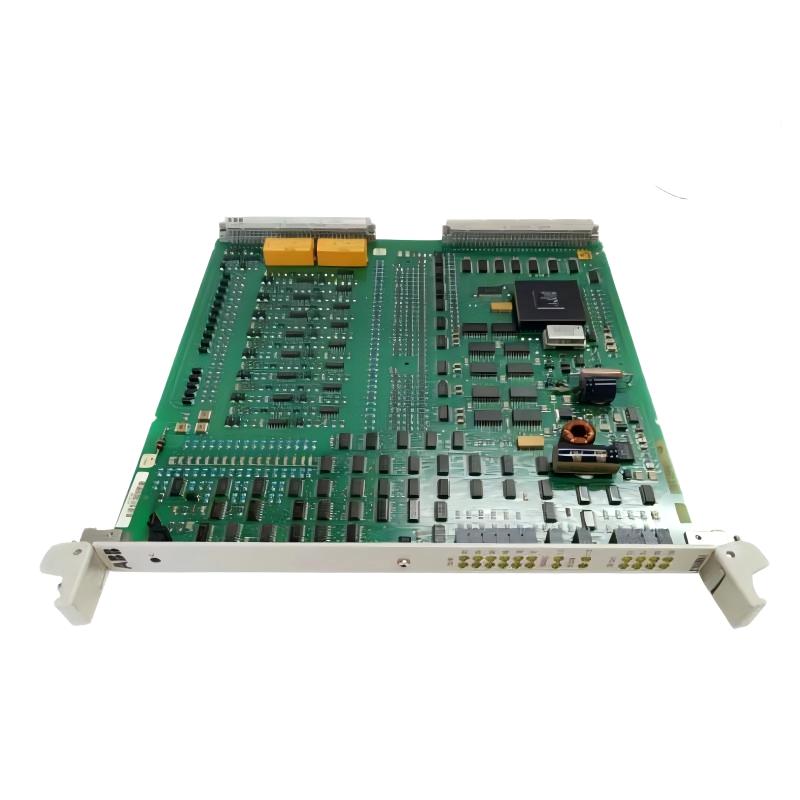

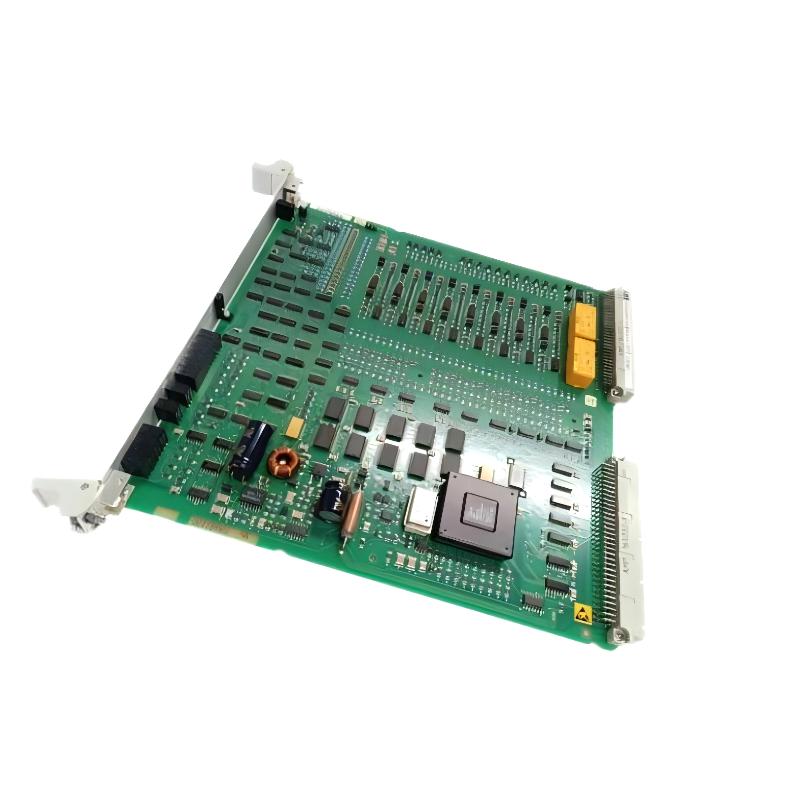

The ABB 216AB61 HESG324013R100 is a binary output module designed for reliable digital signal control within ABB industrial automation and control systems. It provides output channels that allow the control system to transmit switching commands to external devices such as relays, solenoids, contactors, and indicator lamps.
Engineered for stable performance in demanding industrial environments, the module ensures accurate signal switching and dependable operation. It is commonly used in process automation systems where reliable digital output control is required for field equipment and machinery.
General Information
Part Number: HESG324013R100
Model Number: 216AB61
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Series: ABB industrial control system modules
Type: Binary Output Module
Mounting: Rack or panel installation within industrial control cabinets
Technology: Industrial digital switching interface with integrated diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Power Source: Powered through the control system backplane or interface connection
Protection: Integrated over-current and surge protection
Indicators: LED indicators for power status, output activity, and fault conditions
Communication & Interface
System Interface: Direct connection to ABB control systems through the system backplane
Output Channels: Multiple digital output channels for switching control
Signal Type: Binary digital output signals
Diagnostics: Channel status monitoring and fault detection
Configuration: Configurable through ABB engineering and control software
Status Monitoring: Front-panel LED indicators for channel and module status
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Designed for installation inside industrial control cabinets
Vibration Resistance: Suitable for standard industrial automation environments
Dimensions & Weight
Dimensions (L × W × H): 100 × 60 × 25 mm
Weight: 0.25 kg
