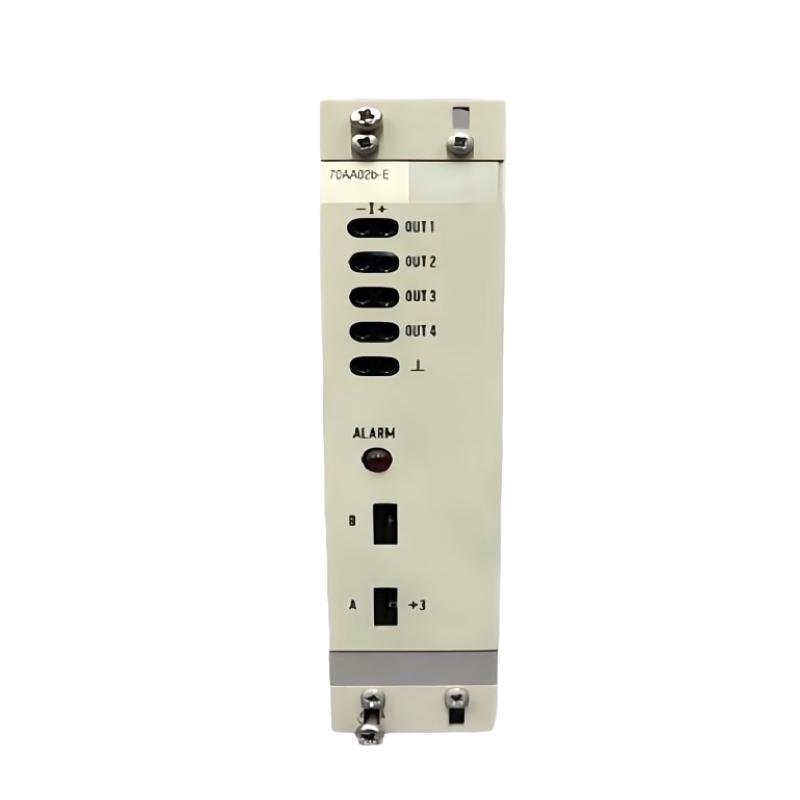

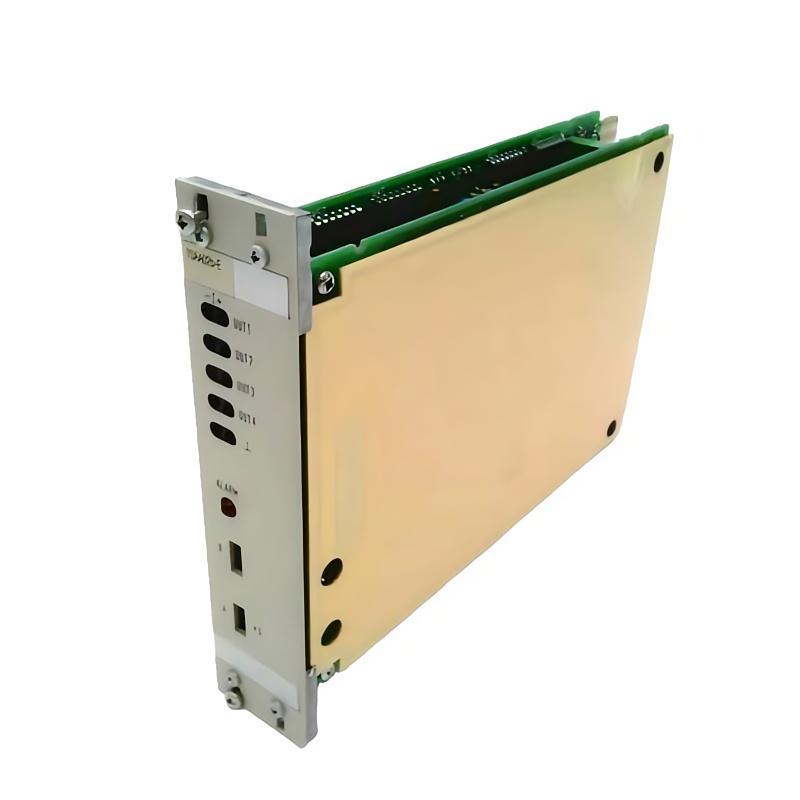

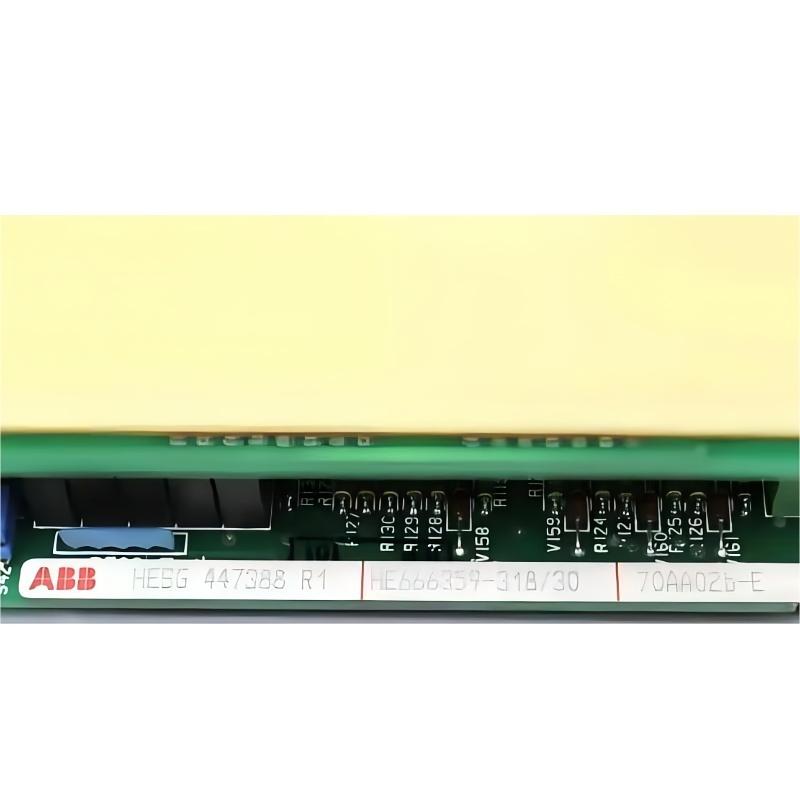

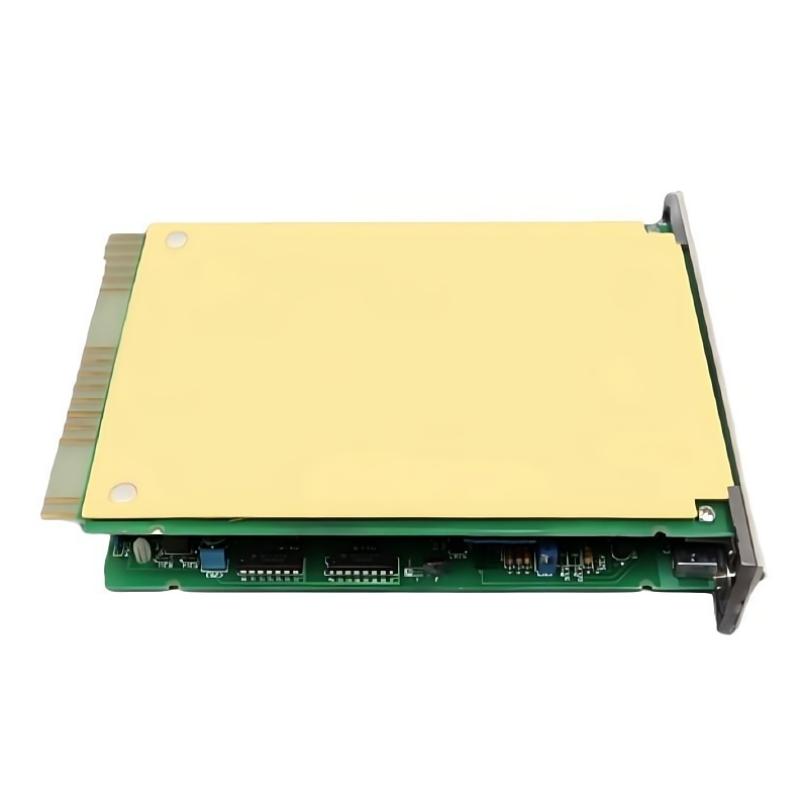

ABB 70AA02B-E HESG447388R1 Analog Output Module

Overview

The ABB 70AA02B-E HESG447388R1 is an analog output module designed for precise signal control within ABB industrial automation and distributed control systems. It converts digital control signals from the controller into analog outputs to regulate field devices such as valves, actuators, and other process control equipment.

This module is widely used in process automation, power generation, and manufacturing applications where accurate and stable analog signal output is critical for maintaining optimal system performance.

General Information

Part Number: HESG447388R1

Model Number: 70AA02B-E

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: ABB industrial control system I/O modules

Type: Analog Output Module

Mounting: Rack or panel installation within industrial control cabinets

Technology: High-precision digital-to-analog conversion with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Power Source: Powered via system backplane

Protection: Over-current and surge protection

Indicators: LED indicators for power status, channel activity, and fault conditions

Communication & Interface

System Interface: Direct integration with ABB controllers and automation platforms

Output Channels: Multiple analog output channels for process control devices

Signal Type: 4–20 mA or 0–10 V analog output signals

Diagnostics: Channel monitoring and fault detection

Configuration: Configurable through ABB engineering and control software

Status Monitoring: Front-panel LED indicators for channel and module status

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation inside industrial control cabinets

Vibration Resistance: Designed for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 130 × 110 × 40 mm

Weight: 0.454 kg
