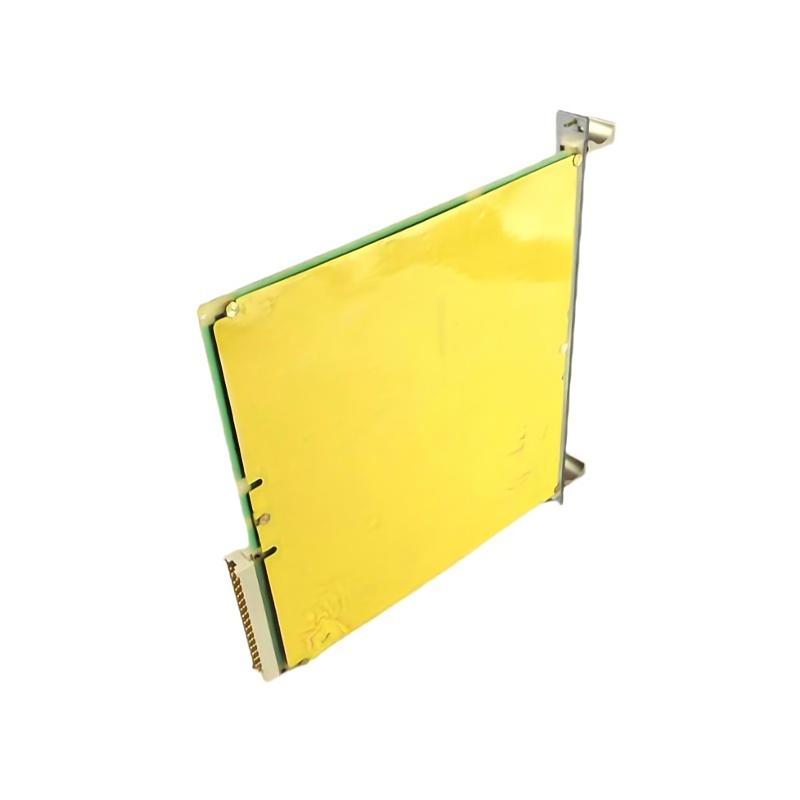

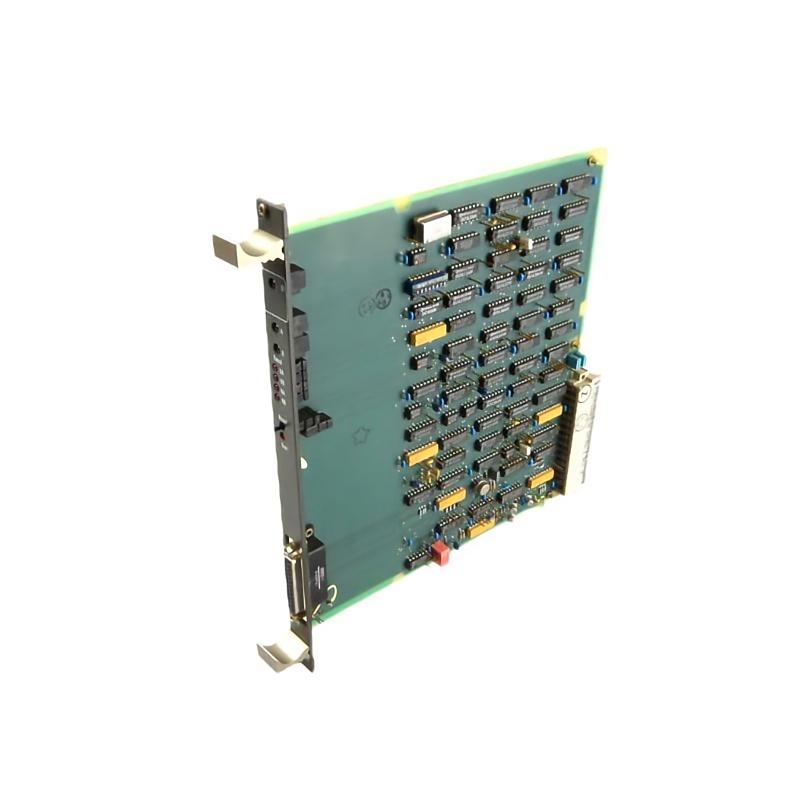

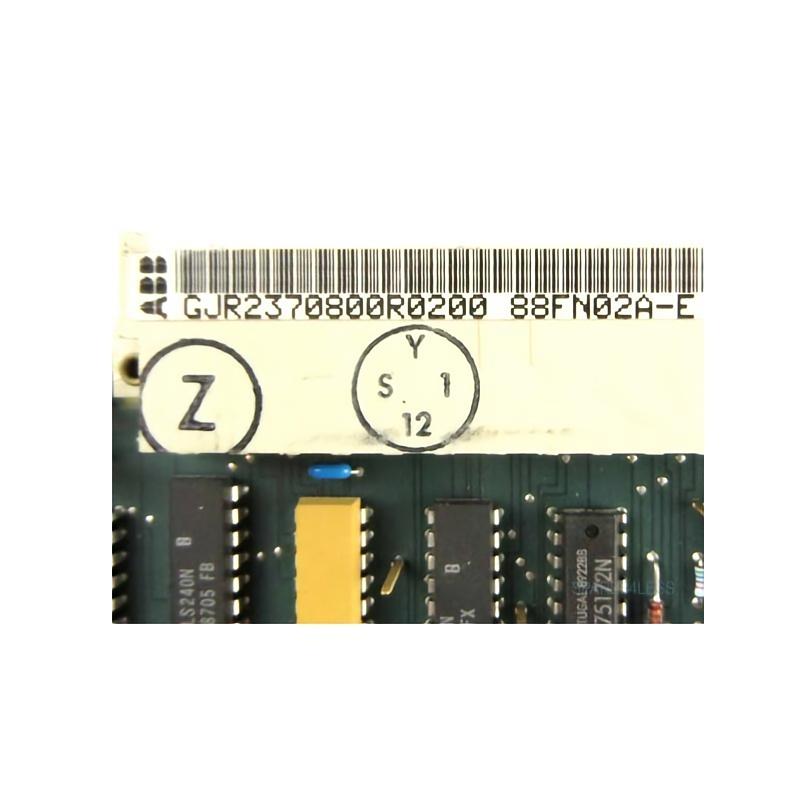

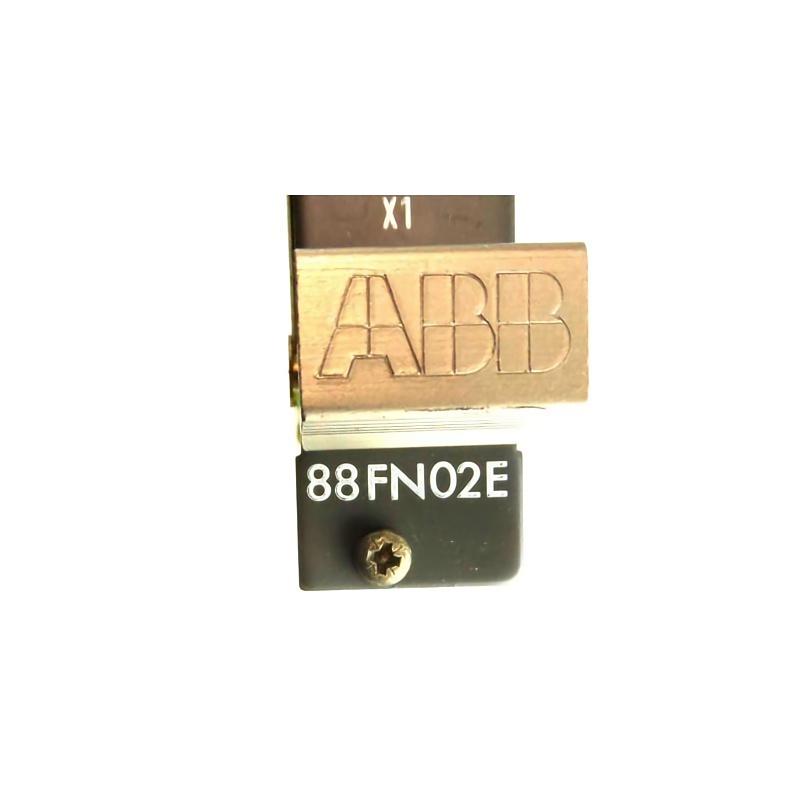

ABB 88FN02A-E GJR2370800R0200 Bus Coupling Module

Overview

The ABB 88FN02A-E is a bus coupling module designed for ABB industrial automation systems. It provides reliable communication between the system controller and field devices, enabling efficient signal transfer and seamless integration in industrial networks.

General Information

Part Number: GJR2370800R0200

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: FN (Bus Coupling Modules)

Type: Bus Coupling Module

Mounting: DIN rail or panel installation

Technology: Bus interface module with diagnostic and fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from system backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LEDs for power, communication status, and fault

Communication & Interface

Communication Protocol: ABB proprietary bus, Modbus

I/O Channels: Supports multiple field device connections and module integration

Diagnostics: Link supervision, fault detection, and event logging

Operator Interface: LED indicators

Reset Features: Supports software and hardware reset

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 190 × 110 × 40 mm

Weight: ~ 0.58 kg

100% Original and Brand New !
