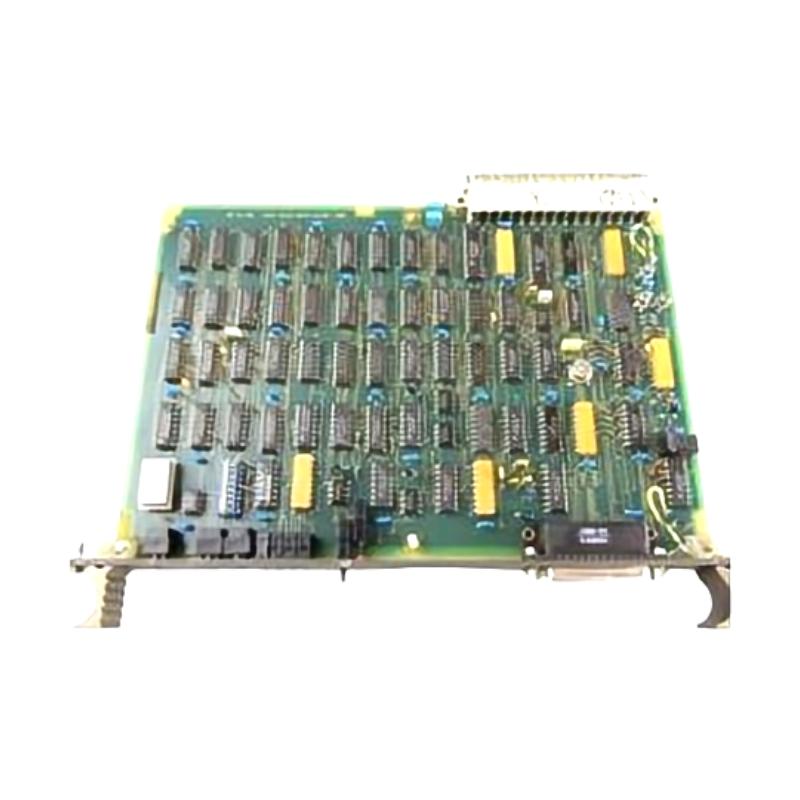

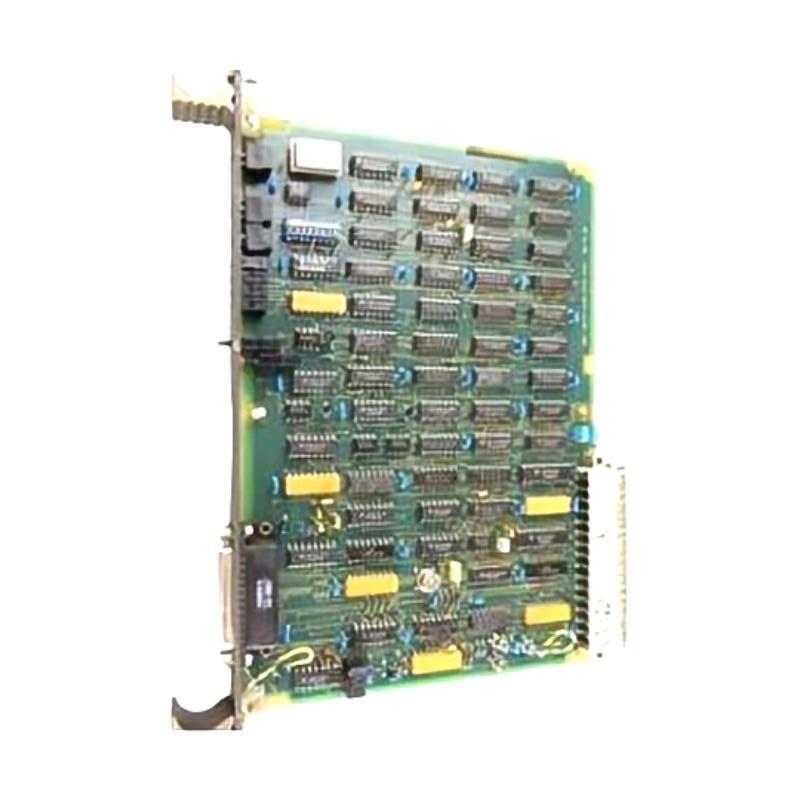

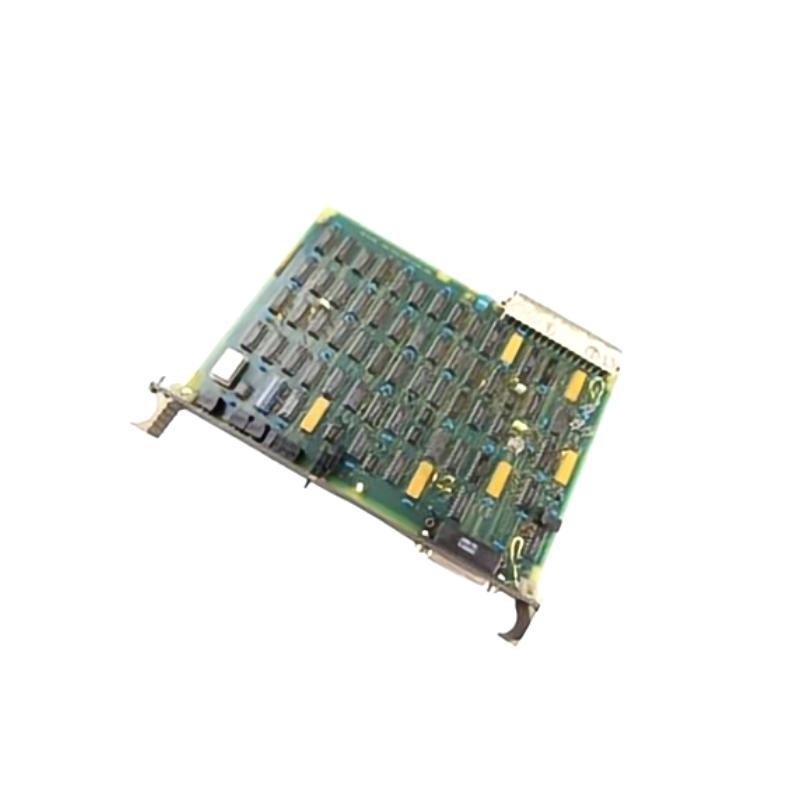

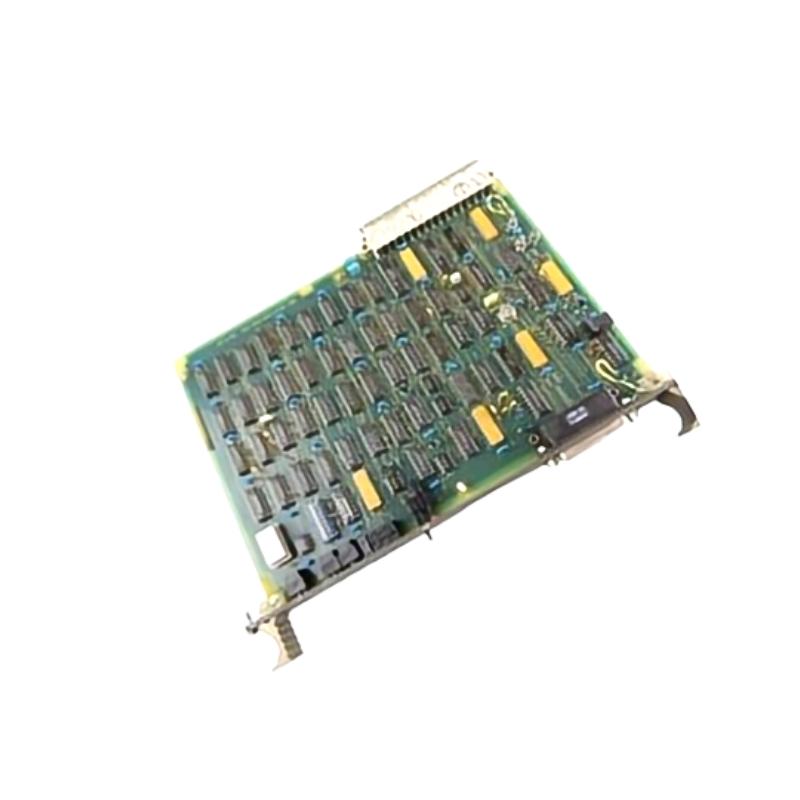

ABB 88VA02B-E GJR2365700R1010 Bus Control Module Monitoring Module

Overview

The ABB 88VA02B-E is a bus control module monitoring module designed for ABB industrial control systems. It delivers real-time monitoring of bus communication and system health, enabling fast diagnostics and reliable operation across complex automation setups.

General Information

Part Number: GJR2365700R1010

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: 88VA

Type: Bus Control Module / Monitoring Module

Mounting: DIN rail or panel installation within control cabinets

Technology: Digital monitoring, bus communication supervision, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from system backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, bus activity, and fault conditions

Communication & Interface

Bus Interface: Supports ABB proprietary fieldbus protocols

Monitoring Role: Supervises bus traffic and module health

Diagnostics: Event logging, fault detection, and communication error reporting

Operator Interface: LEDs for operational status, fault, and communication health

Reset Features: Supports soft reset via control software or hardware reset button

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 90 × 22.5 × 100 mm

Weight: 0.5 kg
