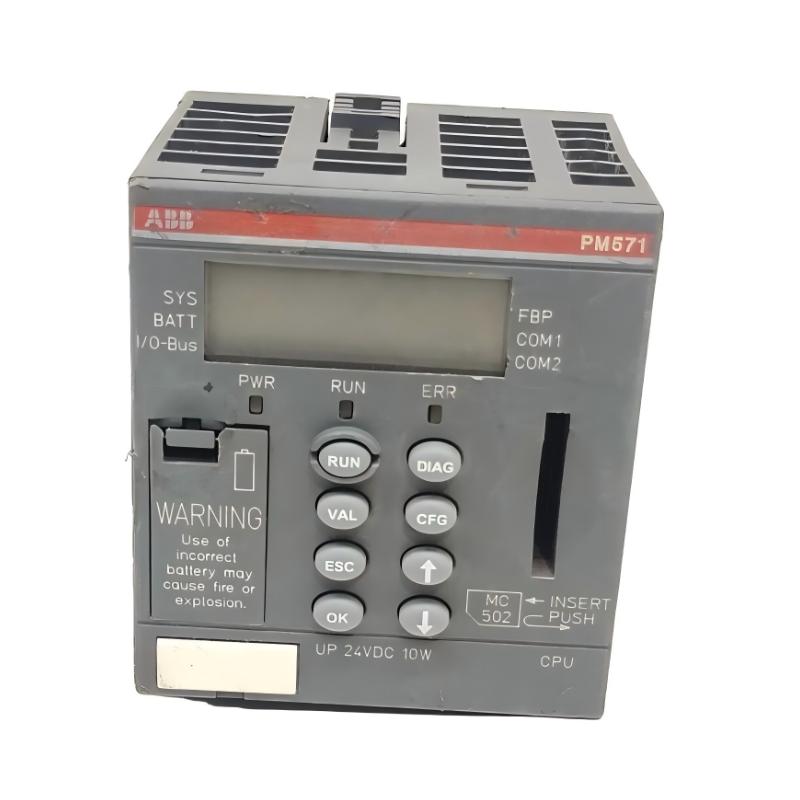

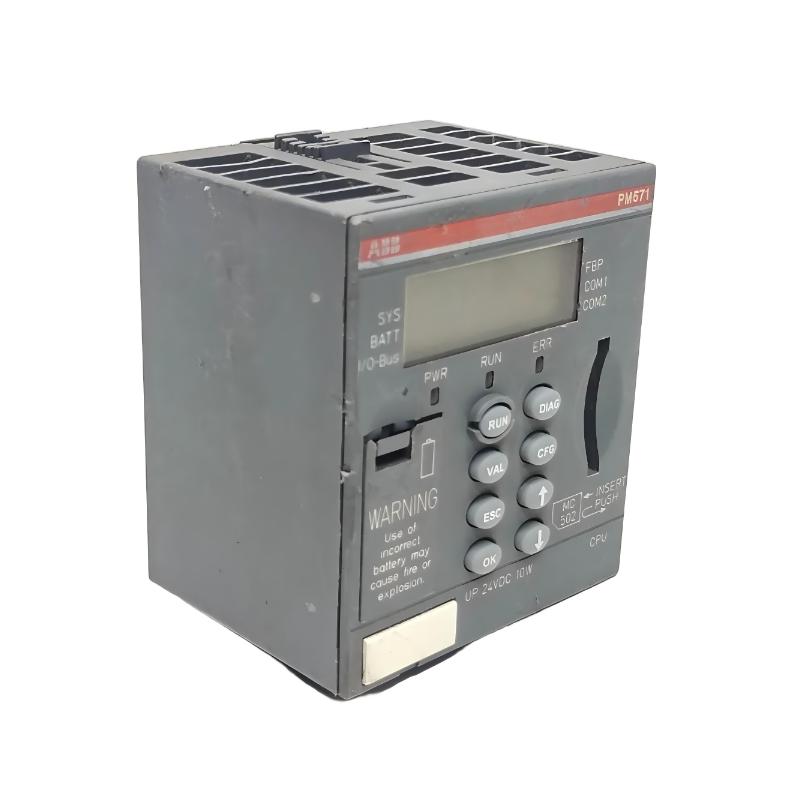

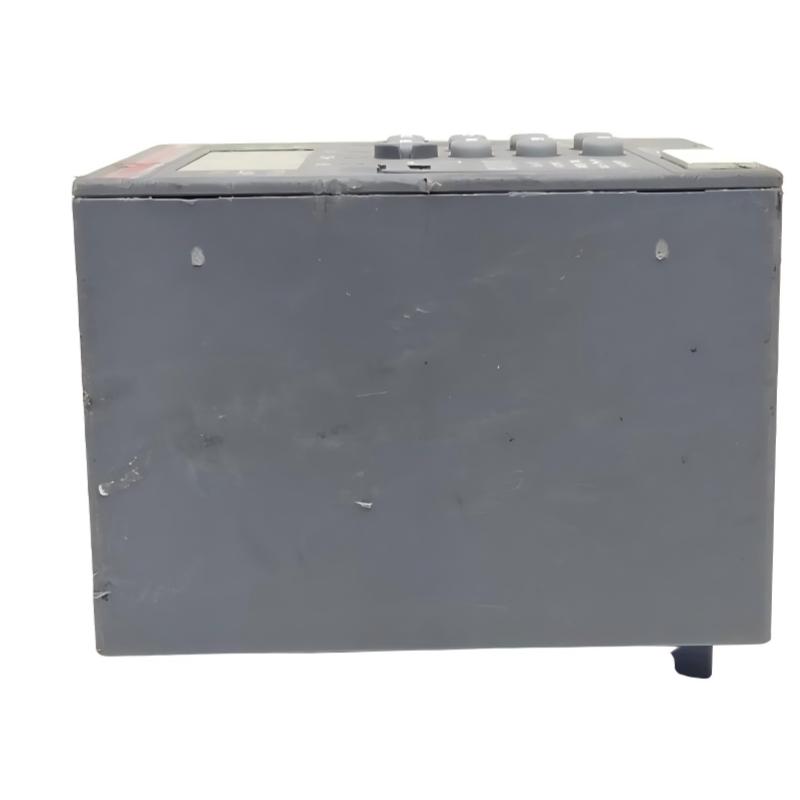

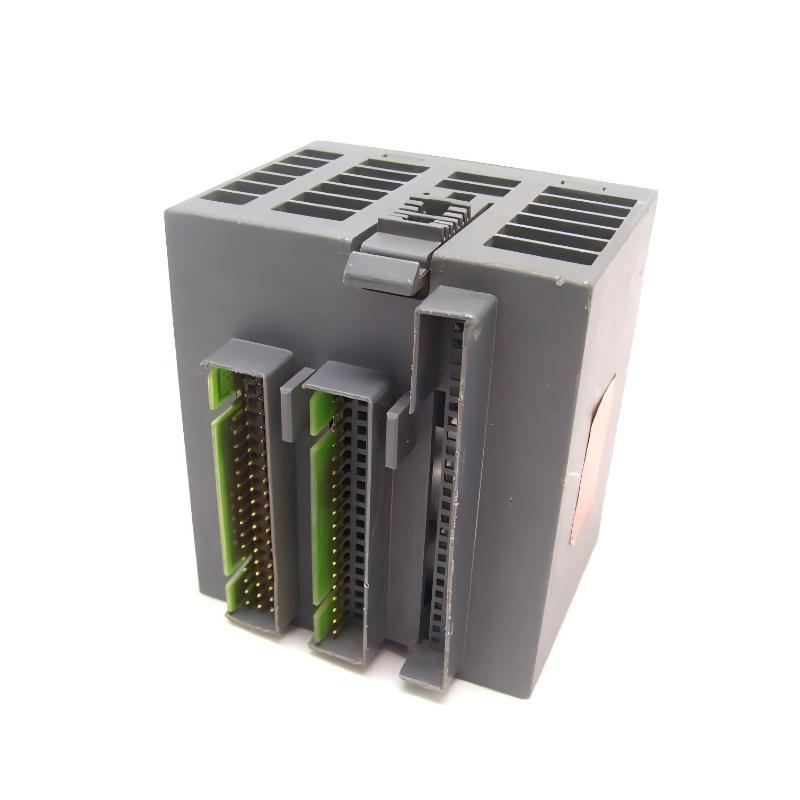

ABB PM571 B1 1SAP130100R0100 Central Processing Unit

Overview
The ABB PM571 B1 is a high-performance central processing unit (CPU) designed for ABB’s automation systems. It provides fast and reliable processing for program execution, system control, and real-time communication with distributed modules.

General Information

Part Number: 1SAP130100R0100

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PM (Programmable Module)

Type: Central Processing Unit (CPU)

Mounting: Rack or DIN rail installation within control cabinets

Technology: Embedded processing, real-time diagnostics, high-speed communication

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via system backplane

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, status, and fault

Communication & Interface

Interface Ports: System bus and fieldbus connections for distributed modules

Diagnostics: CPU status monitoring, fault reporting, communication supervision

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

I/O & Channels

Relay Channels: None

External Load Support: Not applicable; CPU handles processing and communication only

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: 0.135 kg
