Overview

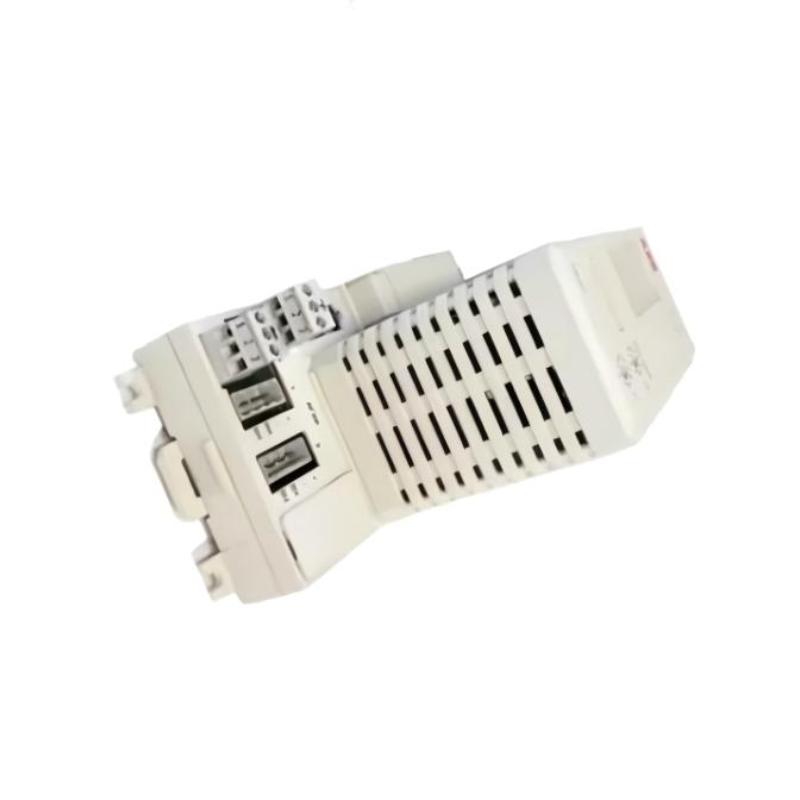

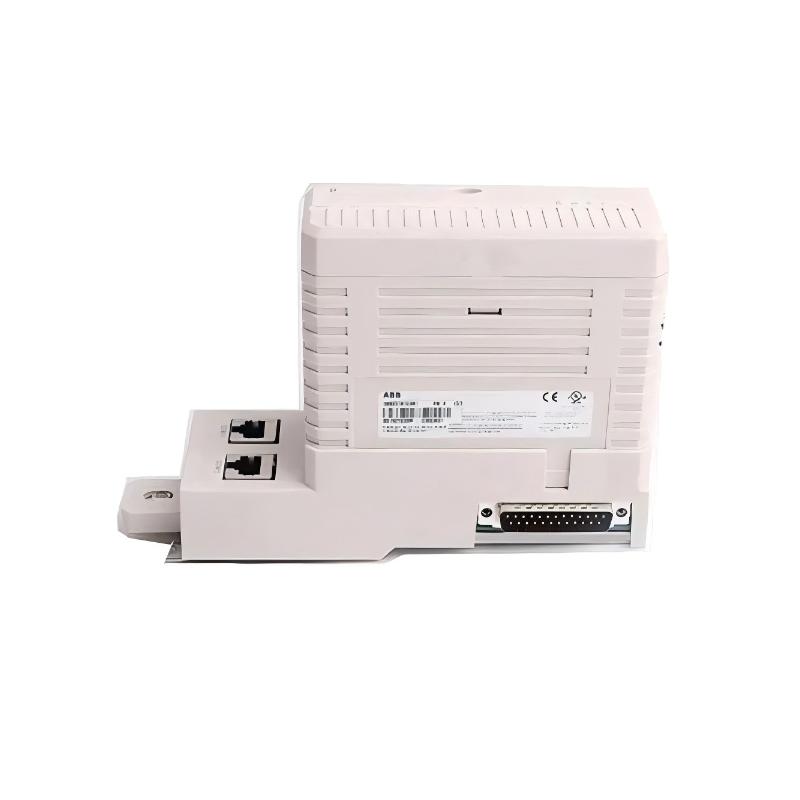

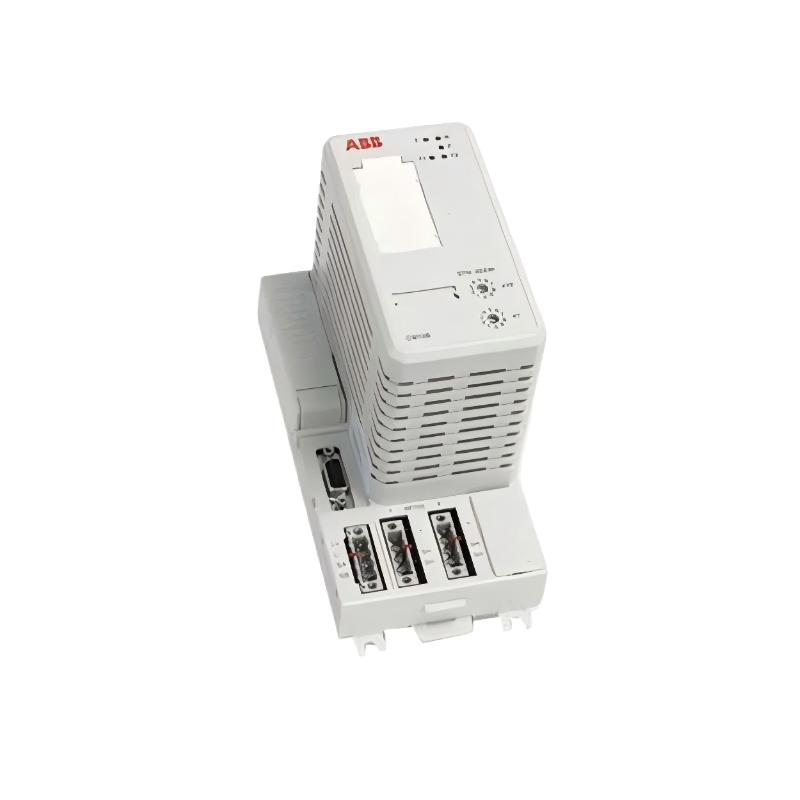

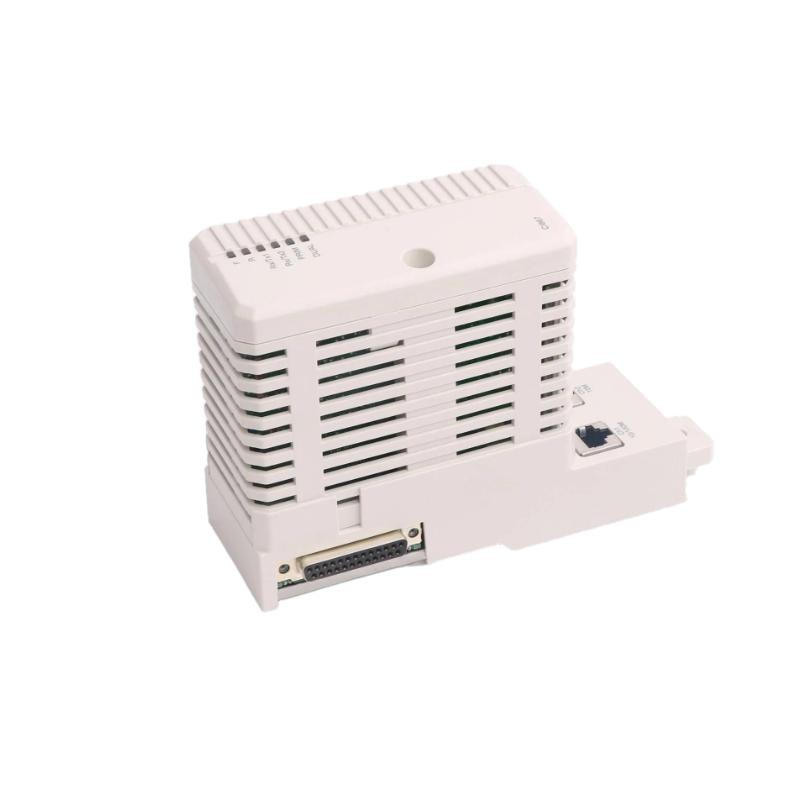

The ABB CI870K01 3BSE088499R1 is an advanced communication interface module designed for ABB’s AC 800M control systems. It enables high-speed and reliable communication between controllers and field networks, supporting Ethernet-based industrial communication with robust data integrity and system security.
General Information
Brand: ABB
Country of Origin: Sweden
Model: CI870K01
Part Number: 3BSE088499R1
Product Type: Communication Interface Module
System Compatibility: AC 800M Series Controllers
Mounting Method: Rack or backplane installation
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 3 W
Power Input: From system backplane
Protection: Overvoltage and reverse polarity protection
Communication & Interface
Interface Type: Ethernet / PROFINET
Data Rate: Up to 100 Mbps
Connection Type: Dual RJ45 ports
Diagnostics: LED indicators for link, activity, and module status
Configuration: Compatible with ABB Control Builder M engineering tools
Environmental
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +70°C
Relative Humidity: 5–95% non-condensing
Protection Rating: IP20 (for cabinet installation)
Dimensions & Weight
Dimensions: 59 x 185 x 127.5 mm
Weight: 0.5 kg
