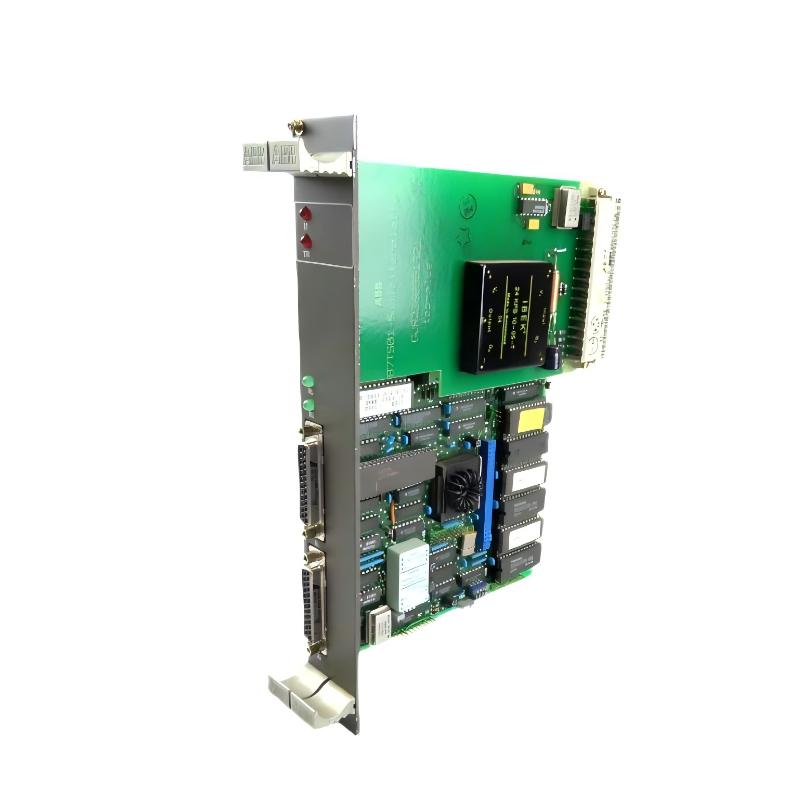

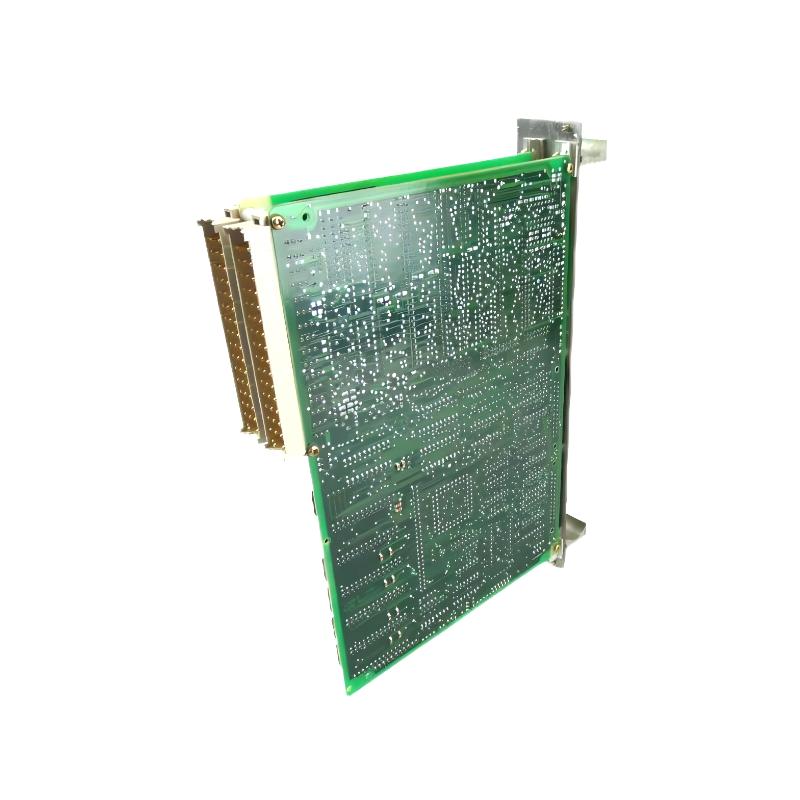

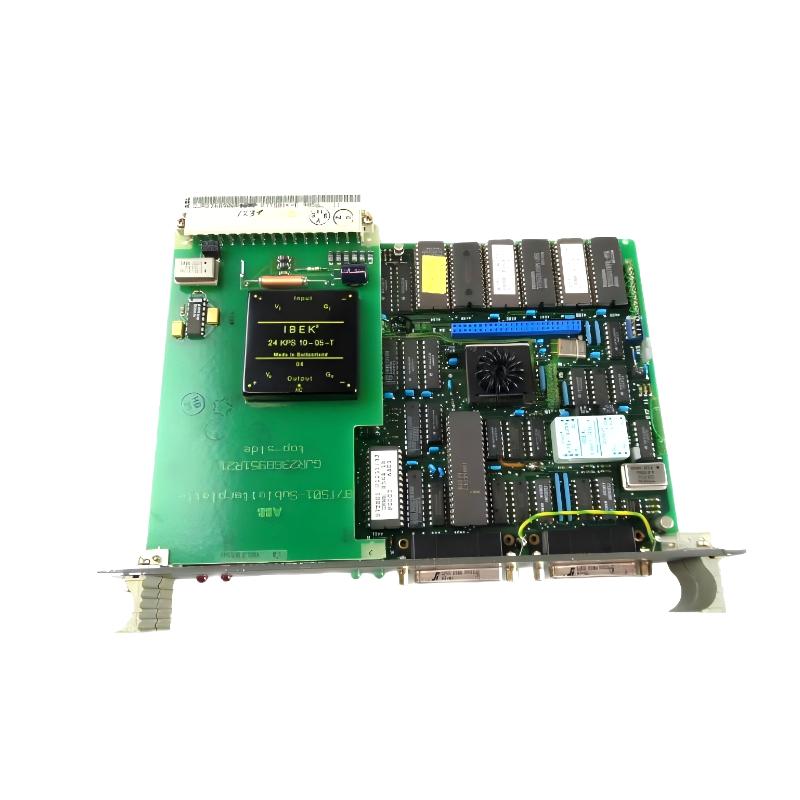

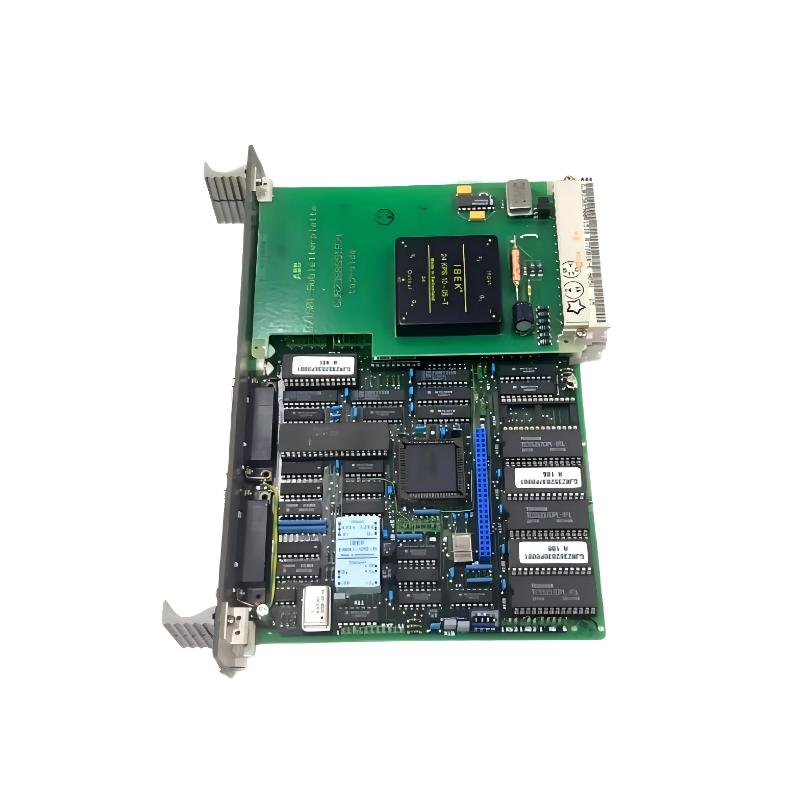

ABB 87TS01K-E GJR2368900R1231 Coupling Module

Overview

The ABB 87TS01K-E is a high-performance coupling module designed for ABB’s industrial automation systems. It provides a reliable interface between the main controller and peripheral devices, enabling seamless communication across the control network. The module supports high-speed data transfer, diagnostics, and system monitoring to enhance operational efficiency.

General Information

Part Number: GJR2368900R1231

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: 87TS

Type: Coupling Module / Interface Module

Mounting: DIN rail or panel installation

Technology: Fieldbus / communication coupling with fault detection support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via backplane connection

Protection: Reverse polarity and overvoltage protection

Indicators: LEDs for power, communication status, and faults

Communication & Interface

Interface Ports: Supports PROFIBUS and ABB-compatible fieldbus systems

Coupling Role: Connects controller backplane to external devices or network nodes

Diagnostics: Real-time link monitoring, fault reporting, and system alerts

Operator Interface: Status LEDs and configuration switches

Reset Features: Supports both hardware and software reset options

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 198 × 261 × 40 mm

Weight: ~ 0.55 kg
