Overview

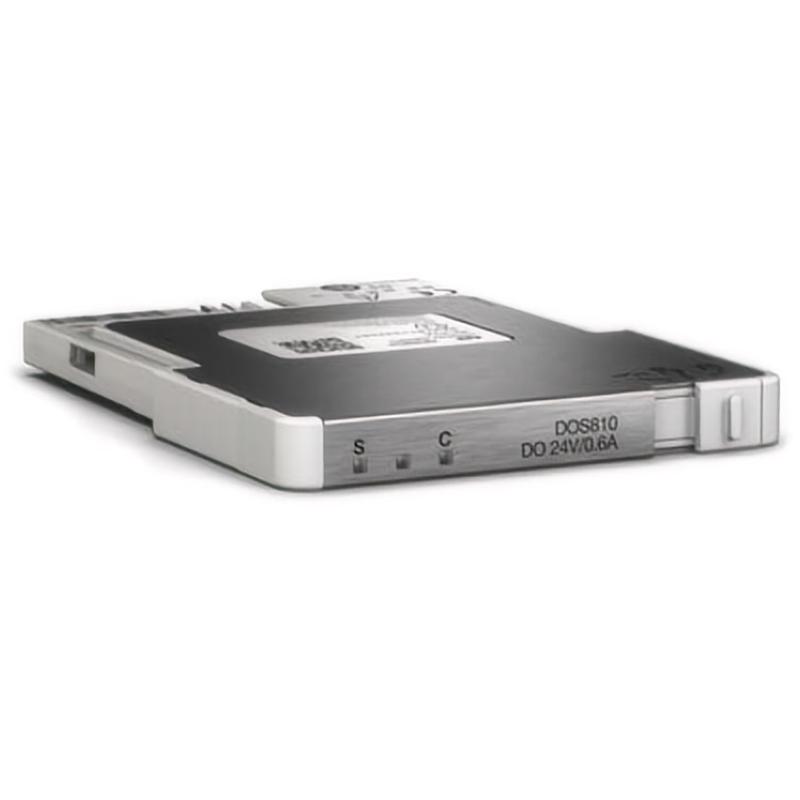

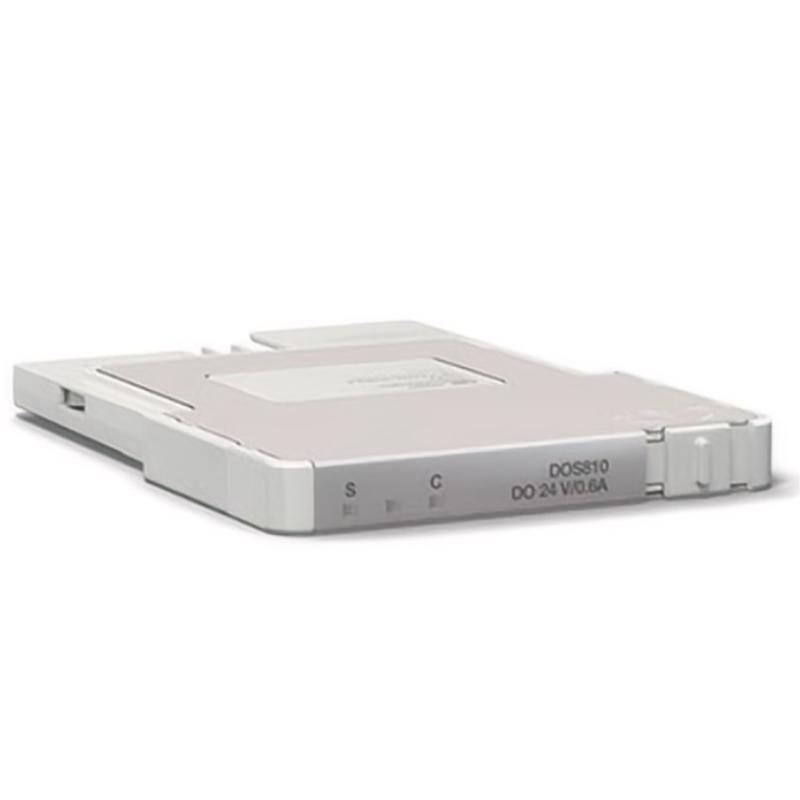

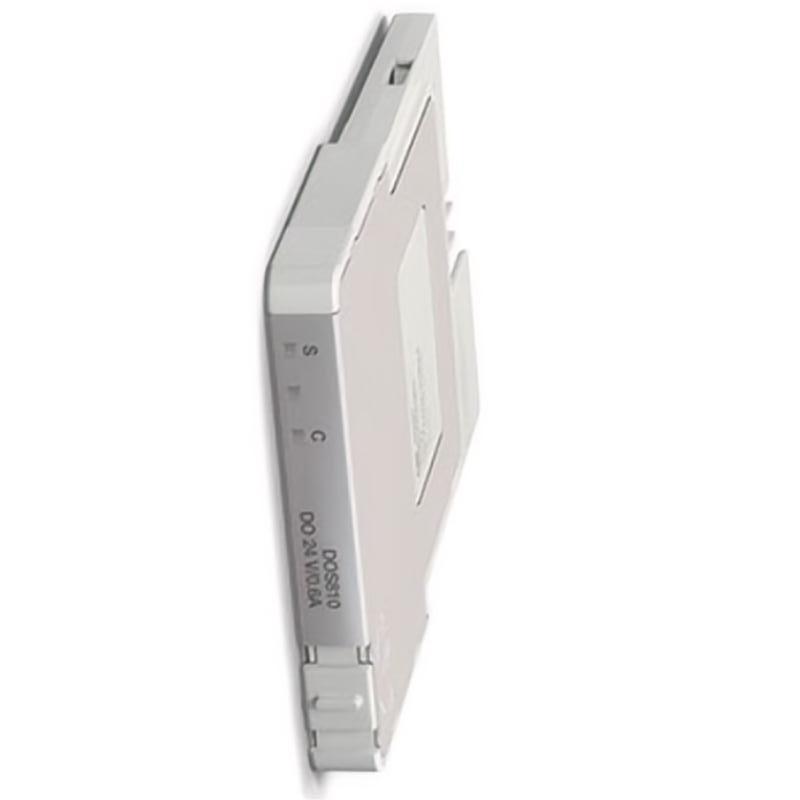

The ABB DOS810 is a compact digital output module designed for reliable control of field devices in industrial automation and distributed control systems. It provides multiple digital output channels that allow controllers to switch and operate external equipment such as relays, solenoids, and indicator lights. With its stable performance and efficient design, the module ensures dependable operation in demanding industrial environments.
General Information
Part Number: 3BSE078768R1
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Series: DOS800 I/O Series
Type: Digital Output Module
Application: Industrial automation systems, distributed control systems (DCS), and process control platforms
Mounting: Installed within ABB I/O racks or controller modules
Technology: Solid-state digital switching with integrated diagnostic capabilities
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 8 W
Output Voltage: 24 V DC nominal
Output Type: Digital solid-state outputs for industrial control signals
Protection: Built-in short-circuit and overload protection
Status Indicators: LED indicators for module status and channel activity
Communication & Interface
System Interface: Internal backplane interface for communication with ABB controllers
Configuration: Automatic system recognition and configuration
Diagnostics: Channel monitoring with fault and status reporting
Status Indication: Front-panel LEDs for output and system condition
Compatibility: Designed for ABB automation platforms supporting DOS800 series I/O modules
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20, intended for installation inside industrial control cabinets
EMC Compliance: Meets industrial electromagnetic compatibility standards
Dimensions & Weight
Dimensions (L × W × H): 77.9 × 105 × 9.8 mm
Weight: Approximately 0.075 kg
