Overview

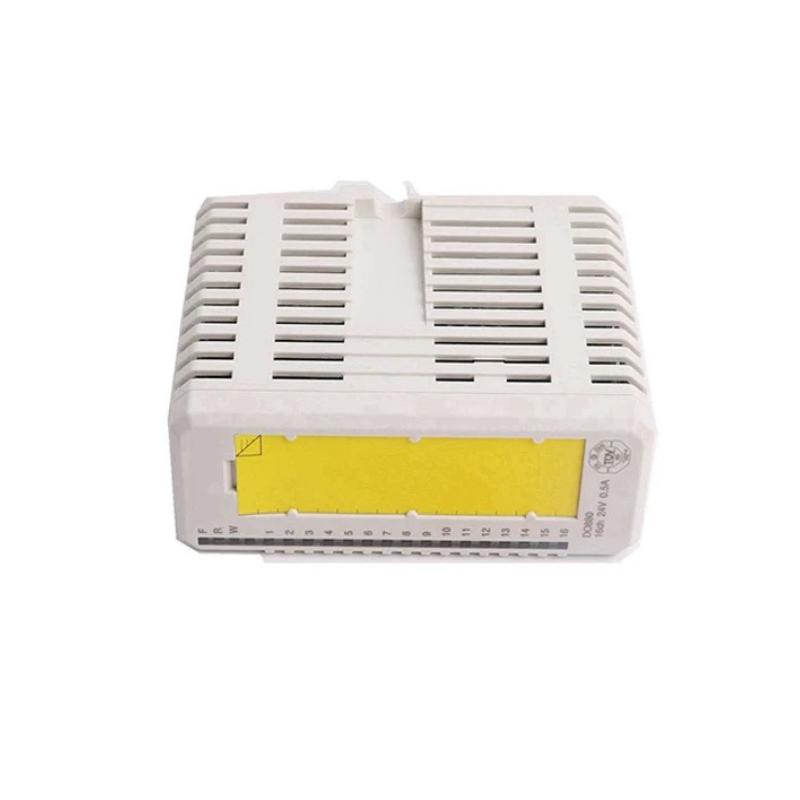

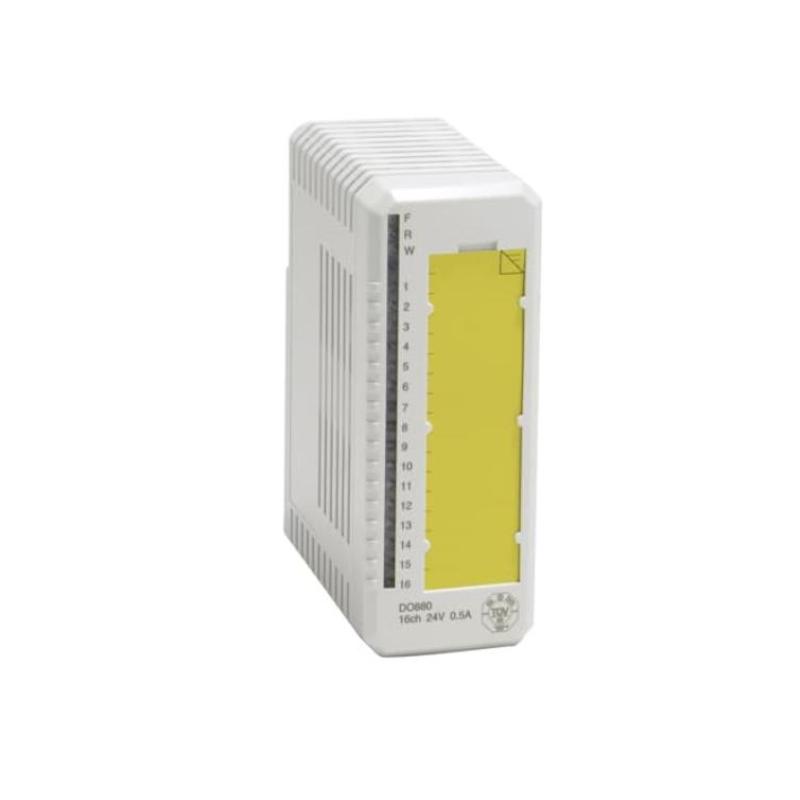

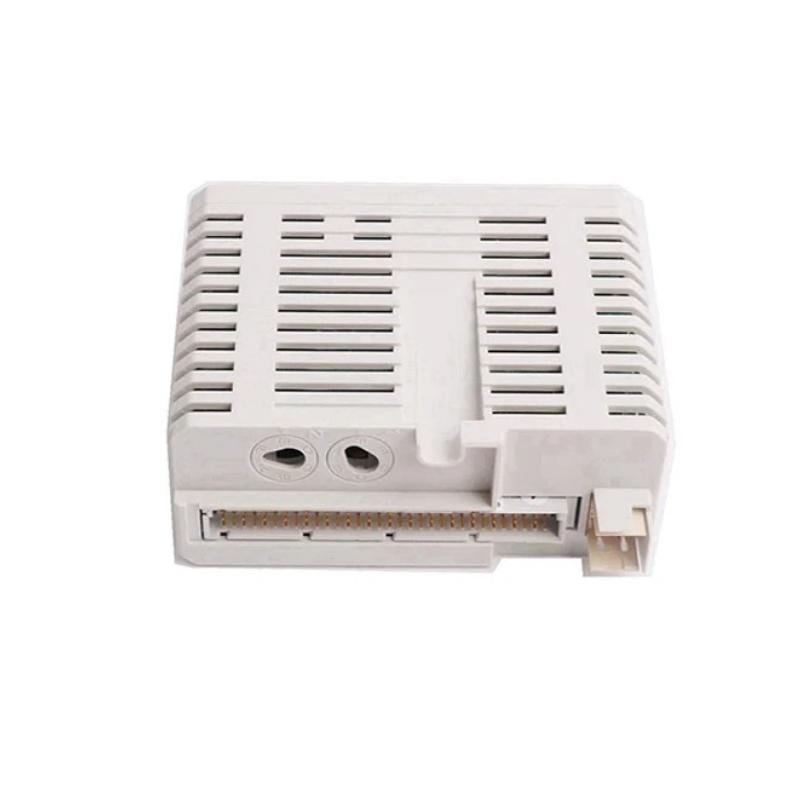

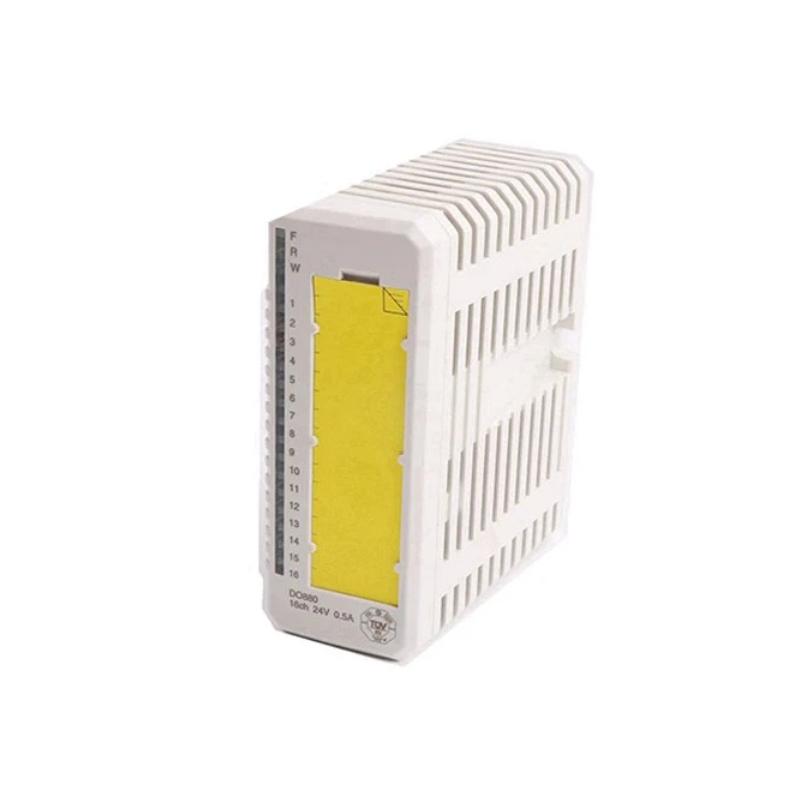

The ABB DO880-1 3BSE028588R1 is a high-performance digital output module designed for use in ABB control systems. It delivers reliable signal transmission to field devices, enabling efficient control of actuators, relays, and other output components in industrial automation systems.
General Information
Brand: ABB
Country of Origin: Sweden
Model: DO880-1
Part Number: 3BSE028588R1
Product Type: Digital Output Module
System Compatibility: ABB AC 800M / S800 I/O Series
Mounting Method: DIN rail or rack-mounted installation
Power Specifications
Supply Voltage: 24 V DC
Output Voltage Range: 10.2–27.4 V DC
Power Consumption: Approx. 4 W
Output Current: Max. 0.5 A per channel
Protection: Short-circuit and overcurrent protection
Communication & Interface
Output Type: Digital (Discrete)
Channels: 16 output channels
Signal Type: 24 V DC sourcing outputs
Diagnostics: Channel status LEDs and fault indication
Interface: Standard ABB system backplane connector
Environmental
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +70°C
Relative Humidity: 5–95% non-condensing
Protection Rating: IP20 (for enclosure installation)
Dimensions & Weight
Dimensions: 45 x 102 x 119 mm
Weight: 0.2 kg
