Overview

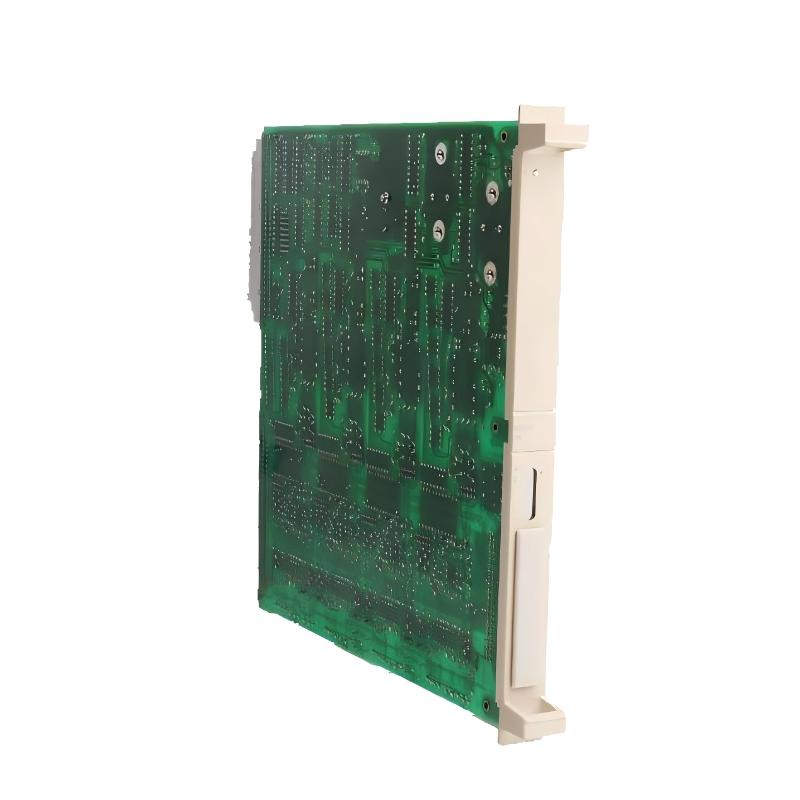

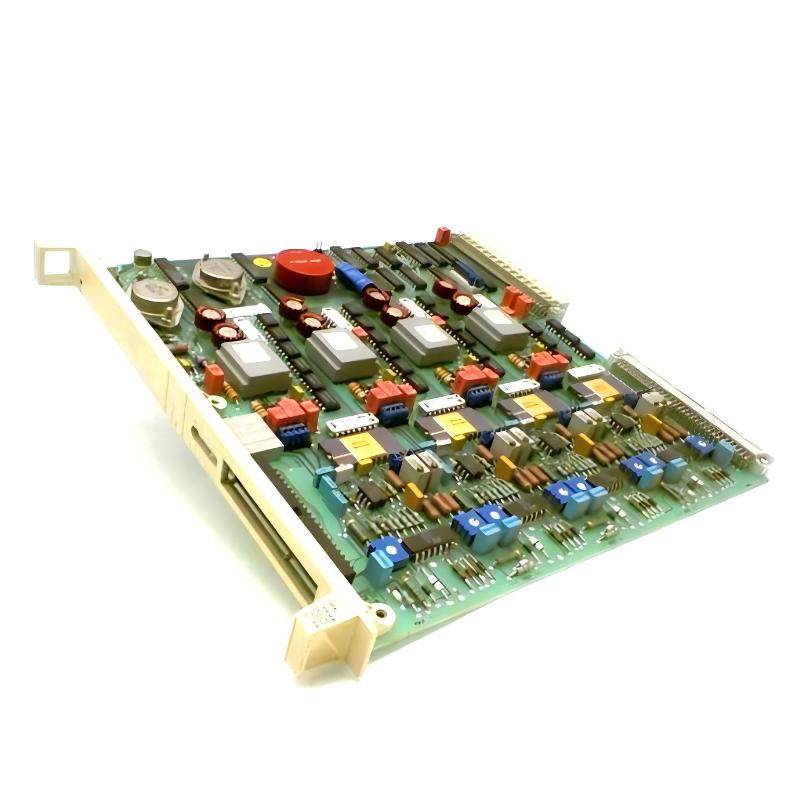

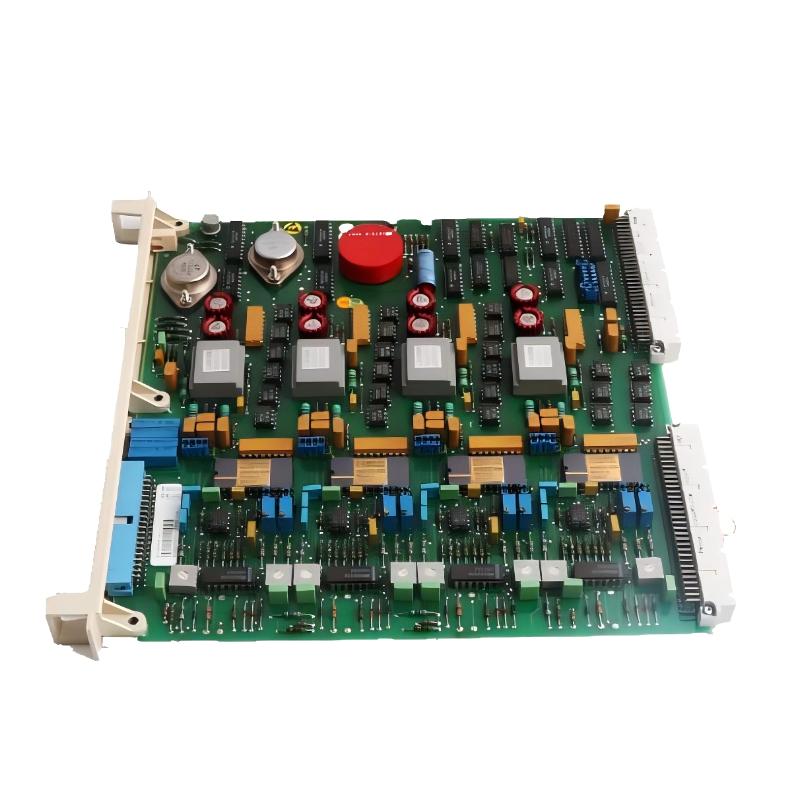

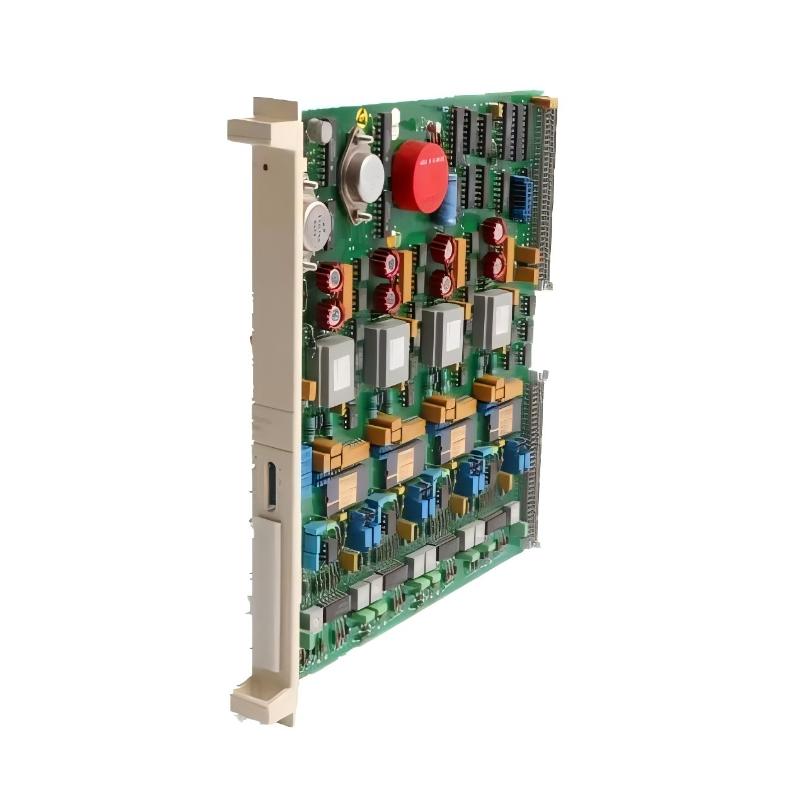

The ABB DSAO 110 is a high-performance analog output board designed for precise signal control in ABB distributed control systems. It converts digital control signals from the system into analog outputs for controlling field devices such as valves, actuators, and measurement equipment. Engineered for reliability and accuracy, the module ensures smooth and stable process control in demanding industrial automation environments.
General Information
Part Number: 57120001-AT/1
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland
Series: DS Series I/O
Type: Analog Output Board
Application: Process control, industrial automation, and distributed control systems (DCS)
Mounting: Installed within ABB controller racks or I/O cabinets
Technology: High-resolution digital-to-analog conversion with integrated diagnostic features
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 10 W
Output Signal Types: Standard analog signals (0–20 mA, 4–20 mA, or voltage output depending on configuration)
Signal Accuracy: High-precision output with low drift and noise filtering
Protection: Built-in short-circuit and overload protection
Status Indicators: LEDs for module health and output channel activity
Communication & Interface
System Interface: Internal backplane communication with ABB controllers
Signal Interface: Provides analog output signals to field devices
Diagnostics: Channel monitoring, fault detection, and system-level reporting
Configuration: Configurable through ABB automation control software
Compatibility: Compatible with ABB control platforms supporting DS Series I/O modules
Environmental
Operating Temperature: −25 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside protected industrial control cabinets
EMC Compliance: Designed to meet industrial electromagnetic compatibility standards
Dimensions & Weight
Dimensions (L × W × H): 209.7 × 18 × 225 mm
Weight: Approximately 0.595 kg
