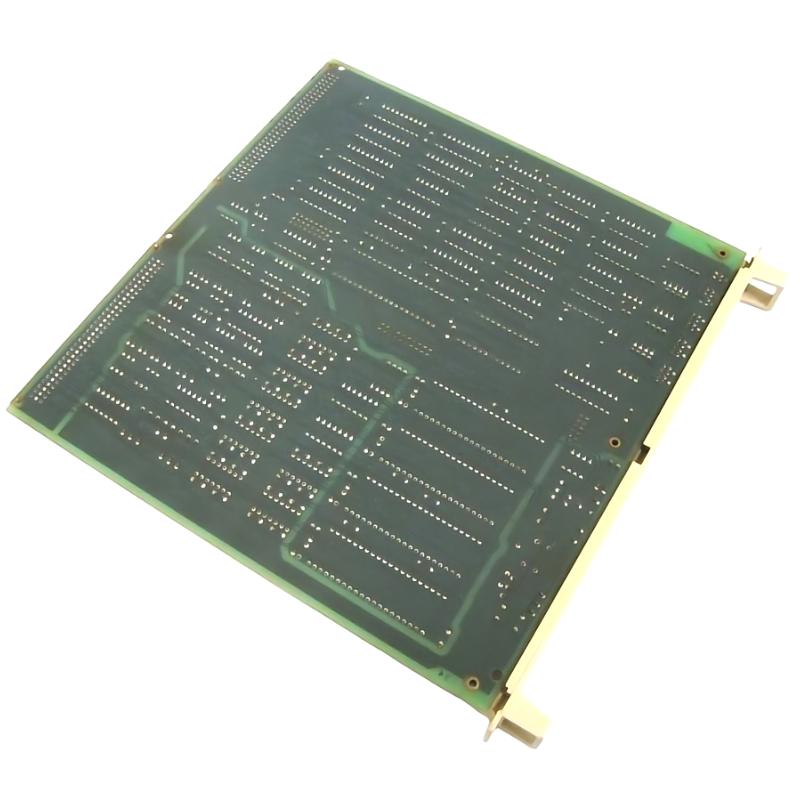

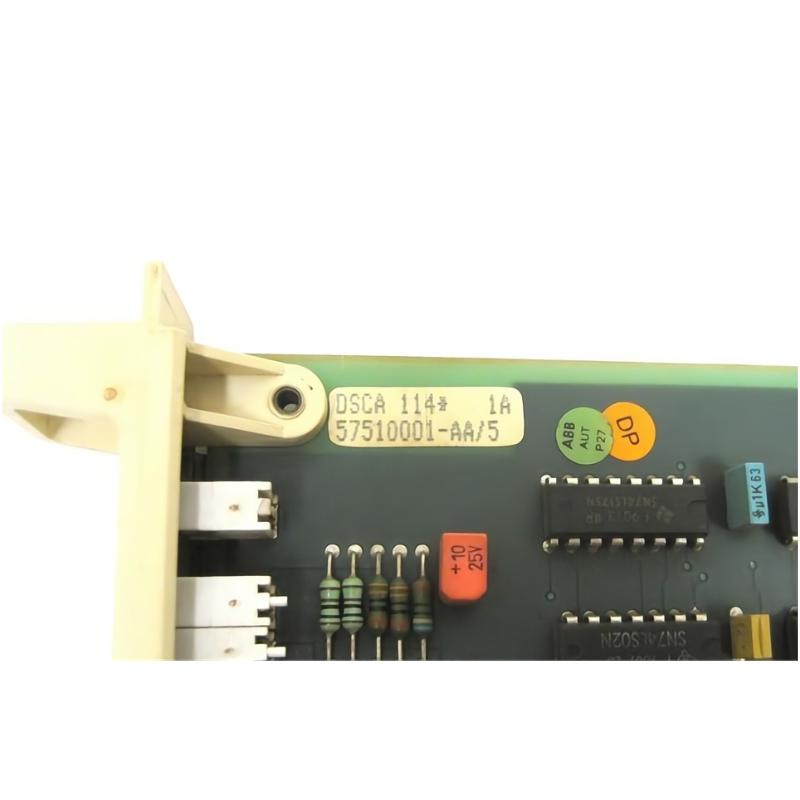

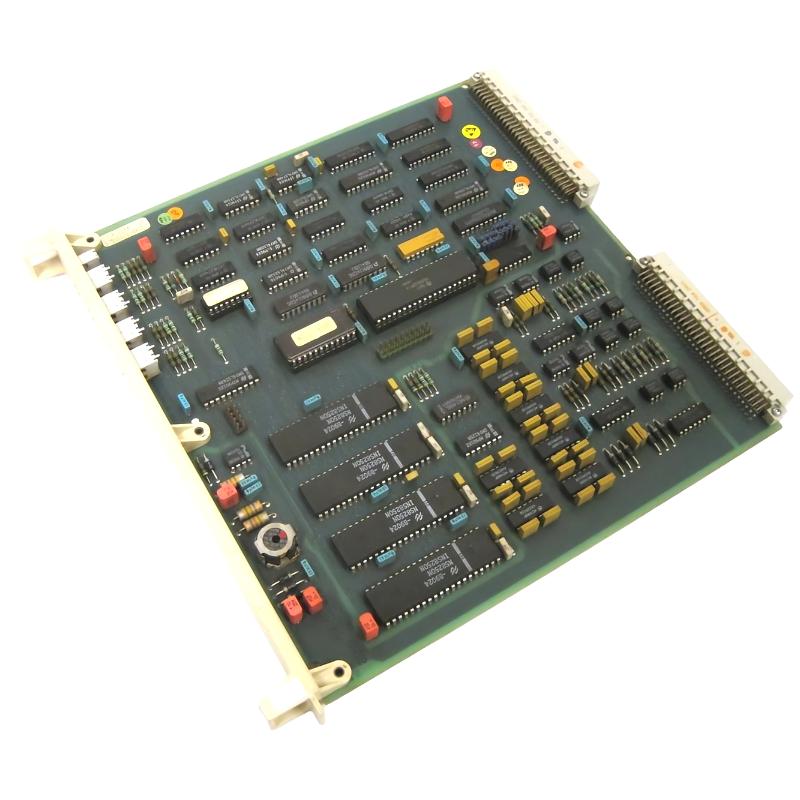

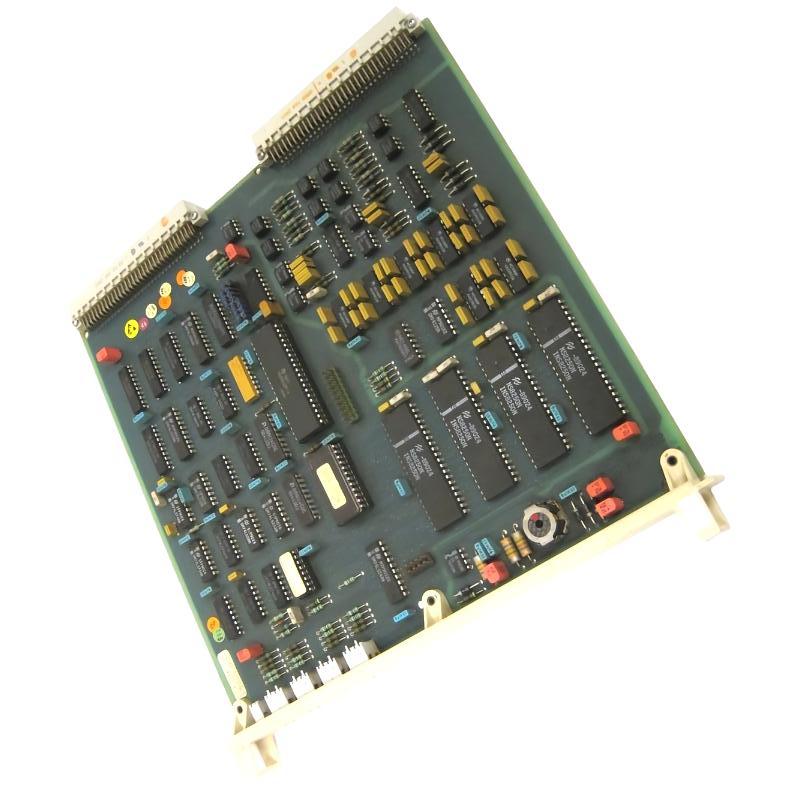

ABB DSCA 114 57510001-AA Communication PCB Circuit Board

Overview

The ABB DSCA 114 communication PCB circuit board is designed for ABB distributed control systems, providing reliable signal processing and data communication between modules. It ensures stable operation and efficient network performance in industrial automation environments.

General Information

Part Number: 57510001-AA

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Communication PCB / Circuit Board

Series: DSCA

Mounting: Rack-mounted within ABB control chassis

Material: High-quality PCB with industrial-grade components

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Protection: Grounded for safety and EMI shielding

Indicators: LEDs for power and communication status

Communication & Interface

Bus Connectivity: Provides communication and data routing between ABB modules

Interface Slots: Compatible with DSCA series modules

Diagnostics Support: Link supervision, fault detection, and status reporting

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (installed inside enclosure)

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 324 × 22.5 × 234 mm

Weight: 0.4 kg
