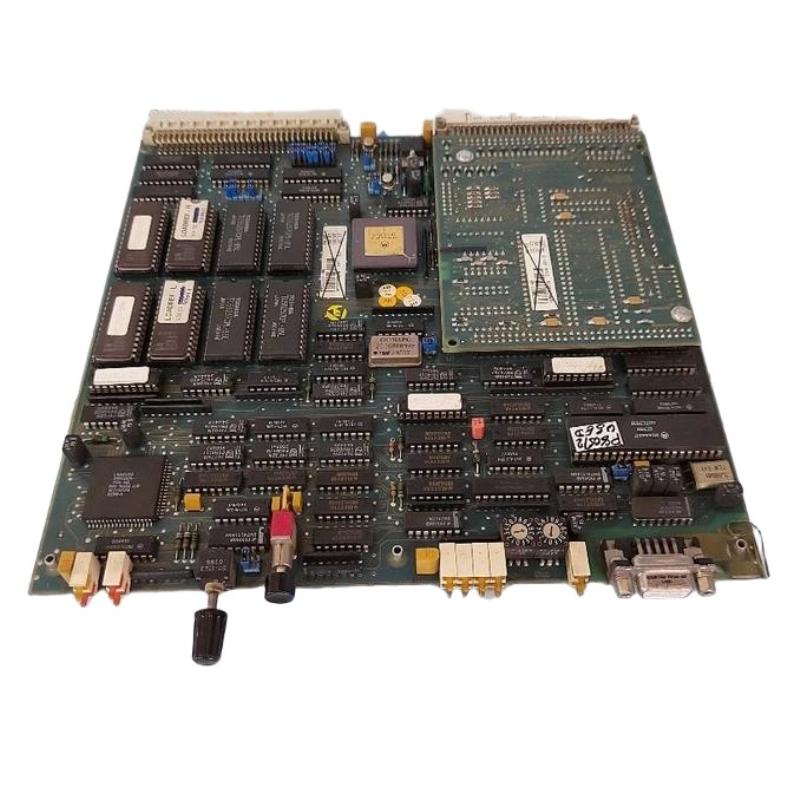

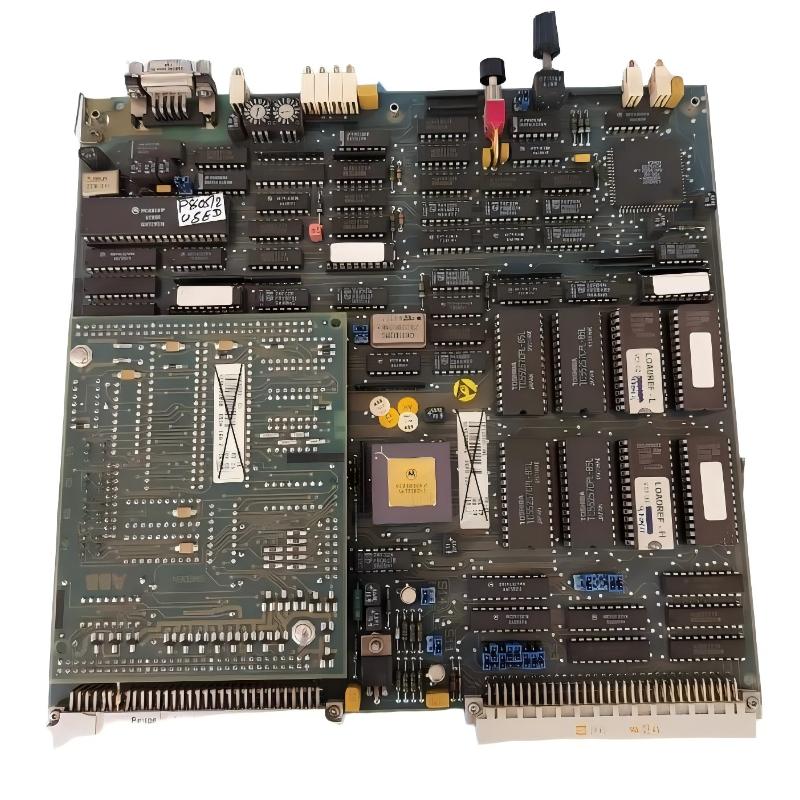

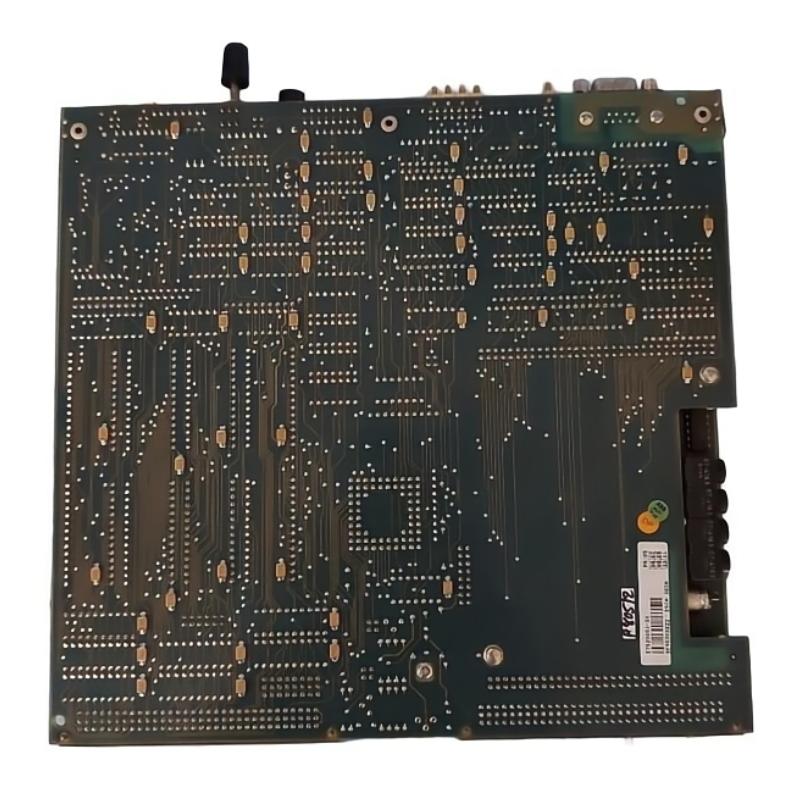

ABB DSCA 160A 57520001-GX Communication Processor

Overview

The ABB DSCA 160A is a robust communication processor designed for industrial automation systems. It enables high-speed data exchange and seamless integration between controllers and field devices, ensuring efficient network communication and reliable signal processing in demanding control environments.

General Information

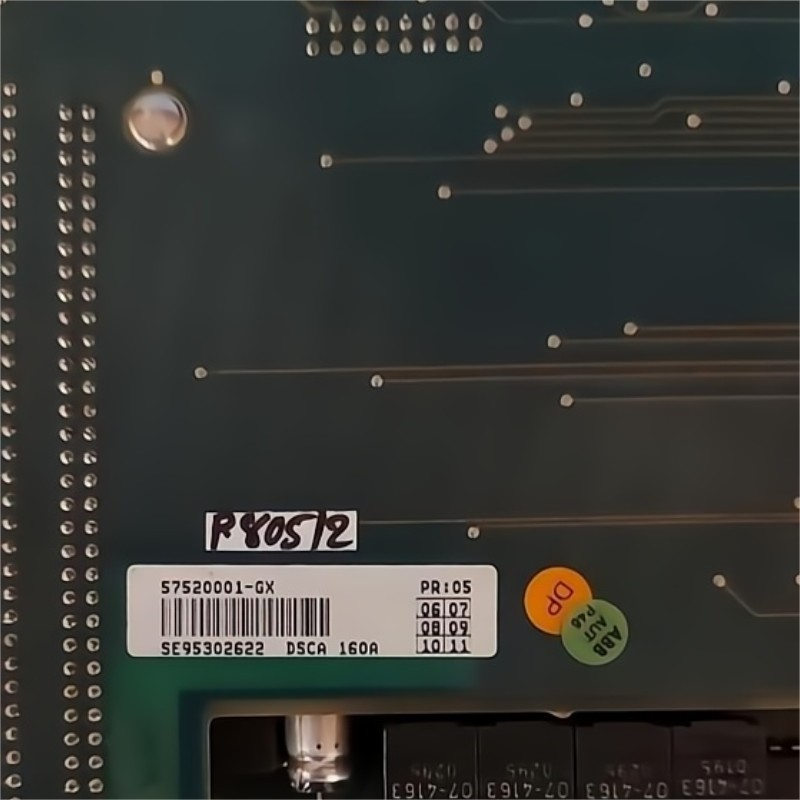

Part Number: 57520001-GX

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCA

Type: Communication Processor / Interface Module

Mounting: Card installation within control cabinet

Technology: Industrial communication interface, real-time data processing, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the main control system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Ports: Supports industrial fieldbus and controller network connections

Processor Role: Handles data exchange between main controller and peripheral devices

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset functions

I/O & Channels: Primarily signal processing and routing; not designed to drive external loads

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or equivalent for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 324 × 22 × 234 mm

Weight: 0.63 kg
