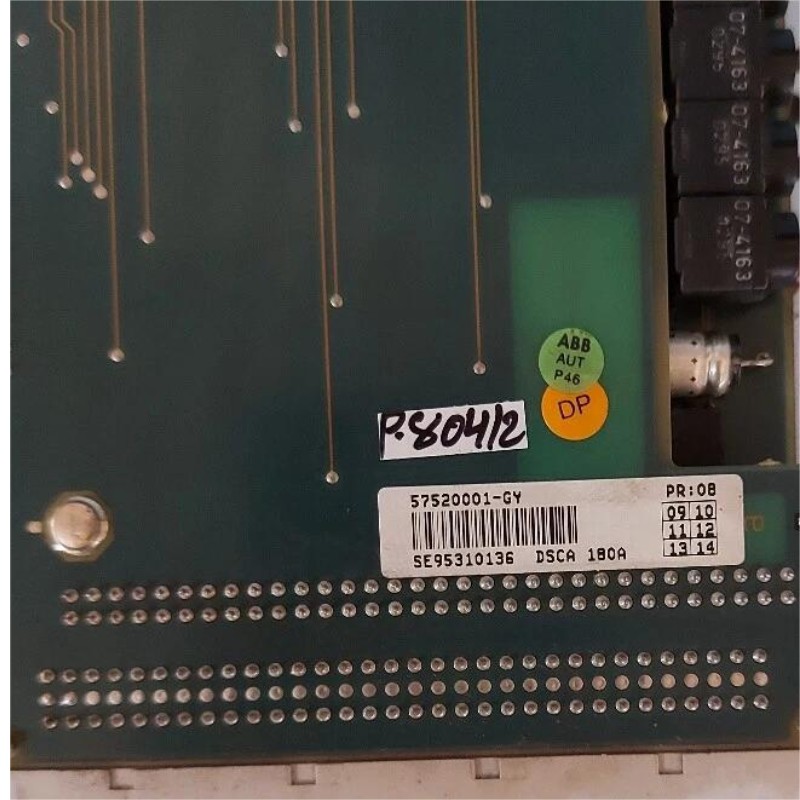

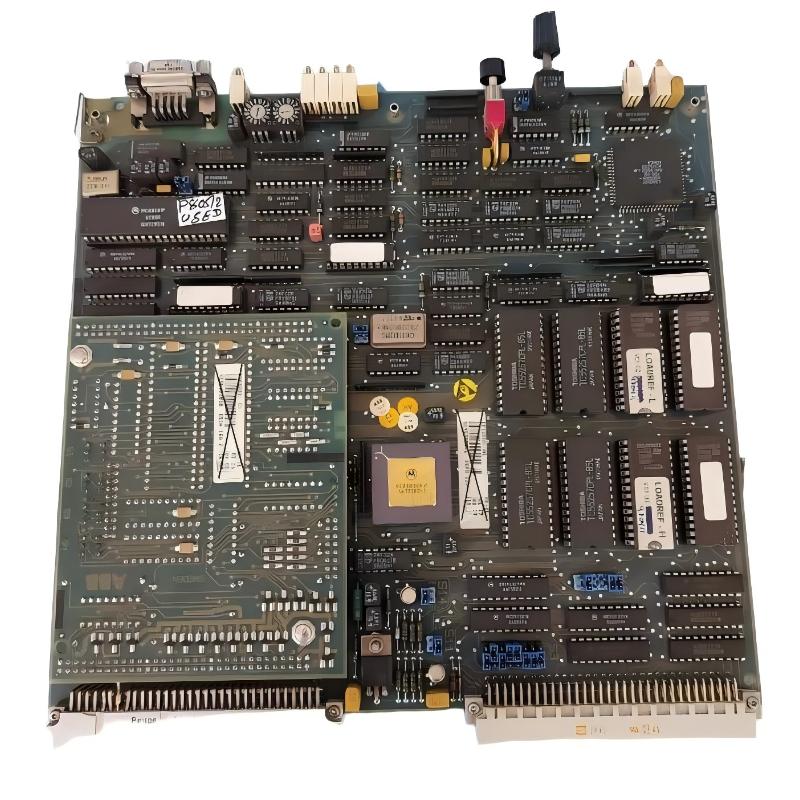

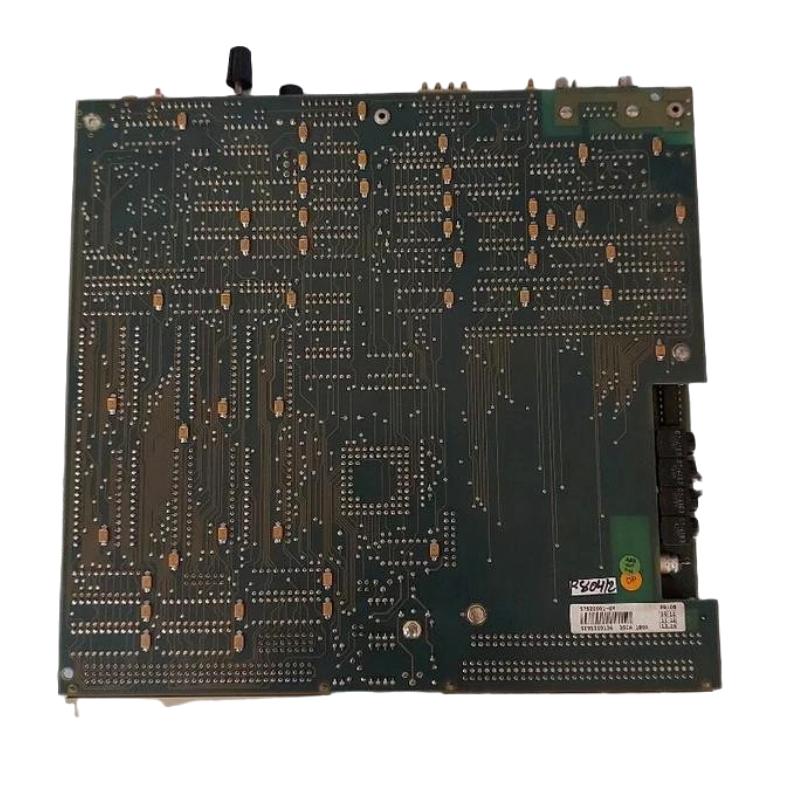

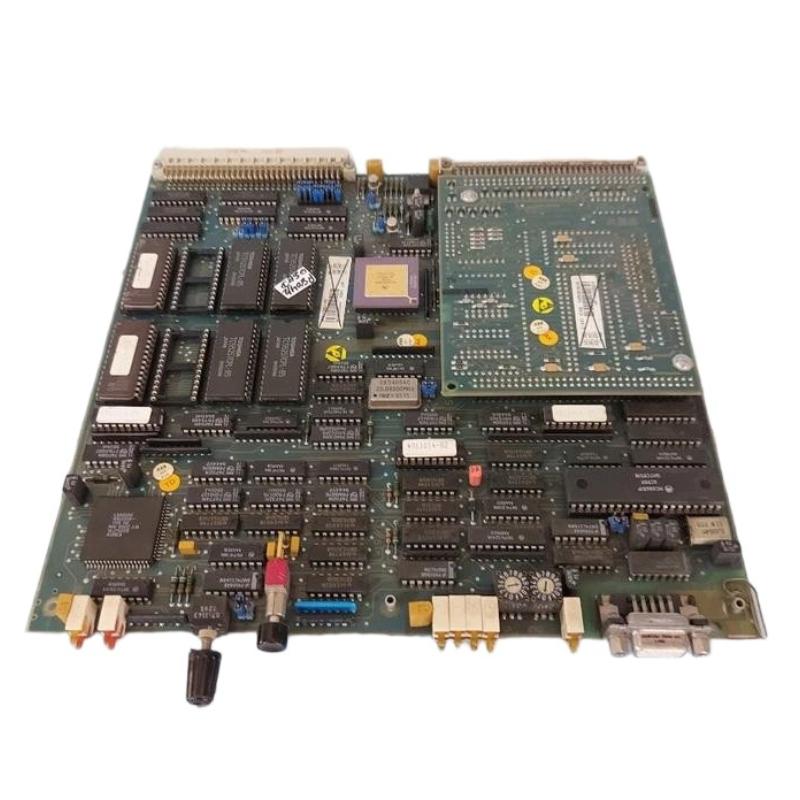

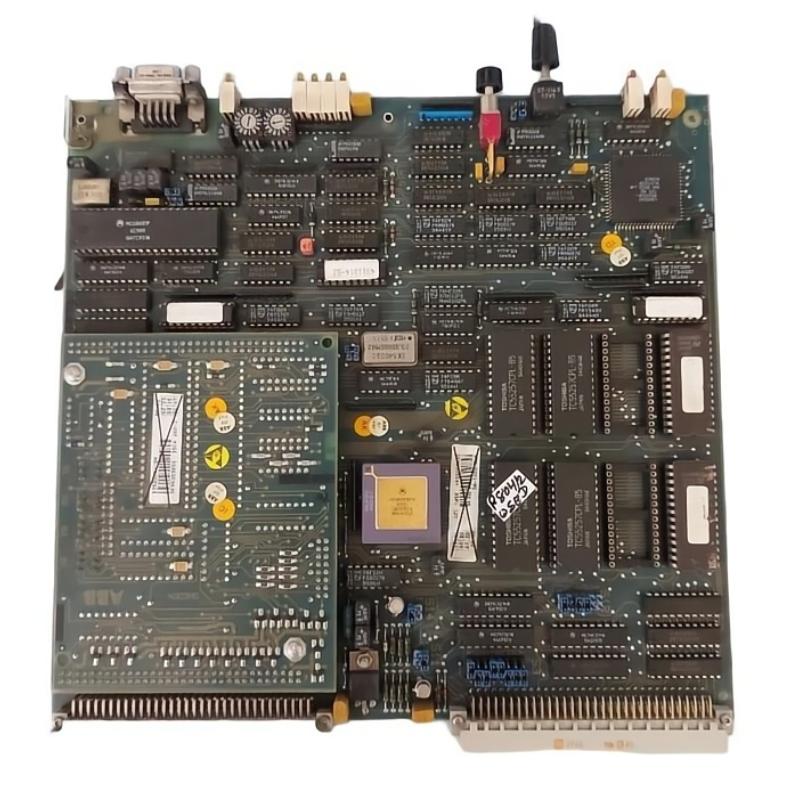

ABB DSCA 180A 57520001-GY Communication Processor

Overview

The ABB DSCA 180A is an advanced communication processor for industrial automation systems. It delivers high-speed data processing and ensures reliable communication between controllers and field devices, supporting efficient network integration and robust signal management in complex control setups.

General Information

Part Number: 57520001-GY

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCA

Type: Communication Processor / Interface Module

Mounting: Card installation within control cabinet

Technology: Industrial communication interface, real-time data processing, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the main control system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Ports: Supports industrial fieldbus and controller network connections

Processor Role: Handles data exchange between main controller and peripheral devices

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset functions

I/O & Channels: Primarily signal processing and routing; not designed to drive external loads

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or equivalent for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 324 × 22 × 234 mm

Weight: 0.63 kg
