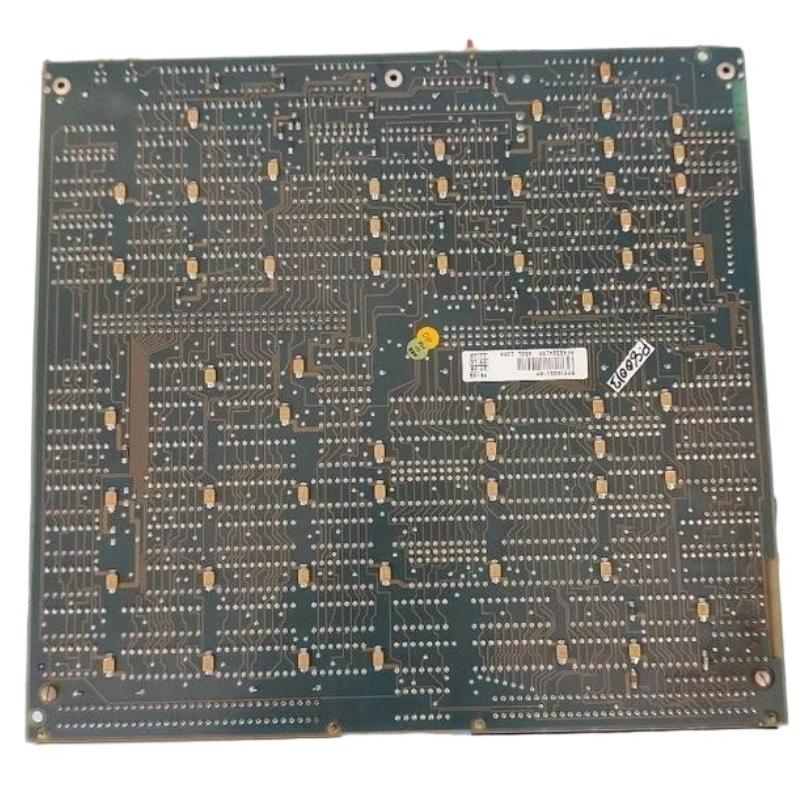

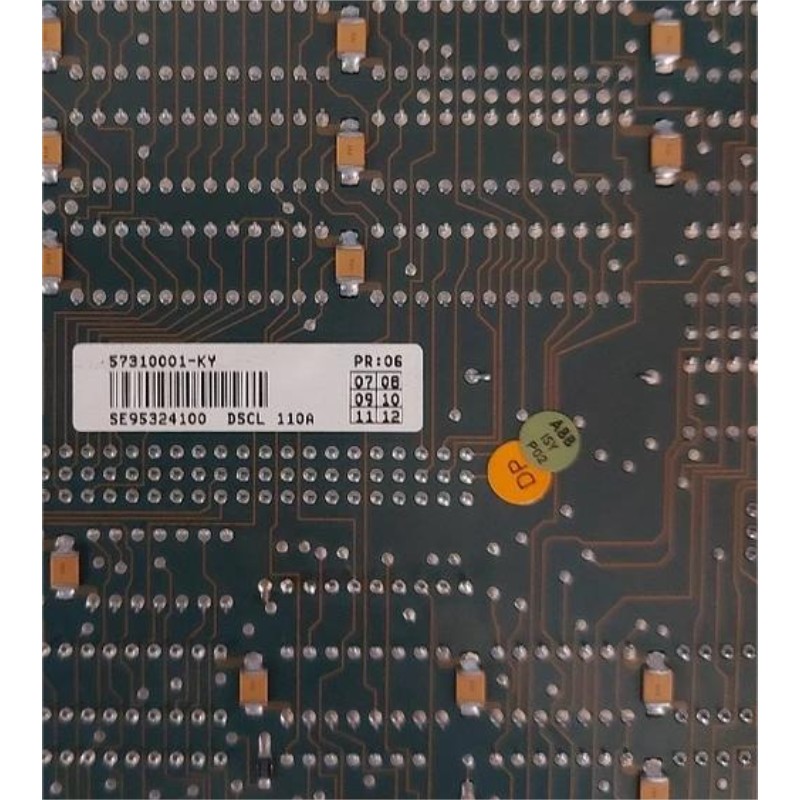

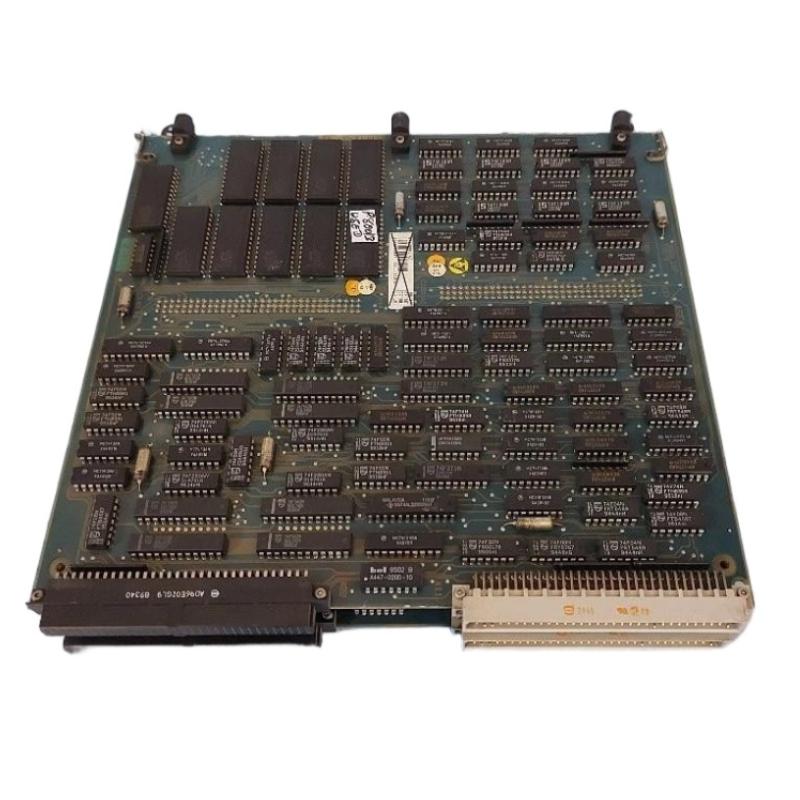

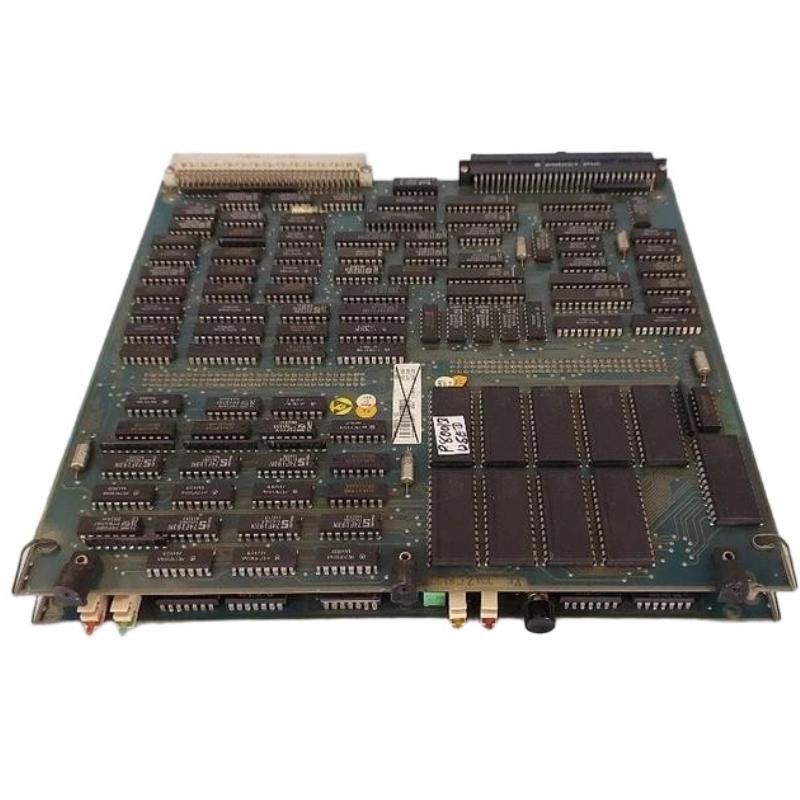

ABB DSCL 110A 57310001-KY Redundant Control Unit

Overview

The ABB DSCL 110A is a high-reliability redundant control unit designed for industrial automation systems. It ensures continuous operation by providing backup control functionality, enhancing system availability and minimizing downtime in critical applications.

General Information

Part Number: 57310001-KY

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCL

Type: Redundant Control Unit / Backup Module

Mounting: Rack or card installation within control cabinet

Technology: Industrial control electronics, redundancy support, diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered from the main control system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, operational status, and fault detection

Communication & Interface

Interface Ports: Supports controller network connections

Control Role: Provides redundant control and seamless failover between primary and backup systems

Diagnostics: System supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports soft and hardware reset functions

I/O & Channels: Manages control signals; designed for backup operations

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 200 × 50 × 100 mm

Weight: 1 kg

Reliable Backup – Ready to Ship!
