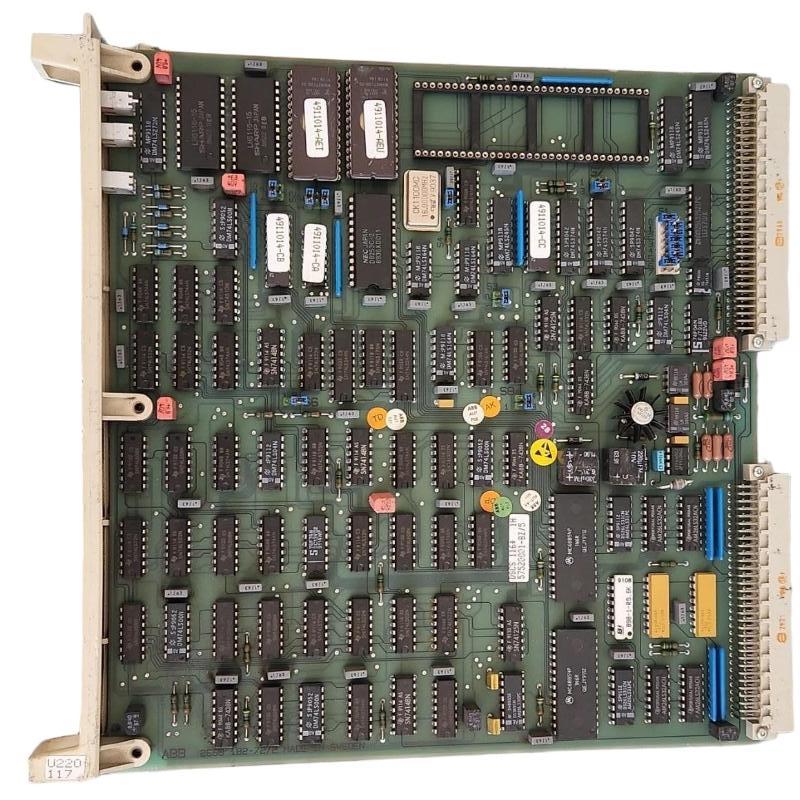

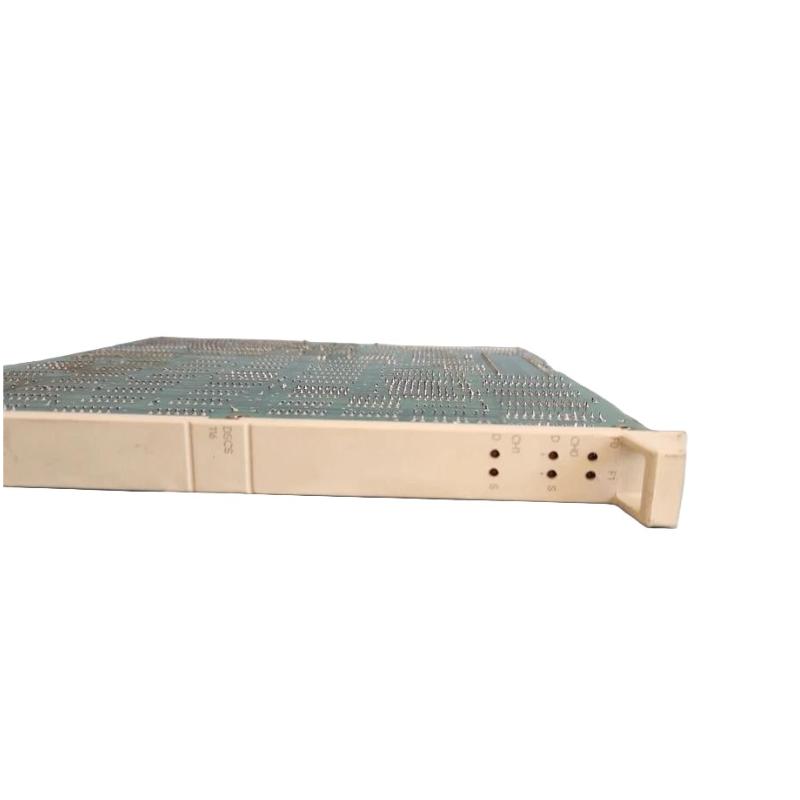

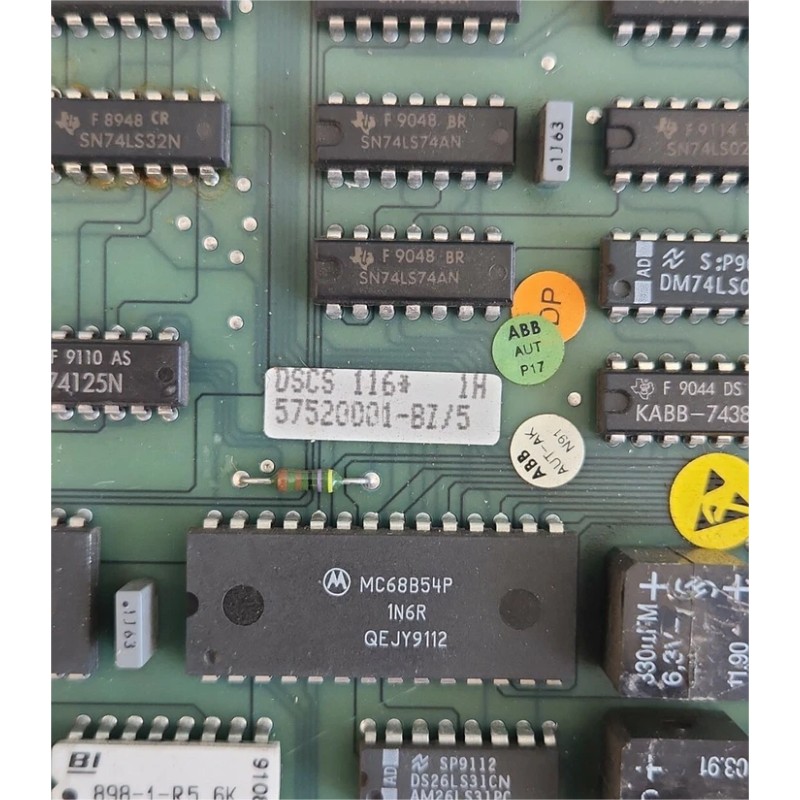

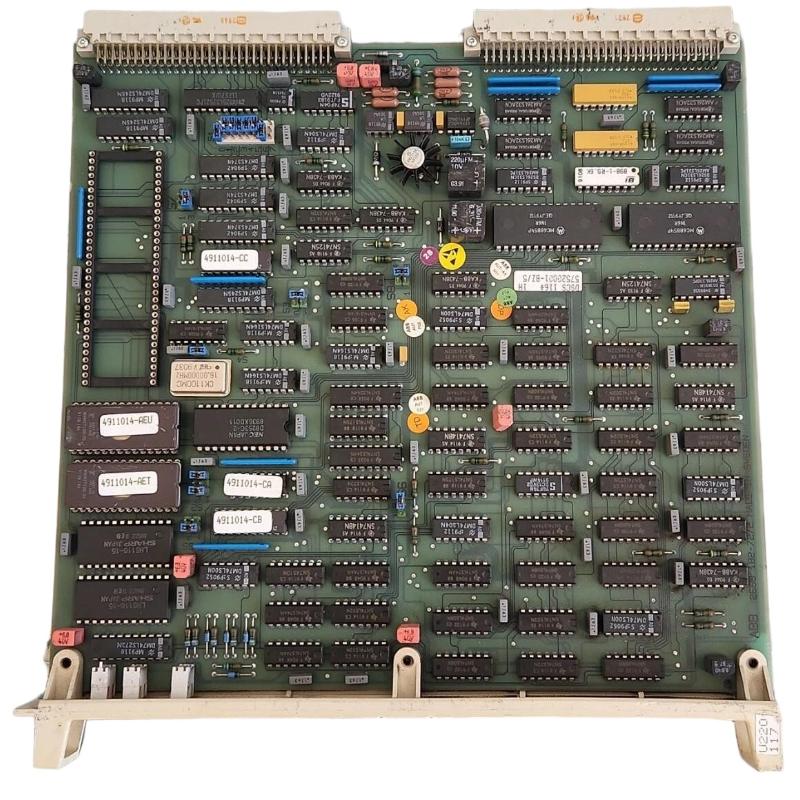

ABB DSCS 116 57520001-BZ Synchronous Communication Board

Overview

The ABB DSCS 116 is a synchronous communication board for industrial automation systems. It enables precise and coordinated data exchange between controllers and field devices, ensuring efficient network synchronization and reliable signal processing in complex control applications.

General Information

Part Number: 57520001-BZ

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCS

Type: Synchronous Communication Board / Interface Module

Mounting: Card installation within control cabinet

Technology: Industrial communication interface, synchronous data handling, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from the main control system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Ports: Supports industrial fieldbus and controller network connections

Board Role: Provides synchronous data exchange and network coordination between controllers and devices

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset functions

I/O & Channels: Primarily signal routing and synchronization; not designed to drive external loads

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 330 × 30 × 190 mm

Weight: 0.48 kg
