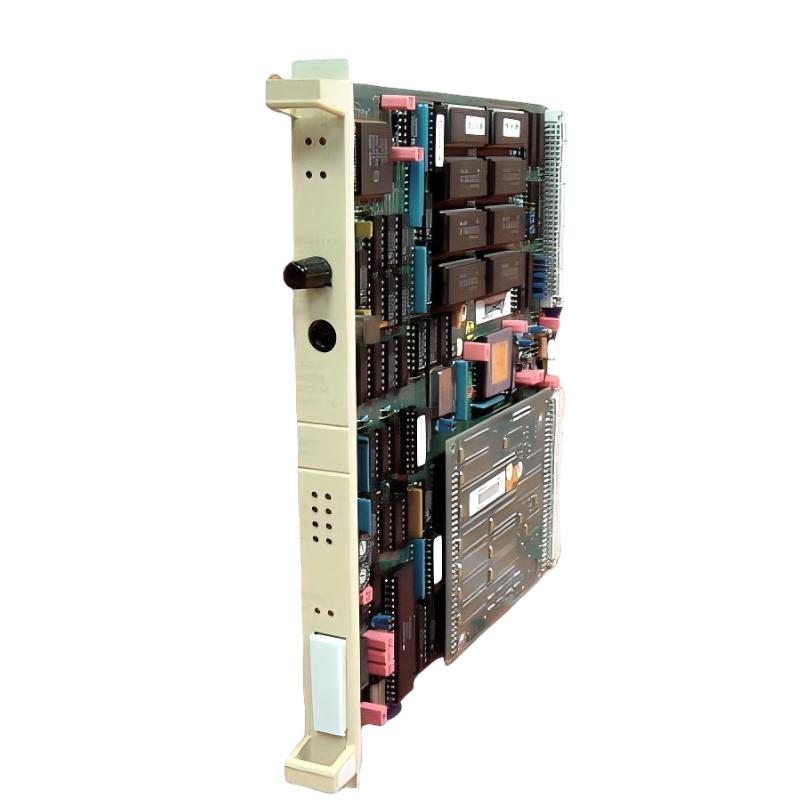

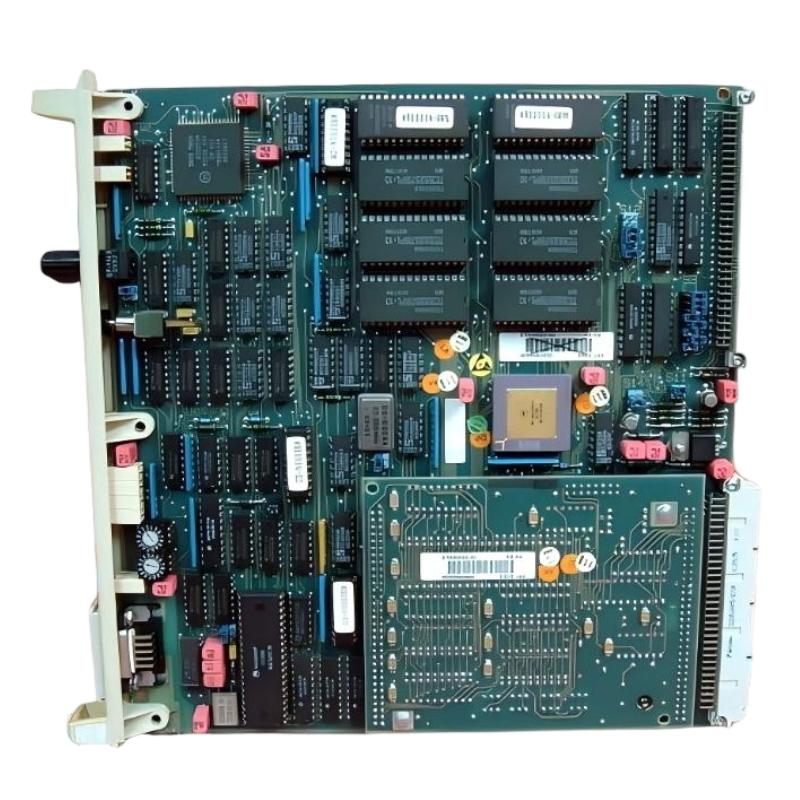

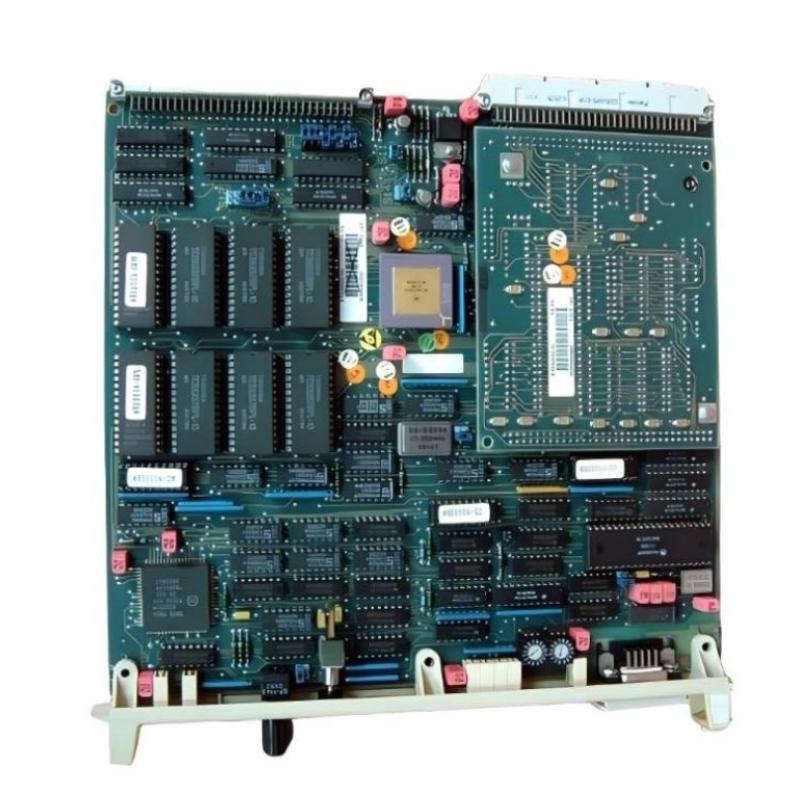

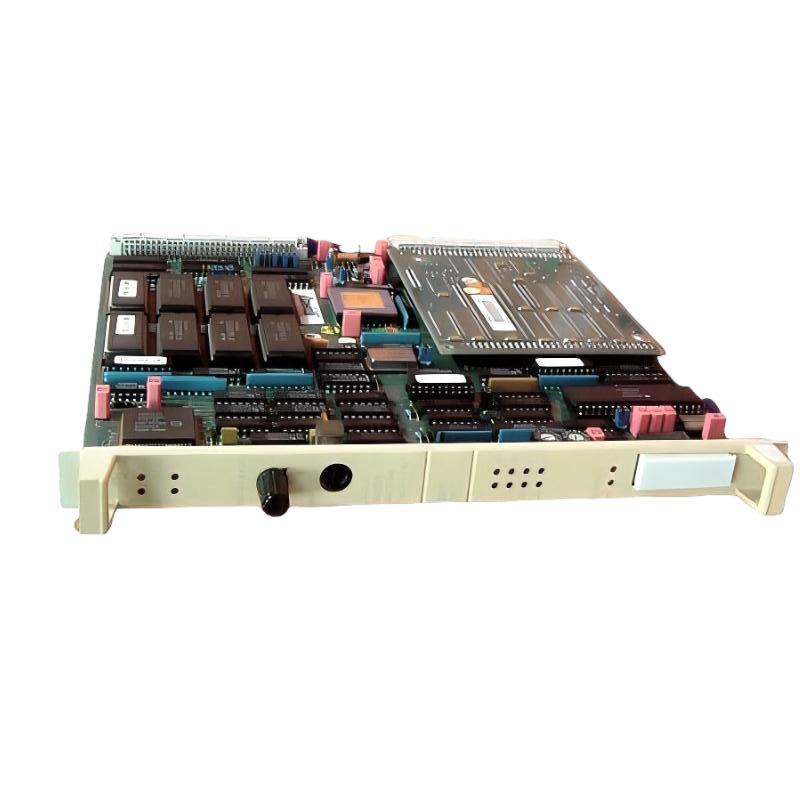

ABB DSCS 141 57520001-EL DS Communication Board

Overview

The ABB DSCS 141 is a high-performance DS communication board designed for industrial automation systems. It ensures reliable data transfer between controllers and field devices, supporting precise network communication and efficient signal processing in demanding control environments.

General Information

Part Number: 57520001-EL

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCS

Type: DS Communication Board / Interface Module

Mounting: Card installation within control cabinet

Technology: Industrial communication interface, real-time data processing, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the main control system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Ports: Supports industrial fieldbus and controller network connections

Board Role: Facilitates data exchange between controllers and peripheral devices

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset functions

I/O & Channels: Primarily signal routing; not designed to drive external loads

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 337.5 × 22.5 × 234 mm

Weight: 0.6 kg
