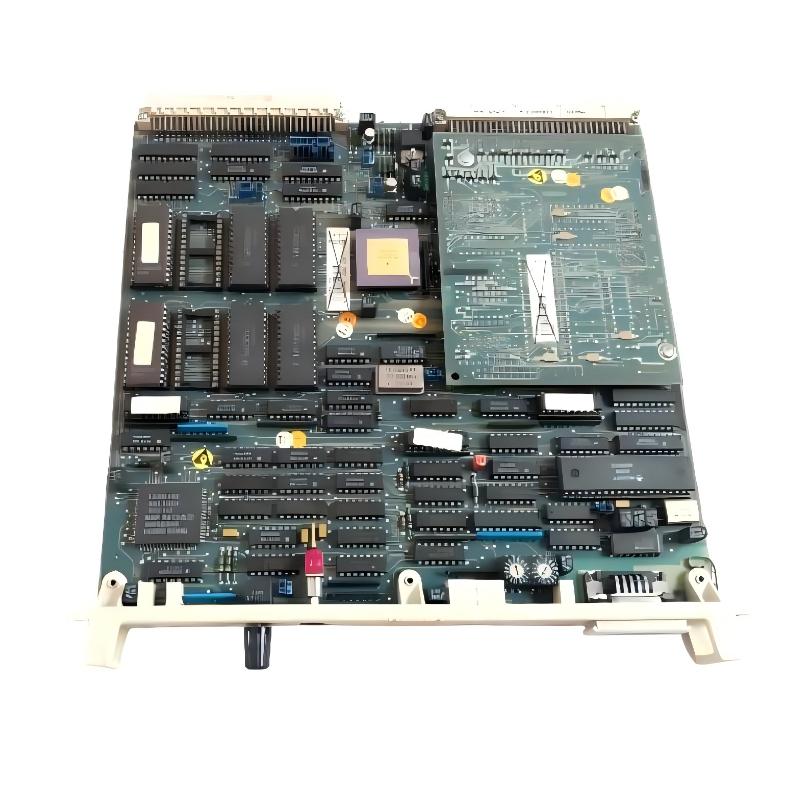

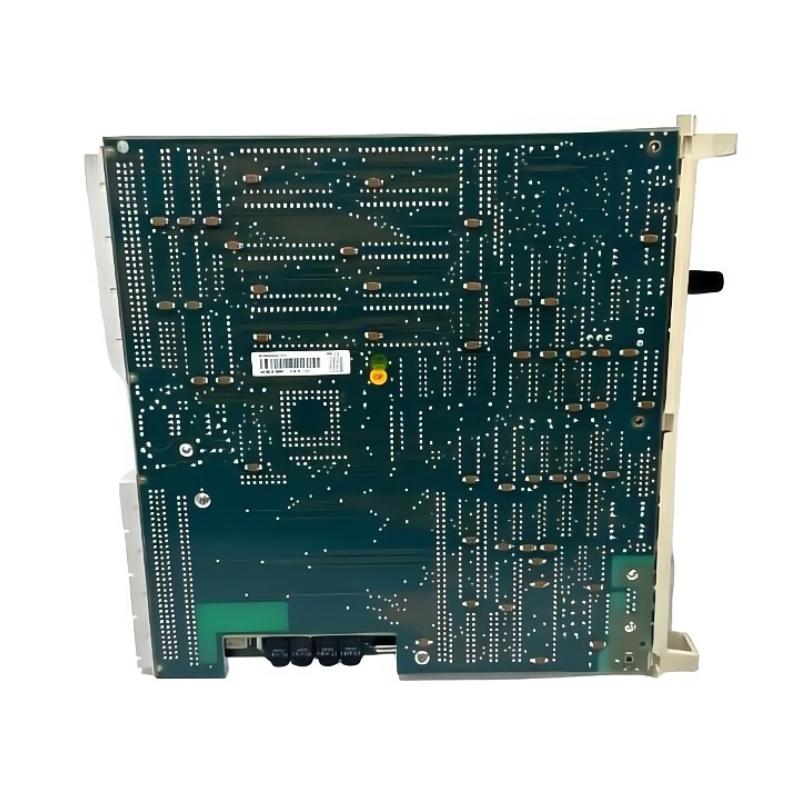

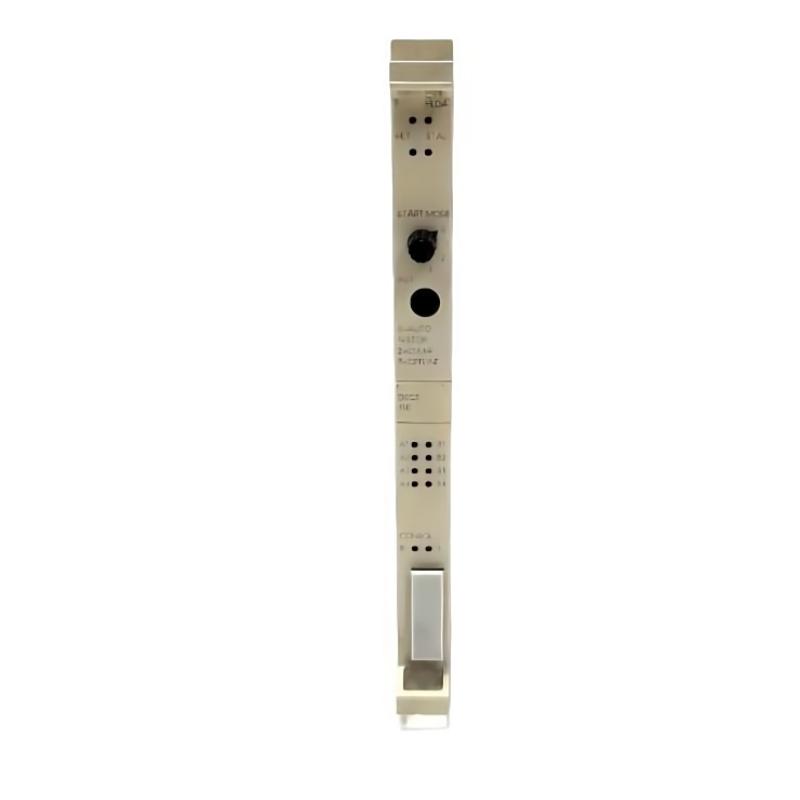

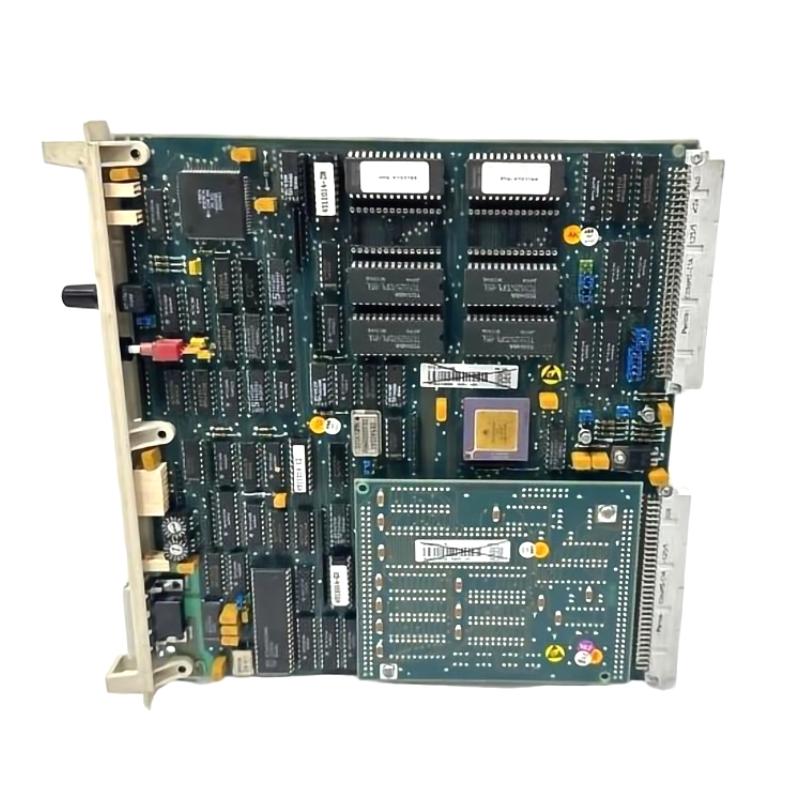

ABB DSCS 150 57520001-FY Communication Unit

Overview

The ABB DSCS 150 57520001-FY is a communication unit designed for ABB’s DSCS control systems. It provides reliable and high-speed data exchange between controllers and field devices, ensuring seamless connectivity and network integration. The module supports diagnostics and real-time status monitoring for efficient industrial automation.

General Information

Part Number: 57520001-FY

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSCS Communication Modules

Type: Communication Unit

Mounting: Rack or card installation within control cabinet

Technology: Protocol handling, network interface, and communication management

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, communication link, and fault

Communication & Interface

Bus Connection: DSCS backplane interface

Unit Role: Provides communication between controllers and field networks

Diagnostics: Link supervision, fault detection, and system status reporting

Operator Interface: LED indicators and configuration via ABB DSCS software

Reset Features: Supports local and remote reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Industrial-grade design for reliable operation

Dimensions & Weight

Dimensions (L × W × H): 337.5 × 22.5 × 234 mm

Weight: 0.585 kg
