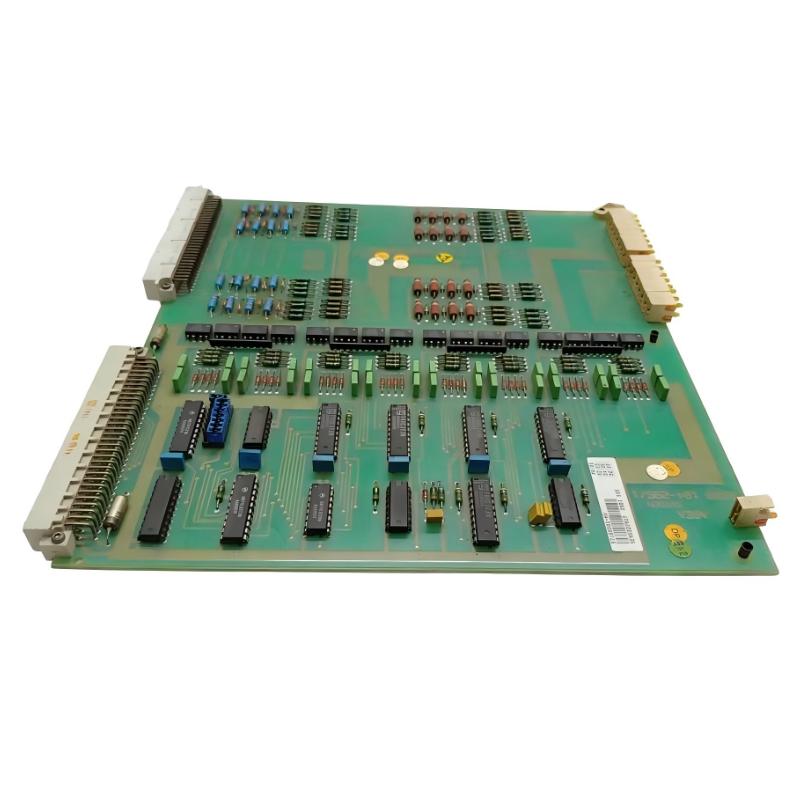

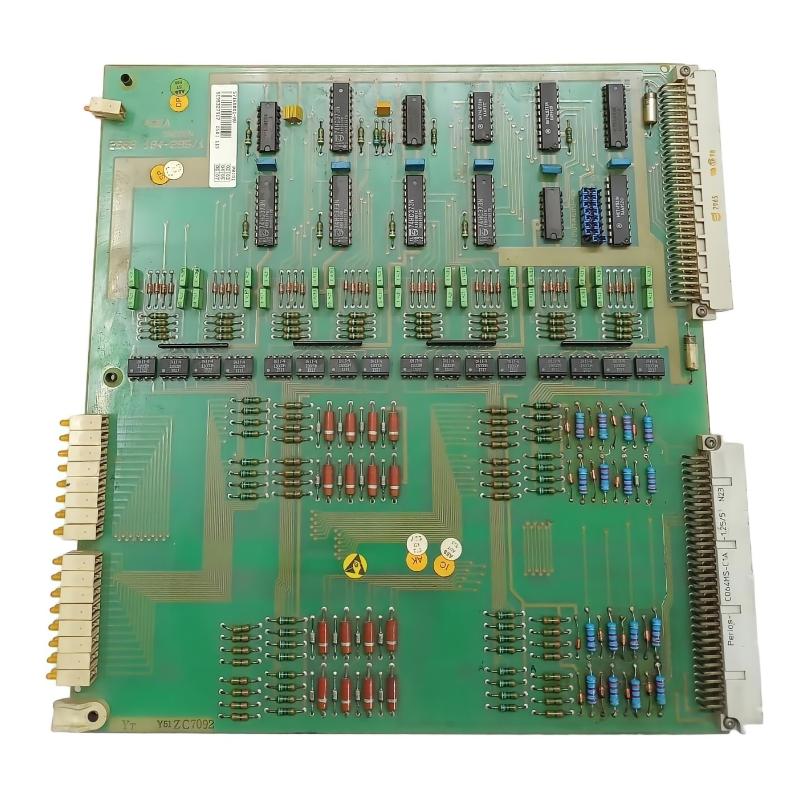

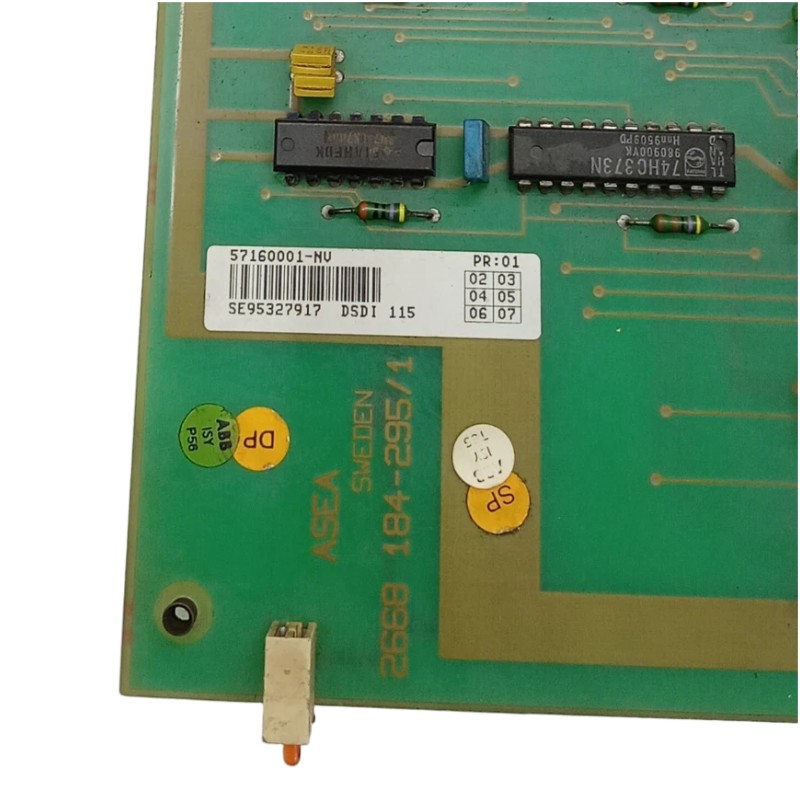

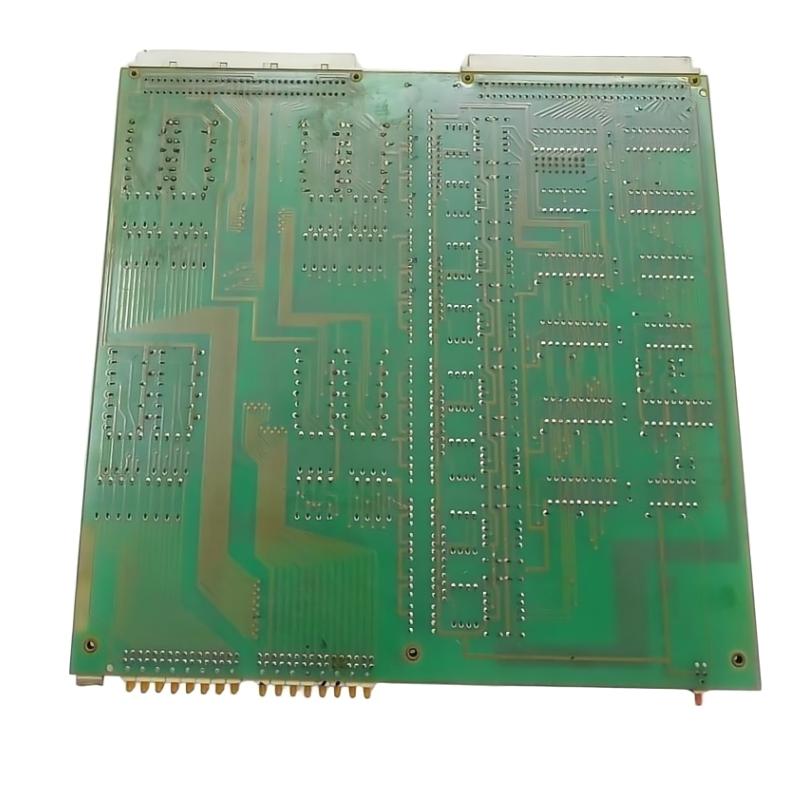

ABB DSDI 115 57160001-NV DS Digital Input Module

Overview

The ABB DSDI 115 57160001-NV is a high-performance digital input module designed for ABB’s DS automation systems. It delivers reliable monitoring of field devices and signals, ensuring secure and accurate data acquisition for industrial and safety-critical applications. The module integrates seamlessly with ABB controllers and communication units for real-time diagnostics.

General Information

Part Number: 57160001-NV

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS Digital I/O Modules

Type: Digital Input Module

Mounting: Rack or card installation within control cabinet

Technology: Safety-rated digital input module, compatible with industrial automation systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input Channels: Digital inputs per module specification

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for channel status, power, and communication

Communication & Interface

Bus Connection: DS system backplane interface

Module Role: Monitors input signals from field devices and transmits data to the controller

Diagnostics: Input channel monitoring, fault detection, and system status reporting

Operator Interface: LED indicators and configuration via ABB DS software

Reset Features: Supports local and remote reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 10–95% RH, non-condensing

Protection Rating: IP20

Vibration / Shock: Industrial-grade design for reliable operation

Dimensions & Weight

Dimensions (L × W × H): 324 × 22.5 × 234 mm

Weight: 0.4 kg
