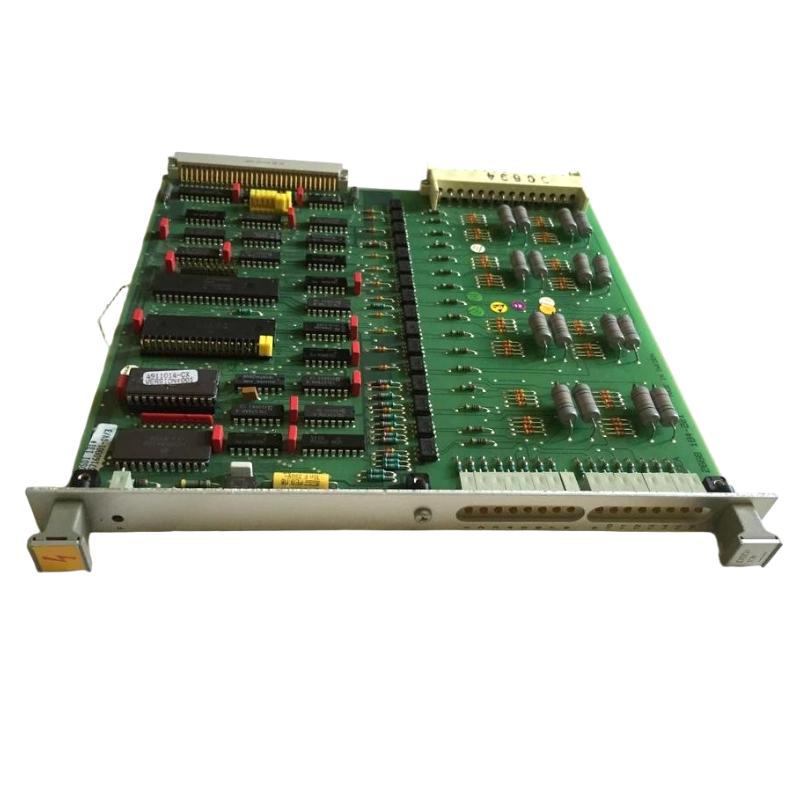

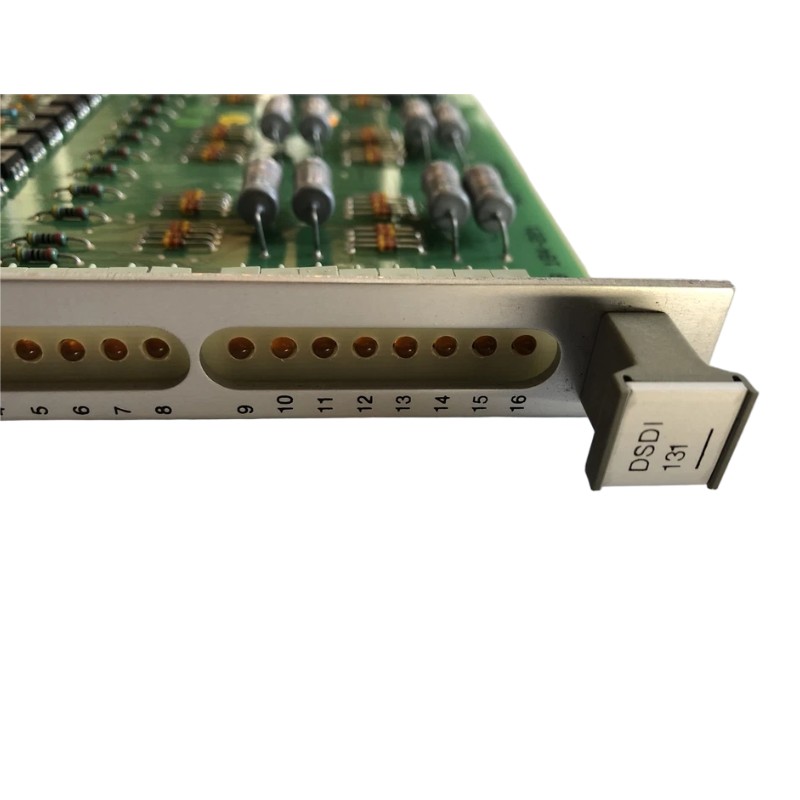

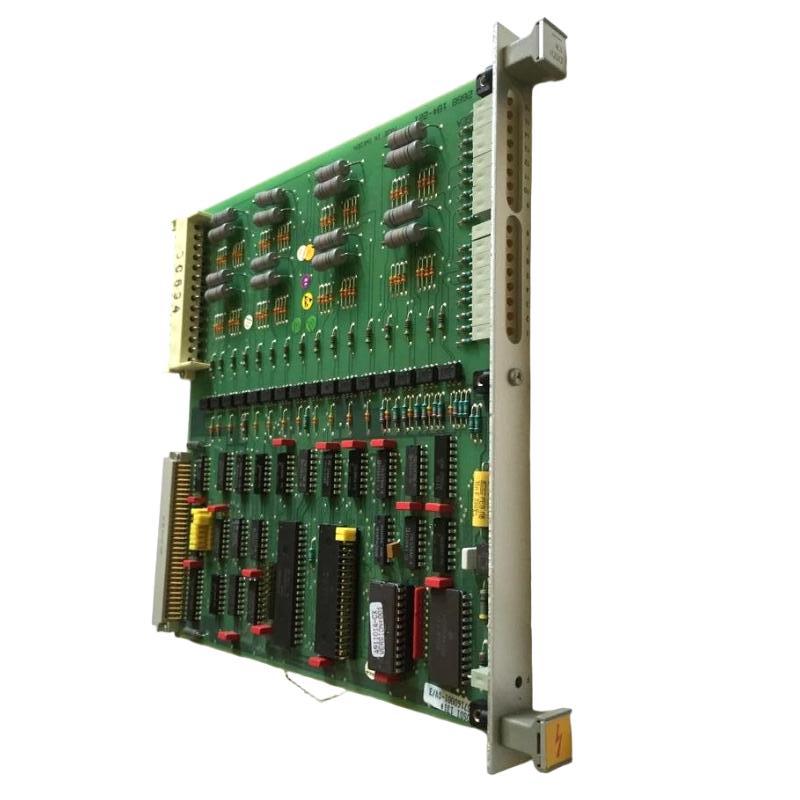

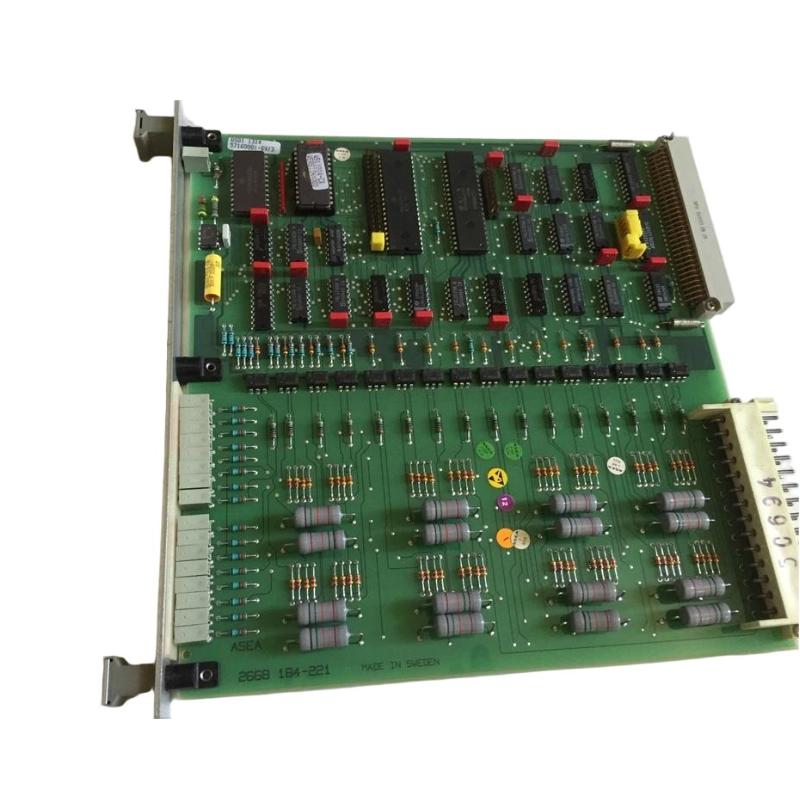

ABB DSDI 131 57160001-GV DS Digital Input Module

Overview

The ABB DSDI 131 is a digital input module designed for ABB DS (Distributed System) automation platforms. It provides reliable signal acquisition from field devices, enabling precise monitoring and control of industrial processes. The module ensures fast and secure data communication with the DS system controller.

General Information

Part Number: 57160001-GV

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS Digital I/O Modules

Type: Digital Input Module

Mounting: DIN rail or backplane mounting within DS system racks

Technology: High-speed digital signal acquisition, LED diagnostics, fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to ABB DS system backplane for signal transmission

Input Channels: Multiple digital inputs configurable for field devices

Diagnostics: Individual channel status monitoring, fault detection, and system integration alerts

Operator Interface: LED indicators for channel activity and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 350 × 10 × 265 mm

Weight: ~ 0.45 kg
