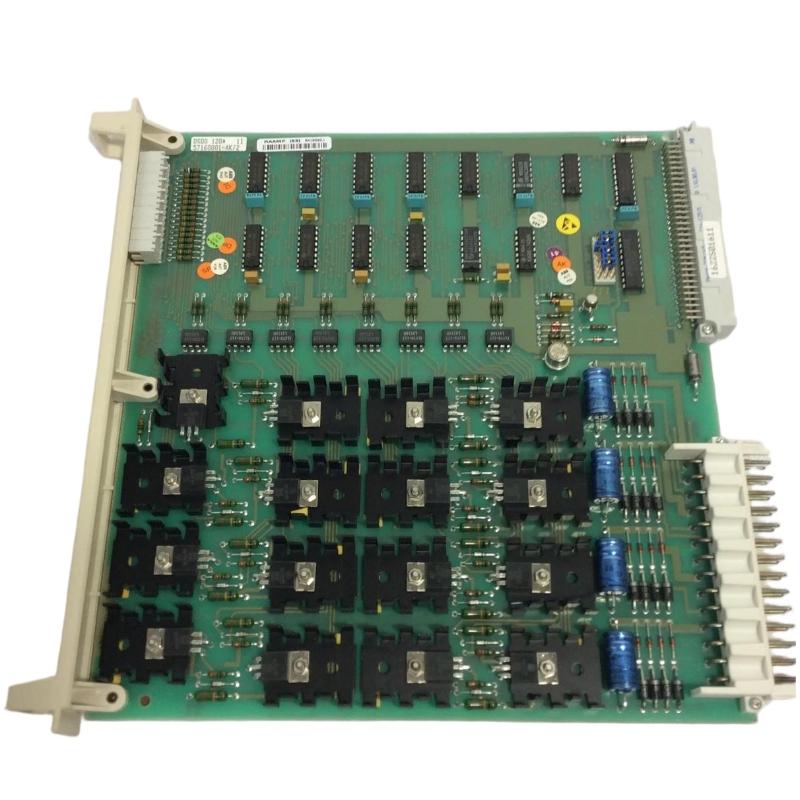

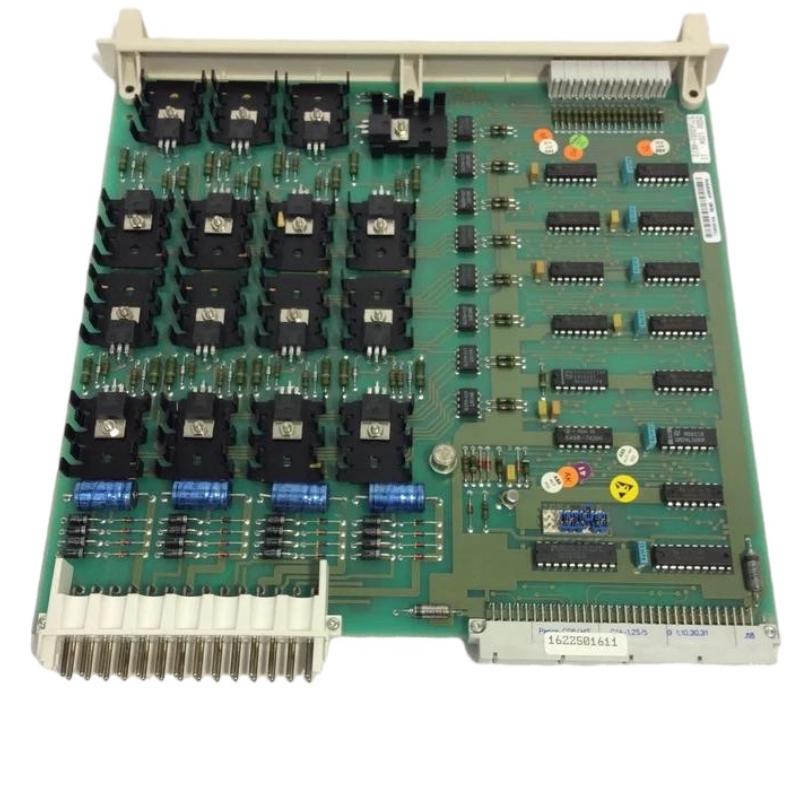

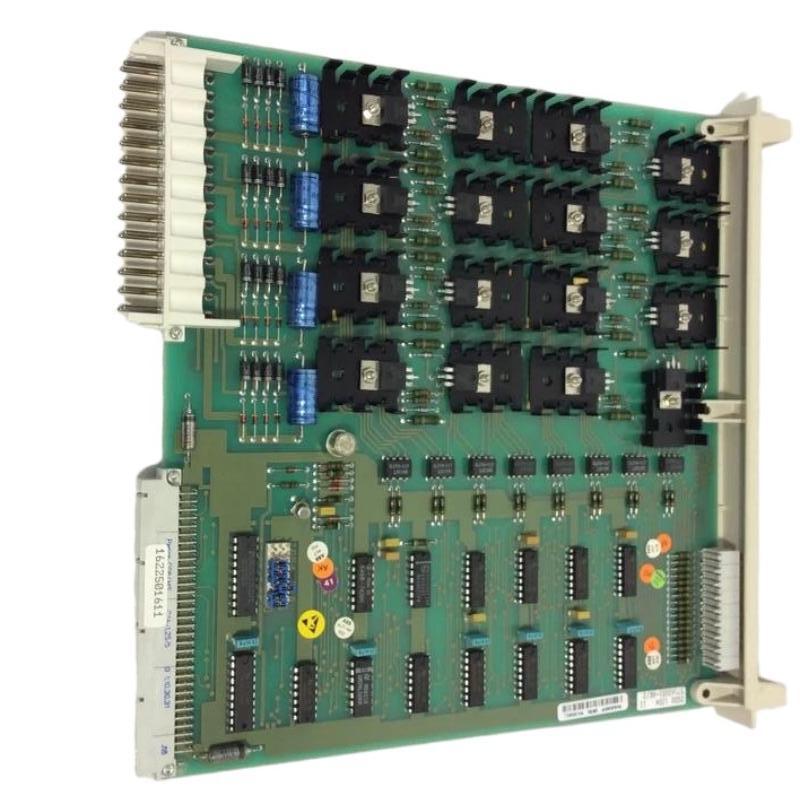

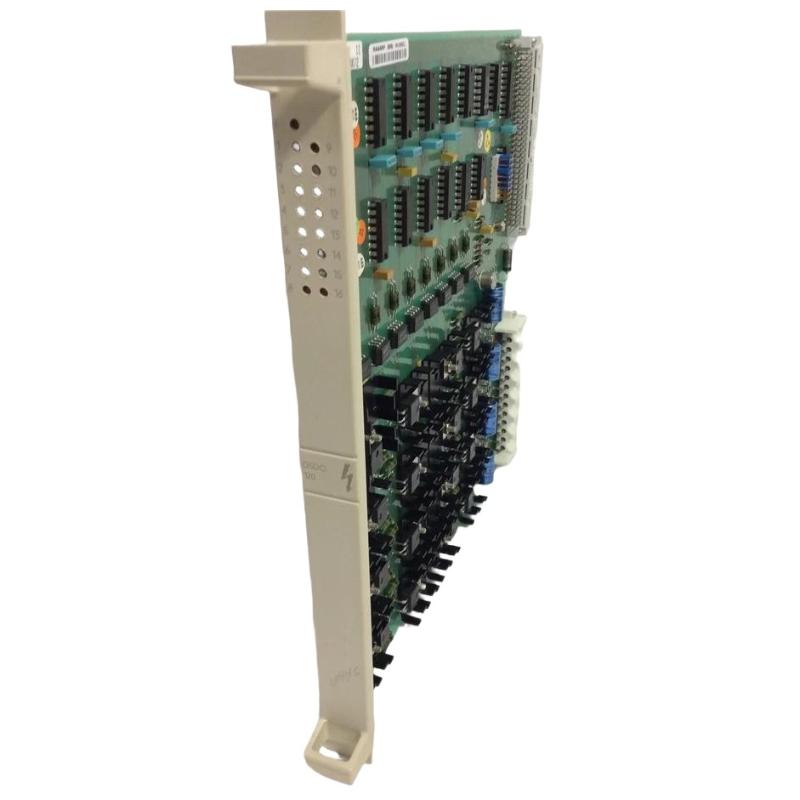

ABB DSDO 120 57160001-AK DS Digital Output Module

Overview

The ABB DSDO 120 is a digital output module for ABB DS (Distributed System) automation platforms. It provides secure and reliable output signals from the controller to field devices, enabling efficient operation of actuators, alarms, and other industrial equipment. The module ensures high-speed performance and system integration reliability.

General Information

Part Number: 57160001-AK

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS Digital I/O Modules

Type: Digital Output Module

Mounting: DIN rail or backplane mounting within DS system racks

Technology: High-speed digital output, LED diagnostics, fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to ABB DS system backplane for signal routing

Output Channels: Multiple digital outputs configurable for field devices

Diagnostics: Individual channel monitoring, fault detection, and system integration alerts

Operator Interface: LED indicators for channel activity and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 342 × 22.5 × 238.5 mm

Weight: ~ 0.46 kg
