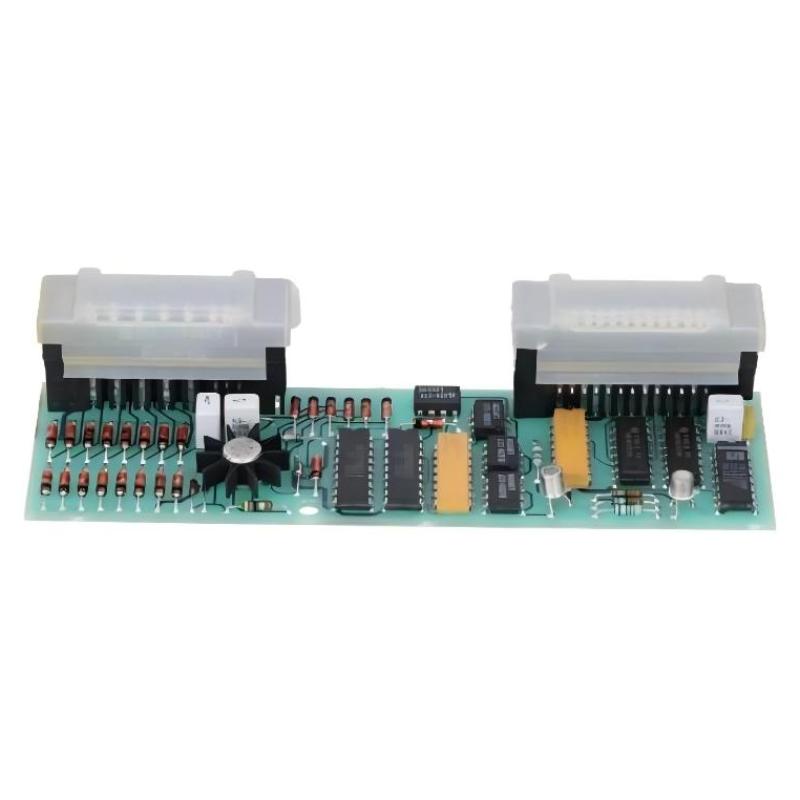

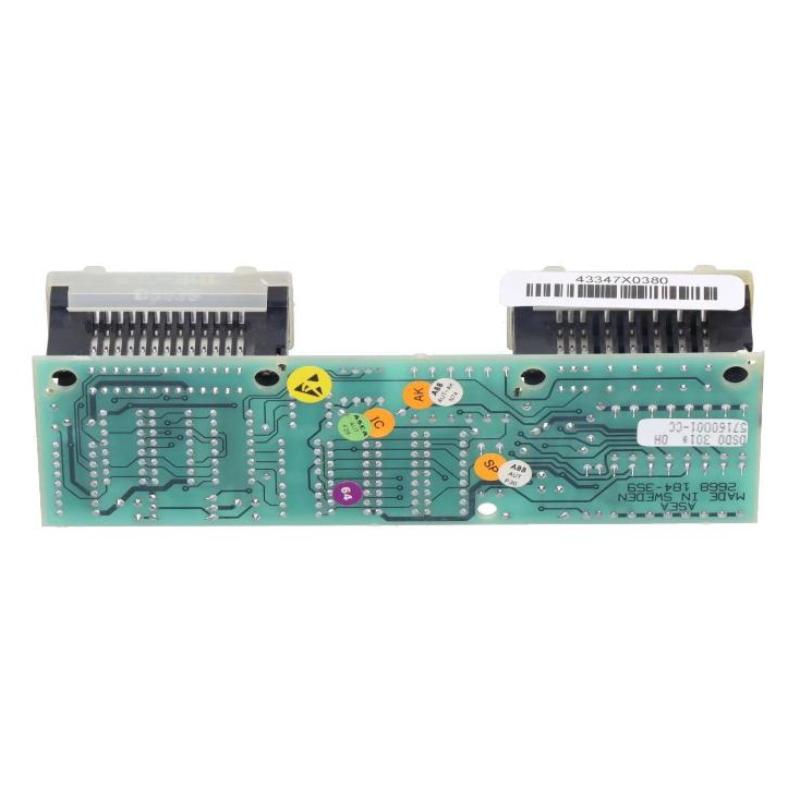

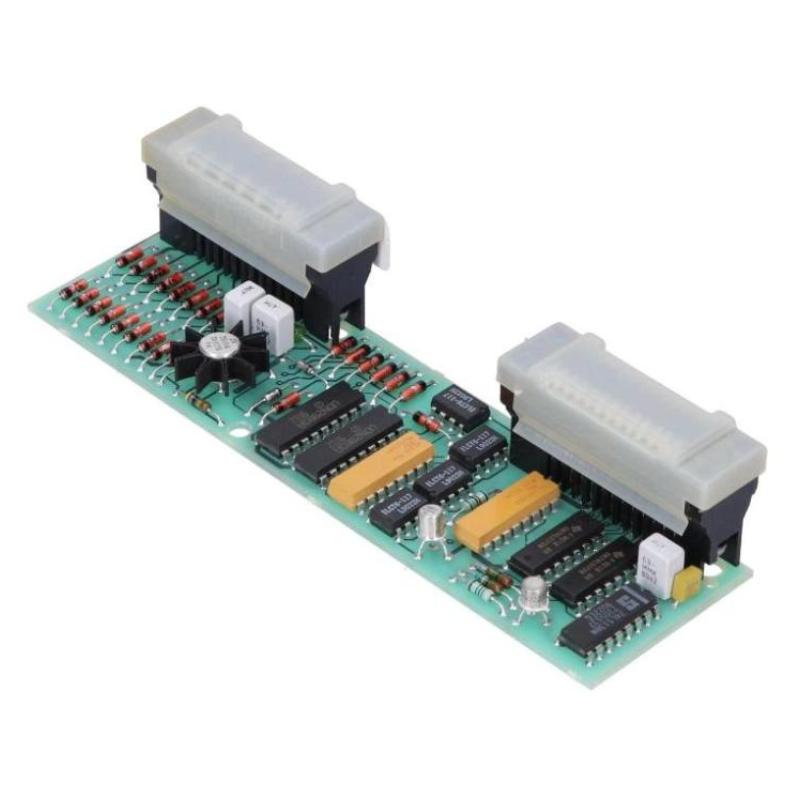

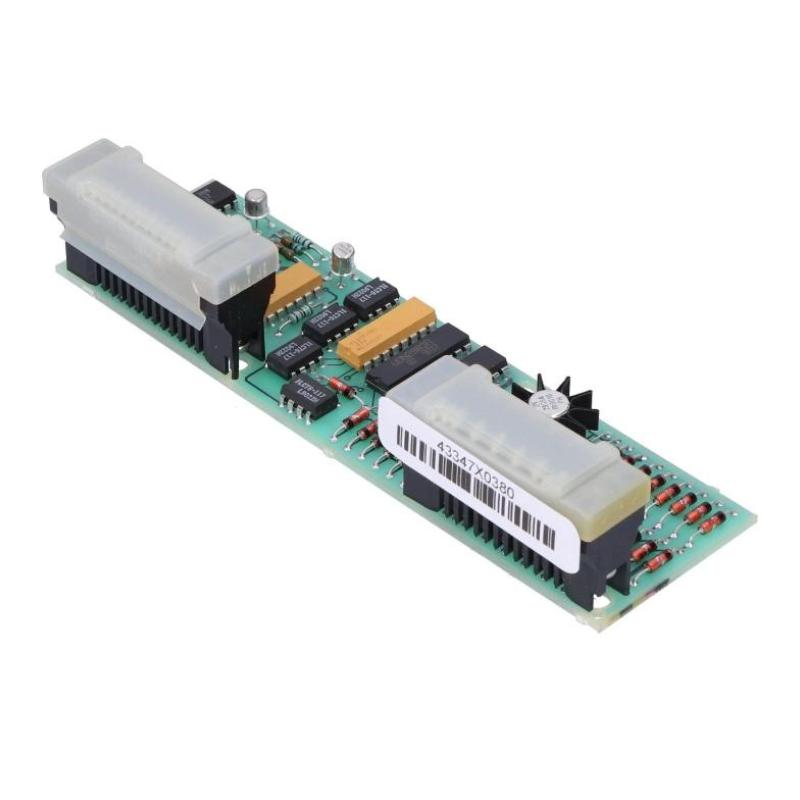

ABB DSDO 301 57160001-CC DS Digital Output Module

Overview

The ABB DSDO 301 is a compact digital output module for ABB DS (Distributed System) automation platforms. It provides reliable and precise signal output from the controller to field devices, supporting safe operation of actuators, alarms, and other industrial equipment. The module is designed for high-speed performance in space-constrained installations.

General Information

Part Number: 57160001-CC

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS Digital I/O Modules

Type: Digital Output Module

Mounting: DIN rail or backplane mounting within DS system racks

Technology: High-speed digital output, LED status indicators, fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, channel activity, and fault conditions

Communication & Interface

Bus Interface: Connects to ABB DS system backplane for signal routing

Output Channels: Multiple digital outputs configurable for field devices

Diagnostics: Individual channel monitoring, fault detection, and system integration alerts

Operator Interface: LED indicators for channel activity and module health

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 224 × 35 × 50 mm

Weight: ~ 0.1 kg
