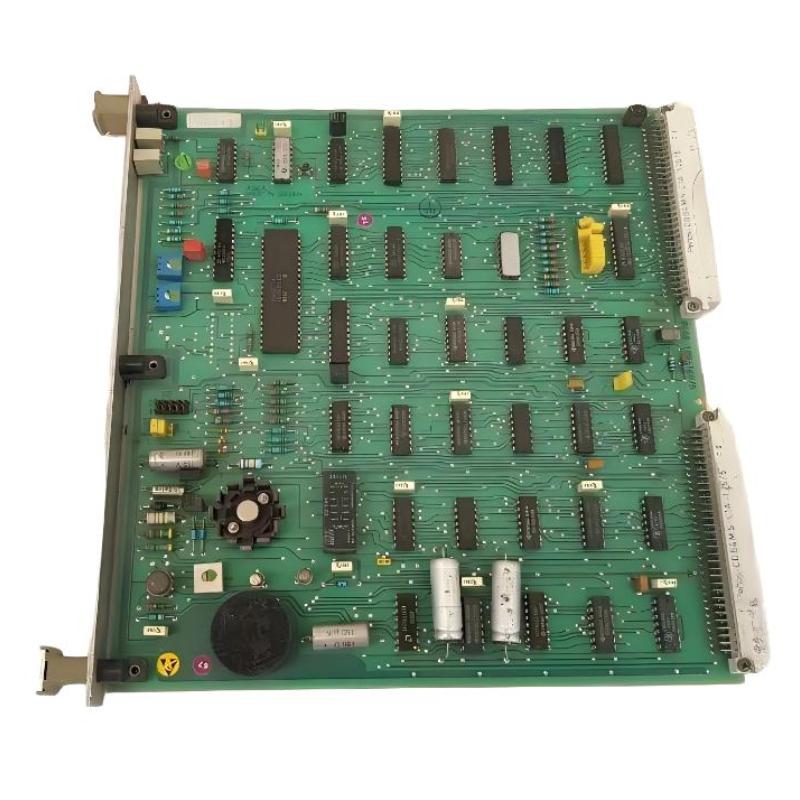

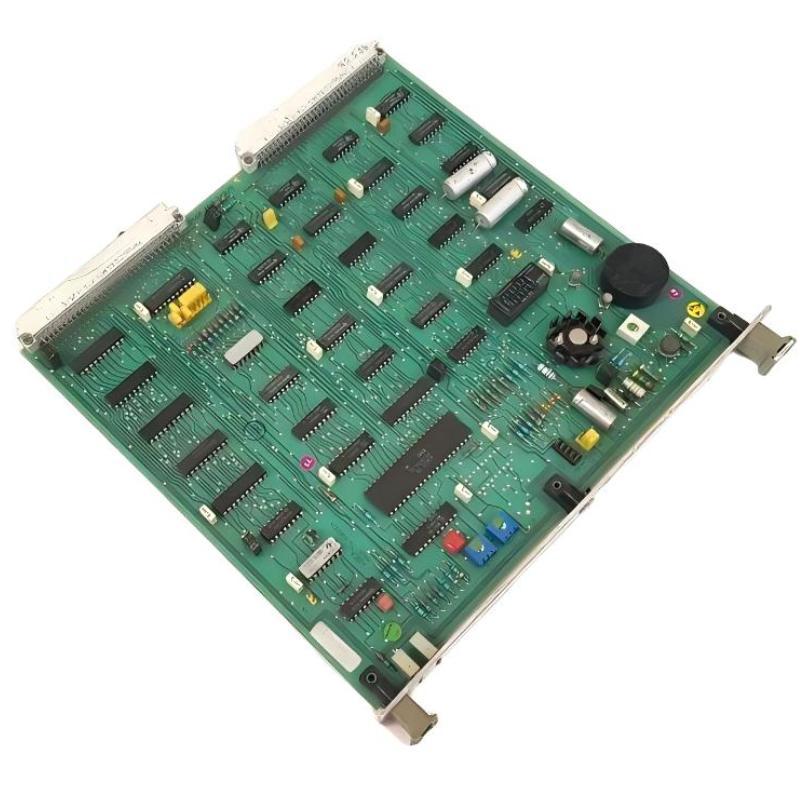

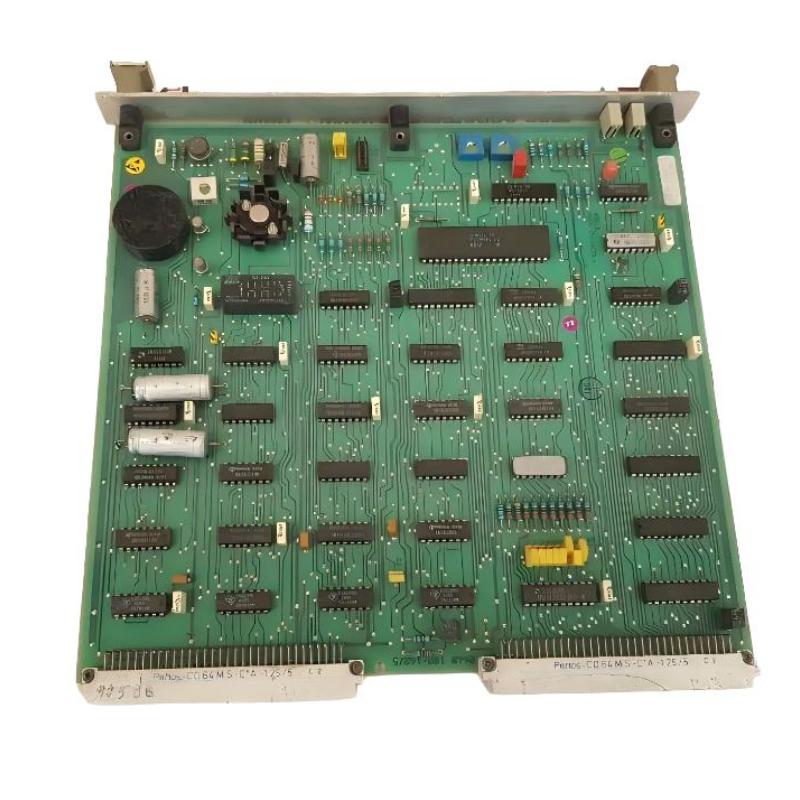

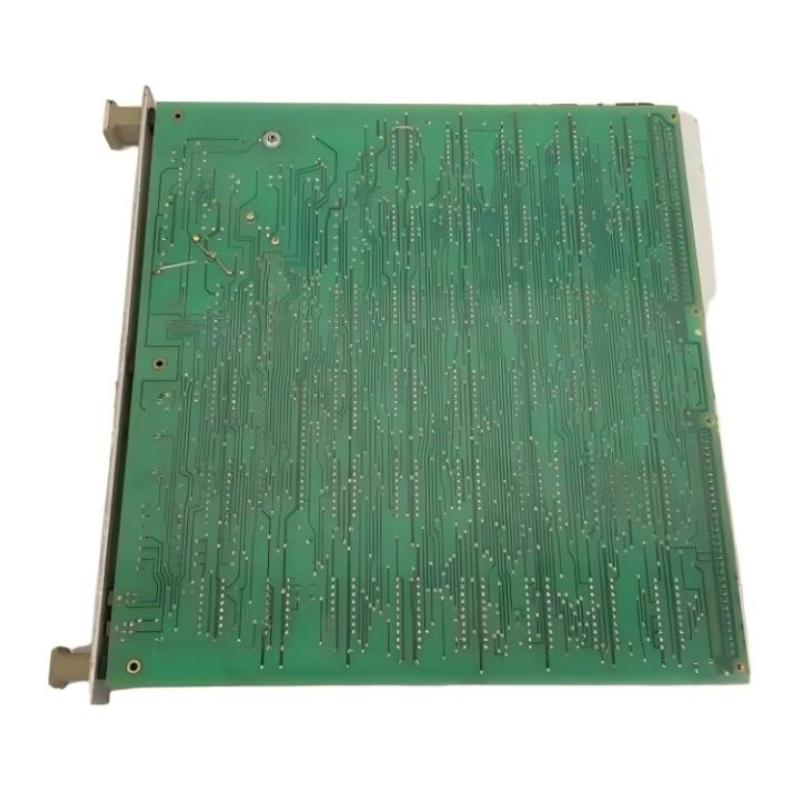

ABB DSMC 110 57330001-N Floppy Disk Interface Board

Overview

The ABB DSMC 110 is a floppy disk interface board designed for ABB’s DS system. It enables data transfer between the DS system and external floppy disk storage, allowing reliable archiving of system configurations, logs, and safety-critical data. The module ensures robust performance in industrial environments.

General Information

Part Number: 57330001-N

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS

Type: Floppy Disk Interface Board

Mounting: DIN rail or system rack installation

Technology: Interface circuitry for floppy disk data read/write with error detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: System power bus

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LED for power and data transfer status

Communication & Interface

Interface Type: Floppy disk data interface for DS system

Diagnostic Support: Status reporting and error detection during data transfer

Operator Interface: LED indicators for operational and transfer status

Reset Features: Supports manual or system-triggered reset

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (indoor industrial environment)

Dimensions & Weight

Dimensions (L × W × H): 240 × 20 × 250 mm

Weight: 0.426 kg
